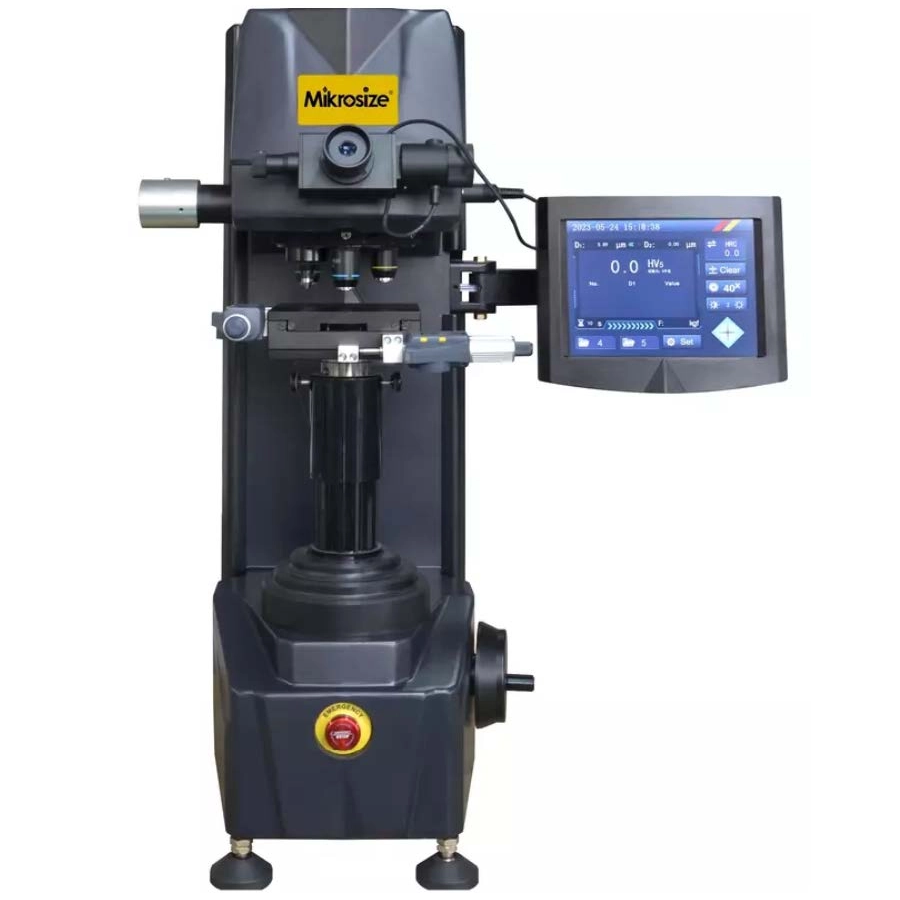

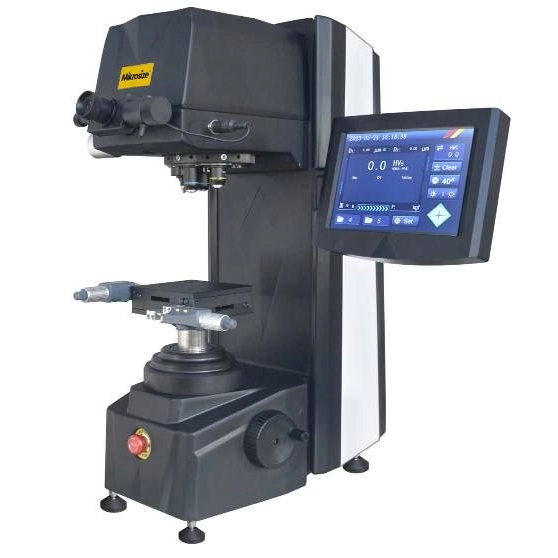

MVicky-10/50 Digital Touch Screen Macro Vickers Hardness Tester

Product Feature:

MVicky-5/10 Digital Macro Vickers hardness tester adopts aluminum alloy die-casting process, and the shell is firm and stable, novel and beautiful. It adopts load cell control system, and through the motor direct drive vertical loading test force, the precision is higher and more stable. Faster turret speed ensures high test efficiency. With special material lifting shaft and ball screw structure, it makes the lifting more stable. It adopts 8 inch high resolution color touch screen which is visual and clear, easy to operate. With digital measuring eyepiece, no need for checking the table or inputting the diagonal of the indentation, it can directly show the test force, indentation length, dwell time, conversion scale, and time. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and shows on the screen. Test results can be saved in real time with automatic calculation of maximum, minimum and average value, the data can be arbitrary deleted and printed out, and with RS232 interface for connecting to the computer. It can be equipped with CCD image automatic measuring system.

Product Application:

Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.

Availability:

Quantity:



Inquire Add to Basket

Model:
MVicky-10/50
Brand:
Mikrosize

Product Description

Product Description

Technical Specification：

Model		MVicky-10	MVicky-50
Test Force	kgf	0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf	0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf, 50kgf
	N	2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N	4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N, 490N
Test Mode		HV/HK
Test Range		1HV~2967HV
Hardness Resolution		0.1HV
Loading Method		Automatic (Loading/Dwell/Unloading)
Turret		Automatic Shifting
Data Output		RS232 Interface

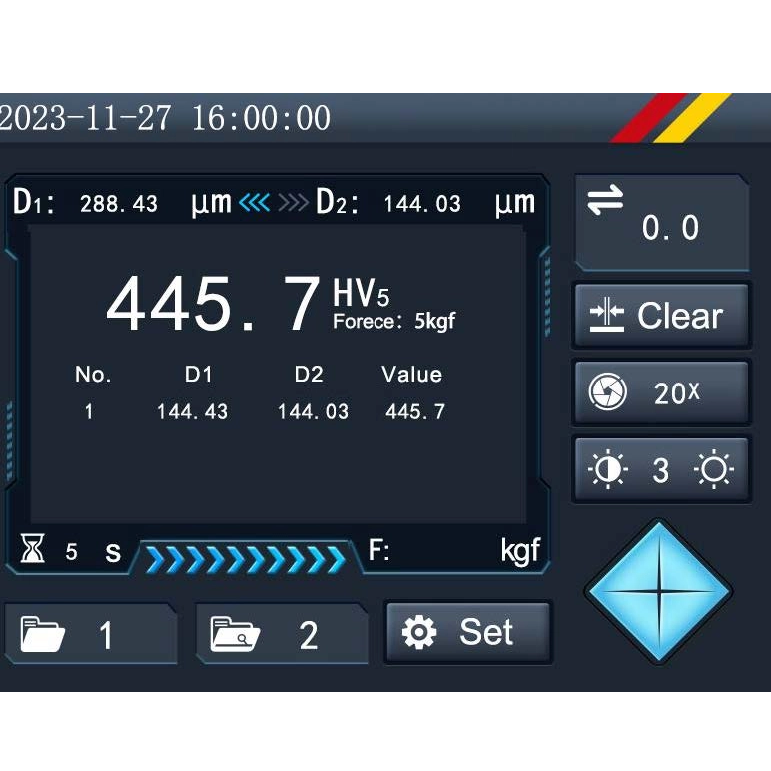

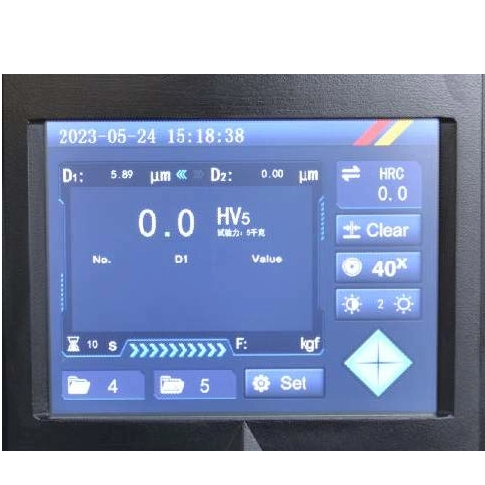

Hardness Reading		8 inch Color Touch Screen, Data can be saved
Conversion Scale		HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW
Eyepiece		10× Digital Measuring Eyepiece

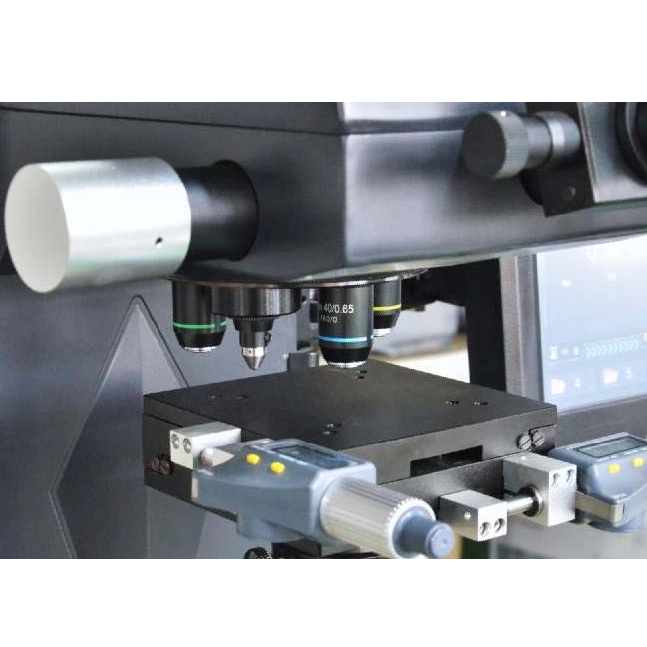

Objective		10×，20×，40×
Total Magnification		100×，200×，400×
Effective Field of View		10×：800μm，20×：400μm，40×：200μm
Min. Measuring Unit		10×：0.25μm，20×：0.13μm，40×：0.06μm
Dwell Time		0~60s
Light Source		LED
Digital X-Y Test Table		Size: 120×120mm; Travel: 25×25mm; Resolution: 0.001mm
Max. Sample Height		175mm
Throat Depth		140mm
Power Supply		AC220V，50Hz
Execute Standard		ISO 6507，ASTM E92，JIS Z2244，GB/T 4340.2
Dimension		495×575×670mm， Packing Dimension: 650×380×960mm
Weight		Net Weight: 35kg，Gross Weight: 55kg

Packing List:

Name	Qty	Name	Qty
Instrument Main Body	1 set	10× Digital Measuring Eyepiece	1 pc
Diamond Vickers Indenter	1 pc	Objective	3 pcs
Digital X-Y Test Table	1 pc	Φ40mm V-shaped Anvil	1 pc
Hardness Block 400~500 HV5	1 pc	Hardness Block 700~800 HV10	1 pc
Horizontal Regulating Screw	4 pcs	Level	1 pc
Inner Hexagon Spanner 2.5mm	1 pc	Screw Driver	1 pc
Fuse 1A	2 pcs	Power Cable	1 pc
Anti-dust Cover	1 pc	Usage Instruction Manual	1 copy
