Product Feature：

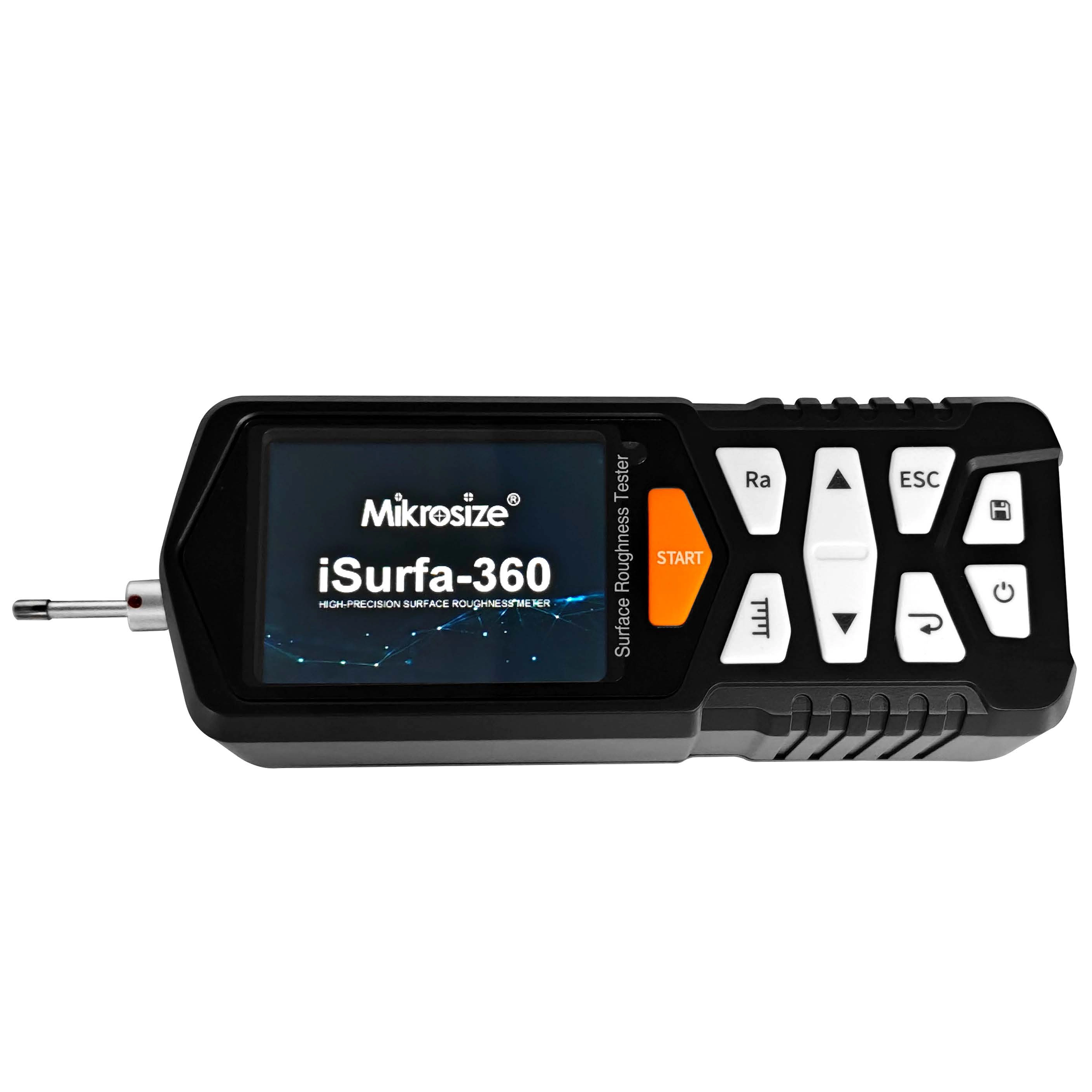

lPortability and environmental adaptability are strong: The handheld design is small in size (141×55×40mm) and weighs approximately 400g. It is suitable for various scenari- os such as workshops and laboratories, and can operate stably in an environment ranging from -20℃ to 40℃.
lExcellent measurement performance: 160 μm large range, maximum resolution of Z-axis 0.001 μm, indication error ±(5 nm + 0.1 A), indication variation ≤ 3%, reliable accuracy;
lWide compatibility with parameters and standards: Includes basic parameters such as Ra and Rz, as well as advanced parameters like RPc and Rk. Compatible with multiple na- tional standards including ISO, ANSI, DIN, and JIS, meeting diverse measurement requirements.

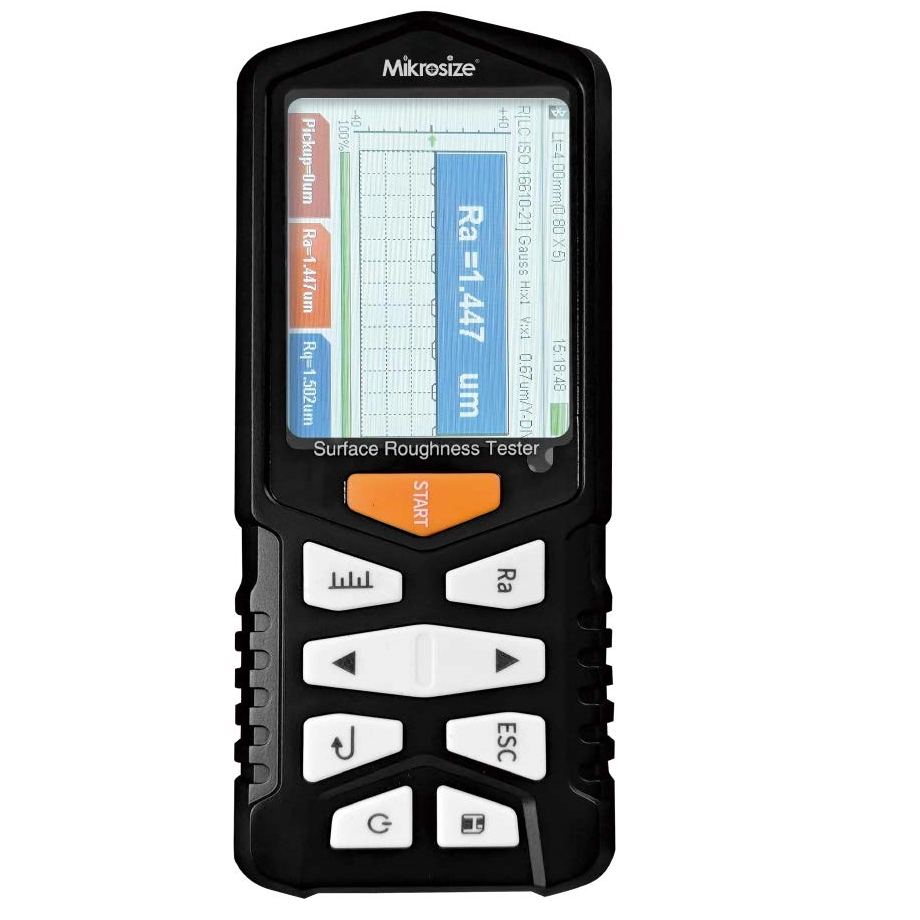

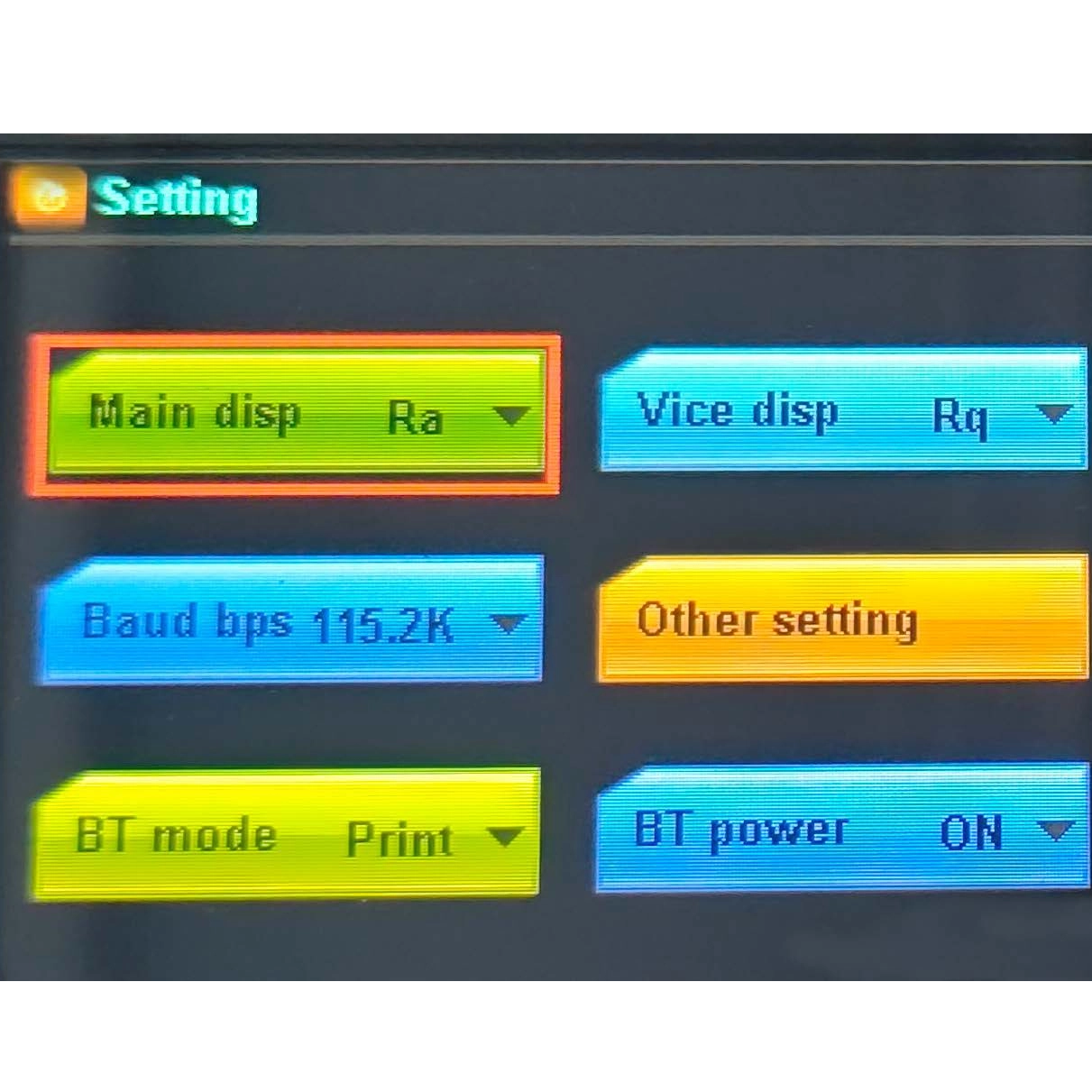

lEasy operation and display: 128×64 OLED screen shows all parameters and graphics. The key definitions are clear. It supports switching between Chinese and English. It can au- tomatically enter sleep mode and shut down for power saving.

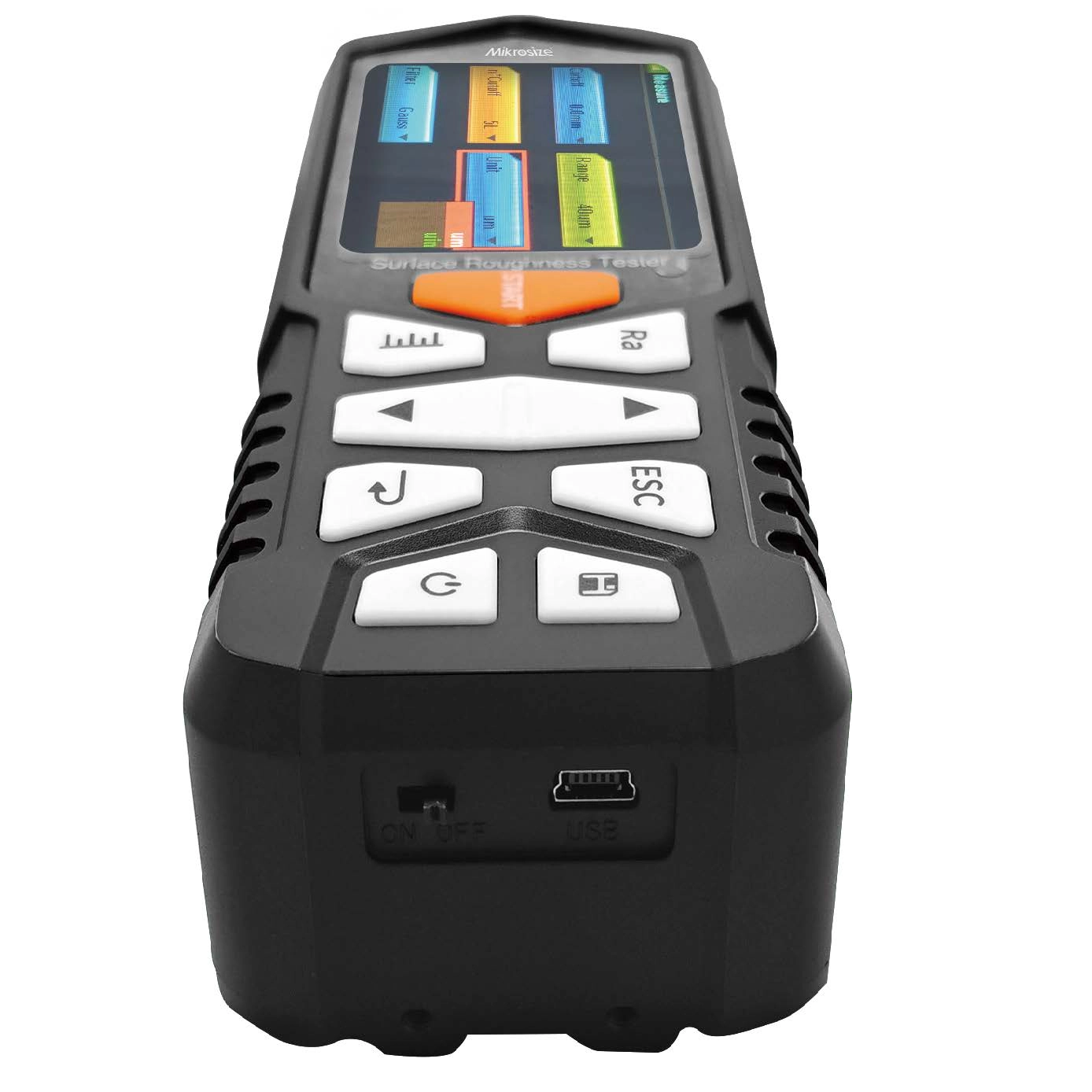

lLong battery life and storage capacity are excellent: The built-in lithium battery can provide up to 20 hours of power, supports USB charging, and can store 100 sets of raw data and waveforms, with real-time clock recording.
lExtensive functionality and durability: The all-metal housing is sturdy and can be connected to computers / printers. Op- tional curved surfaces, small holes, and other specialized sensors and measurement platforms are available, making it suitable for complex measurement scenarios.
Product Application：
lRoutine testing in workshops and laboratories: Applicable to workshop calibration stations and laboratories, used to measure the surface roughness of various machined parts;
lSpecial surface measurement: Equipped with sensors for curved surfaces, small holes, and deep grooves, to measure the roughness of special surfaces such as curved surfaces,small holes, and deep grooves.
lOn-site mobile detection: The handheld design is portable and suitable for the production site environment, meeting the requirements for mobile measurement.
lHigh-precision measurement in the measurement room: With small indication error and low variability, it enables high-precision roughness detection in the measurement room.
lPC machine data in-depth analysis: Using dedicated software for PC machines, upload data, analyze waveforms and process measurement information;
lReal-time output of on-site results: The printer can print all or specific parameters, enabling quick acquisition and recording of measurement results.
| Quantity: | |
|---|---|
Product Description
Technical Specification：
Name | Specification | |
Measure range | Z-axis (Vertical) | 160μm |
X-axis (Horizontal) | 17.5mm | |
Resolution ratio | Z-axis (Vertical) | 0.01μm/±20μm |
0.02μm/±40μm | ||
0.04μm/±80μm | ||
Measure project | Parameter | Ra Rz==Ry(JIS) Rq Rt==Rmax Rp Rv R3z R3y Rz(JIS) Rs Rsk Rku Rsm Rmr RPc、Rk、Rpk、Rvk、Mr1、Mr2 |
Standard | ISO 4287 international standard; ANSI B46.1 American standard; DIN 4768 German standard; JIS B601 Japanese standard | |

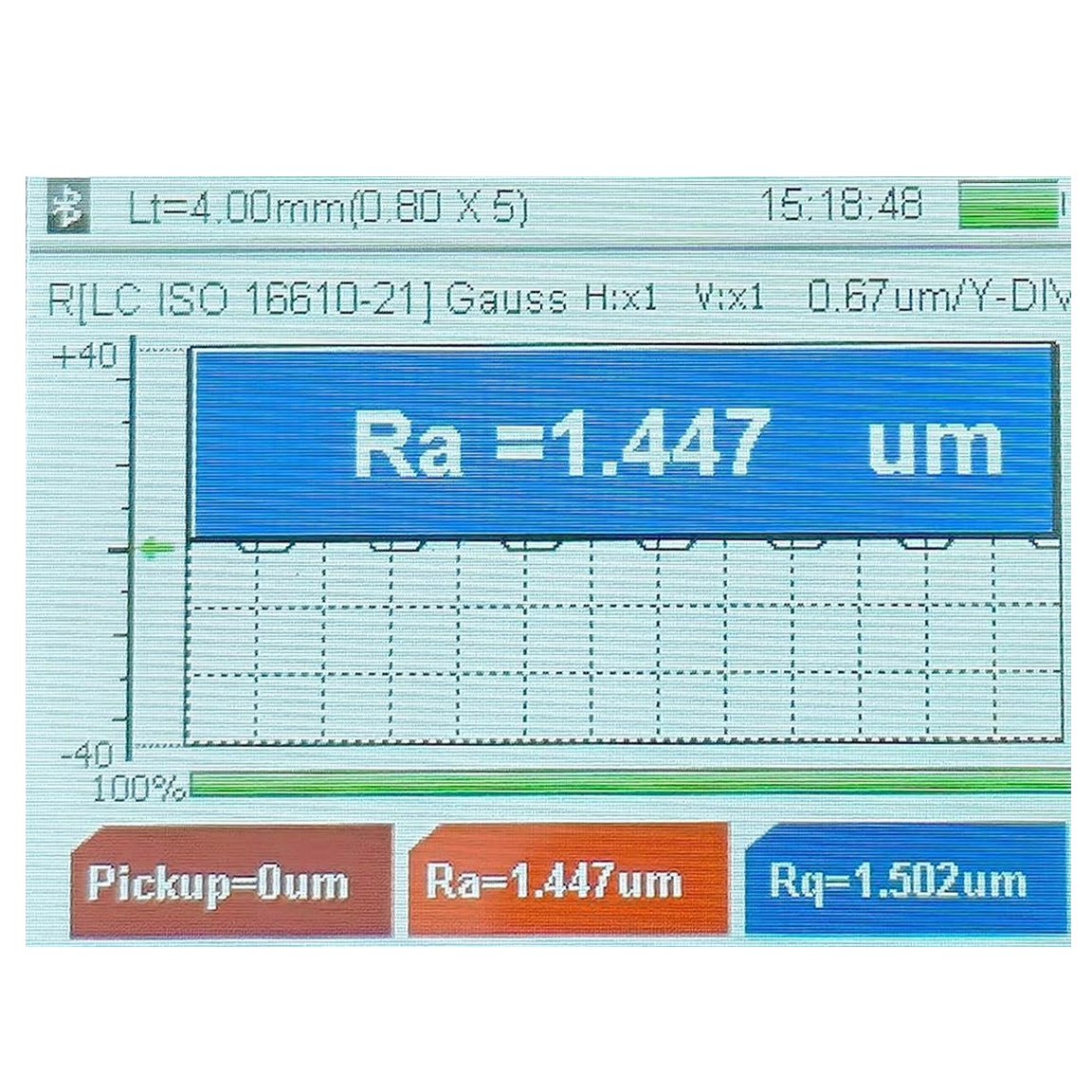

Graphical | Supporting rate curve, roughness, original contour, filtering waveform | |
Filter | RC,PC-RC,Gauss,D-P | |
Sampling length(lr) | 0.25,0.8,2.5mm | |
Evaluation length（ln） | Ln= lr×n n=1~5 | |
Sensor | Measuring principle | Displacement-type differential inductor |
Contact Pin | Natural diamond, with a 90-degree cone angle and a 5-micron tip radius | |
Force Measurement | <4mN | |
Guide head | Hard alloy, sliding direction radius 40mm | |
Sliding Speed | lr=0.25, Vt=0.135mm/s | |
lr=0.8, Vt=0. 5mm/s | ||
lr=2. 5, Vt=1mm/s | ||
Return, Vt=1mm/s | ||
| Indication Accuracy | 0.001um | |
| Indication error | ±(5nm + 0.1A) A: Standard value of Ra for multi-line template parameters | |
| Indication Variation | No more than 3% | |
Remainder Of The Outline | No more than 0.010 micrometers | |
Power Supply | Built-in lithium-ion rechargeable battery, charged by a DC5V, 800mA charger | |
Dimensions Of The Shape | 141×55×40mm | |
Weight | About 400 grams | |
| Work Environment | Temperature: -20℃ ~ 40℃ Humidity: < 90% RH | |
| Storage And Transportation Environment | Temperature: -40℃ ~ 60℃ Humidity: < 90% RH | |
| Optional Accessories | Surface sensor, small hole sensor, deep groove sensor, extension rod, adapter rod, micro printer, 200mm measurement platform, 300mm marble measurement platform | |
Standard Delivery：
Name | Qty |
Roughness Measuring Instrument Main Unit | 1pc |
Roughness Sensor | 1pc |
Height-Adjustable Support Bracket | 1pc |
Sensor Protective Cover | 1pc |

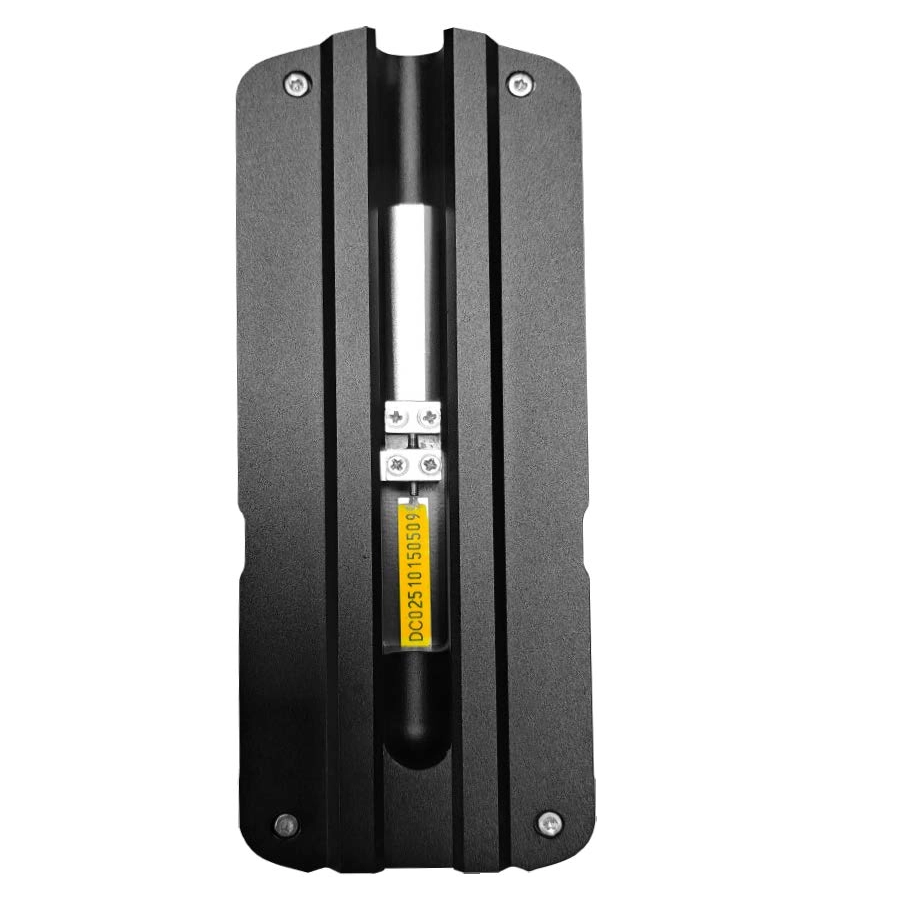

Calibration Test Block | 1pc |
Test Block Support | 1pc |
Charger | 1pc |
Usb Charging Cable | 1pc |
Screwdriver | 1pc |
User Manual | 1pc |
Certificate Of Conformity | 1pc |
Warranty Card | 1pc |
Instrument Box | 1pc |
Optional Delivery：
Optional Delivery | Thermal printer |
Surface sensor | |
Deep groove sensor | |
Small hole sensor |
Recommended Table of Sampling Lengths：
Ra(μm) | Rz(μm) | Sampling Length λc(mm) |
>5~10 | >20~40 | 2.5 |
>2.5~5 | >10~20 | |
>1.25~2.5 | >6.3~10 | 0.8 |
>0.63~1.25 | >3.2~6.3 | |
>0.32~0.63 | >1.6~3.2 | |
>0.25~0.32 | >1.25~1.6 | 0.25 |
>0.20~0.25 | >1.0~1.25 | |
>0.16~0.20 | >0.8~1.0 | |
>0.125~0.16 | >0.63~0.8 | |
>0.1~0.125 | >0.5~0.63 | |
>0.08~0.1 | >0.4~0.5 | |
>0.063~0.08 | >0.32~0.4 | |
>0.05~0.063 | >0.25~0.32 | |
>0.04~0.05 | >0.2~0.25 | |
>0.032~0.04 | >0.16~0.2 | |
>0.025~0.032 | >0.125~0.16 | |
>0.02~0.025 | >0.1~0.125 |
