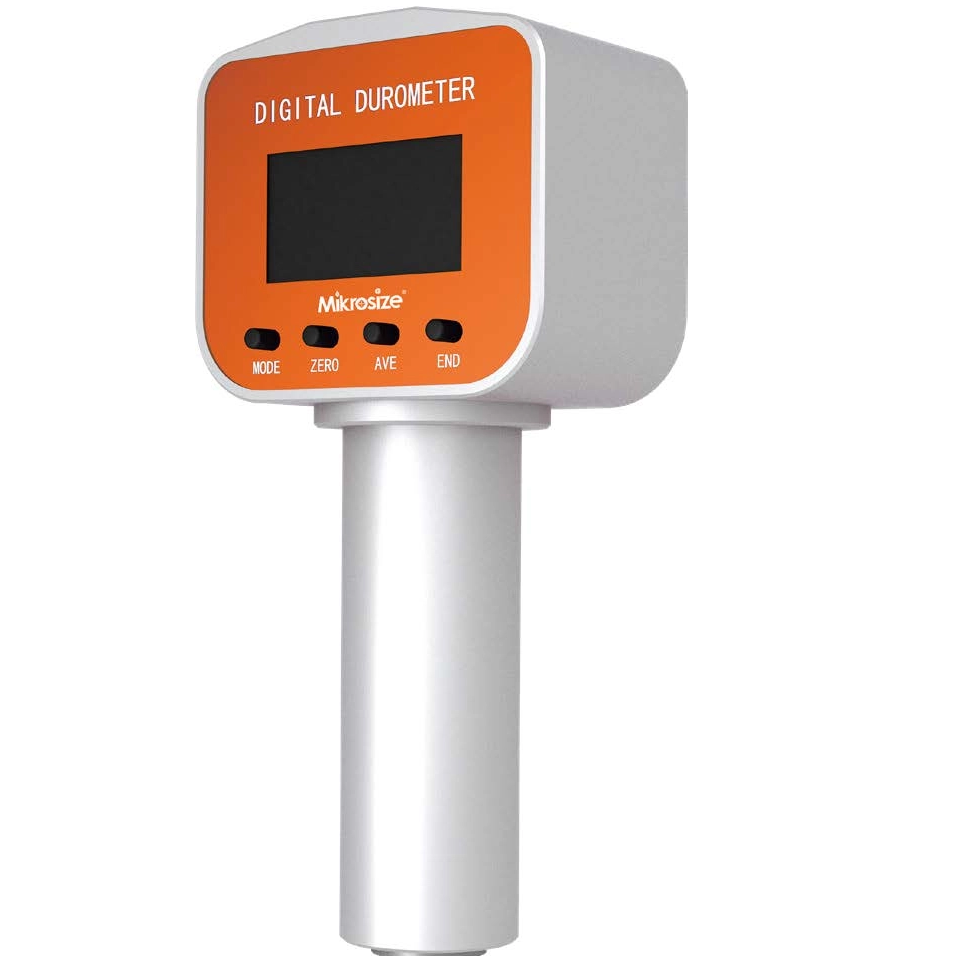

iShore-75 Shore Durometer

Product Features：
lComplies with the positive and negative force requirements of GB/T 38119 and ISO 48-9.

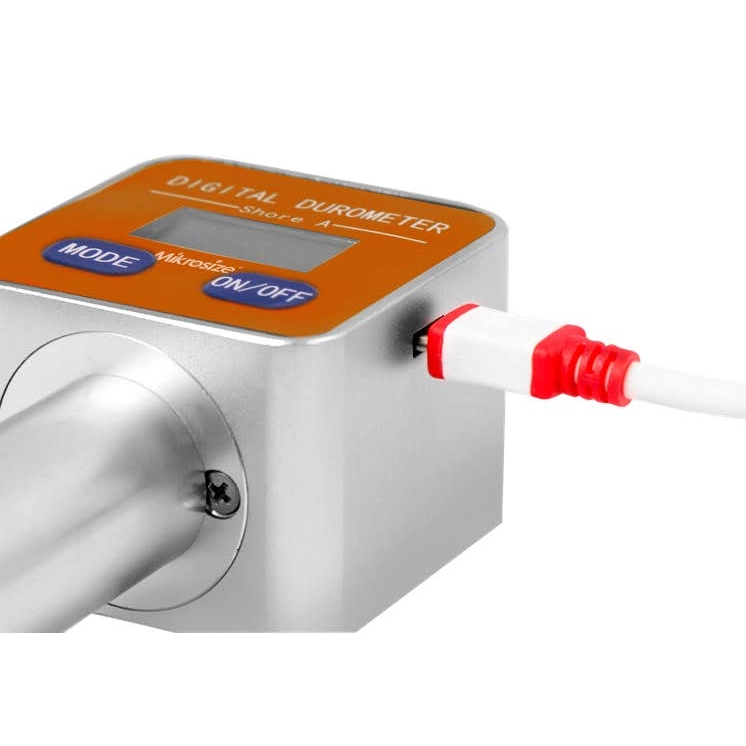

lEquipped with USB communication function for real-time data upload.
lLarge-capacity lithium battery for long working hours.
lWith average value function, the number of averaging times can be set from 0 to 9.
lWith time hold function, the maximum hold time is 30 seconds, meeting the requirements of GB/T 531.1 and ISO 48-9.
lWith zero reset function to improve the accuracy of measurement results.

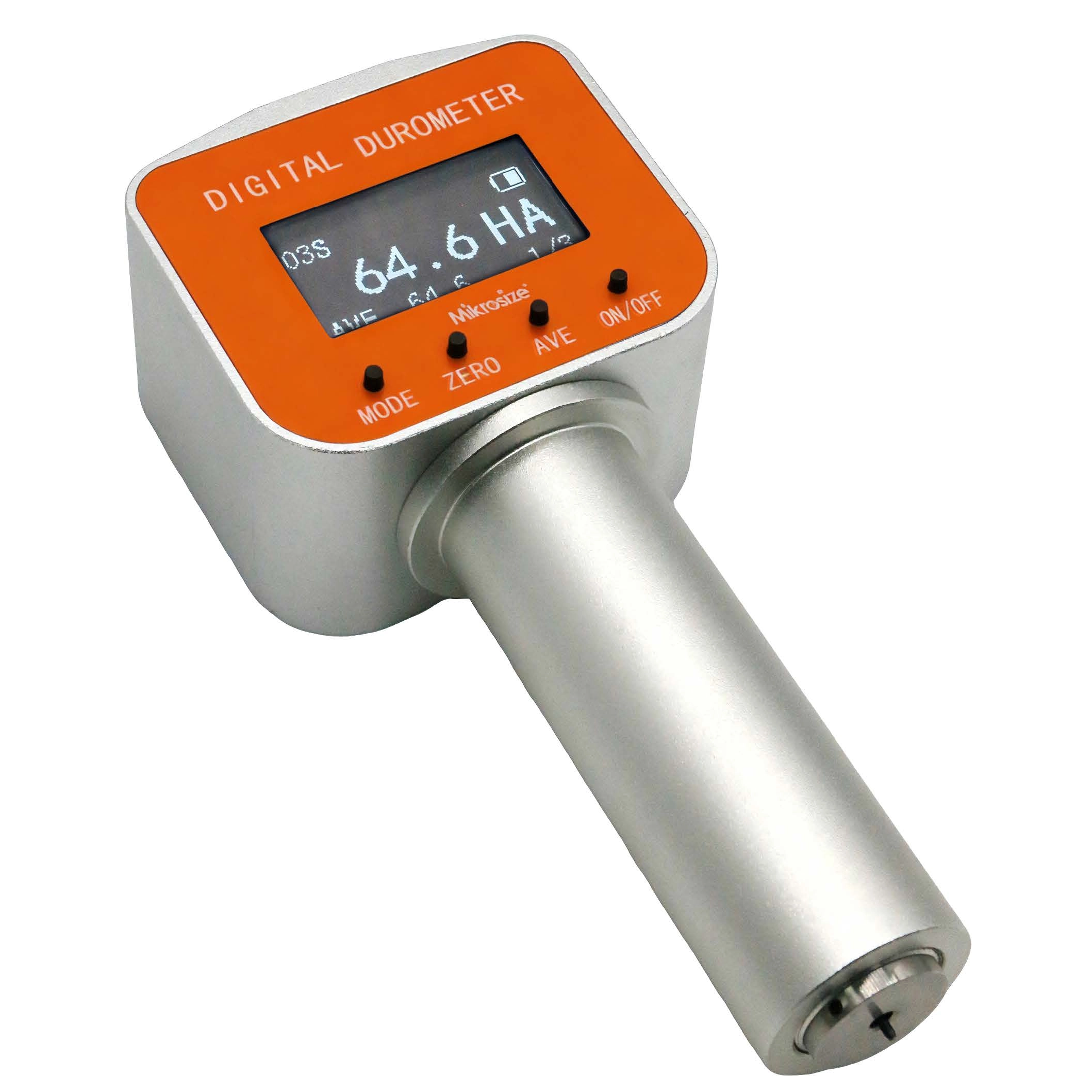

l1.54-inch OLED display with clear presentation, low power consumption and no backlight required.
lAdopts digital displacement sensor instead of analog displacement sensor to ensure test accuracy.

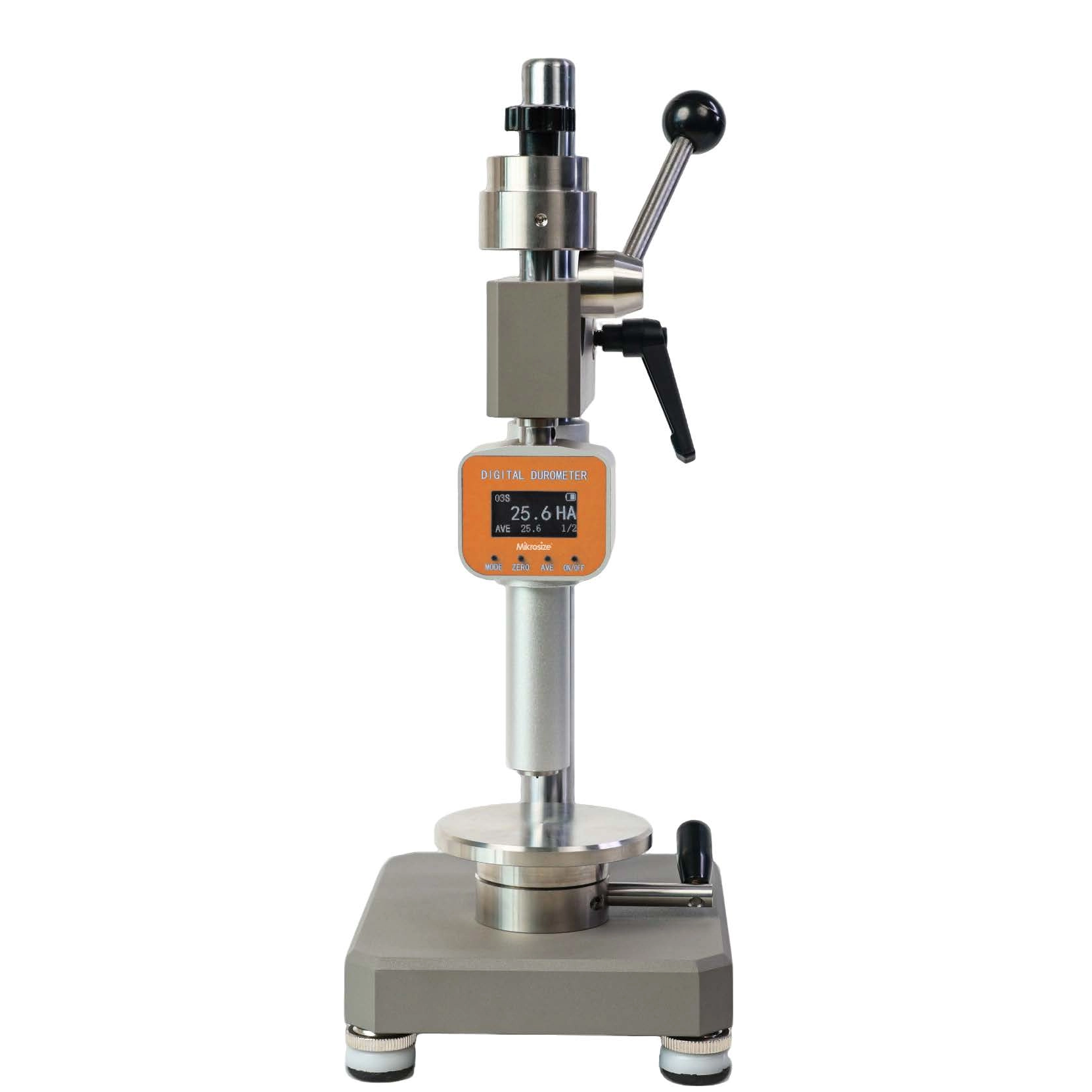

lCan be connected with a constant load stand for high-precision and stable testing.
lComplies with the latest implementation standards: GB/T 38119, GB/T 2411, JJG 304, GB/T 531.1, GB/T 38243, ISO 48-9, ISO 7619, ISO 21509.
Product Applications:
lRubber product testing
Sealing rings, foot pads, shock-absorbing rubber, tires, rubber hoses, rubber seals, etc. Shore A is used to judge whether the hardness and elasticity meet the standards.
lSoft plastics and elastomers
Thermoplastic elastomers (TPE/TPR), soft PVC, silicone products, handle overmolding, data cable outer sheaths, etc. Shore A is used to control the hand feel and hardness.
lHard plastics and rigid materials
Acrylic, hard PVC, epoxy boards, bakelite, glass fiber reinforced plastics and other relatively hard non-metallic materials. Shore D is used to detect hardness and wear resistance.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Name	Shore Durometer
Product Model	iShore-75
Test Method	Shore A	Shore D	Shore AO	Shore AM	Shore OO
Type	A	D	AO	AM	OO
Test Force (mN) (Positive & Negative)	8050±75	44450±445	8050±75	764±8.8	1111±18

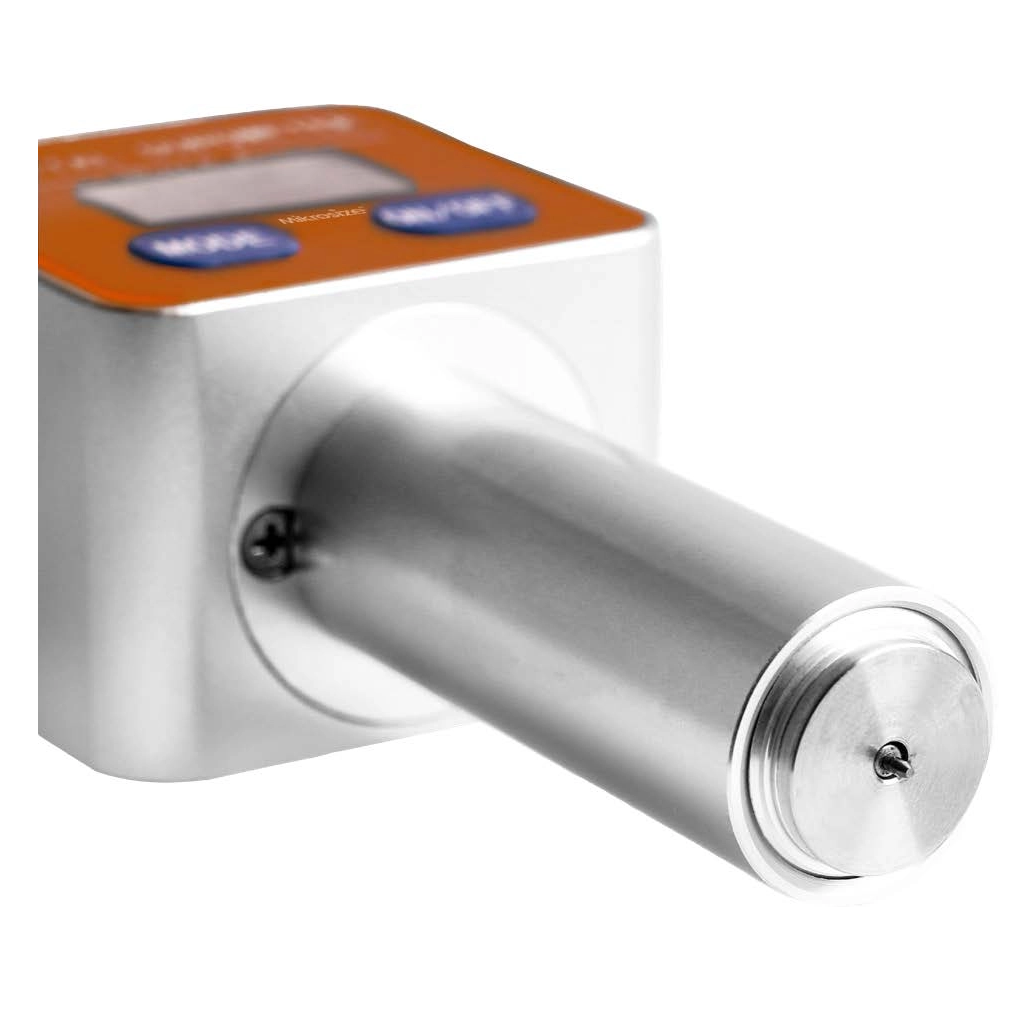

Indenter Protrusion (mm)	2.5	2.5	2.5	1.25	2.5
Measuring Range	0~100	0~100	0~100	0~100	0~100
Minimum Sample Thickness (mm)	6	6	6	1.5	6
Application Range	Soft rubber, synthetic rubber, natural rubber products, casting resin, printing rubber rollers, thermoplastic elastomers, soft PVC, leather and other materials	Thermoplastics, hard resin, hard rubber, flooring materials, etc.	Foam plastics covered with leather, steering wheel materials, etc.	Ultra-thin parts	Foam rubber, silicone rubber, gel materials, etc.
Measurement Error	≤1 Shore
Resolution	0.1 Shore
Working Ambient Temperature	-10℃～40℃
Working Humidity Range	＜90%RH
Power Supply	Lithium battery
Screen Size	1.54-inch OLED display
Hold Time	Adjustable 0~30s
Overall Dimension	150mm×60mm×50mm
Host Weight	300g

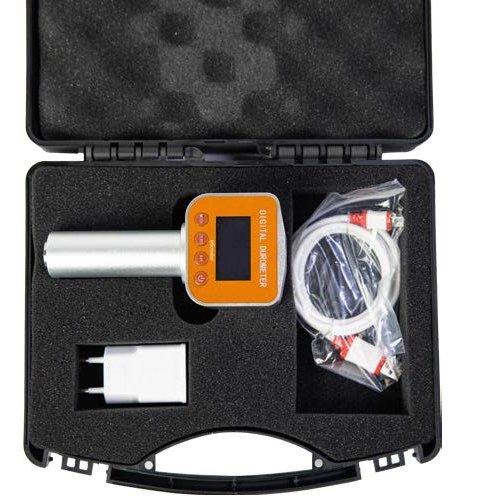

Standard Delivery：

Name	Quantity
Shore Durometer Host	1
USB Charger	1
USB Cable	1
Protective Equipment Case	1
Instruction Manual	1
Calibration Certificate	1
Warranty Card	1
Certificate of Conformity	1
