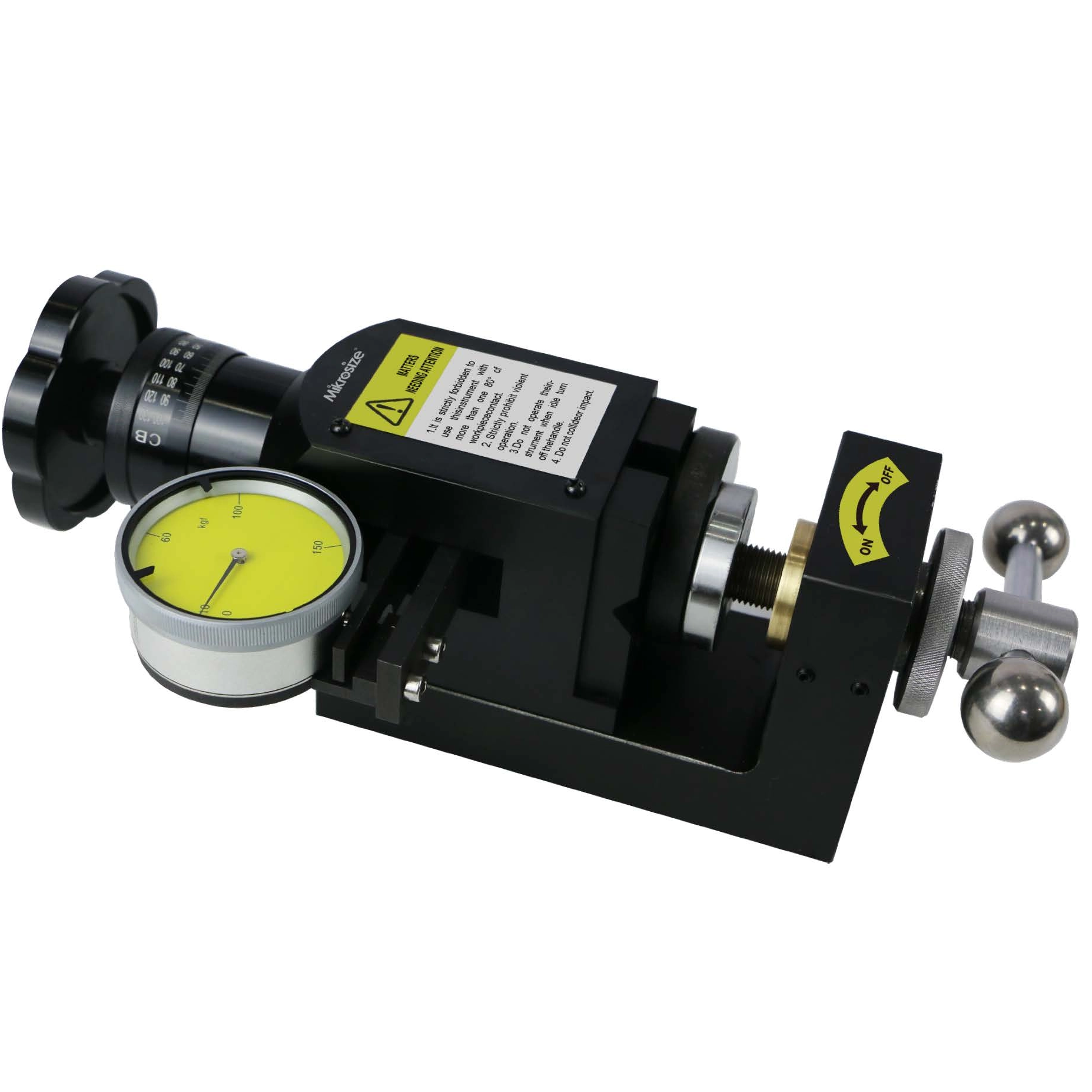

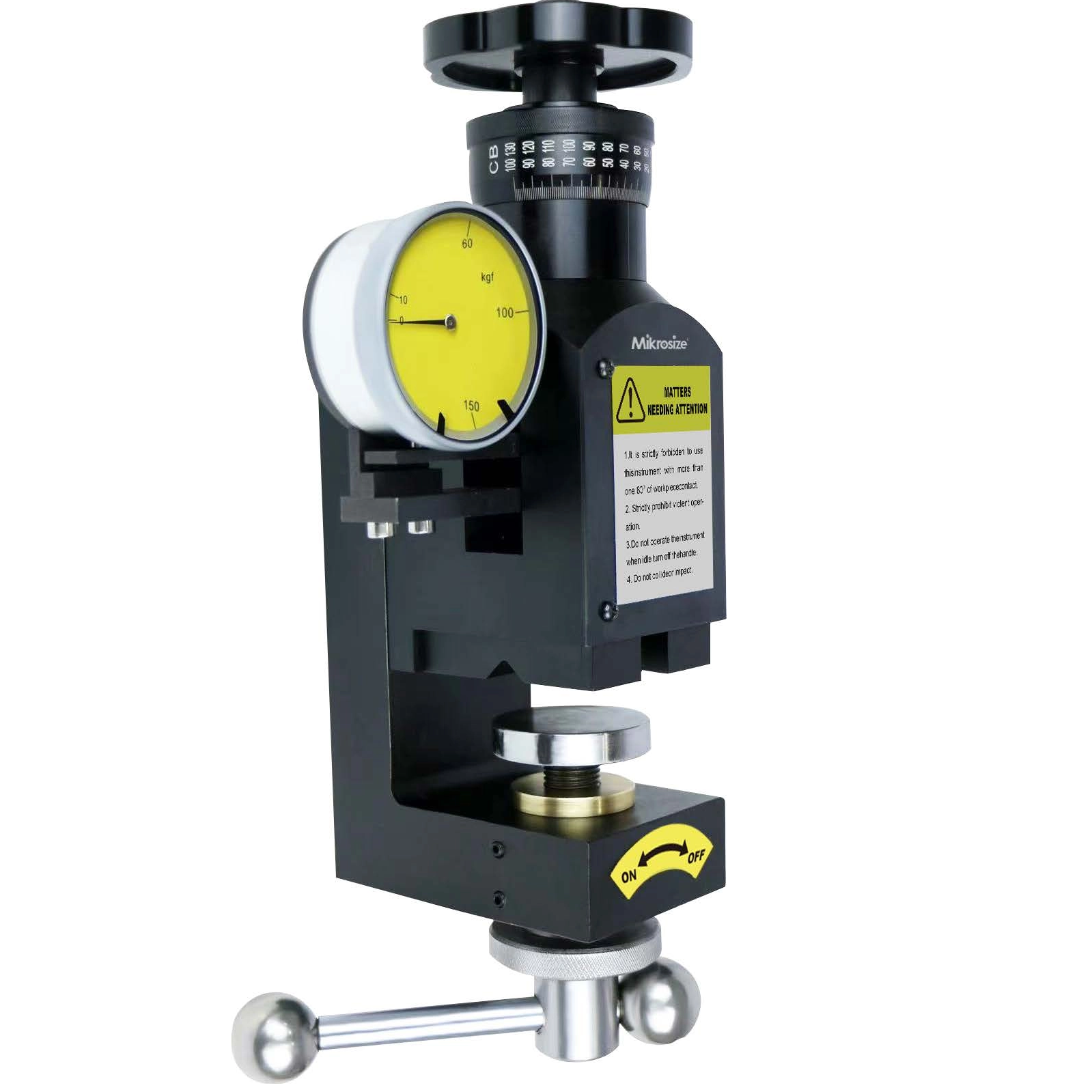

MSR-150P Small Portable Rockwell Hardness Tester

Product Feature and Application：

lSmall in size and light in weight. Compared with traditional desktop Rockwell hardness testers, portable hardness testers are significantly smaller in size, making them convenient for mobile use in non-laboratory environments such as workshops and outdoors.

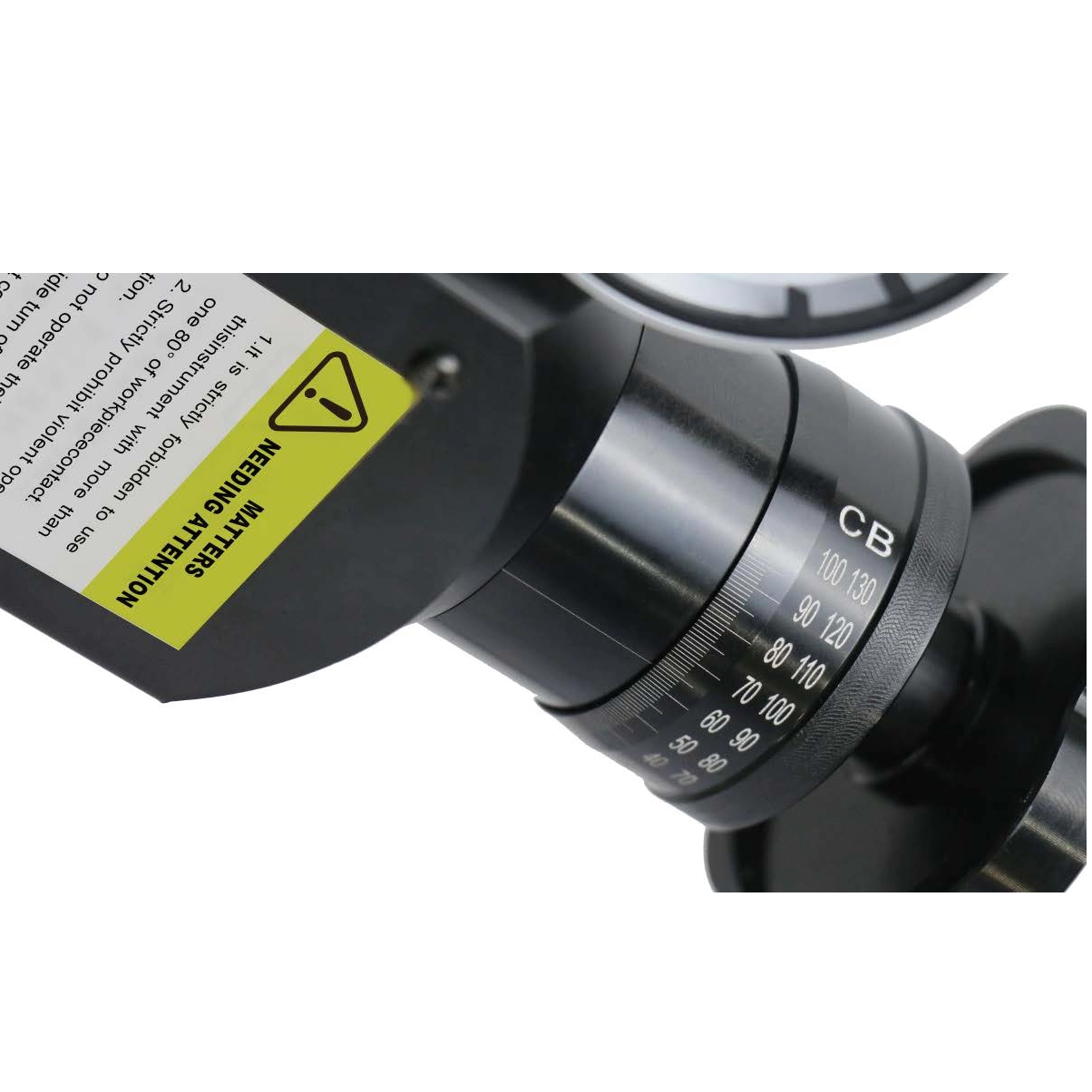

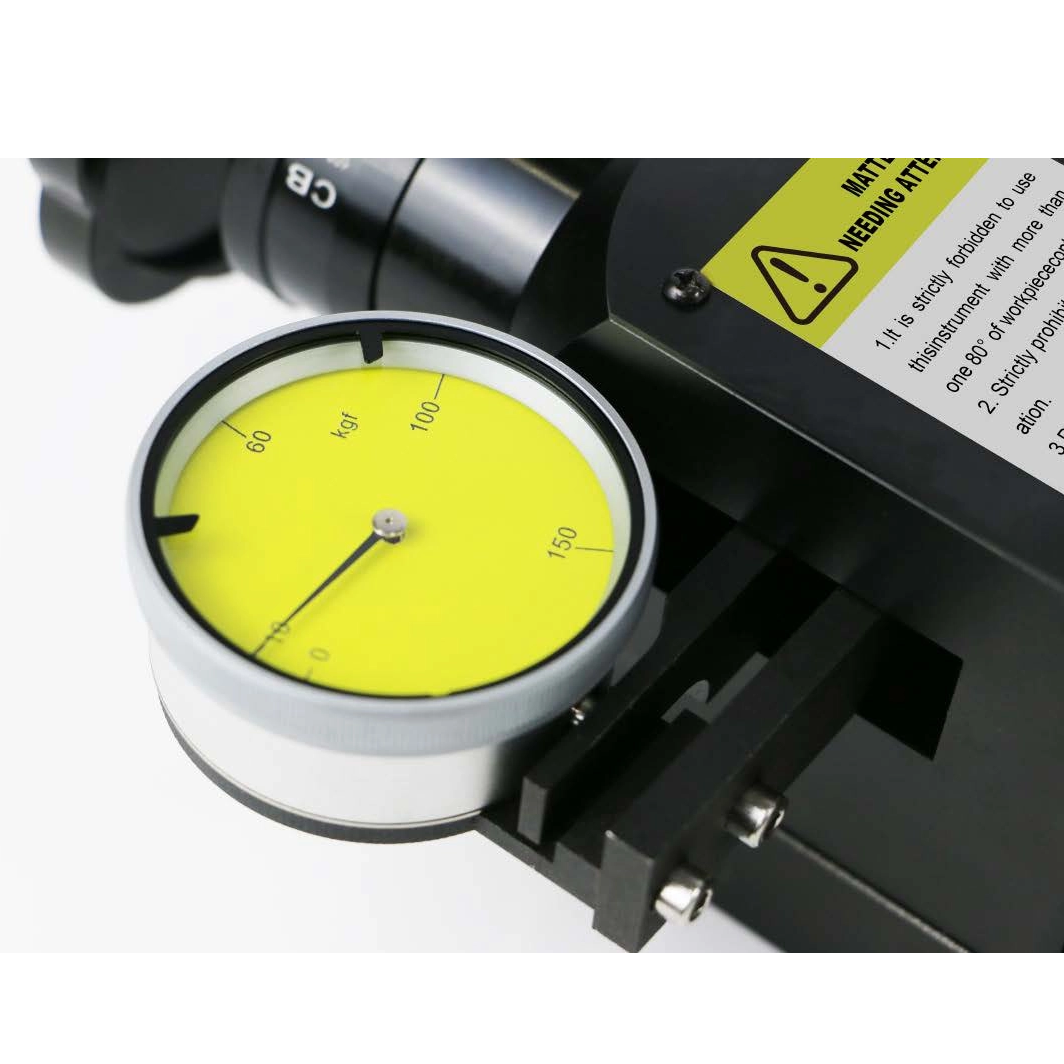

lThe dial has a large testing distance, which reduces operational errors in step-by-step testing. The hardness reading wheel has clear values, facilitating reading; it is accurate, convenient, and has good repeatability.

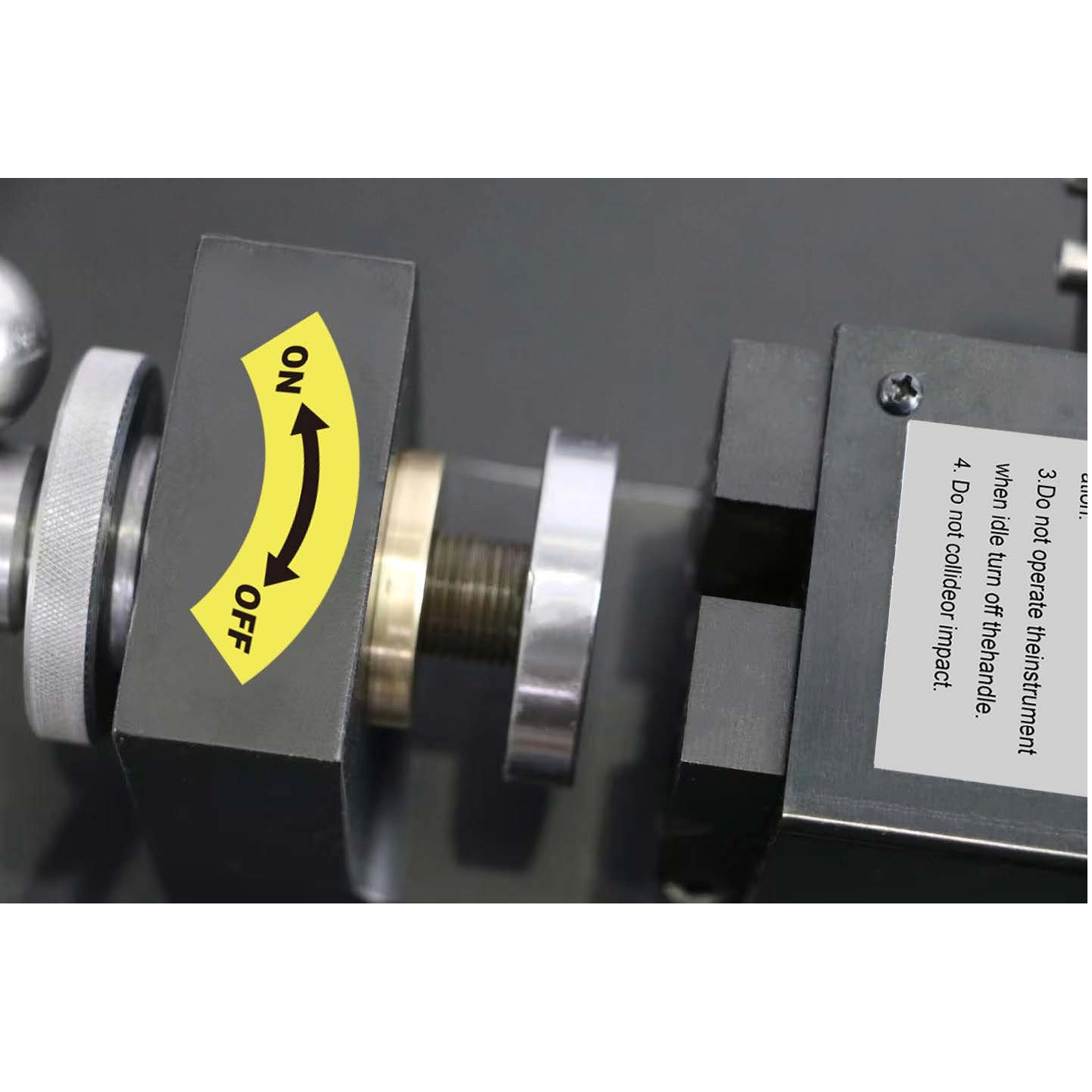

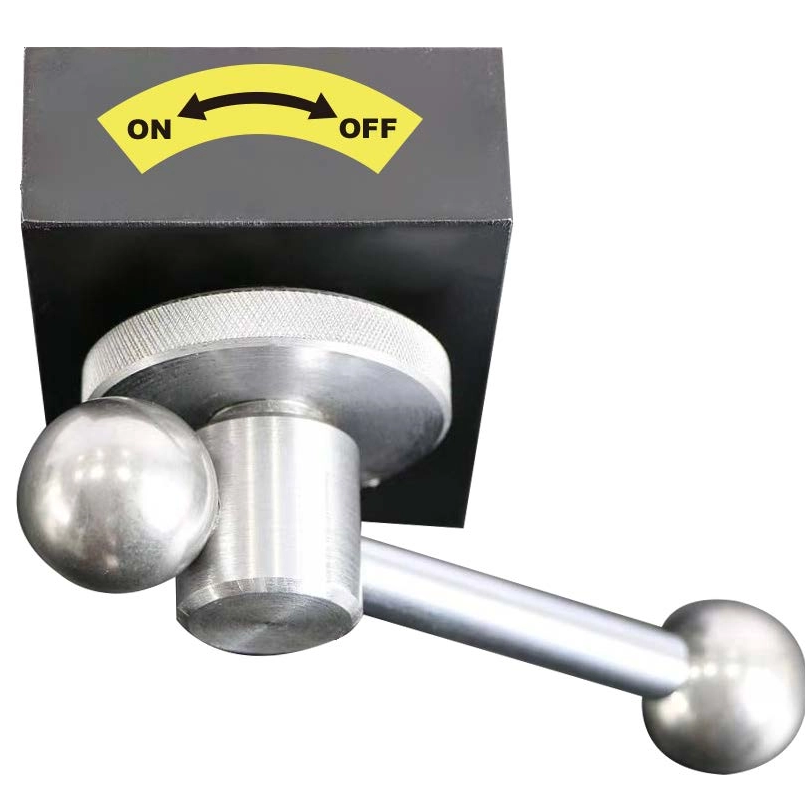

lAfter clamping the instrument on the workpiece and securing it, the hardness test can be performed without moving the workpiece; the test operation is fast, convenient, and non-destructive.
lThe testing speed is fast. The hardness tester is equipped with both V-shaped and flat workbenches, which can test flat and round bar workpieces without replacing the workbench.
lTwo replaceable indenters: equipped with a diamond cone indenter and a 1.588mm indenter, which can measure different hardnesses; special anvils can be customized according to the workpiece to test various parts with complex shapes.
lDesign standards: meet GB/T230, ISO 6508, ASTM E18, ASTM E110 and other standards.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Name	Small Portable Rockwell Hardness Tester
Model	MSR-150P
Rockwell initial test force	10kgf
Rockwell total test force	60kgf、100kgf、150kgf
Force application method	Screw force application
Indenter	120° diamond cone, Φ1.588mm cemented carbide ball
Test conditions	9 scales :HRC, HRB, HRA,HRD,HRE,HRF,HRG,HRH,HRK.
Resolution	0.5HR
Accuracy	Conforms to GB/T230, ISO 6508
Application range	All commonly used metals, including steel, forged steel, cast iron, copper, copper alloys, aluminum, aluminum alloys, cemented carbides, etc.

Standard Delivery：

Name	Quantity
Main unit	1 set
Diamond indenter	1 piece
Φ1.588mm ball indenter	1 piece
Rockwell hardness block	5 pieces
Instrument case	1 piece
Instruction manual	1 copy
Warranty card	1 copy
Calibration certificate	1 copy
Certificate of conformity	1 copy
