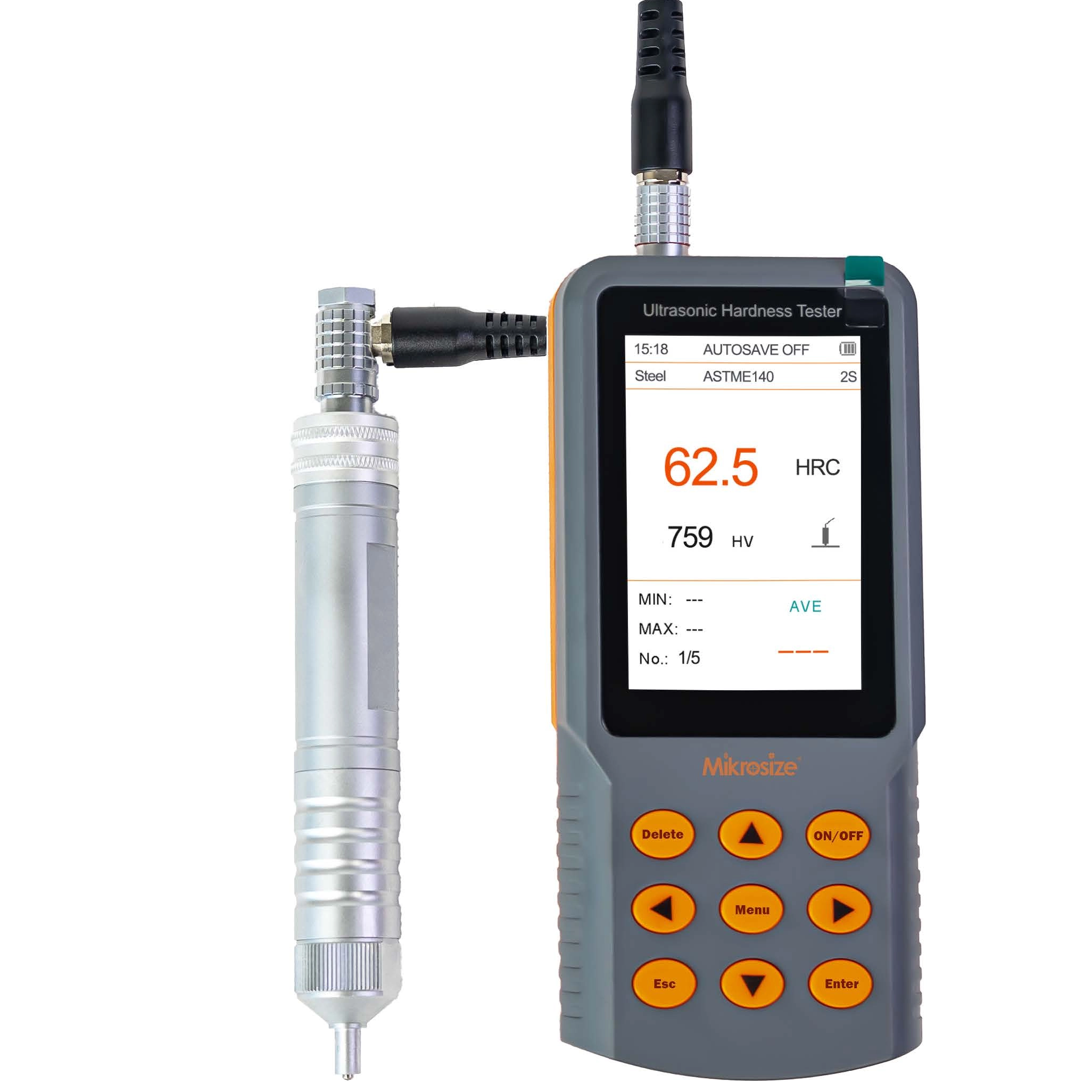

UHT-100 Ultrasonic Hardness Tester

Product Feature：
lMain test parameter: HV; Convertible parameters: HRC, HRA, HRB, HBW, etc
lLarge-size screen directly displays current measurement value, cumulative measurement value, maximum value, minimum value, average value, and unit conversion value
lSmall size and light weight, easy to carry, suitable for on-site measurement of large workpieces

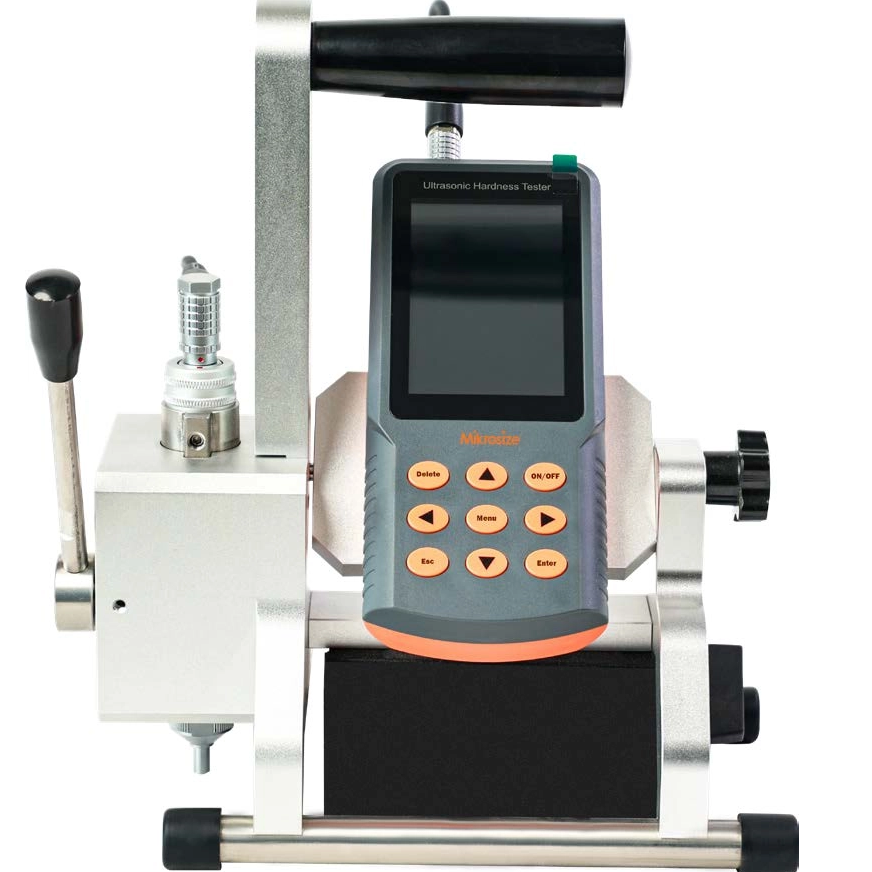

lHigh measurement accuracy: ±4%HV, ±4%HB, ±1.5HR. The accuracy can reach ±3%HV when used with a measurement platform (optional).
lSmall test indentation, little damage to the workpiece, belonging to micro-destructive/near non-destructive testing
lFast measurement speed, with test results output in as fast as 1 second.
lSimple calibration: can store 5 groups of single-point calibration data, 1 group of default data, and 5 groups of multi-point calibration data in the instrument.
lCan store 50 groups of measurement data and 10 groups of calibration data sets.
lSingle-point calibration is selected for materials with different elastic moduli, which is convenient and fast.
lFor materials without clear conversion tables and unknown materials, any hardness scale can be selected for multi-point calibration to eliminate system errors caused by conversion tables.
lAny hardness scale can be customized in multi-point calibration mode.
lCan be connected to a Bluetooth printer (optional) to print measurement data or connected to a computer terminal to export measurement data.
lExecutive standards: GB/T 34205; DIN 50159; ASTM-A1038; JB/T 9377; JJF 1436
Product Application：
lOn-machine inspection of parts in mechanical manufacturing to avoid errors caused by workpiece disassembly.
lLocal hardness testing of aerospace and automotive parts (such as gear tooth surfaces, shaft surface hardened layers).
lRandom hardness inspection of weld seams of special equipment and pressure vessels to ensure welding quality.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Name	Ultrasonic Hardness Tester
Model	UHT-100
Measurement Units and Ranges	HV 50~1599,HRC 20~68,HRB41~100,HRA 61~85.6,HB 85~650,HS 34.2~97.3,MPa 255~2180
Test Accuracy	±4%HV；±4%HB；±1.5HR
Resolution	1HV；0.1HRC；0.1HB
Test Direction	Supports 360° measurement The indenter can measure when the angle with the measured surface is 90°±3°.
Battery Specification	Rechargeable battery, 3.6V, 3000mAh lithium battery
Battery Life	10 hours
Operating Conditions	Temperature: -10℃~40℃ Humidity: not more than 90%RH No strong electromagnetic interference
Host Dimensions (mm)	1707020
Probe Dimensions (mm)	Φ22*150
Weight	650g

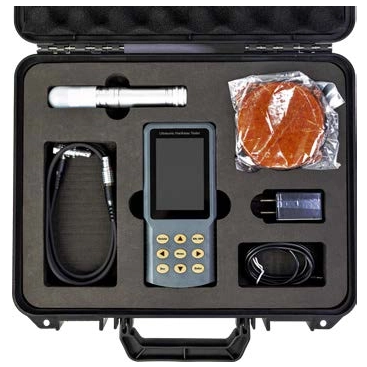

Standard Delivery：

Name	Quantity
Host	1
Manual Probe (2kgf)	1
Probe Connecting Wire	1
5V Charger	1
USB Cable	1
Standard Hardness Block	1
Protective Equipment Case	1
Calibration Certificate	1
Instruction Manual	1
Qualification Certificate	1
Warranty Card	1
