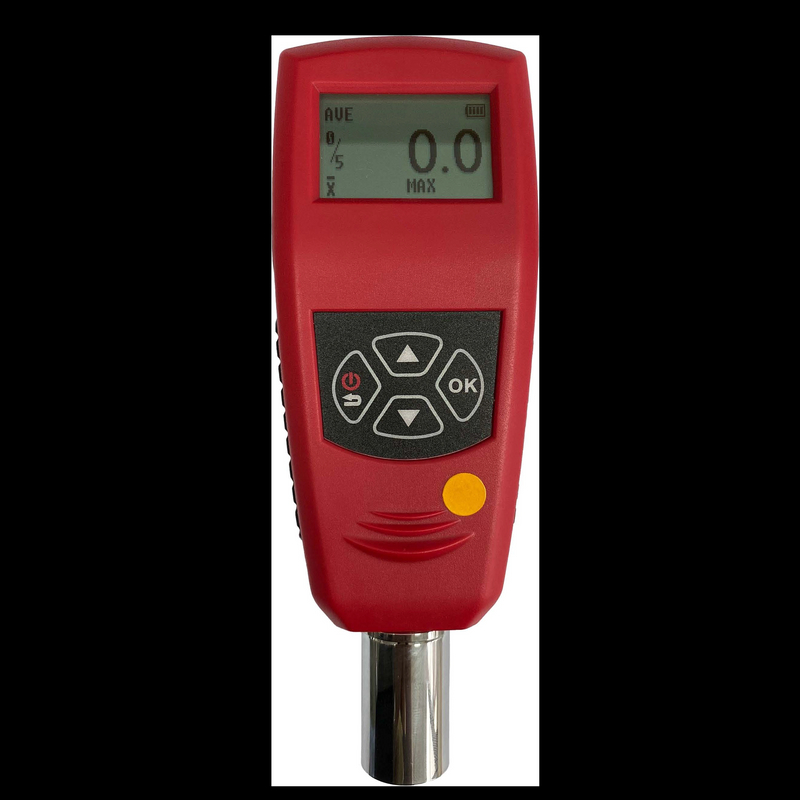

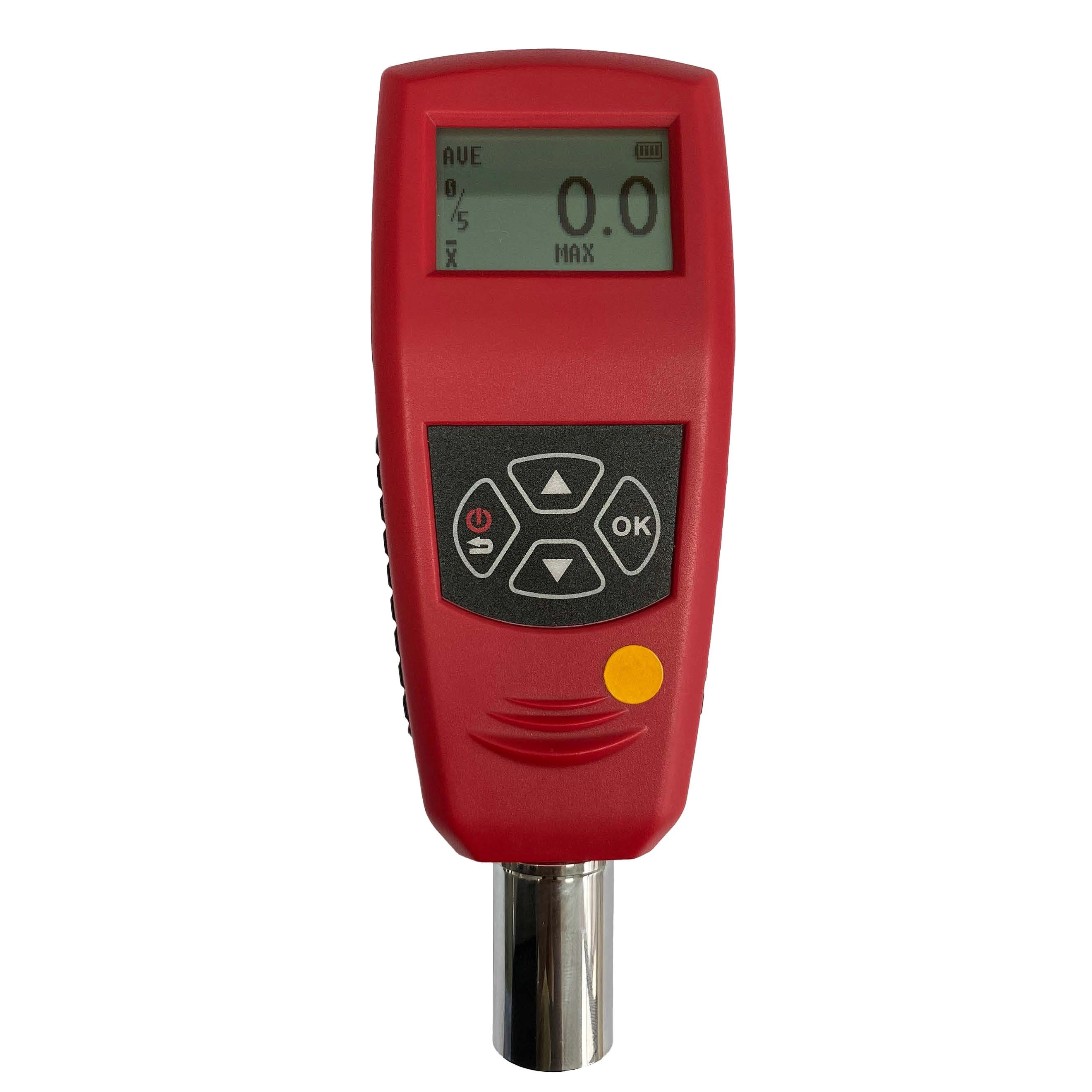

iShore-100 Shore Hardness Tester

Product Features
●Multiple Measurement Types: Equipped with various types including A, C, D, B, OO, DO, etc., it can adapt to material measurements across different hardness ranges, suitable for everything from soft rubber to rigid plastics (The picture shows A type indenter);
●Precise Measurement: With a measurement accuracy of ≤±1H, it complies with standards such as GB/T531, ISO7619, and ASTM D2240, enabling accurate measurement of material hardness;

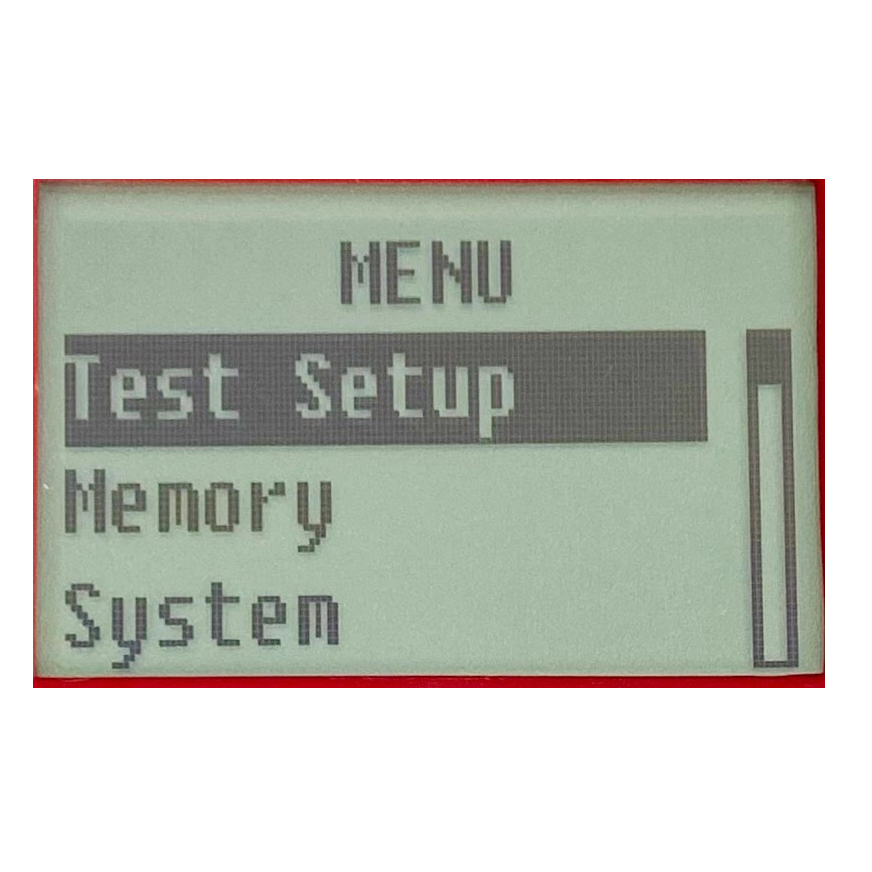

●Easy Operation: The operation interface is simple, with clearly defined functions such as power/back key, confirmation key, and up key, making it easy to get started and operate;

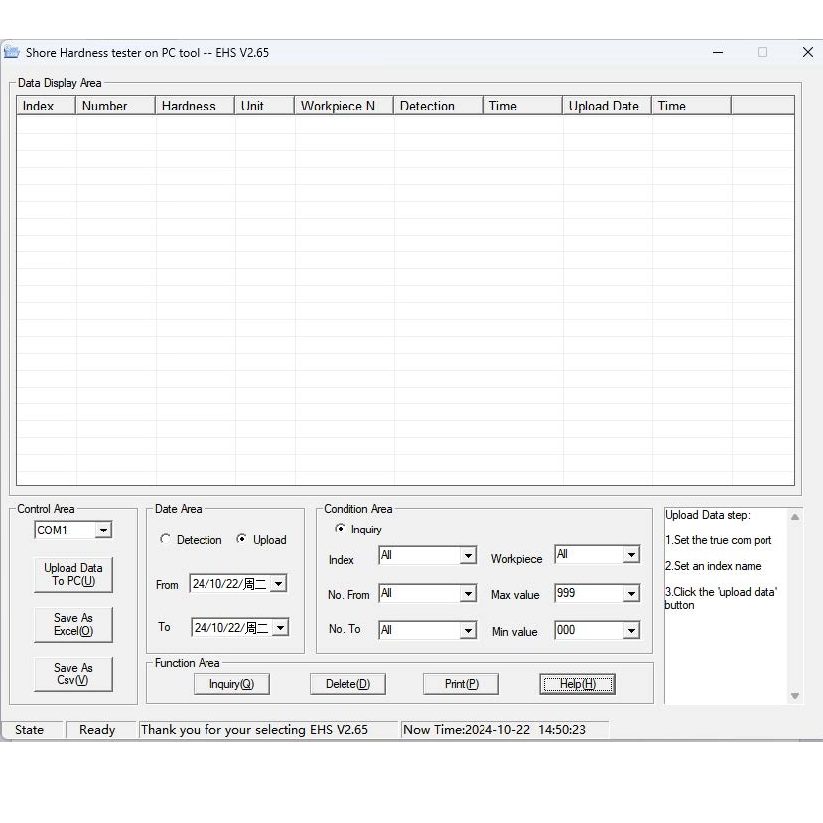

●Convenient Data Management: It can store up to 500 sets of readings, featuring functions such as browsing, deleting selected or all data, and uploading data to a computer for convenient data management and analysis;
●Flexible Test Settings: Offering multiple test modes such as average mode, maximum value mode, and timer mode, it allows setting the number of tests, as well as setting tolerances and eliminating gross errors, meeting various testing needs.

Product Application
●Rubber Industry: It is used to measure the hardness of various rubber products such as soft rubber, natural rubber, medium-hard rubber, and hard rubber to ensure that product quality meets standards;
●Plastics Industry: It can measure the hardness of plastic products with different hardness levels, including thermoplastic elastomers, flexible acrylics, thermosetting plastics, and rigid plastics, to control their quality;
●Leather Industry: It is suitable for testing the hardness of leather, aiding in the assessment of leather quality and performance;
●Textile Industry: It can be used to measure the hardness of materials such as medium-density textile windings and low-density textile assemblies, assisting in quality control during the production process;
●Materials Research Field: When researching new types of rubber, plastics, and other materials, it is used to measure the hardness characteristics of the materials.

Availability:
Quantity:
  • iShore-100

Product Description

Technical Parameters

Accuracy

≤ ± 1 H

Resolution

0.1H

Measuring Mode

AVE, MAX, Timing

Display

128*64 dot matrix LCD with Backlight

Memory

500 readings

Communication

USB to PC

Power

Ni-MH Chargeable Battery

Operating Environment

-10 to 40°C, 20 to 80%RH

Dimensions

150X50.5X29mm

Weight

170g

Indenter

A

Soft vulcanized rubber, natural rubber, nitriles, thermoplastic elastomers, flexible polyacrylics and thermosets, wax, felt, and leathers


C


Medium-hard rubber, thermoplastic elastomers, medium-hard plastics, and thermoplastics


D

Hard rubber, thermoplastic elastomers, harder plastics, and rigid thermoplastics


B


Moderately hard rubber, thermoplastic elastomers, paper products, and fibrous materials


E

(Asker C)

Soft rubber, sponges, and foam elastomer material, and film coil and winding (textile yarn spindle)


OO

Soft rubber, thermoplastic elastomers, very soft plastics and thermoplastics, medium-density textile windings


O


Extremely soft rubber, thermoplastic elastomers, sponge, extremely soft plastics and thermoplastics, foams, low-density textile windings, human and animal tissue


DO


Moderately hard rubber, thermoplastic elastomers, and very dense textile windings

Standard Delivery

Items

Qty

Main unit

1

Charger

1

Cable

1

Standard thickness block

1

Manual

1

Certificate

1

Instrument box

1


Optional Delivery

Items

Qty

Mini printer

1

Test stand

1

A type hardness test block

1

D type hardness test block

1
