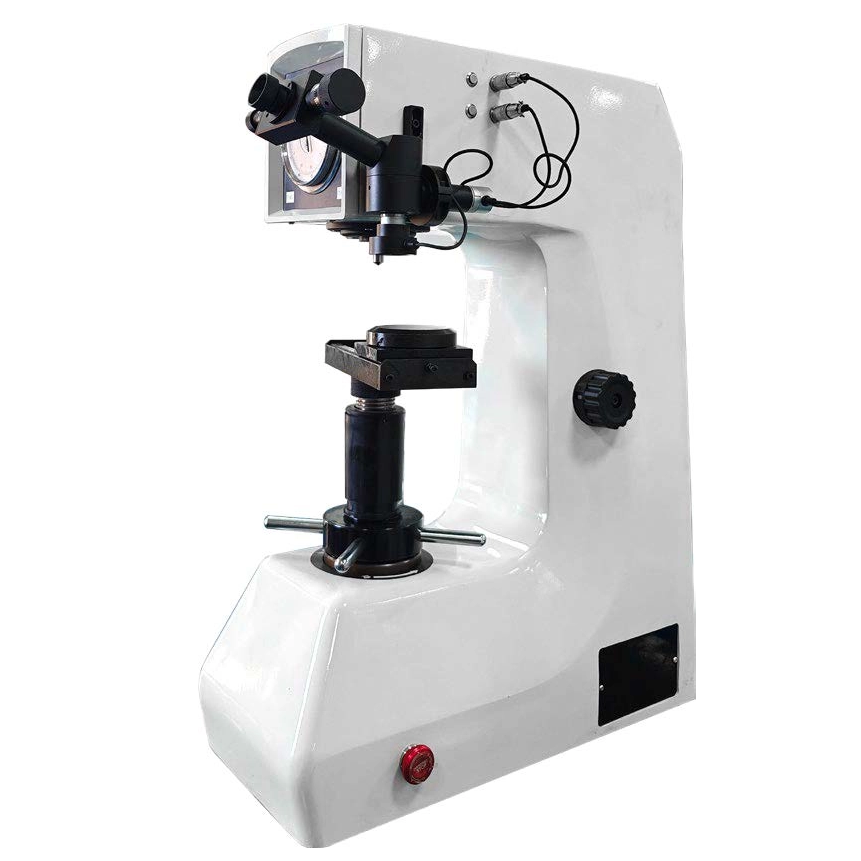

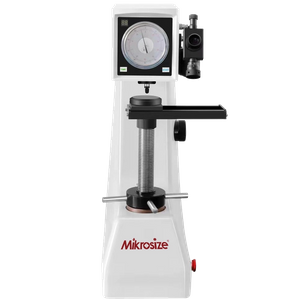

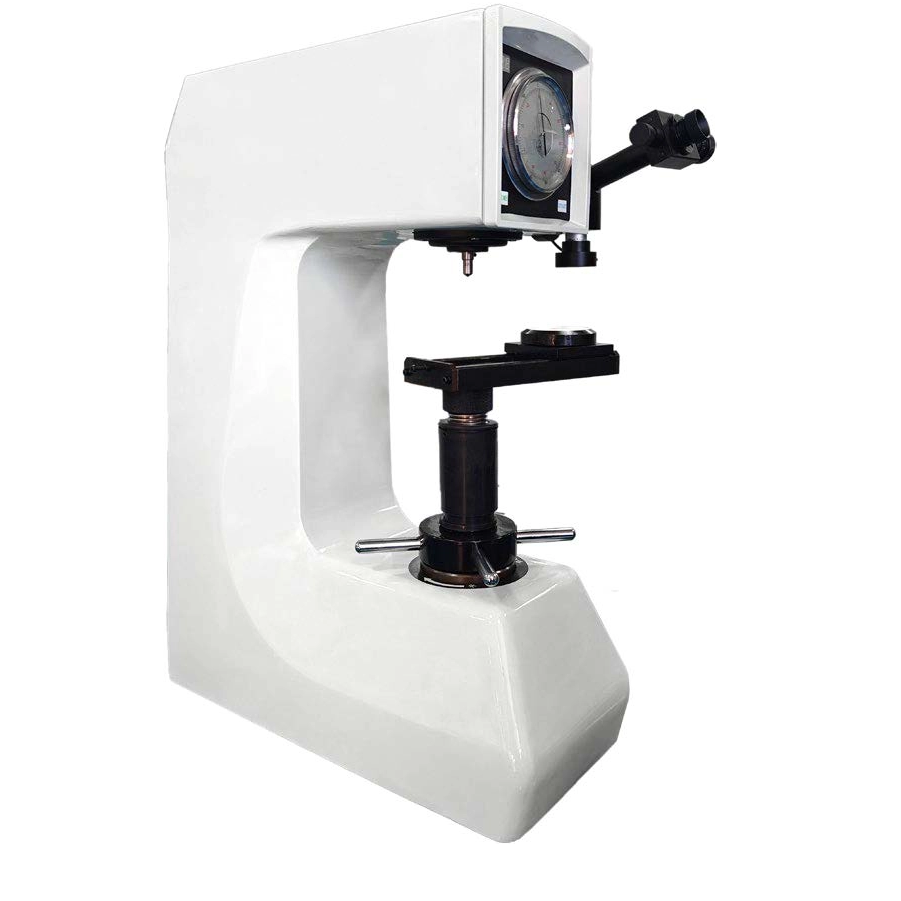

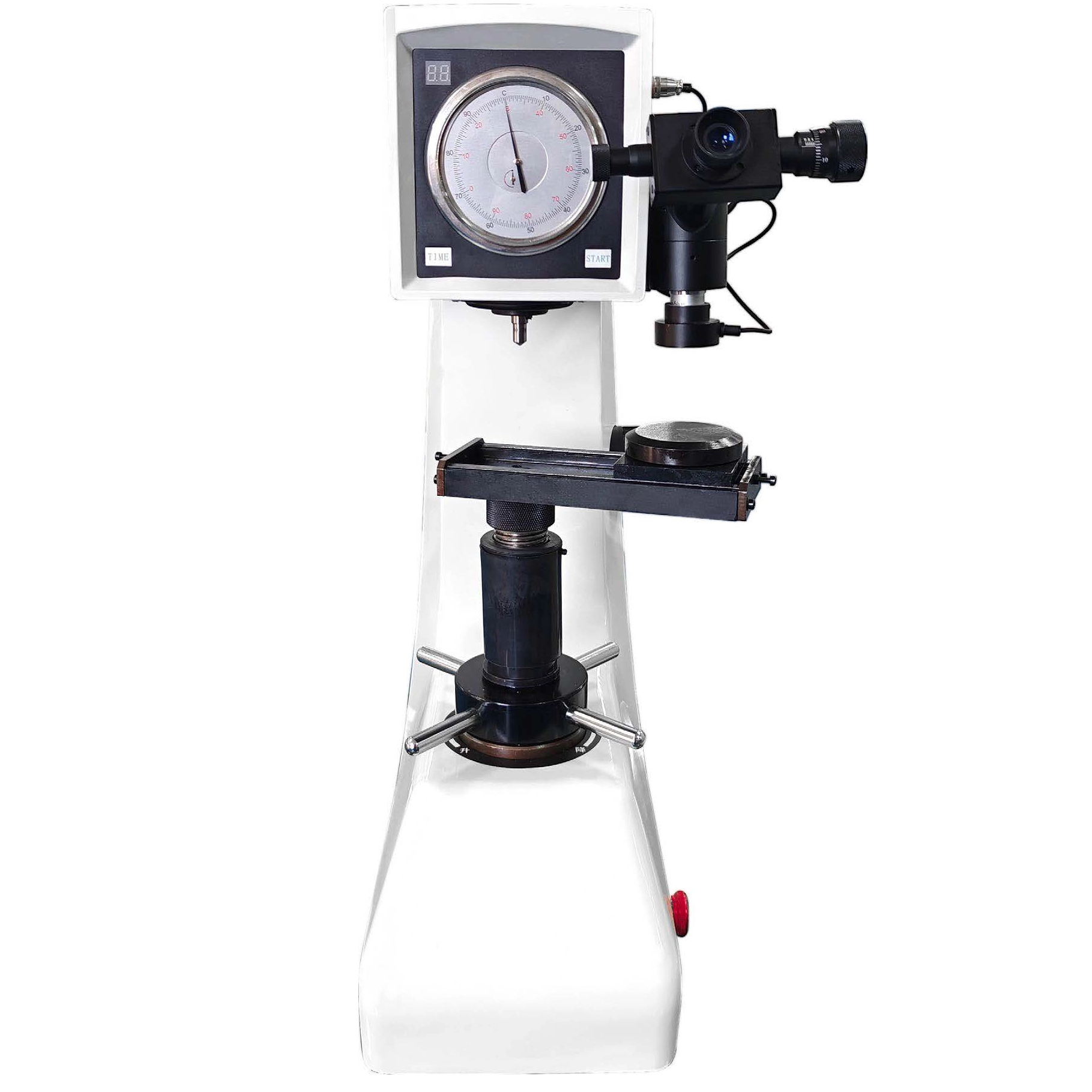

iBRV-187.5E Electric Motorized Universal Hardness Tester

Product Feature：

●Multi-method measurement: Capable of determining metal hardness based on Brinell, Rockwell, and Vickers hardness test methods to meet diverse metal material hardness testing needs
●Precise test force grading: Equipped with 7 levels of test force. Different force levels suit materials of varying hardness ranges, ensuring testing accuracy
●Diverse indenter types: Different indenters are used for various hardness testing methods, ensuring adaptability to all metal materials.
●Reasonable structural design: Scientific design of test force application/release, transformation, and stage lifting mechanisms ensures convenient operation and equipment protection.
●Comprehensive accessories: Facilitates installation, debugging, and calibration to guarantee testing accuracy and reliability.

Product Application：

●During mechanical processing, Brinell hardness testers can inspect raw material hardness to select suitable machining processes and tools.
●Inspect hardness of mechanical components (e.g., gears, bearings, bolts) to ensure compliance with design requirements and performance standards.
●Inspect hardness of power plant equipment components (e.g., boilers, turbines, generators) to ensure safe operation.
●Inspect hardness of forgings to evaluate forging process effectiveness and product quality.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Name	Electric Motorized Universal Hardness Tester
Model	iBRV-187.5E
Rockwell Scales	Initial test force	98.07N（10kg）
	Total test force	588.4N、980.7N、1471N 60kg、100kg、150kg

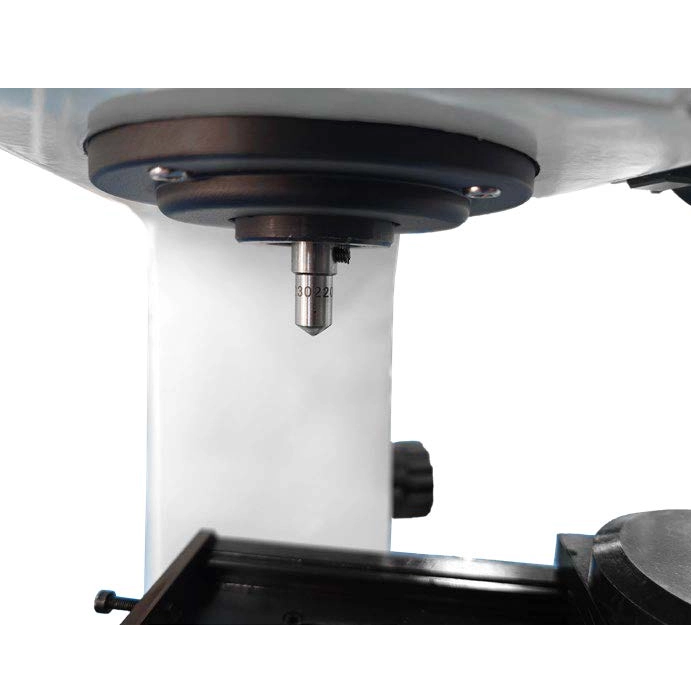

	Indenter	Diamond Rockwell indenter, Φ1.5875mm ball indenter
	Scales	HRA、HRB、HRC、HRD
	Max. sample height (mm)	210（expandable to 400）
Brinell Scales	Test force	294.2N、306.5N、612.9N、980.7N、1839N
	Test force	30kg、31.25kg、62.5kg、100kg、187.5kg
	Indenter	Φ2.5mm、Φ5mm ball indenters
	Scales	HBW1/30、HBW2.5/31.25、HBW2.5/62.5、 HBW2.5/187.5、HBW5/62.5、
	Eyepiece magnification	15X
	Objective magnification	2.5X、5X
	Max. sample height (mm)	180mm
Vickers Scales	Test force	294.2N、980.7N
	Test force	30kg、100kg
	Indenter	Diamond Vickers indenter
	Scales	HV30；HV100
	Eyepiece magnification	15X
	Objective magnification	10X
	Max. sample height (mm)	180
Main Unit	Display method	Hardness tester-specific dial
	Dwell time control	0–60s adjustable
	Indenter-center-to-body distance	165mm
	Dimensions (L×W×H)	550X230X780
	Weight approx.（kg）	80
	Power supply	AC220V 50Hz

Standard Configuration:

Name	Qty
Hardness tester main unit	1 set
Micrometer eyepiece	1 pc

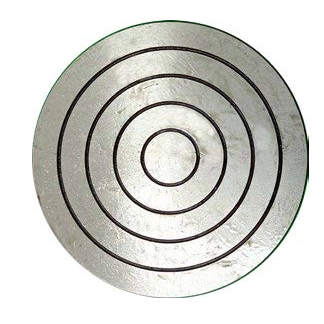

Φ150mm platform	1 pc
V-shaped stage	1 pc
Sliding stage	1 pc
Diamond Rockwell indenter	1 pc
Φ1.5875mm carbide ball indenter	1 pc
Diamond Vickers indenter	1 pc
Φ2.5mm Brinell indenter	1 pc
Φ5mm Brinell indenter	1 pc

Name	Qty
2.5X、5X、10X objective lens	3 pcs
HRA/B/C hardness test block	5 pcs
HV30 hardness test block	1 pcs
HBW2.5/187.5 hardness test block	1pc
Level	1 pc
Leveling screws	4 pcs
Small screwdriver	1 pc
Power cord	1 pc
2A fuse	2 pcs
Phillips screwdriver	1 pc
Dust cover	1 pc
User manual (incl. warranty & packing list)	1 copy
