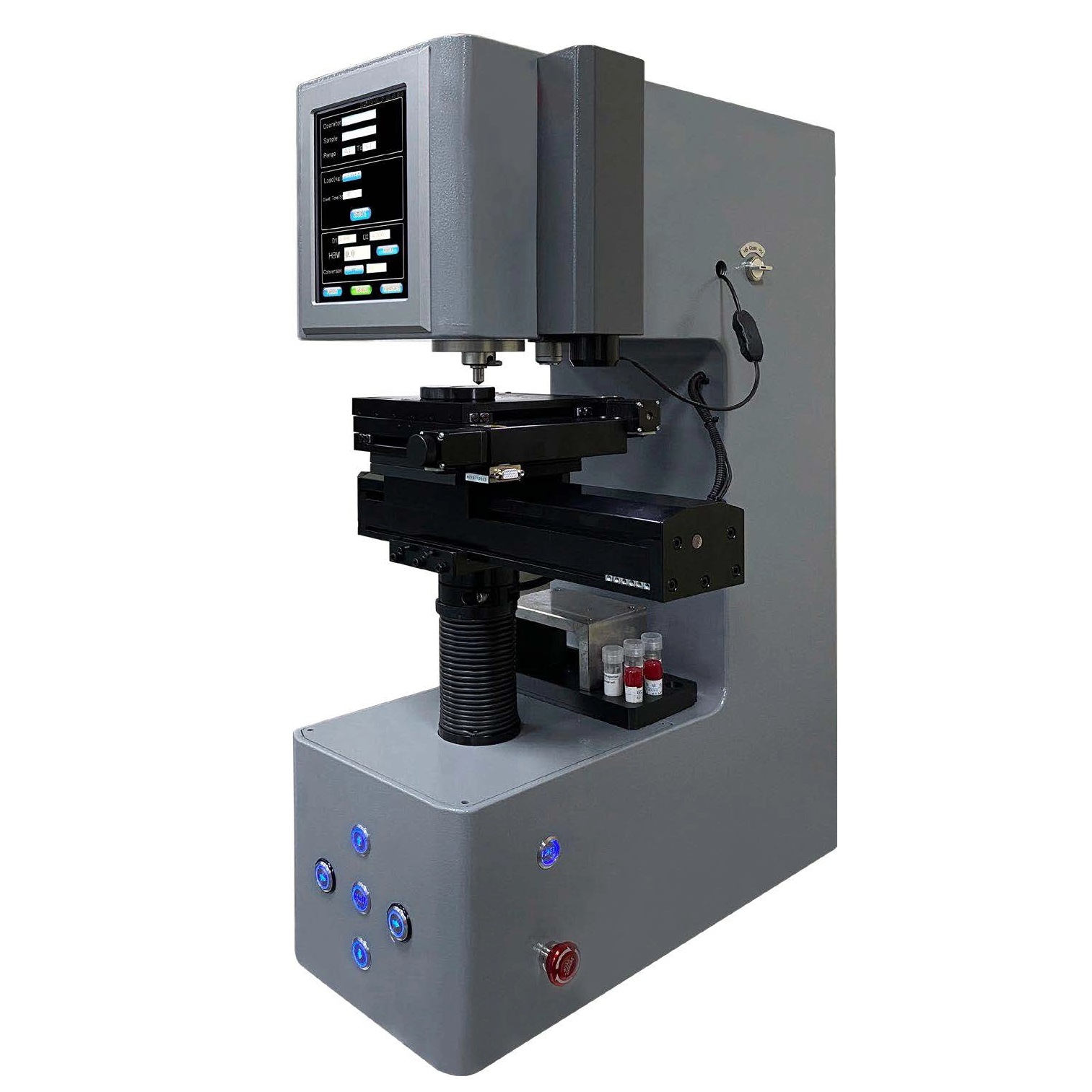

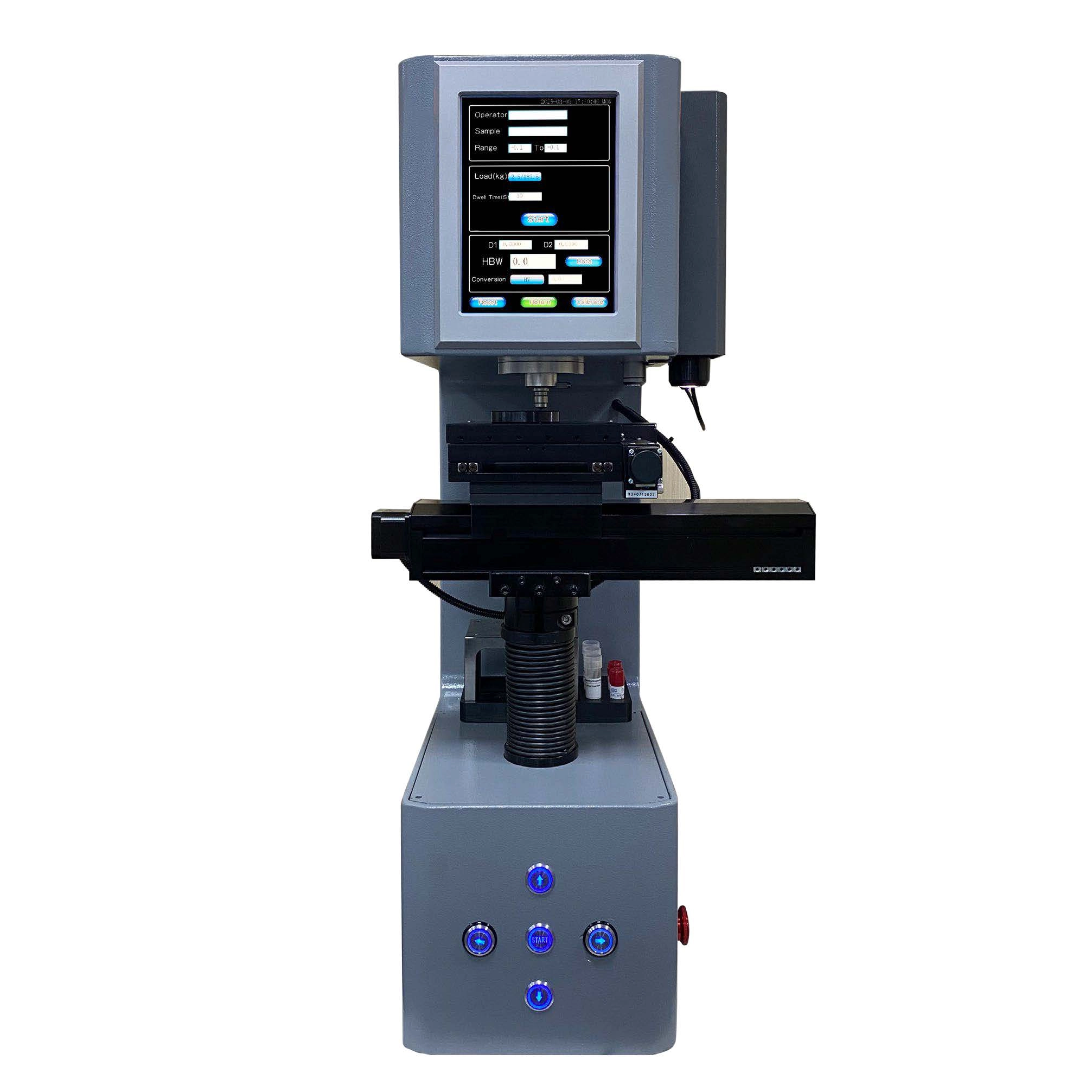

MBRV-250A Intelligent Automatic Universal Hardness Tester

Product Feature:
●Three testing methods: Brinell, Vickers, and Rockwell.
●Brinell test force range: 5 kgf - 250 kgf.
●Vickers test force range: 3 kgf - 120 kgf.
●Automatically applies initial test force and main test force.

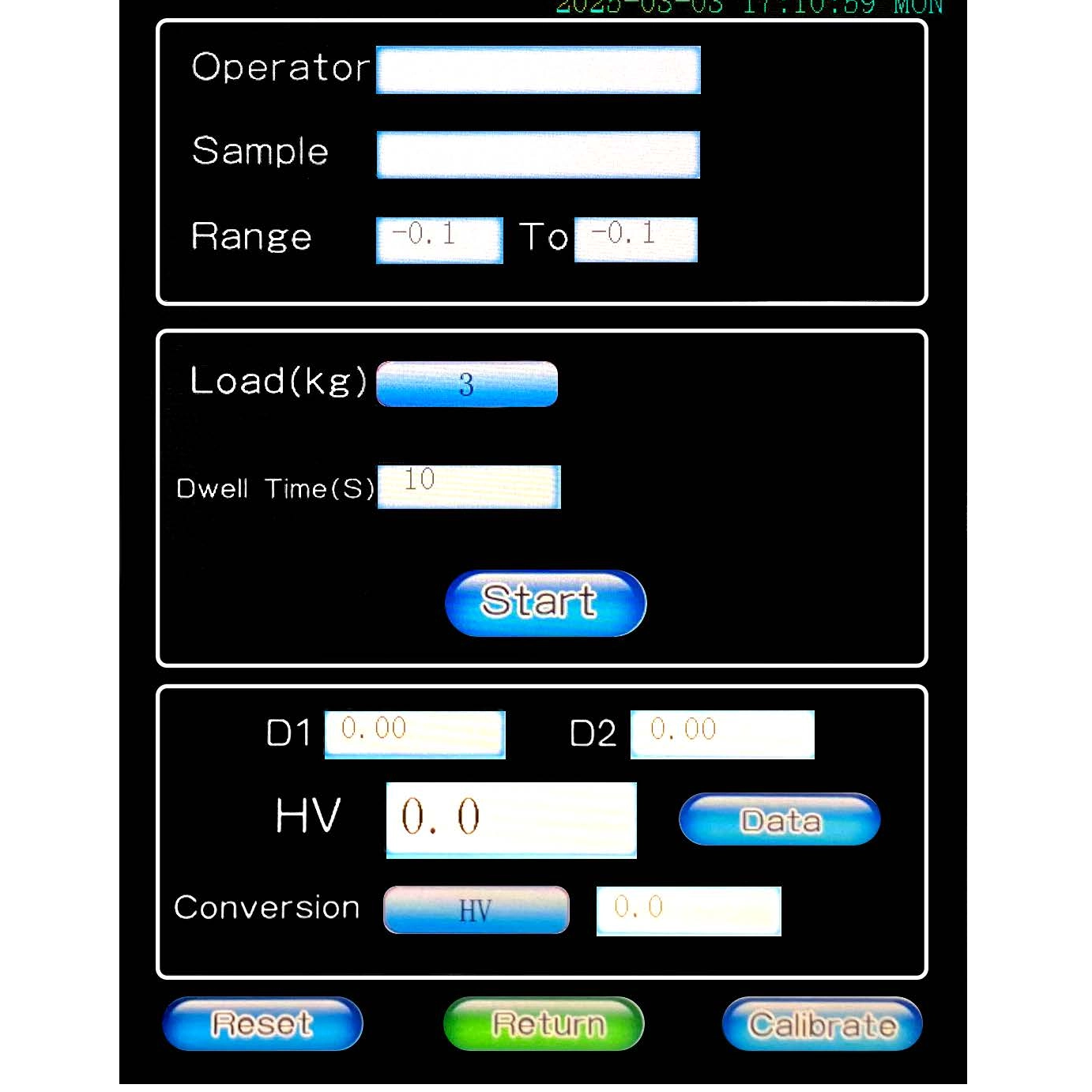

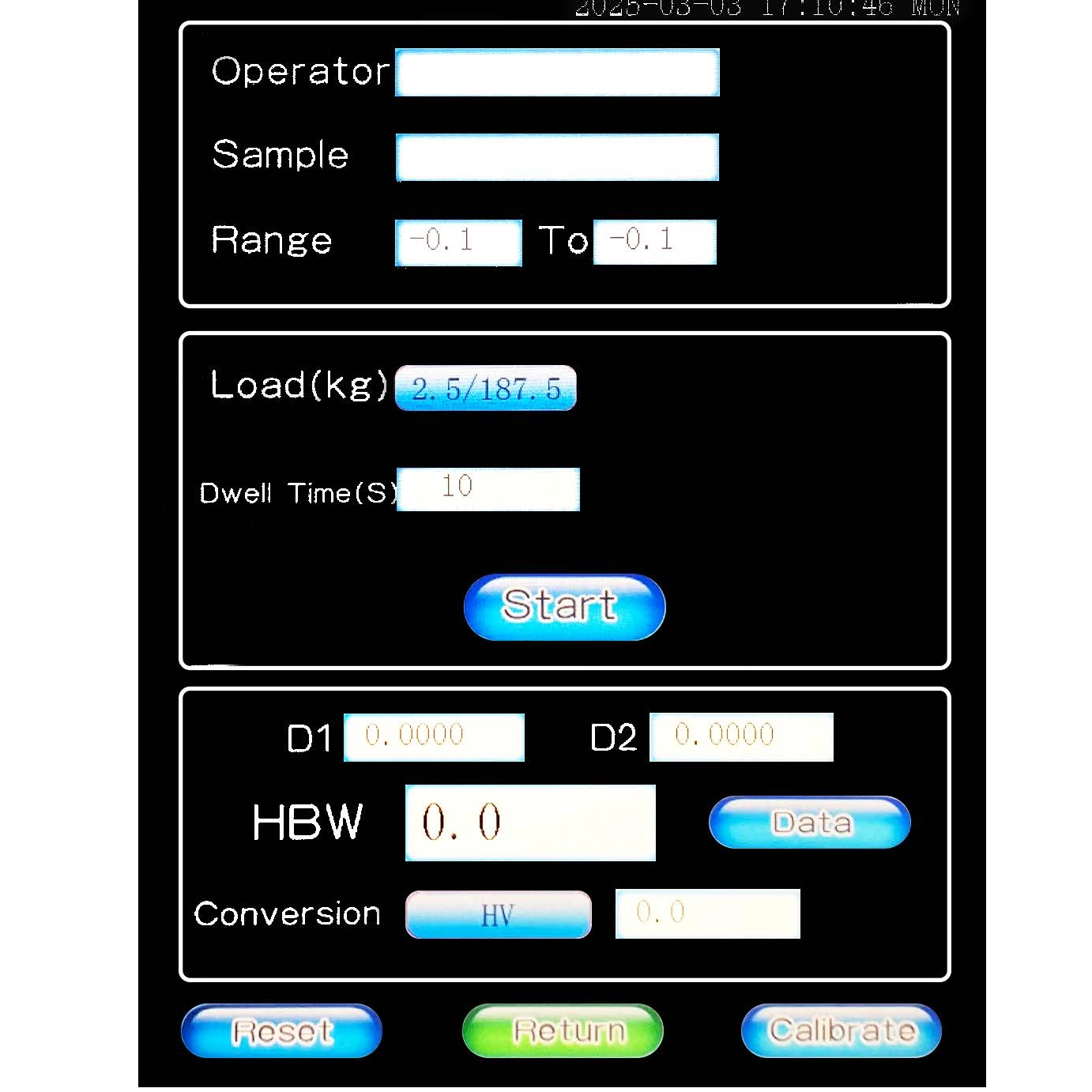

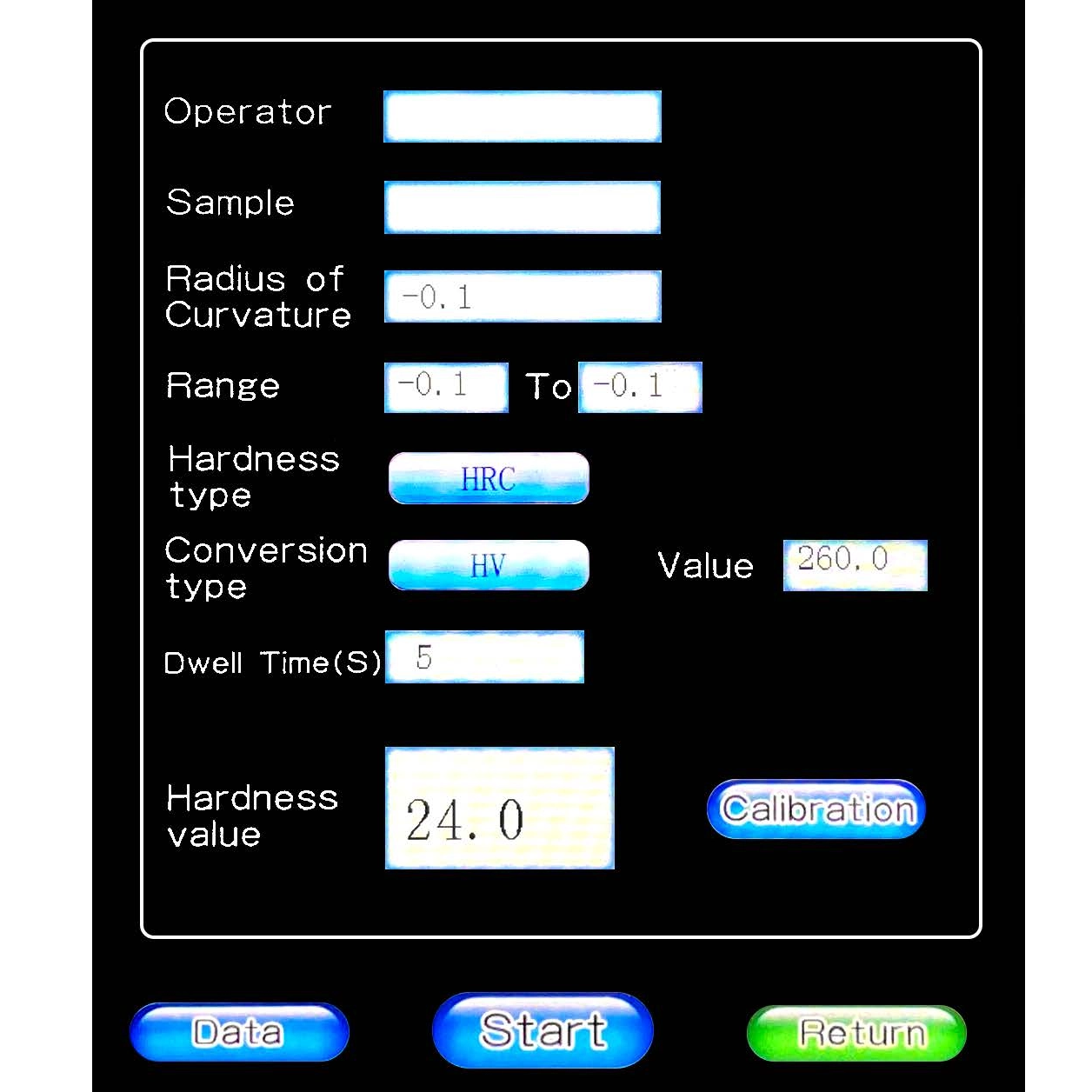

●8- inch touch screen for convenient operation.
●The test stage can be automatically lifted and also be manually fine-tuned. It is equipped with an anti - collision detection device and a Z - axis retraction system.
●Closed loop system with loading cell, equipped with a fully automatic high - precision sensor and a closed-loop feedback control system.
●An ultra - high - precision X/Y auto stage with a repeat positioning accuracy of 3 microns and a maximum travel of up to 200 mm (optional).
●Objective magnification: 2.5X, 5X (10X, 20X optional).
●Indenter specifications:
120° Rockwell diamond indenter.
Φ1.5875 mm Rockwell ball indenter (Φ3.175 mm, Φ6.35 mm, Φ12.7 mm are optional).
136° Vickers diamond indenter.
Φ2.5 mm, Φ5 mm Brinell ball indenter (Φ1 mm, Φ10 mm are optional).

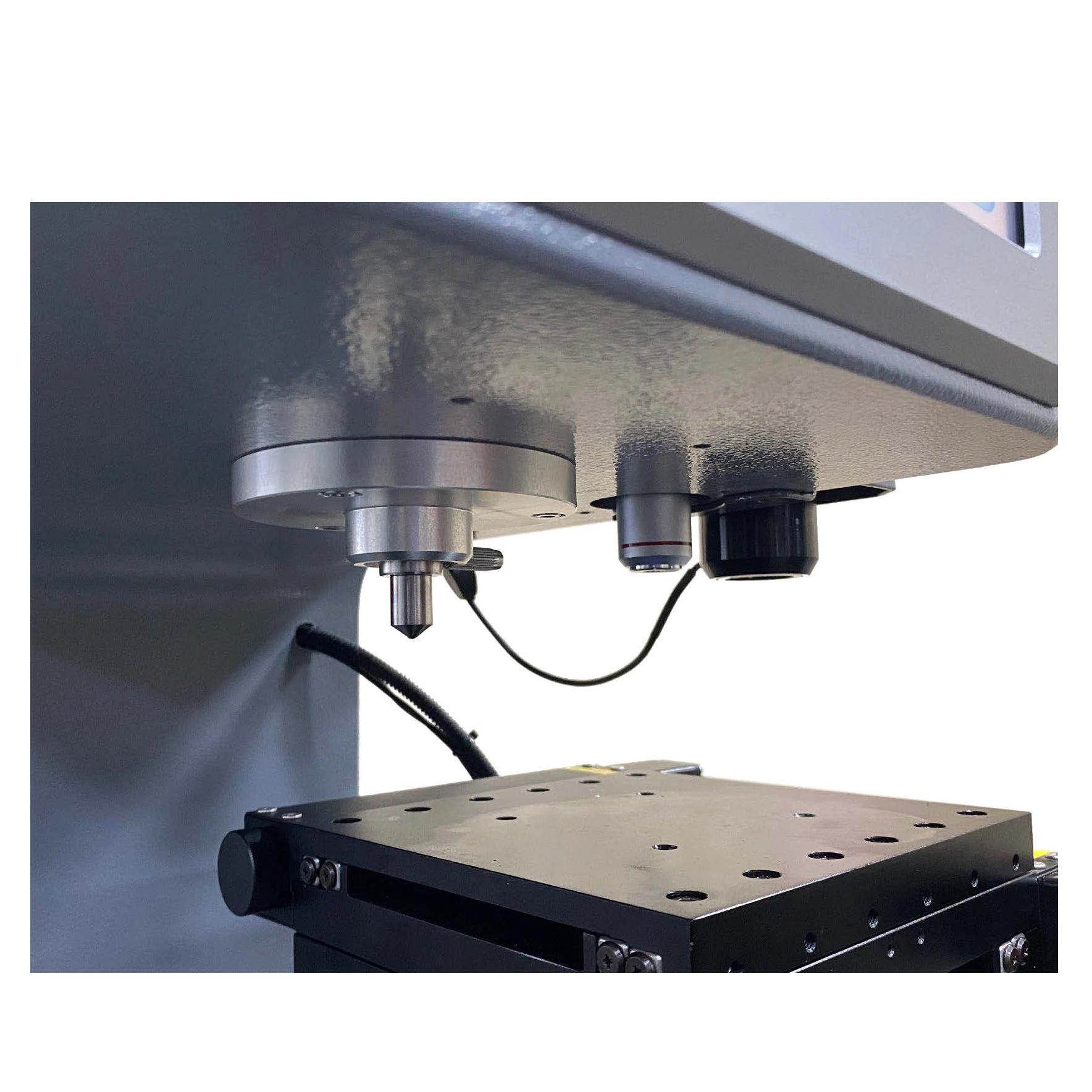

●Brinell and Vickers tests can be automatically positioned to the measurement and observation positions.
●5 - megapixel industrial camera.
●Supports hardness value conversion between multiple scales.
●Hardness measurement software supports automatic/manual measurement, report, export, printing, and data statistics.
●Automatically calculates the uncertainty of the hardness value(optional).
●Automatically generates documents required for CNAS review(optional).
●Executive standards: GB/T230, GB/T231, GB/T4340, JJG144,GB/T18449, ISO 6508, ASTM E 10, ASTM E92, ASTM E18, ASTM,E384, ASTM E103.
Product Application:
●Materials research:
It is used to evaluate the hardness characteristics of materials and provide data support for material selection, design, and development.
●Production quality control:
During the manufacturing process, it is used to detect whether the hardness of products meets the standards to ensure product
quality.
●Failure analysis:
When equipment or parts fail, by analyzing the changes in their hardness, the causes and mechanisms of the failure can be inferred.
Availability:
Quantity:

Product Description

Technical Specification:

Model

MBRV-250A

Name

Intelligent Automatic Universal Hardness Tester

Hardness Scale

Brinell, Rockwell, Vickers

Brinell Scale

HBW1/:5、10、30kgf

HBW2.5/:6.25、15.625、31.25、62.5、187.5kgf

HBW5/:125kgf

HBW10/:100kgf

Rockwell Scale

HRA, HRB,HRC, HRD,HRE,HRF,HRG, HRH, HRK, HRL, HRM, HRP,

HRR, HRS, HRV

Vickers Scale

HV3、HV5、HV10、HV20、HV30、HV50、HV100、HV120kgf

Conversion Scale

HRA、HRB、HRC、HRD

HRF、HV、HBW

HR15N、HR30N、HR45N

HR15T、HR15T、HR15T

Measuring System

Automatic

Objective Lens Magnification

2.5X、 5X(Optional 10X、20X)

Camera

5 Megapixel

Data Display

Computer Screen

Loading Method

Auto Loading/Dwelling/Unloading

Indenter

Diamond Rockwell Indenter:120°

Rockwell Ball Indenter:Φ1.5875mm,(Optional Φ3.175mm,

Φ6.35mm, Φ12.7mm)

Diamond Vickers Indenter:136°

Brinell Ball Indenter Φ2.5mm, Φ5mm(OptionalΦ1mm, Φ10mm)

Illumination

LED

Executive Standards

GB/T230、GB/T231、GB/T4340、JJG144、GB/T18449、ISO 6508、

ASTM E 10、 ASTM E92、 ASTM E18、 ASTM E384、 ASTM E103

Total Test Force Dwelling Time

1 - 99 s

Test Sample

Test Space: 220x200mm(HxD)

Cylindrical Specimen: The Minimum Diameter of The Uuter Surface

of The Cylindrical Specimen is 4 mm.

Test Height

Rockwell : 220mm Brinell/Vickers:150mm

Test Throat

200mm

Machine Size L*W*H(mm)

500*260*750

Net Weight(kg)

70

Power Supply

AC220V+5%,50-60Hz

Package Size L*W*H

710*430*980(mm)

Gross Weight(kg)

102

Standard Delivery:

Name

Qty

Machine Mainframe

1 pc

USB Flash Drive ( Measurement

Software Included)

1 pc

Dell Computer

1 pc

5-megapixel Industrial Camera

1 pc

Dongle

1 set

Lighting Source

15kg

Electric Motorized Sliding Test Stage

1 pc

Objective Lens(2.5X、5X)

Each 1 pc

Rockwell Diamond Indenter

1 pc

Rockwell Ball Indenter

Φ1.5875mm

1 pc

Vickers Diamond Indenter

1 pc

Brinell Ball Indenter

Φ2.5mm

1 pc

Brinell Ball Indenter Φ5mm

1 pc

Test Anvil Φ150mm

1 pc

Standard Delivery:

Name

Qty

Test Anvil Φ60mm

1 pc

V-shape Test Anvil Φ38mm

1 pc

Rockwell Hardness Block High Value HRC

1 pc

Rockwell Hardness Block Low Value HRC

1 pc

Rockwell Hardness Block HRB

1 pc

Brinell Hardness Block HBW2.5/187.5

1 pc

Vickers Hardness Block HV30

1 pc

Level Gauge

1 pc

Anti-dust Cover

1 pc

Anti-dust Cover

1 pc

Powder Cord

1 pc

Product Certificate

1 pc

Warranty Card

1 pc

Instruction Manual

1 pc

Optional Delivery

Optional Delivery

10X、20X Objective Lens

1/8”、1/4”、1/2” Rockwell Ball Indenter

Φ1mm、Φ10mm Brinell Indenter

X-Y Auto Test Stage

Other Test Anvil

Other Hardness Block
