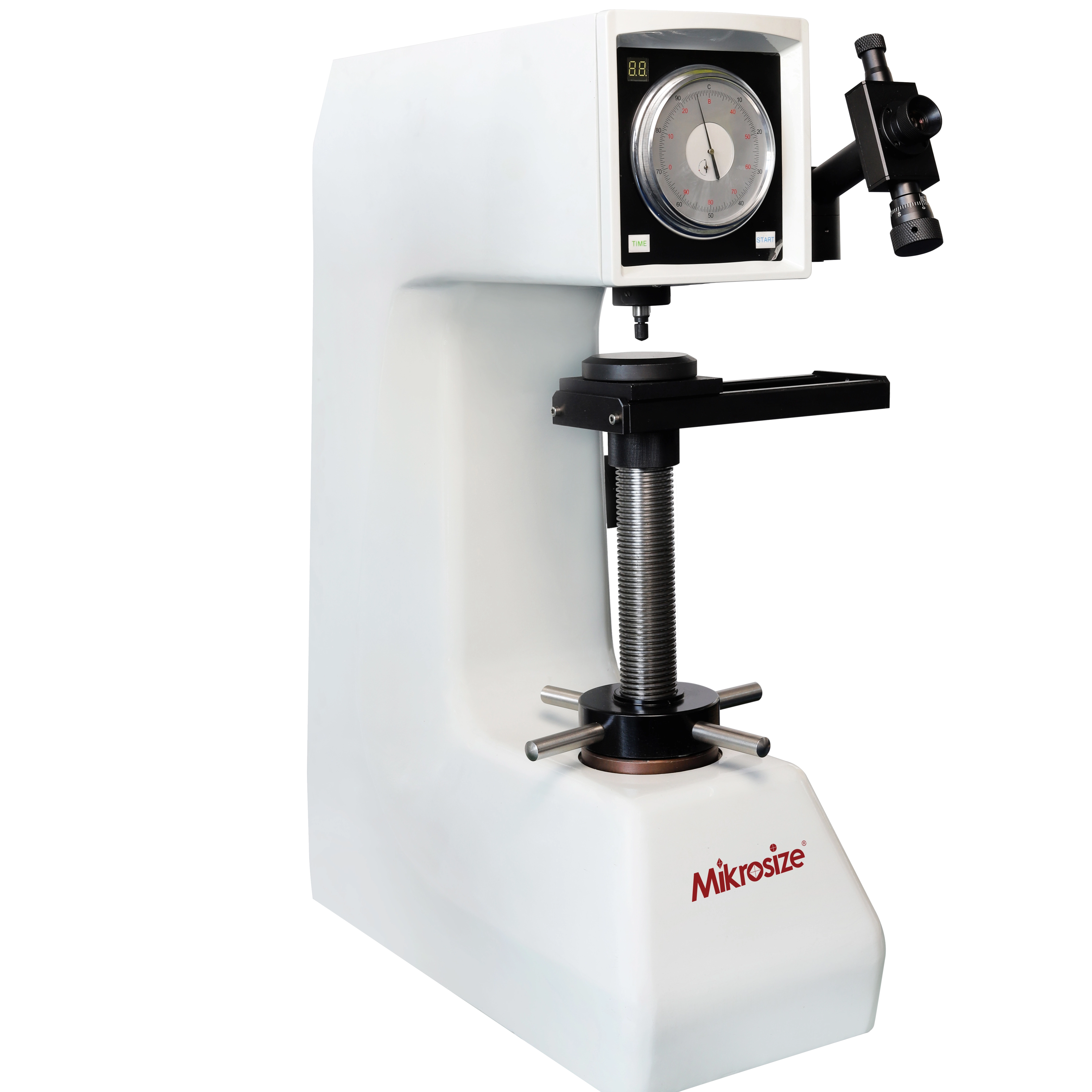

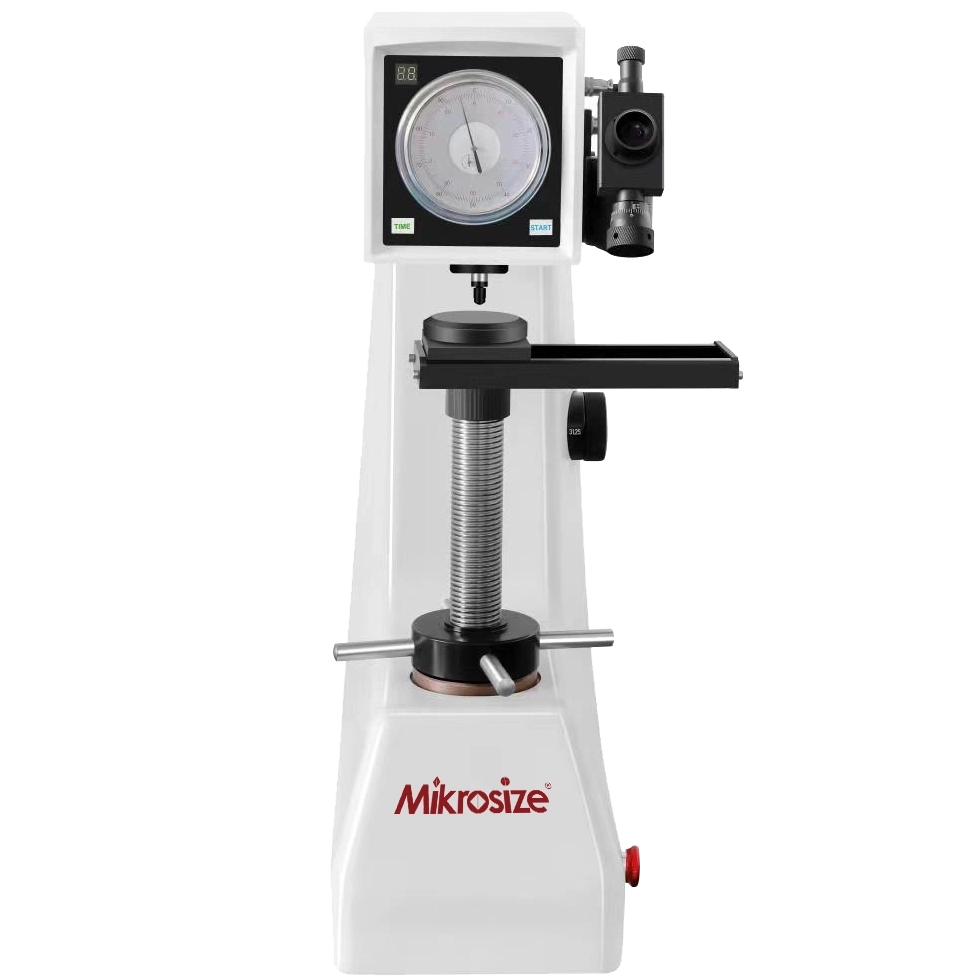

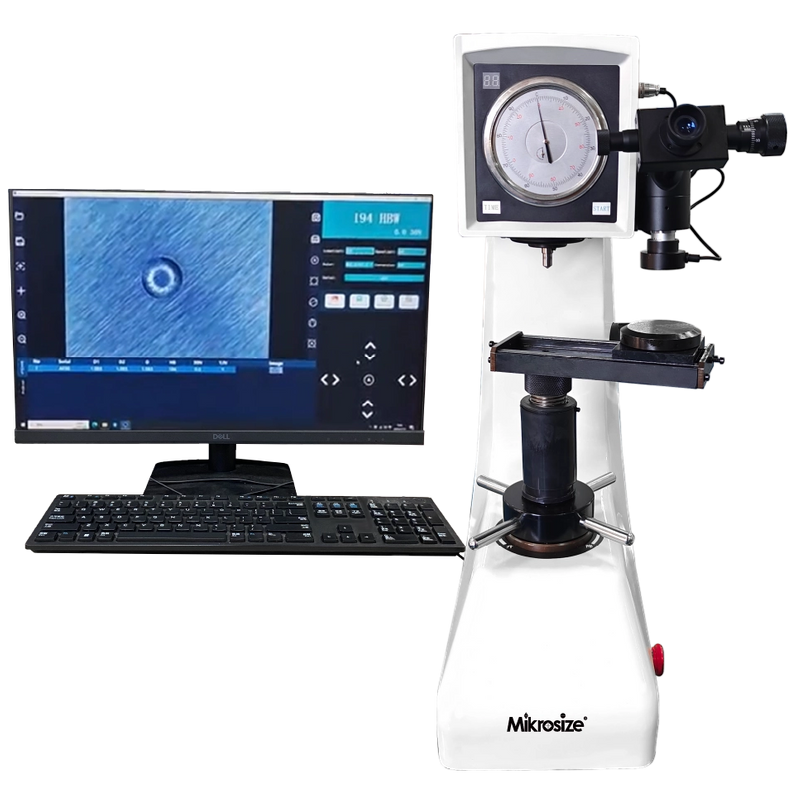

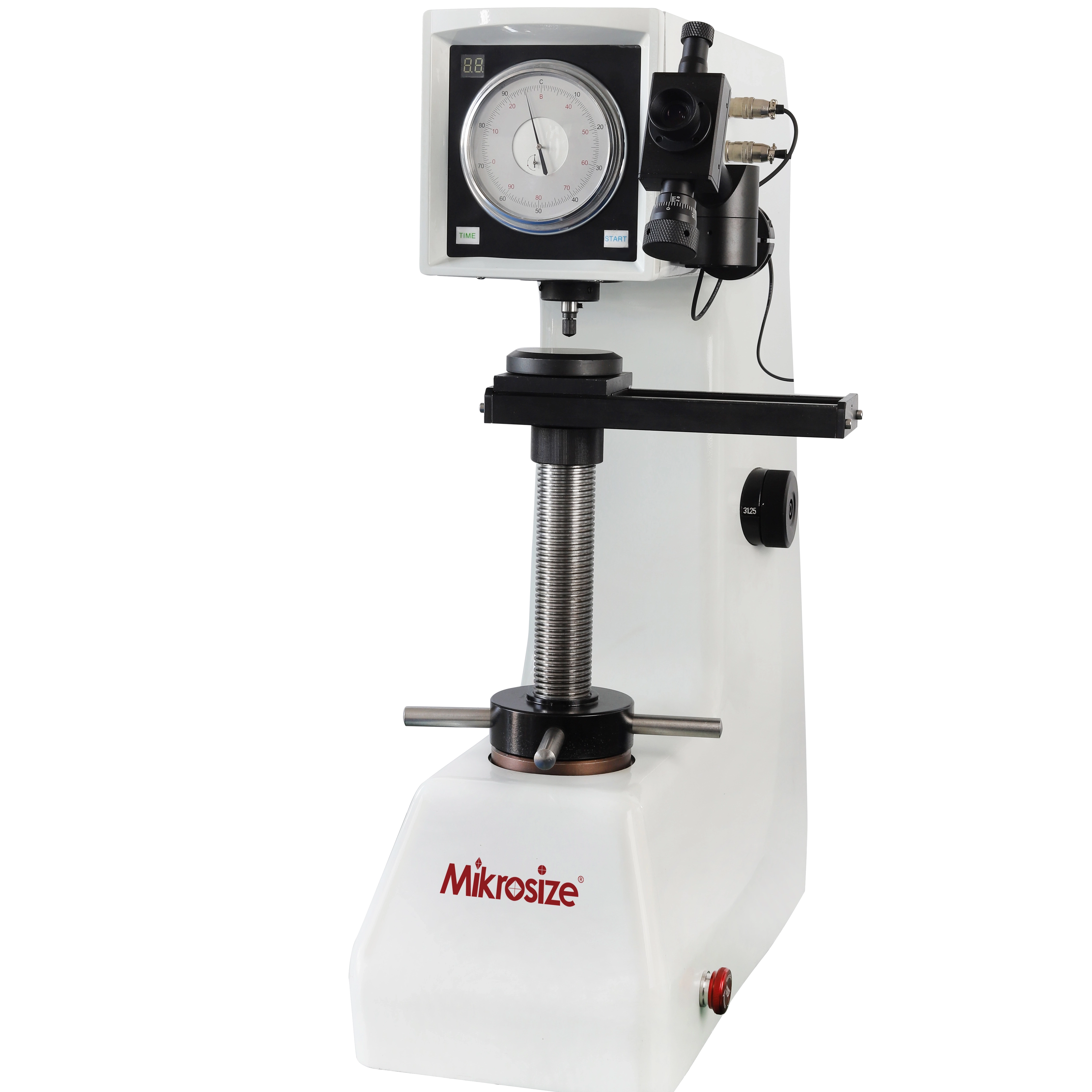

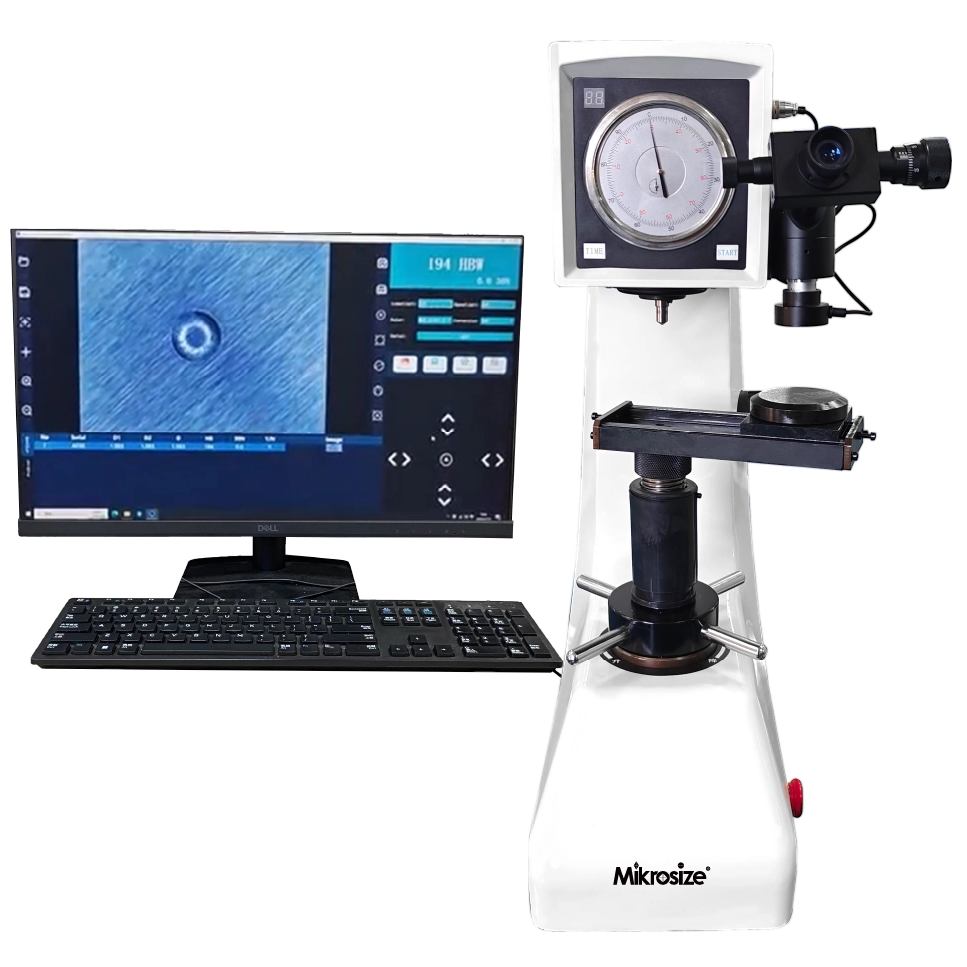

IBRV-187.5EM Electric Motorized Brinell Rockwell Vickers Hardness Tester

Total test force

588.4N（60 kg）、980.7N（100 kg）、1471N（150kg）

Indenter

Diamond Rockwell indenter、Ф1.5875mmball indenter

Test scale

HRA、HRB、HRC、HRD

Maximum height of the specimen

210 mm

Brinel Scales

Test force

294.2N（30kg）、306.5N（31.25kg）、612.9N（62.5kg）

980.7N（100kg）、1839N（187.5kg）

Indenter

φ2.5mm、φ5mm ball indenter

Test scale

HBW1/30；HBW2.5/31.25；HBW2.5/62.5；HBW5/62.5；HBW2.5/187.5

Eyepiece magnification

15X

Objective magnification

2.5X、5X

Maximum height of the specimen

180mm

Vickers Scales

Test force

294.2N（30kg）、980.7N（100kg）

Indenter

Diamond Vickers indenter

Test scale

HV30；HV100

Eyepiece magnification

15X

Objective magnification

10X

Maximum height of the specimen

180mm

Hardness tester host

Display method

Special indicator table for hardness tester

Distance from the center of the pressure head to the body

165mm

External dimensions of hardness tester

550×230×780mm

weight approximately

80KG

supply voltage

AC220V 50Hz

Hardness tester host

1

Diamond Rockwell indenter

1

Diamond Vickers indenter

1

φ1.5875mm ball indenter

φ2.5mm ball indenter

φ5mm ball indenter

Each 1

HRC standard hardness block

3

Pressure head set screw

1

HRB standard hardness bloc

1

big、small、V-shaped sample stage

Each 1

HRA standard hardness bloc

1

Eyepiece

1

HV standard hardness bloc

1

Slide sample table

1

HB standard hardness bloc

1

2.5X、5X、10X objective

Each 1

Horizontal adjustment screw

4

Level gauge

1

Power line

1

Fuse 2A

2
