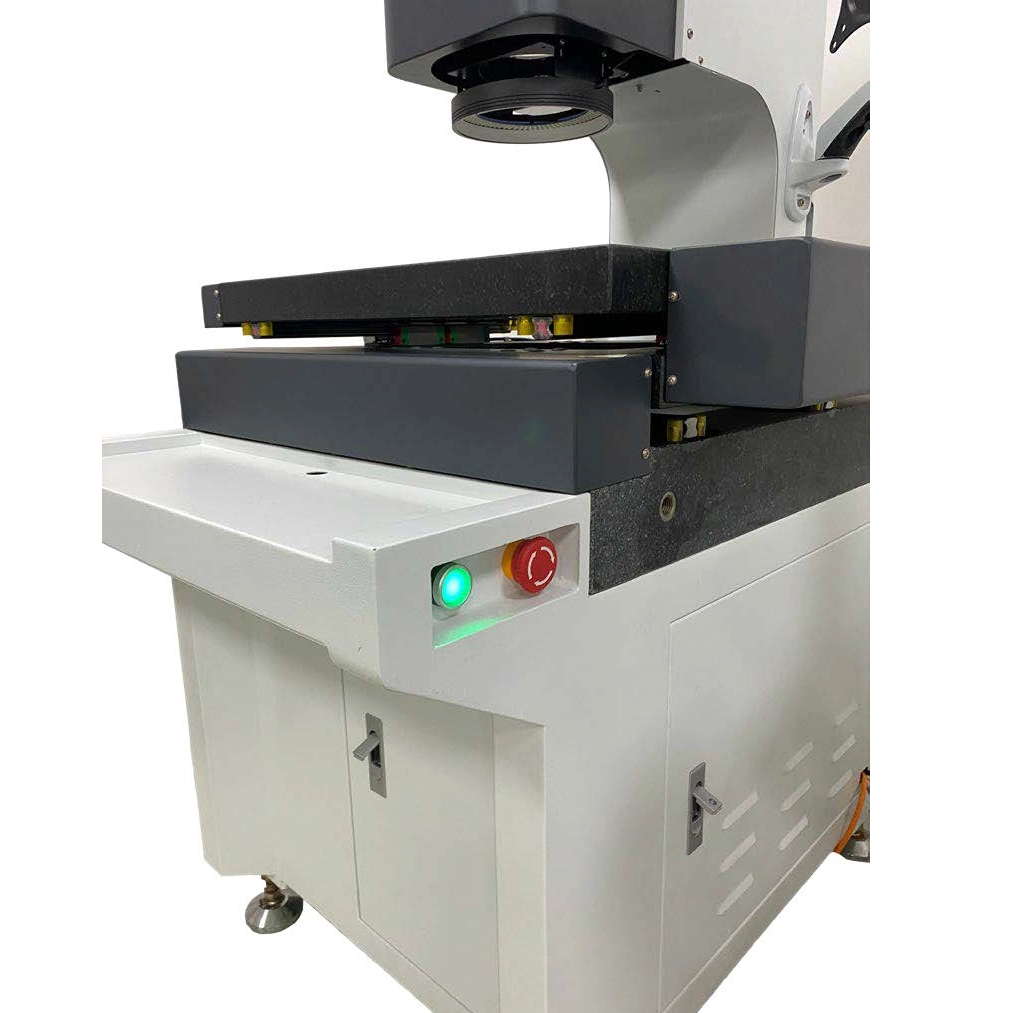

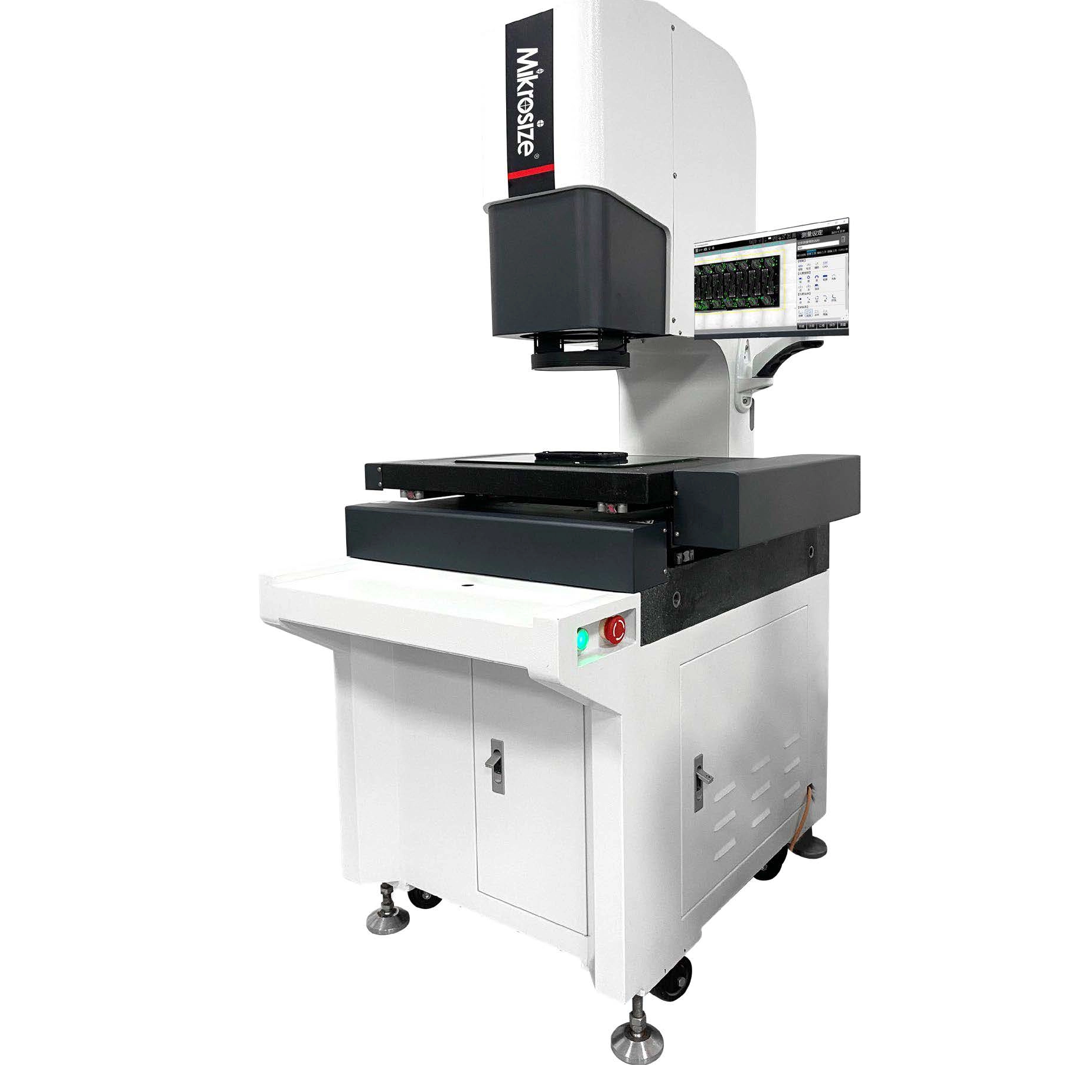

VMQ-3020 Instant Video Measuring System

Product Advantages:

lHigh measurement efficiency: The large-platform stitching design allows for measuring multiple products at one time or completing the size measurement of super-large products with one key, which greatly improves the detection speed;

lStrong adaptability: It can accurately measure various complex shape dimensions such as complex surface dimensions, without being restricted by the shape of the workpiece;

lConvenient automatic matching: Programs for products of the same category can be permanently saved after one-time programming, and automatically matched during measurement to reduce repetitive operations;

lSimple and efficient calibration: Only one functional calibration key is required to achieve multi-angle, all-round and full-field calibration, ensuring measurement accuracy;
lSimple software operation: Humanized and intelligent software design, simple operation, easy to learn and use, reducing learning costs;

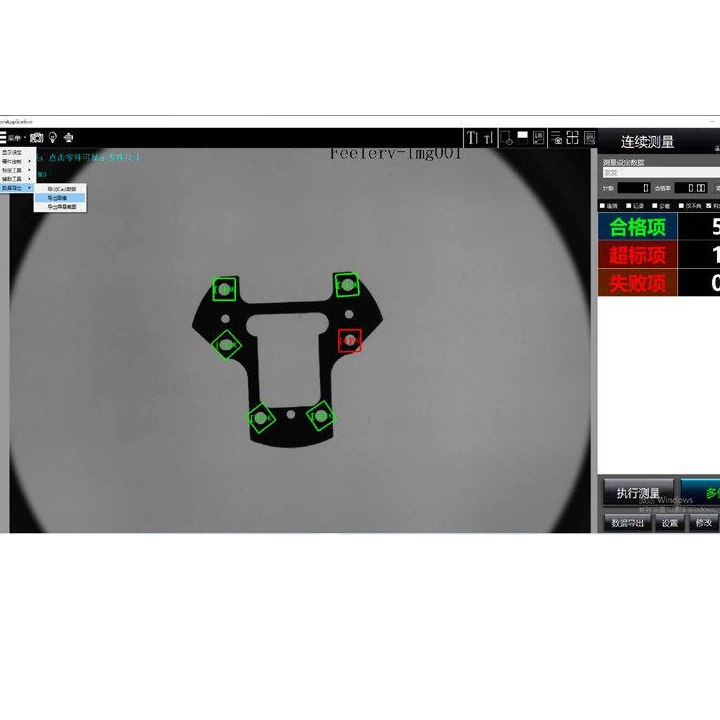

lRich measurement functions: It has various 2D dimension measurement functions such as point, line, circle, etc., to meet different measurement needs;
lIntelligent data management: Measurement results are automatically saved to the computer, including information such as measurement date and product batch number, facilitating data management;

Product Applications:
lMechanical manufacturing field: Suitable for dimensional measurement of mechanical components such as shaft parts and gears to ensure production accuracy;

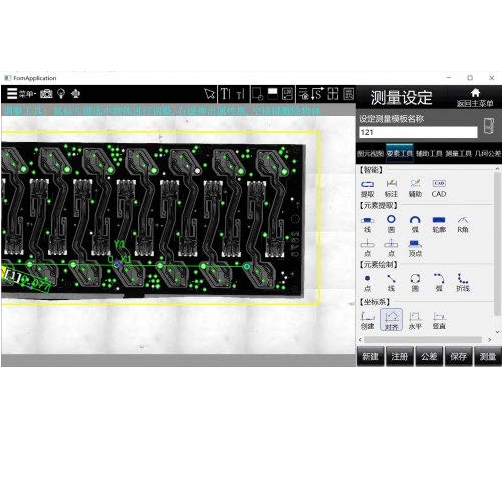

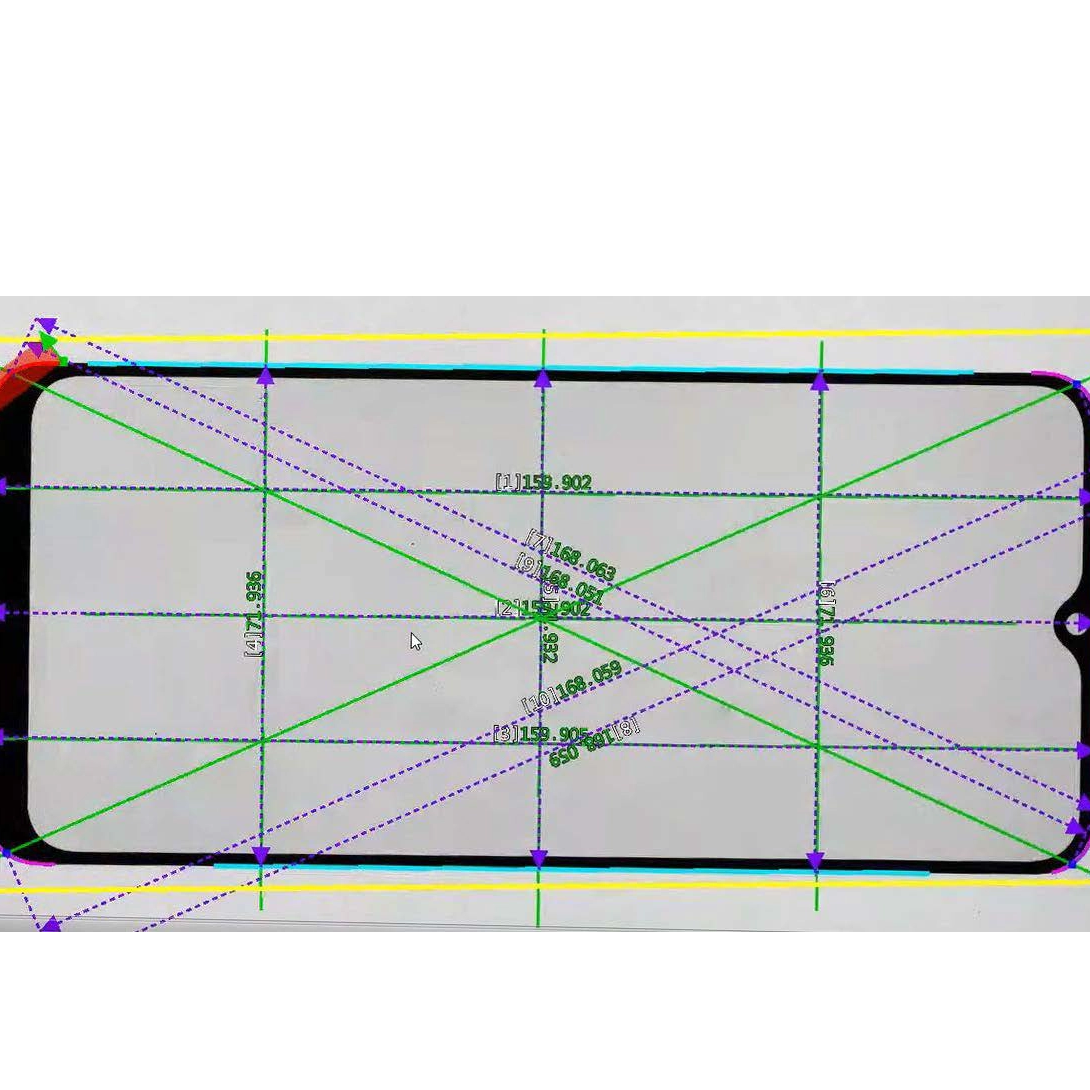

lElectronic industry: It can perform precise measurement on semiconductors, mobile phone covers, printed circuit boards, etc., to ensure the quality of electronic products;
lMold injection molding industry: Used for dimensional inspection of molds and injection molded parts to help improve product molding quality and production efficiency;
lHardware and rubber industry: Capable of measuring the dimensions of hardware parts and rubber rings to meet the diversified measurement needs of the industry;
lMedical device and watch industry: Provides high-precision measurement for medical device and watch components to ensure product fineness;

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical parameters：

Model	VMQ-3020
Motion range(mm)	300×200×200
External dimensions(mm)	900×800×1650
Weight(kg)	380
Load-bearing(kg)	20
Image sensor	20-megapixel industrial camera
Lens	Double telecentric optical lens
Accuracy(um)	±(3+L/100)
Minimum Display Unit(mm)	0.0001
Z-axis working distance(mm)	200
Light source	1000-level programmable light source/surface light: ring-shaped surface light source contour light: telecentric parallel light source (optional surface light: external coaxial light)
Image processing	IVT advanced image analysis method, 256 grayscale levels, 10:1 sub-pixel processing technology
Software	Mikromea
Working environment	Temperature: 22℃±2℃ Humidity: 30～80% Vibration:＜0.002mm/s,＜15Hz
Power supply	220V/50Hz

Packing list：

Name	QTY	Remark
Host	1set
Motion Controller	1pc	Standard
Servo motor	3pcs	Standard

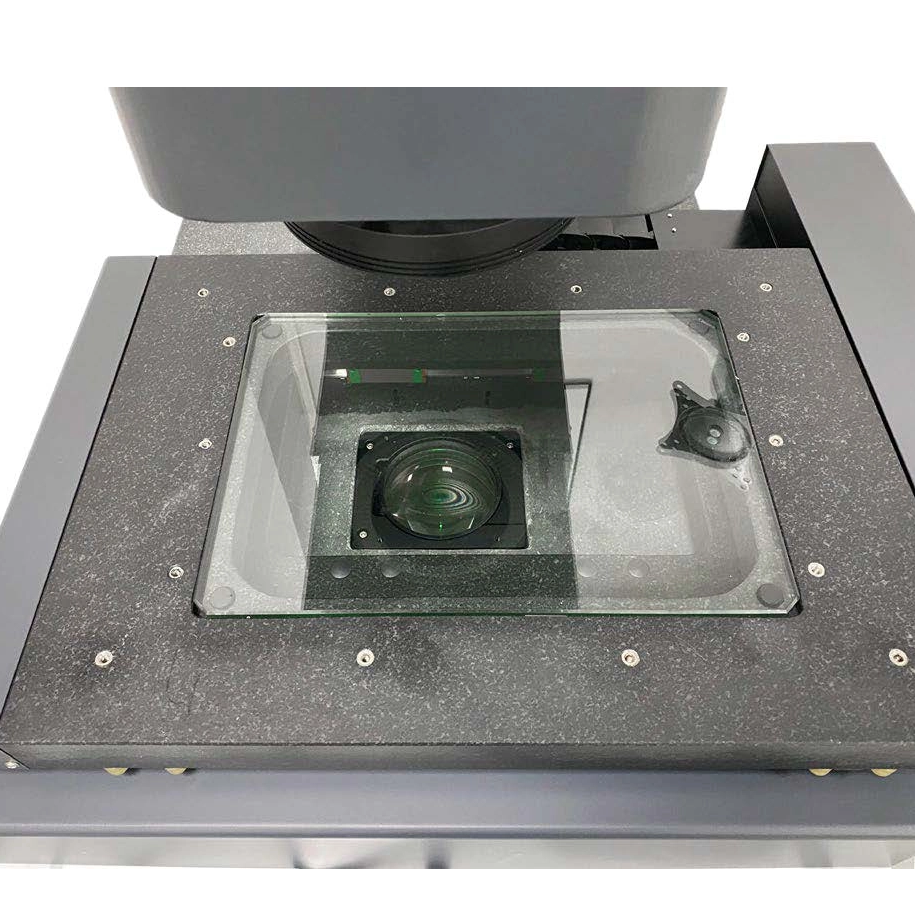

Workbench glass	1pc	Standard
Telecentric lens	1pc	Standard
Industrial camera	1pc	Standard
Ring surface light source	1pc	Standard
Telecentric Parallel Light Source	1pc	Standard
Camera Cable, Serial Port Cable	Each 1 pc	Standard
Calibration Plate	1pc	Standard
Computer	1pc	Including the mainframe, a 24 - inch monitor, and a keyboard - mouse set.
Mikromea Software	1pc	With Encryption Lock
Software Instruction Manual	1pc	Standard
Certificate of Conformity, Warranty Card	Each 1 pc	Standard
