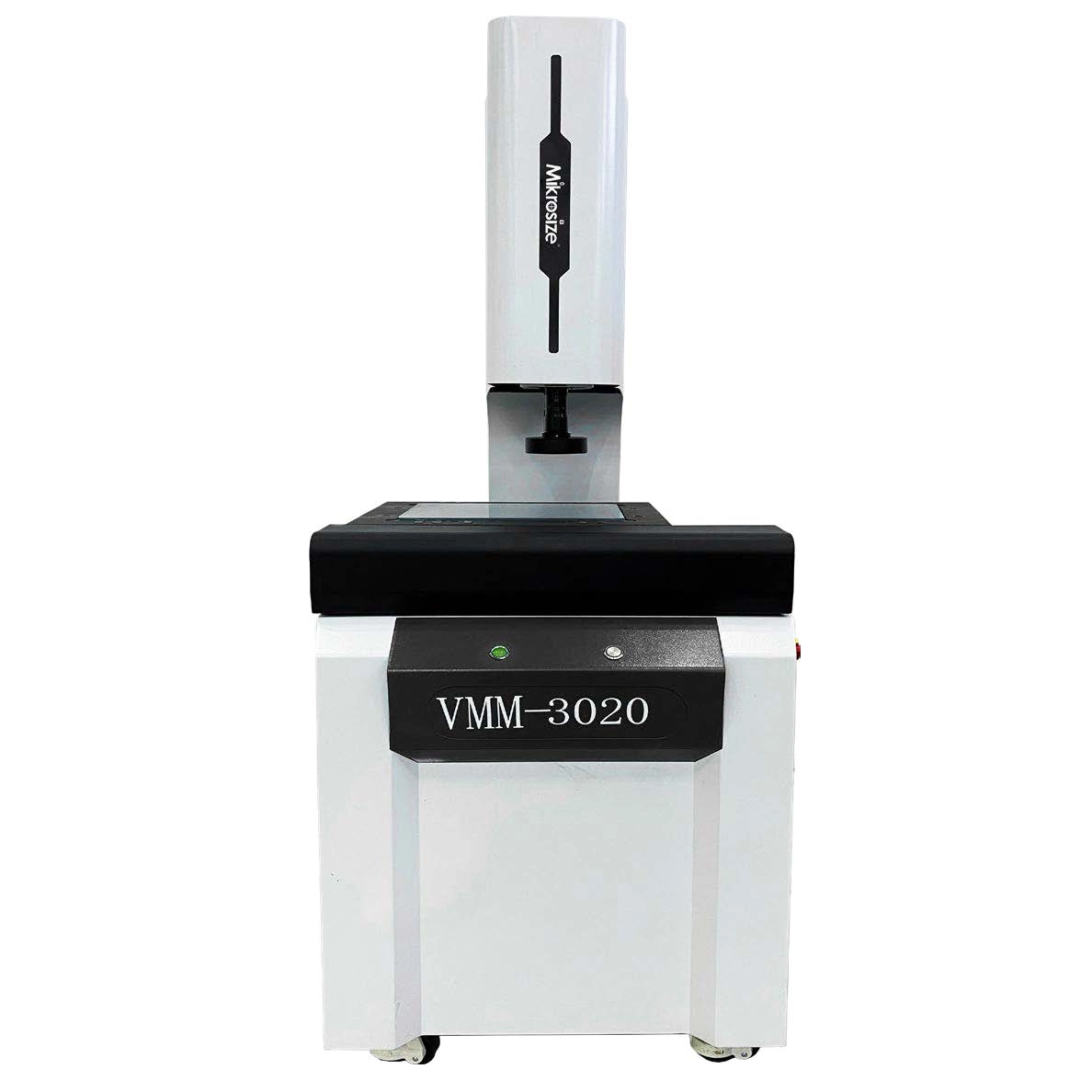

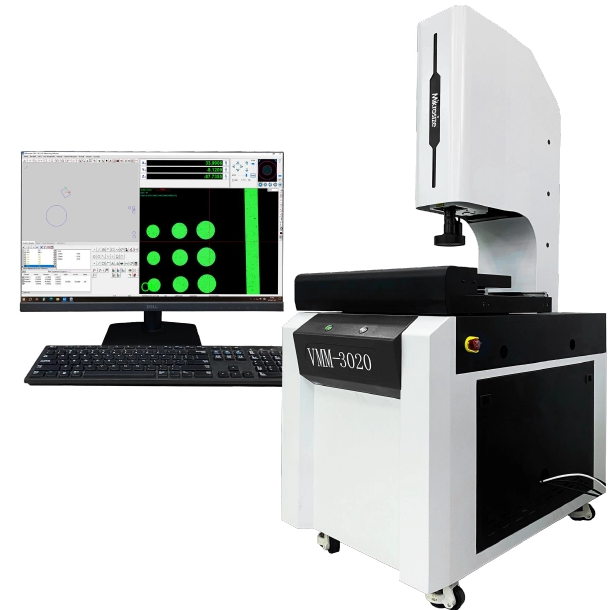

VMM-3020 CNC Video Measuring System (High Precision: 2.5um)

Product Feature：

lFully auto control via a mouse and a joystick, simple and easy to use, highly efficient, good stability.

lIt can generate tasks for fully automatic batch measurement and supports both automatic and manual interactive operations.

lAutomatic lens calibration eliminates cumbersome full calibration steps.

lThe light source can be automatically controlled, and automatic lighting is supported.

lAutomatic control for each section of contour light 5 rings and 8 sections as for surface light .

lQuick and automatical focus and with function of measuring height by focusing .

lDXF drawings can be imported, and it can import and export with CAD, enabling graphic processing.

Product Application:

lIn the field of electronic manufacturing, it can measure the dimensions of electronic components with high precision and detect the quality of PCB boards, ensuring the reliability of electronic products.

lIn the field of machining, it can accurately detect the dimensions of complex parts and the condition of cutting tools, contributing to the improvement of machining accuracy and effectiveness.

lIn mold manufacturing, it comprehensively inspects the mold cavities and provides a basis for their repair and improvement, ensuring the molding quality of products and prolonging the service life of molds.

lIn automobile manufacturing, it precisely measures automotive parts and the appearance of the vehicle body, guaranteeing the performance and appearance quality of automobiles.

lIn the fields of scientific research and teaching, it meets the requirements of precise measurement in scientific research and can also be used for teaching demonstrations and training.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Product Name			CNC Video Measuring System(Precision 2.5um)
2.5D Model			VMM-3020		VMM-4030	VMM-5040
3D Model			VMM-3020P		VMM-4030P	VMM-5040P

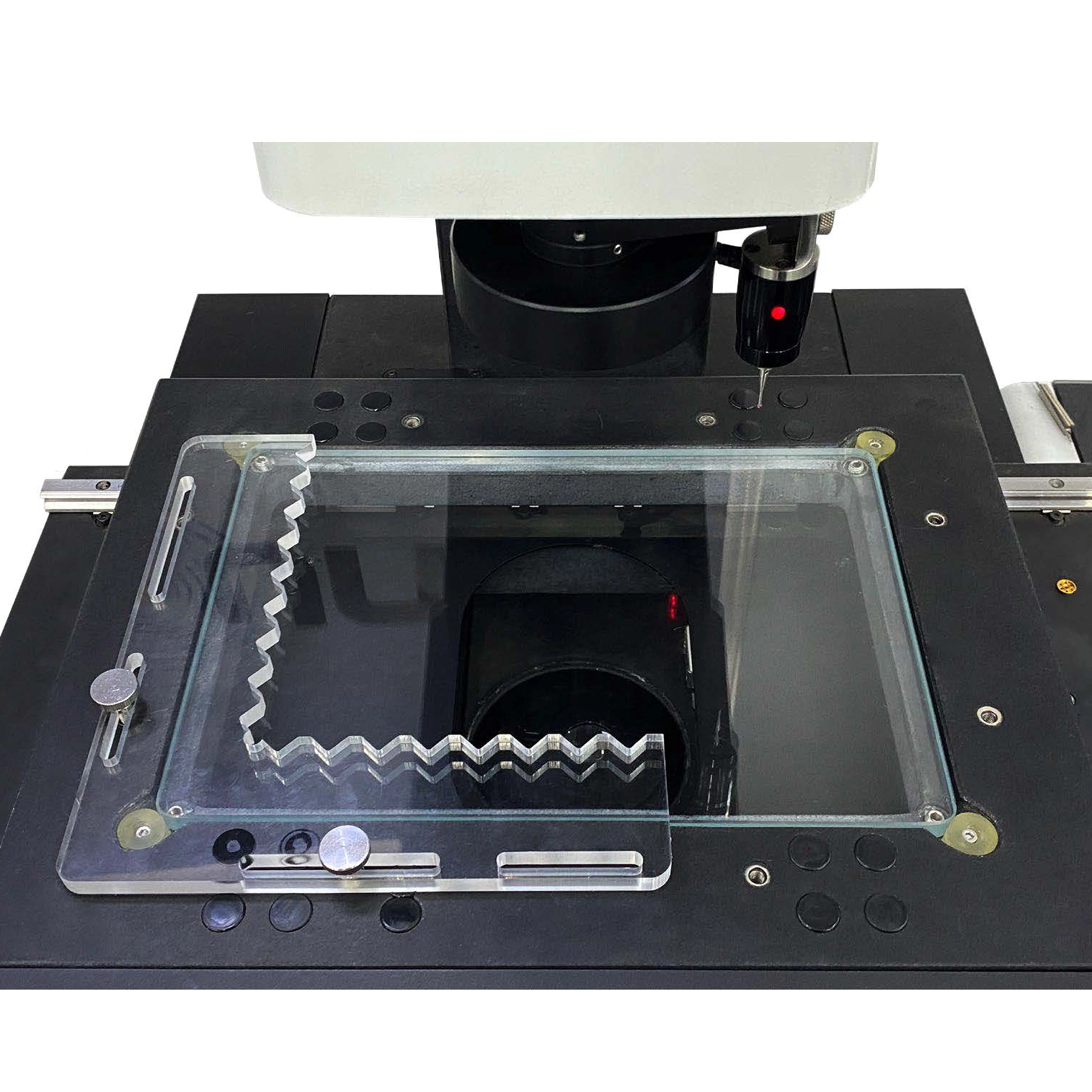

3D Measuerment			3D Module and UK Renishaw Touch Probe
Working Stage	X,Y-axis Travel		300x200mm		400x300mm	500x400mm
	Z-axis Trav		200mm(For Focusing and Auxiliary Measurement)
	Driver Type		Lead-screw Drive for X,Y,Z-axis
Digital Measuring System			Linear Resolution:X,Y,Z-axis 0.5um
			Precision:X,Y-axis≤(2.5+L/200)um, Z-axis≤(4.0+L/100)um
Video System			1/2" High-resolution CCD Color Camera

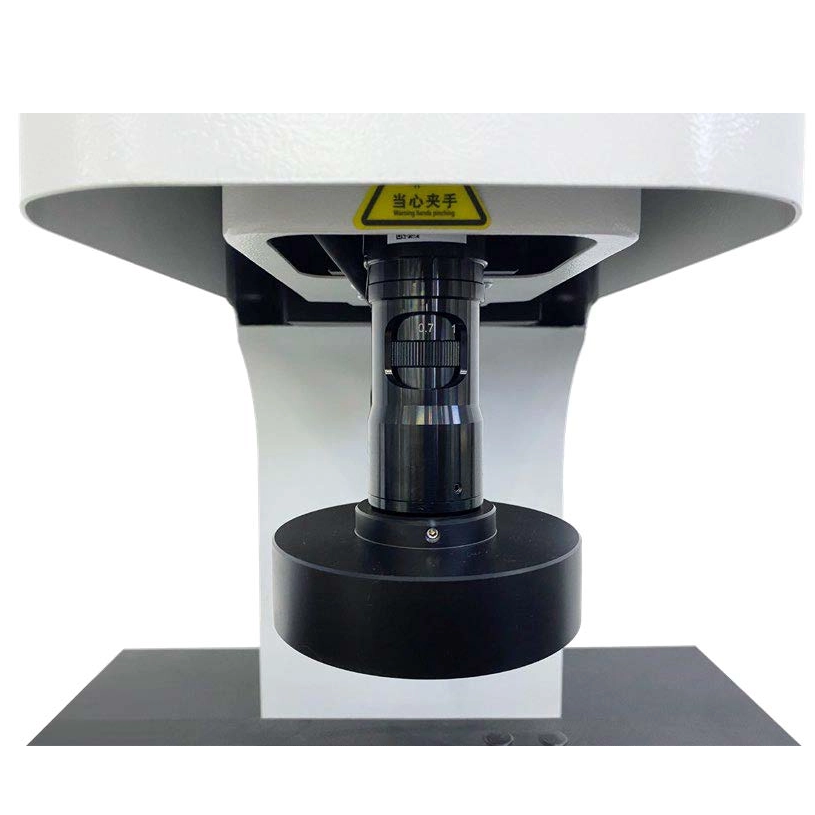

			0.7~4.5X Electric Motorized Zoom Lens 6.5:1
			Total Video Magnification is 20~180X(customizable)
Magnification			Optical:0.7~4.5X, Video:28~182X

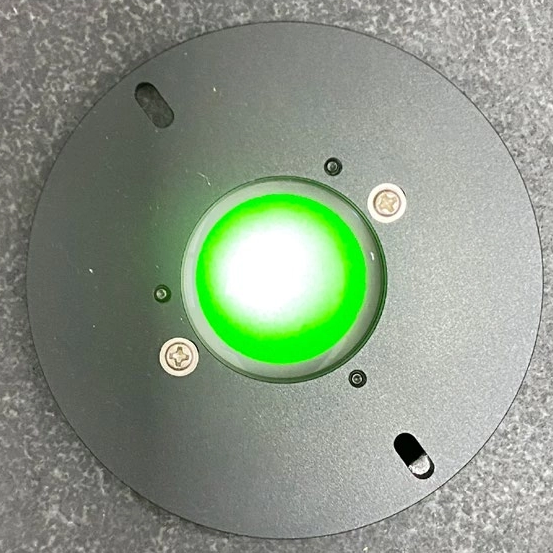

Illumination		Surface	LED Circular Cold Light Source with Lamp Beads Made in USA5 Rings and 8 Zones, With Each Section Independently Controllable.
		Contour	LED Circular Cold Light Source with Lamp Beads Made in USA Brightness Can be Adjusted in 256 Levels.
Stage Max load Capacity			50kg
Movement Speed			X,Y-axis:380mm/s Z-axis: 100m/s
Working Distance			108mm
Movement Control			CNC Servo Motion Control System

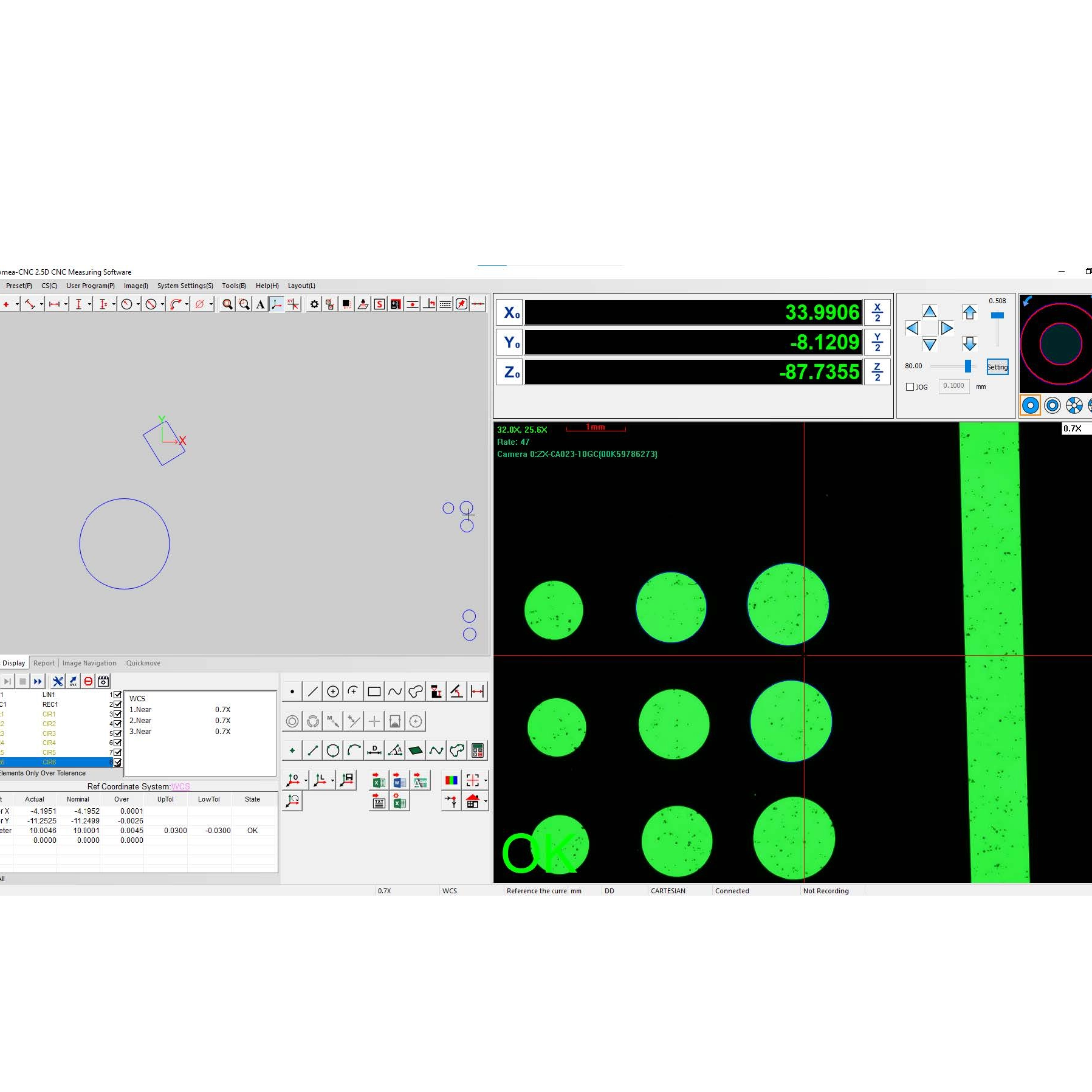

Software			Mikromea-CNC 2.5D CNC Measuring Software
Working Environment			Temperature: 20°C+2°C
			Humidity: 30%-80%
			Vibration < 0.002g,< 15Hz.
Power Supply			AC 100~220V 50/60HZ , SINGLE pHASE 700W
Machine Dimension(LWH)			660x560x960mm	1000x620x990mm			1300x750x1000mm
Machine Net Weight			240kg	280kg			360kg

Standard Delivery：

Product Name	Product Name	Product Name
Mikrosize Measuring Software	Hikvision CCD Color Camera/Video Capture Card	Auto Coaxial Zoom Lens
Mainframe/Dell PC System	Scale Transfer /Movement Control Card	48 –Division LED Illumination
0.5um Linear Scale/Calibra- tion Block	100mm Length Block(3D)	Renishaw Probe MCP-K2(3D)
Joystick	Slide Rail	X,Y,Z-axis Motor
