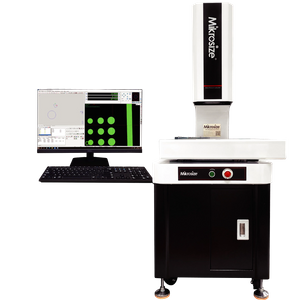

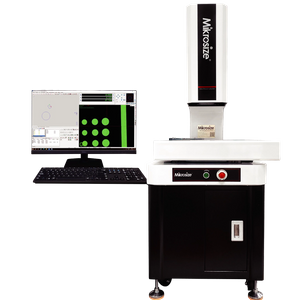

VMG CNC Video Measuring System

VMG Automatic Gantry CNC Video Measuring System Description:

● Moving gantry structure,measuring specimen fixed on stage

● CNC fully auto close loop control, auto measurement;

● Precise “00” grade “JINANQING” marble base and pillar ensures corrosion resistant,and working stability.

● Automatic zoom lens with electronic position, easily to change magnification.

● CNC fully automatic precisely control X-Y-Z-axis movements.

● Linear scale, resolution is 0.5um, high accuracy, great stability;

● Precise linear guide, grinding ball screw and AC servo motor, ensure accuracy stability of system position;

● Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;

● Microsize measuring software, with fast focus, auto Edge finding, diverse reports output. SPC data analysis on line. Auto measuring can be set.

● High definition color industry camera, ensure clear observation and stable measurement requirement;

Availability:

Quantity:



Inquire Add to Basket

Model:
VMG
Brand:
Mikrosize

Product Description

Product Description

VMG Automatic Gantry CNC Video Measuring System Specification:

Product Name		Fully Auto Video Measuring System
2.5D Model		VMG-6060	VMG-6080	VMG-8010	VMG-1012	VMG-1215
3D Model		VMG-6060P	VMG-6080P	VMG-8010P	VMG-1012P	VMG-1215P
Stage Travel(mm)X/Y/Z		600x600x200	600X800X200	800x1000x200	1000x1200x200	1500X1500X200
Machine Dimensions(mm)		1490X962X1620	1690X1162X1620	1890X1362X1620	2090X1562X1620	2290X1762X1620
Accuracy(µm)		E1(x/y)=(3.5+L/100) , L=length to be measure in mm
Load weight of worktable		30kg
Net Weight(KG)		700	860	1000	1200	1600
Optical system	Image Sensor	1/2" color CCD camera
	Objective	Auto Coaxial Zoom Lens
	Magnification	Optic:0.7x~4.5x, Video:20x~148x
	Working Distance	92mm(standard)
Object field of view		11.1~1.7mm(standard)
Resolution		0.5µm
Driving System		X,Y,Z-axis Screw Driving
Movement Control		CNC-servo Movement Control System
Speed	X.Y-axis	300(mm/s)
	Z-axis	50(mm/s)
Illumination	Contour	Adjustable 256-grade LED Cold illumination
	Surface	Adjustable 256-grades 5-Ring & 8-Division LED Cold illumination
Measuring Software		Microsize
Working Environment		Temperature: 20℃±2℃, Temperature Variation<2℃/hr,Humidity:30~80%
		Vibration<0.002g,15Hz
Power Source		AC 100~220V 50/60HZ 10A

VMG Automatic Gantry CNC Video Measuring System Standard Delivery:

Product Name	Product Name	Product Name
Measuring Software	CCD Camera/Video Capture Card	Motorized Coaxial Zoom Lens
Mainframe/Dell PC System	Scale Transfer /Movement Control Card	8 –Division LED Illumination
Linear Scale/Calibration Block	100mm Length Block(3D)	Renishaw Probe (3D)
