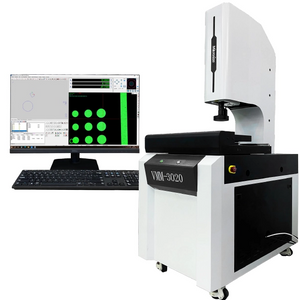

VMK CNC Automatic Video Measuring System

VMK CNC Automatic Video Measuring System Description:
● CNC fully auto close loop control, auto measurement; Integrative Design , convinient for measuring;
● 00” Grade Stable and Reliable Marble base , Ensuring high measure speed, accuracy and precision
● Precision Linear Guide and Grinding Ball Screw, AC servo motor ensures accuracy
● High precision linear scale, resolution is 1um, high accuracy, great stability;
● Manual zoom lens and 1 /2" color high resolution CCD camera;
● Programmable 5 Ring, 8-division LED Surface illumination controlled by software and with memory function
● Contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
● Optional imported touch probe, realize 3D measurement;

VMK CNC Automatic Video Measuring System Application:
● It is widely used in machinery manufacturing, electronics, automobile, hardware, plastic, mold and other industries.
● It can accurately measuring workpiece size,shape,position tolerance, so as to complete the tasks of components inspection, shape measurement, process control and so on.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

VMK CNC Automatic Video Measuring System Specification：

Product Name		CNC Automatic Video Measuring System
2.5D Model		VMK-3020	VMK-4030	VMK-5040
3D Model		VMK-3020P	VMK-4030P	VMK-5040P
X,Y-axis Travel		300x200mm	400x300mm	500X400mm
Z-axis Travel		200mm
Dimensions(mm)		750X520X980	1000x620x990	1300x750x1000
Max.load Capacity		25Kg	25Kg	25Kg
Net Weight		240Kg	280Kg	360Kg
X/Y/Z 3-axis Linear Scale(2.5D)		Resolution:0.5µm
Accuracy(um)		E1(x/y)=2.5+L/100
Repeatability		±2um
Movement System		X,Y,Z-axis:Screw Rod
Movement Control		CNC Auto Servo Movement Control
Video System		1/2" color CCD camera
		Auto Coaxial Zoom Lens
		Optical Magnification:0.7-4.5x; Video Magnification:20-148x
		Working Distance(Standard): 92mm
Object View(Standard)		11.1~1.7mm
Speed(mm/s)		X,Y-axis:200 Z-axis:50
Illumination	Contour	Adjustable 256-grade LED Parallel illumination
	Surface	Adjustable 256-grades 5-Ring & 8-Division LED Cold illumination
3D Measuerment		3D Module and UK Renishaw Touch Probe
Measuring Software		Mikrosize
Working Environment		Temperature: 20℃±2℃, Temperature Variation<2℃/hr,Humidity:30~80%
Power Source		AC 100~220V 50/60HZ 10A

VMK CNC Automatic Video Measuring System Standard Delivery：

Product Name	Product Name	Product Name
Measuring Software	CCD Camera/Video Capture Card	Auto Coaxial Zoom Lens
Mainframe/Dell PC System	Scale Transfer /Movement Control Card	48 –Division LED Illumination
Linear Scale/Calibration Block	100mm Length Block(3D)	Renishaw Probe MCP-K2(3D)
