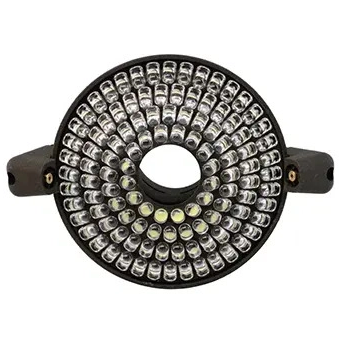

SURFACE LIGHT SOURCE

● This light source features independent lighting control for 5 rings,8 zones,and 40 directions,providing as many as 40 illumination angles.

● It is connected and used with the RS232 interface (with a built-in 12V power supply) of the UWC series CNC controller.

● It can illuminate from as many as 40 directional angles in 5 rings and 8 zones,meeting the lighting requirements of the vast majority of products.

● It serves as a visual inspection light source for imaging instruments and the like. It features an integrated design of the light-emitting disc and the control board.

● It adopts RS232 communication. The advanced design technology enables the cable to reach a length of up to 20 meters,making it suitable for use with various machines with different stroke lengths.

● It provides an API function interface,enabling easy integration in software programming.

● It can be connected to the RS232 interfaces of UWC4000i,UWC4000P,UWC3500 and UWC5000. The wiring is convenient,and it does not occupy the COM resources of the computer.

● It can be equipped with a special "heightening ring" to adjust the distance between the light source and the product.

● It has the function of setting the brightness level and can be matched with different objective lenses and cameras.

● It provides illumination angles within a focal length range of 40mm to 150mm simultaneously,and can offer lighting for objective lenses with various focal lengths.

● It is powered by an industrial-grade high-quality switching regulated power supply: 12VDC + 0.2V @ 1.8A.

● It is possible to install the ACC10 ring-shaped light source anti-collision device.

●The outer diameter is 111mm,the thickness is 32mm,and the height of the focusing ring is 40mm (maximum).

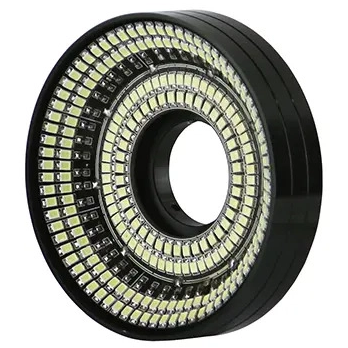

The UWC6016 is a soft light programmable light source with 2 rings,8 zones and 16 directions. It is particularly suitable for the lighting needs of products with highly reflective surfaces,such as the inspection of glass,metal machined surfaces,jewelry,etc. It has independently adjustable lighting angles of 45 degrees and 90 degrees,which can meet the surface lighting requirements of most products.

● The UWC6016 comes with its own dimming board and uses RS232 communication. It can be connected to the UWC controller or the COM port of a computer for use.

● It has an integrated structure of the light-emitting disc and the control board,featuring a unique and stable overall structural design.

● It provides 16 main illumination angles in 2 rings and 8 zones. By cooperating with a customized heightening ring,it can achieve lighting at multiple horizontal included angles,and can deal with surface lighting for surfaces with characteristics such as different "chamfers","step differences","weak edges",and those close to a "mirror surface".

● Each partition can be continuously adjusted in 200 levels,and the maximum output current can be set in 16 gears.

● It has high brightness stability,no flickering,and the gray value of the image edge is stable,ensuring the repeatability accuracy of the edge-finding function in the measurement software.

● It adopts RS232 communication,has strong anti-interference ability,and is suitable for use with large,medium and small machines.

● It provides an API function interface,making software programming integration simple and convenient.

● With advanced LED brightness control technology and sophisticated manufacturing processes,it ensures the reliable operation of the product over an extended period of time.

● It has a constant current control output for one path of bottom light (0-100mA) and one path of coaxial light (0-100mA),as well as the control for one path of laser indicator.

● It uses high-quality LED with a high color temperature,no color difference. The spectrum distribution is close to that of sunlight,featuring a long lifespan and minimal light decay.

● A soft light diffuser can be optionally configured to further enhance the flexibility of the illumination. A focusing ring is optional,which can be adapted to different lens focal lengths.

●The outer diameter is 100mm,the thickness is 24mm,and the working distance is 35mm.

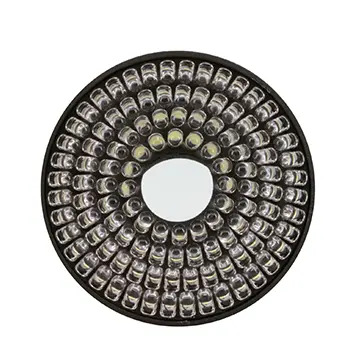

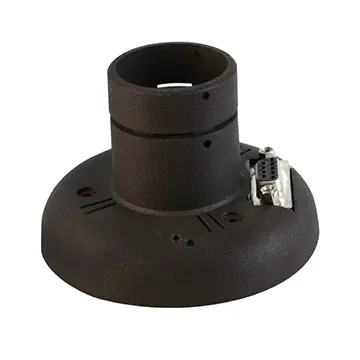

The UWC6032 is a programmable light source with 4 rings,8 zones and 32 directions. It has 32 emission angles and certain low-angle lighting capabilities. It can be directly connected to the RS232 interface of the UWC controller.

● The 32-direction programmable light source uses a mold to position the emission angle of each LED,ensuring the consistency of measurement accuracy.

● It has a small and round shape,which is delicate,beautiful and easy to install.

● It is equipped with 112 medical-grade LEDs,which increases the brightness by 55% compared with the UWC4003,while the outer diameter only increases by 1mm.

● High-quality plug-in cold light LED beads are used,which have small light decay and a long lifespan. They can reduce the heat-induced deformation of thin and light workpieces under illumination. Warm light (pure white light) is also optional.

● It is equipped with an advanced built-in light source control card,ensuring stable brightness without flickering.

● The focal lengths of commonly used zoom lenses differ by approximately 12mm. For the short focal length lens,the upper end of the mounting ring can be cut off to achieve focal length matching.

● The compact laser indicator installation component is easy to adjust. It can be selected as single or double,and there are 32 directions available for selection.

● The illumination angles of the four rings are respectively: 45.5,51.5,58.5,and 66 degrees (the included angle with the surface of the product),and the optimal focal length is 38mm.

● The power supply voltage of UWC6032: 12.5±0.25VDC@980mA,and the power supply current should not be less than 2A.

● The outer diameter is 88mm,the thickness is 28mm,and the maximum height of the focusing ring is 40mm.

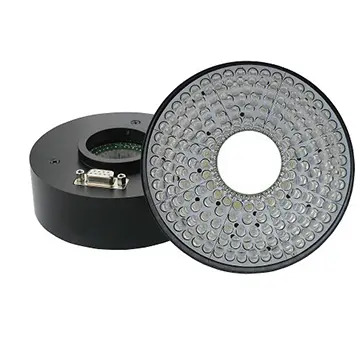

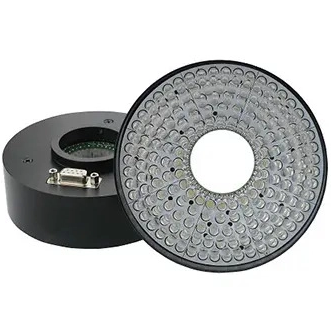

The UWC6045 is an anti-collision light source with 40 directions and a laser indicator. It is a standard light source for

mid-to-high-end imaging instruments. This light source is divided into 5 rings,8 zones,and has independent lighting control for 40 directions,providing as many as 40 illumination angles.

● The UWC6045 is used by connecting it to the RS232 interface (with a built-in 12V power supply) of the UWC series CNC controller.

● It has illumination from as many as 40 directional angles in 5 rings and 8 zones,which can meet the lighting requirements of the vast majority of products.

● It serves as a visual inspection light source for imaging instruments and the like. It features an integrated design of the light-emitting disc and the control board.

● It adopts RS232 communication. The advanced design technology enables the cable to be as long as 20 meters,making it suitable for use with various machines of different stroke lengths.

● It provides an API function interface,which enables easy integration in software programming.

● It can be connected to the RS232 interfaces of UWC4000i,UWC4000P,UWC3500 and UWC5000. The wiring is convenient and it does not occupy the COM resources of the computer.

● It can be equipped with the special "heightening ring" of UWC6045 to adjust the distance between the light source and the product.

● It has the function of brightness level setting,which can be matched with different objectives and cameras.

● It simultaneously provides illumination angles within the focal length range of 40mm to 150mm,and can provide illumination for objectives with various focal lengths.

● It is powered by an industrial-grade high-quality switching regulated power supply: 12VDC + 0.2V@1.8A.

● It can be equipped with the ACC10 annular light source anti - collision device.

● The outer diameter is 111mm,the thickness is 32mm,and the maximum height of the focusing ring is 40mm.

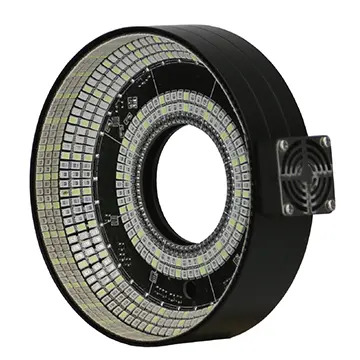

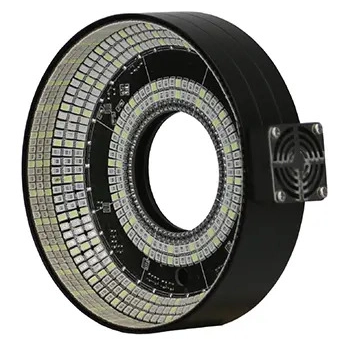

The UWC6100 is a four-color electric lifting programmable light source with 3 rings,8 zones,4 colors,and 96 channels. It is an internationally top-notch solution for imaging measurement light sources. With three main illumination angles of 0 degrees,45 degrees,and 90 degrees,it uses RGBW four-color wide-angle LEDs in conjunction with a programmable lifting mechanism to provide soft and uniform illumination beams without dead angles within a 180-degree dome. It not only meets the lighting requirements for characteristic parts such as surface contours,chamfers,inner R angles,and step differences of the vast majority of machined parts,hardware,and plastic parts,but also realizes programmable and fully automatic detection at different lighting heights for the same workpiece,solving the problem that fixed light sources cannot take into account both high and low lighting positions.

● The UWC6100 supports stroboscopic lighting,providing lighting support for efficient flying shot measurement.

● The integrated mechanism of the light-emitting disc,control board and lifting controller features a unique and stable overall structural design.

● It provides 24 main illumination angles in 3 rings and 8 zones. With the cooperation of the lifting control,it can realize lighting at any included angle ranging from 0 to 87 degrees,and the "dome light" illumination can be programmed.

● Its emission angle of 0-30° can present "chamfers,cutting edges","step differences","weak edges","bottoms of grooves",contours that are nearly "mirror-like",and surface contours of translucent workpieces (such as ceramics,light-colored plastics,and silicone rubber) with high contrast in the measurement software.

● Each partition is equipped with four colors of LEDs,namely red,green,blue,and white,with an adjustment range of 0-1024. Through RGB mixing,it can produce up to one billion kinds of lighting color temperatures,which almost completely cover various colors in nature. It can provide the best color temperature lighting according to the optical characteristics of different products.

● Each partition can be continuously adjusted from 0 to 200 levels in the software,and the maximum output current can be set in 5 gears.

● It has high brightness stability and no flicker,ensuring the stability of the gray value at the image edge and guaranteeing the repeated edge-finding accuracy of the measurement software.

● It can operate in the stroboscopic mode and the continuous lighting mode,which can be switched by software to realize flying shot detection.

● It has a built-in lifting motor controller and does not rely on other motion controllers. The high and low positions of the ring-shaped light source can be programmatically controlled through the detection software.

● There are three models available for selection,including the red single-color model,the white single-color model,and the red-green-blue-white four-color model.

● A soft light cover is optional,which can meet the measurement requirements of the surface of workpieces with high surface finish and avoid the influence of spot-shaped bright spots on the measurement accuracy.

● A navigation camera is optional (the installation holes for the camera have been reserved).

● It is directly connected to the RS232 interface of the controller,which is simple and reliable.

● The power supply voltage is 12.5±0.25VDC at 5A,the rated power is 62W,and the power supply current is not less than 8A.

● The emission angles of the three rings are respectively: 0 degrees,45 degrees,and 90 degrees. The optimal focal length is 0-60mm (the distance between the edge of the lampshade and the product).

● The outer diameter is 125mm,the thickness is 33mm,and the working distance is 0-60mm.

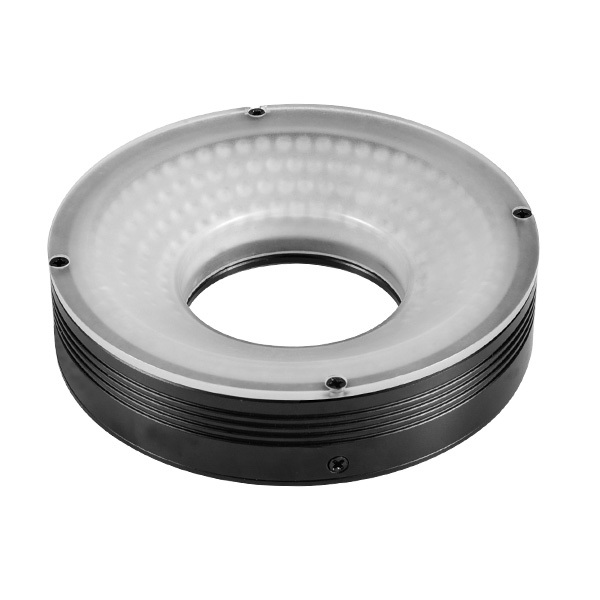

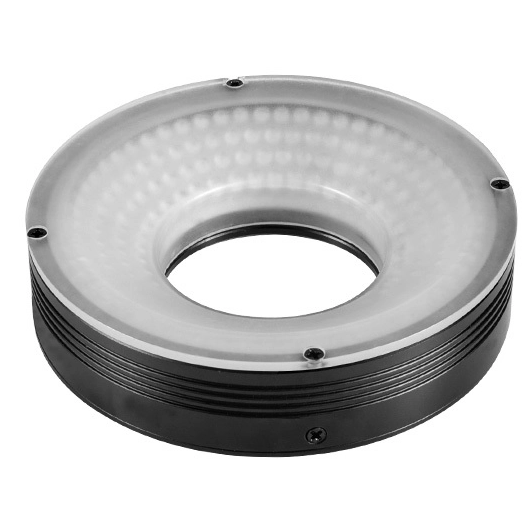

The ring-shaped light source adopts a unique illumination structure,achieving a diffused illumination effect with high brightness and high uniformity. It provides different illumination angles and color combinations,which can better highlight the three-dimensional information of objects. It is one of the widely used light sources in the machine vision industry. With a high-density LED array,it features high brightness,and there are various compact designs available,saving installation space.

● The ring-shaped light source provides illumination at different angles,which can highlight the three-dimensional information of objects.

● It can effectively solve the problem of shadows caused by diagonal illumination.

● It has a unique heat dissipation structure,a high-density LED array,and features high brightness.

● The surrounding surface adopts a knurling design,which expands the heat dissipation area and ensures the service life of the light source.

● A diffuser plate is optional,which can make the light spread evenly.

The color (wavelength) of the light wave

White light：6000-7500K

Blue light：460-475nm

Green light：520-530nm

Red light：620-630nm

Infrared light：810-940nm

Ultraviolet light：365-405nm
