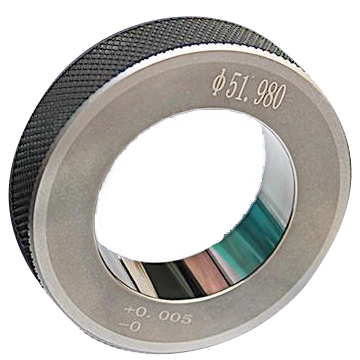

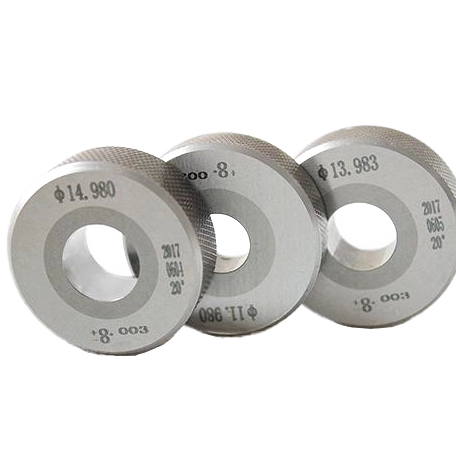

Ring Gauge for Measuring Instrument

RING GAUGE FOR MEASURING INSTRUMENT

CODE:MS-WS/TS/CM

White Steel Ring Gauge(MS-WS)

Tungsten Steel Ring Gauge(MS-TS)

Ceramic Ring Gauge(MS-CM)

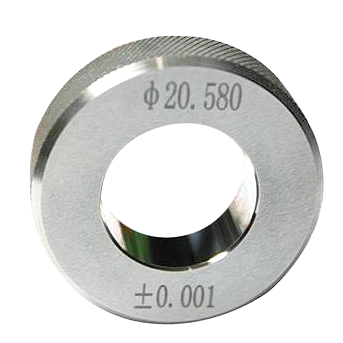

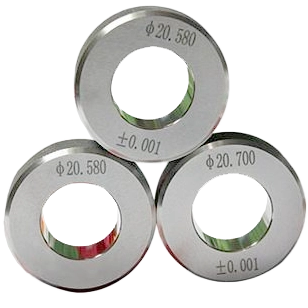

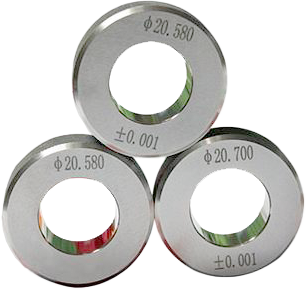

WHITE STEEL RING GAUGE(MS-WS)

● The roundness can reach 0.0005mm, and the surface roughness is Ra0.025. The accuracy of the ring gauge can reach 0.0005mm, and a national metrology certificate can be provided.

● The material selected is SKD11 produced by Hitachi in Japan, and it has undergone cryogenic treatment to enhance its stability.

The diameter of the ring gauge (tolerance): Standard tolerance: ±0.001mm Highest precision: ±0.0005mm

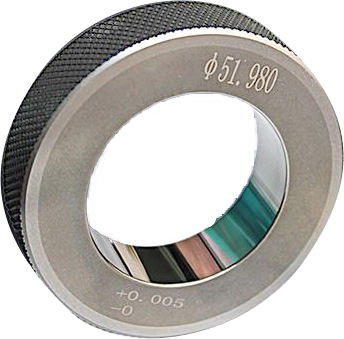

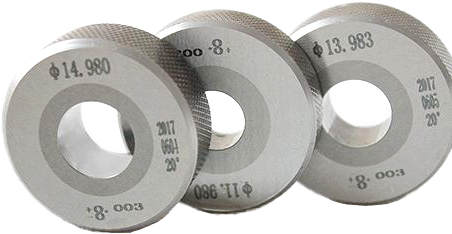

TUNGSTEN STEEL RING GAUGE(MS-TS)

● The roundness can reach 0.0005mm, and the surface roughness is Ra0.025. The accuracy of the ring

● It is made of tungsten steel material and has undergone special heat treatment. With a hardness of HRA91, it features high hardness and wear resistance, is not prone to deformation, and has extremely high precision.

The diameter of the ring gauge (tolerance): Standard tolerance: ±0.001mm Highest precision: ±0.0005mm

CERAMIC RING GAUGE(MS-CM)

● The roundness can reach 0.0005mm, and the surface roughness is Ra0.025. The accuracy of the ring gauge can reach 0.0005mm, and a national metrology certificate can be provided.

● The ceramic ring gauge is non-conductive, non-magnetic, resistant to high temperatures, and anti-static.

The diameter of the ring gauge (tolerance): Standard tolerance: ±0.001mm Highest precision: ±0.0005mm
