Product Description

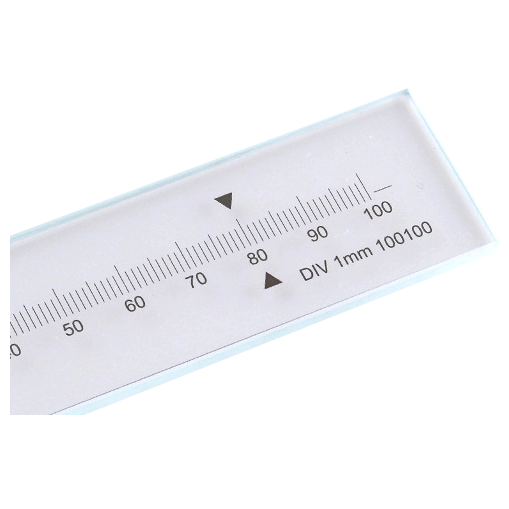

LINE SCALE RULER

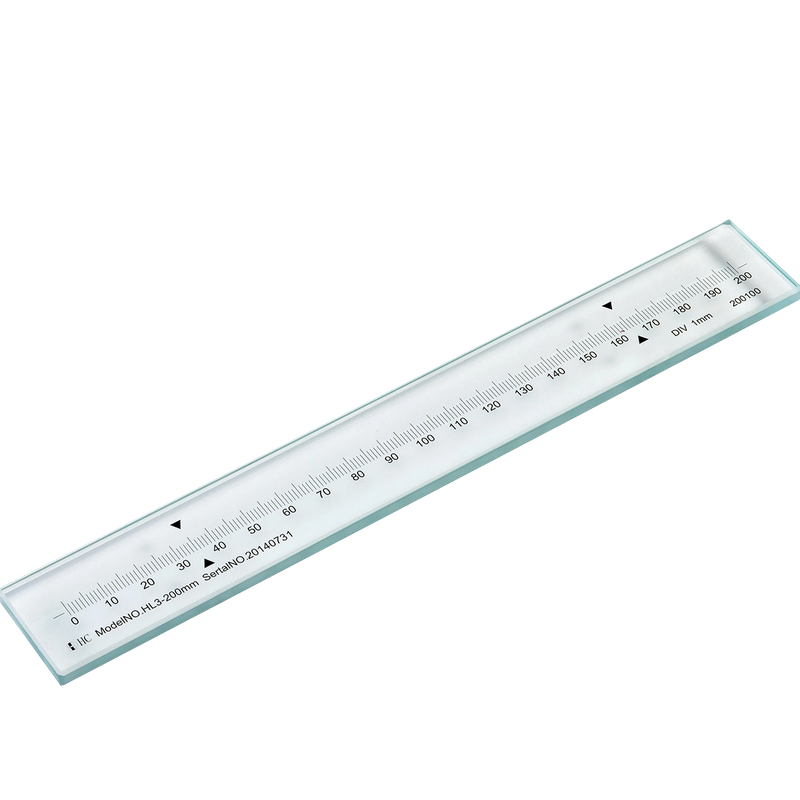

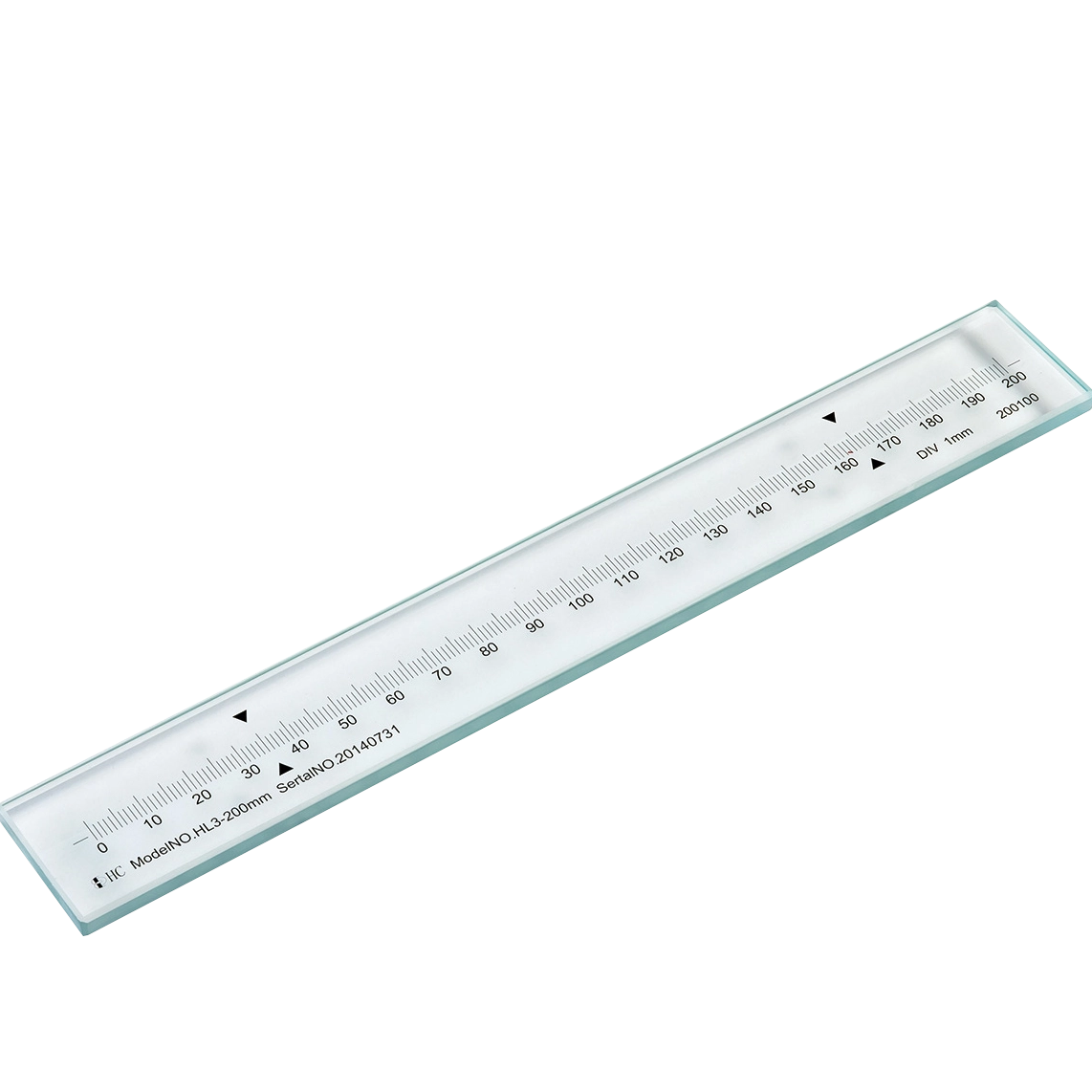

STANDARD GLASS LINEAR SCALE RULER
● High precision: It is accurate to micrometers (μm) and is used for measuring tools and precision machine
tools. The precision is absolutely exact.
● Strong stability: It has a low coefficient of thermal expansion and excellent corrosion resistance, and can
be used in various harsh environments.
●Resistant to scratching: With high-quality glass material, it has good physical properties, extremely high
hardness and a high level of scratch resistance.
● High transparency: There are extremely few bubbles and impurities, and it is transparent and uniform as a
whole.
 |  |
 | |
Model | Length(mm) | Width(mm) | Thickness(mm) | Division value(mm) | Accuracy(um) |
MSL01-100 | 100 | 30 | 5 | 0.1，0.5，1 | 1 |
MSL01-200 | 200 | 30 | 5 | 0.1，0.5，1 | 1 |
MSL01-300 | 300 | 30 | 5 | 0.1，0.5，1 | 1 |
MSL01-400 | 400 | 30 | 5 | 0.1，0.5，1 | 1 |
MSL01-500 | 500 | 30 | 5 | 0.1，0.5，1 | 1 |
MSL01-600 | 600 | 30 | 5 | 1 | 3 |
MSL01-700 | 700 | 30 | 5 | 1 | 3 |
MSL01-800 | 700 | 30 | 5 | 1 | 5-8 |
MSL01-1000 | 1000 | 30 | 5 | 1 | 8-10 |
SECOND-CLASS GLASS LINEAR SCALE RULEL
● The engraved lines are located between the two layers of glass and will not be worn out.
● High precision: Precise to micrometers (μm), it is applied to measuring tools and precision machine tools, and
the accuracy is absolutely spot-on.
● It has strong stability: With a low coefficient of thermal expansion and excellent corrosion resistance, it can
be used in various harsh environments.
● Scratch-resistant: The glass material is of high quality, with good physical properties, extremely high hardness
and excellent scratch resistance.
● High transparency: There are very few bubbles and impurities, and it is uniformly transparent throughout.
Model | Length(mm) | Width(mm) | Thickness(mm) | Division value(mm) | Accuracy(um) |
MSL01-10-GB | 46 | 30 | 5 | 0.01 | 1 |
MSL01-100-GB | 130 | 30 | 10 | 1 | 1 |
MSL01-200-GB | 230 | 30 | 10 | 1 | 2.5 |
MSL01-300-GB | 330 | 30 | 15 | 1 | 2.5 |
MSL01-400-GB | 5430 | 30 | 15 | 1 | 3 |
MSL01-500-GB | 530 | 30-50 | 15-25 | 1 | 3.5 |
