Hardness Testing Instrument

The Digital Brinell Hardness Tester is a premium Measuring Testing Instrument proudly supplied by Mikrosize, a trusted name in the field of precision testing equipment. This advanced instrument is designed to deliver accurate and reliable hardness measurement results, making it an essential tool for various industries that require strict quality control over material hardness.

One of the standout features of this Digital Brinell Hardness Tester from Mikrosize is that the entire experimental process is clearly displayed, allowing operators to monitor each step with ease and ensure the accuracy of the test. The instrument maintains a stable force value throughout the testing process, which contributes to its excellent repeatability— a key factor for consistent and trustworthy results in any measuring testing scenario. The cast iron body of this Measuring Testing Instrument is cast into shape in one go, and it undergoes long-term aging treatment. This special treatment effectively eliminates residual internal stress within the body, resulting in a strong structure with good rigidity and exceptional durability. Even when exposed to harsh environmental conditions such as harsh winter frost, intense summer sun, strong winds, and heavy rain, the body of this Digital Brinell Hardness Tester remains intact and shows no signs of deformation, ensuring long-term reliable performance as a core Measuring Testing Instrument.

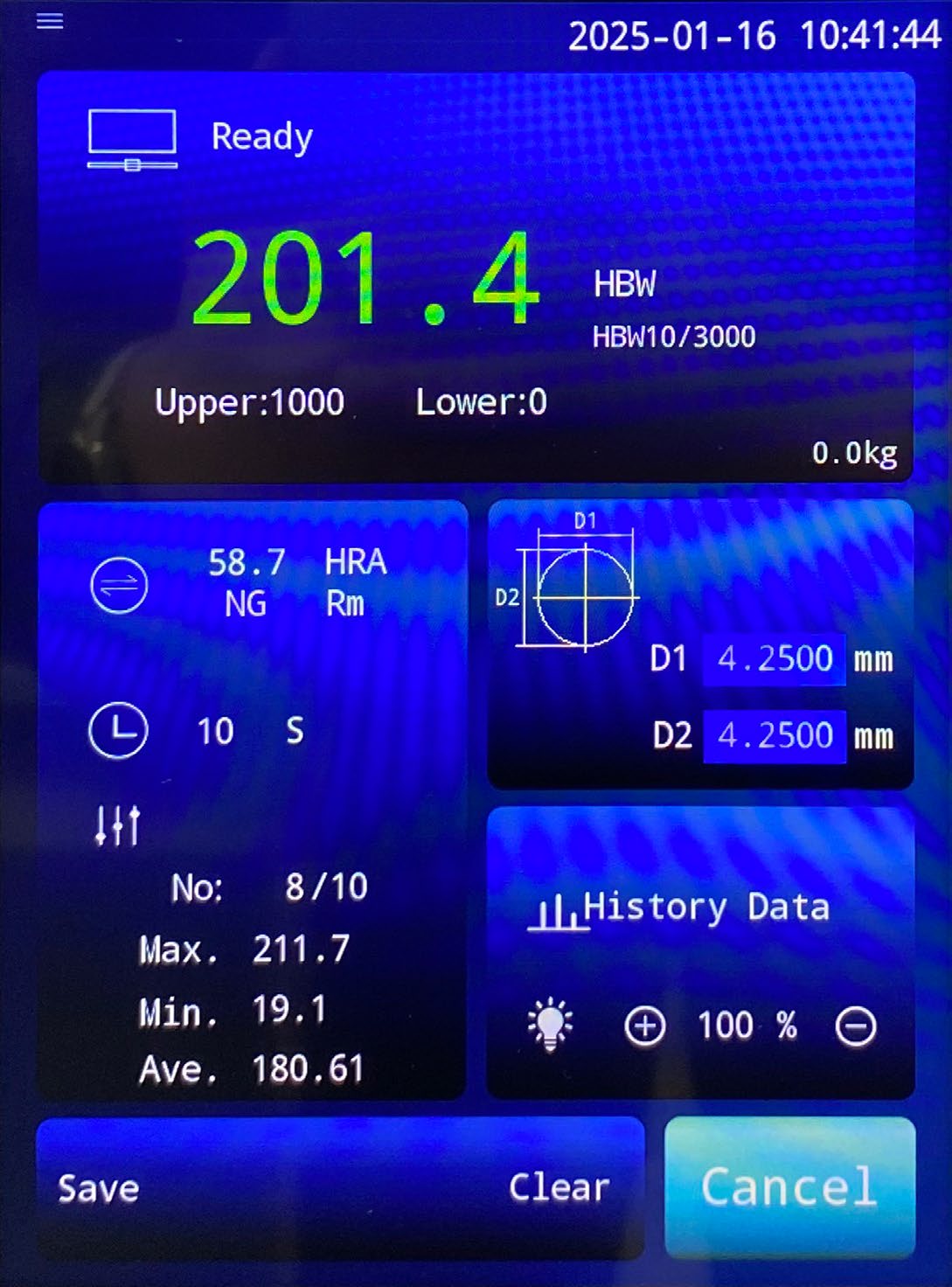

In terms of electrical components, this Digital Brinell Hardness Tester from Mikrosize has undergone a mid-term upgrade to enhance its functionality and user experience. It now adopts a 5.6-inch color touch display screen, which not only provides a clear and intuitive interface but also comes with complete functions to meet various testing needs. A notable advantage of this Measuring Testing Instrument is its onboard measurement capability, which can conveniently convert Rockwell and Vickers hardness values into Brinell hardness values, as well as calculate the tensile strength of the tested material. This multi-functional conversion feature saves valuable time for operators and eliminates the need for additional calculation tools, further solidifying its position as a highly efficient Measuring Testing Instrument.

To simplify the operation process, the Digital Brinell Hardness Tester is equipped with intelligent menu prompts. These prompts guide operators through each step of the testing procedure, making it easy for both experienced technicians and new users to operate the instrument proficiently. This user-friendly design is a testament to Mikrosize's commitment to creating practical and accessible Measuring Testing Instruments. Additionally, the instrument is fitted with a printer that can quickly print out the hardness test results, ensuring that test data can be easily recorded, stored, and shared for quality control documentation. It is also equipped with USB and RS232 interfaces, which enable seamless data transfer between the instrument and other devices such as computers or data storage systems. This connectivity feature enhances the data management capabilities of this Measuring Testing Instrument, allowing for more efficient handling of test results.

For users with higher automation needs, Mikrosize offers an optional CCD automatic image processing system for this Digital Brinell Hardness Tester. This optional system further improves the testing efficiency and accuracy by automatically capturing and analyzing the indentation images, reducing human error in the measurement process. The overall design of this Measuring Testing Instrument is novel yet sturdy, combining modern aesthetics with robust construction to withstand the rigors of daily use in industrial environments. Moreover, the testing efficiency of this Digital Brinell Hardness Tester is remarkably high, enabling users to complete a large number of tests in a short period without compromising on accuracy. Importantly, the accuracy of this Measuring Testing Instrument meets the strict standards of GB/T231.2, ISO6506-2, and the United States' ASTM E10, ensuring that its test results are recognized and trusted globally.

When it comes to the application scope, this Digital Brinell Hardness Tester from Mikrosize is highly versatile as a Measuring Testing Instrument. It is specifically designed to measure the Brinell hardness values of a wide range of materials, including ferrous metals, non-ferrous metals, and bearing alloy materials. Its wide applicability makes it suitable for use in industries such as automotive manufacturing, aerospace, machinery production, and metal processing. In particular, it excels in the precise measurement of materials with parallel planes, providing accurate hardness data that is crucial for evaluating the quality and performance of these materials.

As a comprehensive Measuring Testing Instrument, this Digital Brinell Hardness Tester comes with a complete set of standard equipment to ensure that users can start testing immediately upon receiving the instrument. The standard equipment includes one large flat test bench, one small flat test bench, and one V-shaped test bench— these test benches are designed to securely hold different types of samples during testing, ensuring stability and accuracy. Additionally, the package includes one printer for result documentation, one carbonized steel ball indenter with sizes of ￠10mm, ￠5mm, and ￠2.5mm each (to accommodate different test requirements), and two standard Brinell hardness blocks for calibrating the instrument regularly to maintain its accuracy.

In terms of main technical specifications, this Digital Brinell Hardness Tester from Mikrosize, as a top-tier Measuring Testing Instrument, boasts impressive parameters. Its measurement range covers 8-650HBW, allowing it to test a wide spectrum of materials with varying hardness levels. The test force options include 1838.8N (187.5kgf), 2451.8N (250kgf), 4903.5N (500kgf), 7355.3N (750kgf), 9807N (1000kgf), and 29421N (3000kgf), providing flexibility to choose the appropriate force based on the material and test standards. The maximum allowable height of the sample that can be tested with this instrument is 280mm, and the distance from the head to the machine wall is 150mm, ensuring that it can accommodate samples of different sizes and shapes. The optical magnification of the instrument is 20* and 40*, enabling clear observation of the indentation for accurate measurement. The pressure head specifications correspond to the carbonized steel ball indenter sizes of 2.5mm, 5mm, and 10mm. For power supply, the instrument operates on AC 220V with a frequency of 50Hz, which is compatible with standard power sources in most regions. In terms of dimensions, the instrument measures 570330910mm, making it compact enough to fit in most laboratory or workshop spaces while still offering a robust testing platform. The weight of the instrument is approximately 350 kilograms, which adds to its stability during operation, further enhancing the accuracy of the test results— a key attribute of a high-quality Measuring Testing Instrument from Mikrosize.

In summary, the Digital Brinell Hardness Tester from Mikrosize is a superior Measuring Testing Instrument that combines advanced technology, robust construction, user-friendly design, and high accuracy. Whether used for routine quality control checks or in-depth material testing, this instrument delivers consistent and reliable performance, making it an invaluable asset for any industry that prioritizes material quality and performance.
