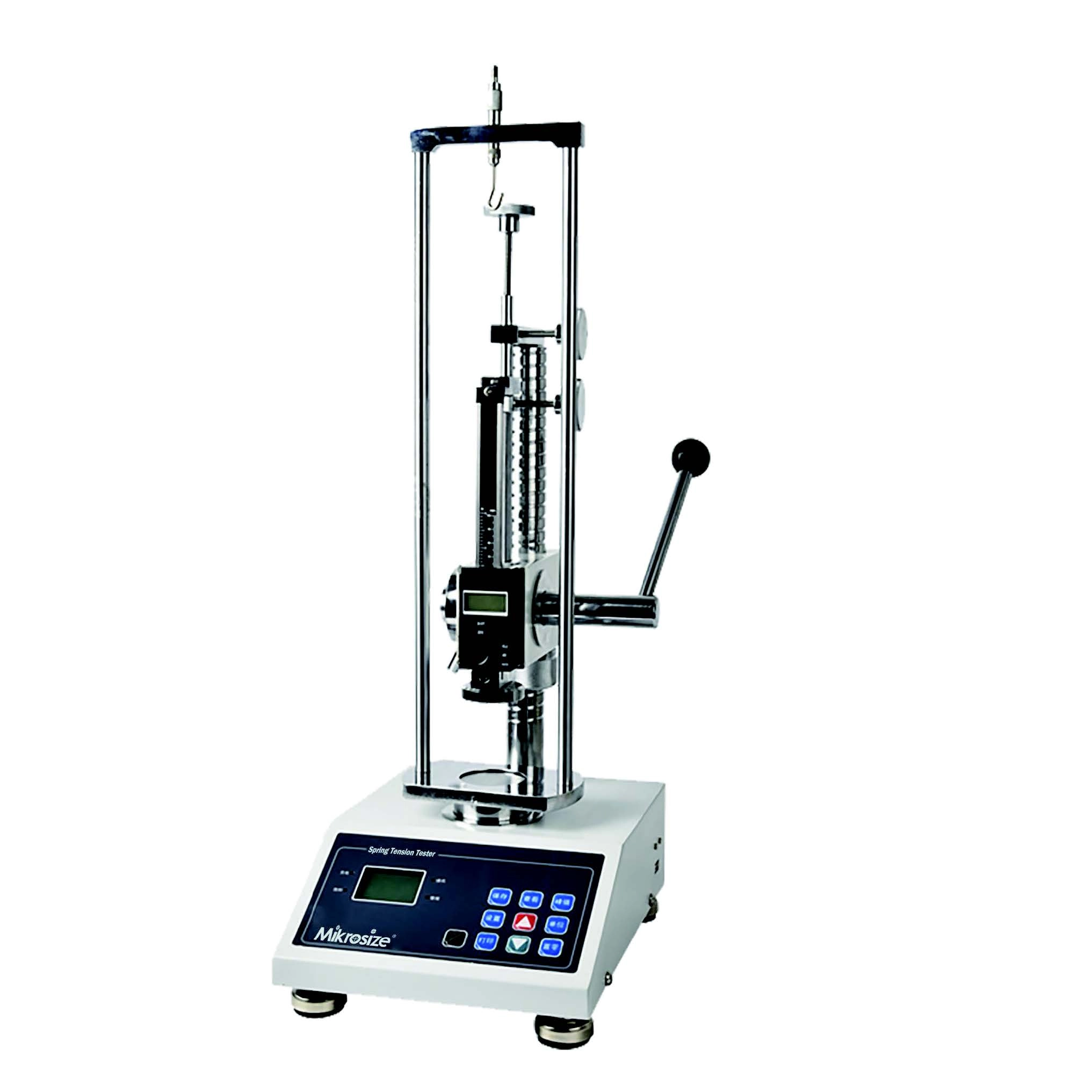

Ensure Material Quality: The Complete Guide to Spring Tension Testing

Mikrosize: Your Expert Supplier of Measuring and Testing Instruments, Featuring High-Precision Spring Tension Testers

In the demanding fields of quality assurance and material science, the reliability of your testing equipment is paramount. As a premier supplier in the Measuring and Testing Instrument sector, Mikrosize is dedicated to providing advanced, accurate, and durable solutions. Our comprehensive range includes state-of-the-art Spring Tension Testers, vital tools for ensuring product integrity across numerous industries. Partnering with Mikrosize guarantees access to instruments that combine sophisticated technology with user-centric design, supporting your commitment to excellence and compliance.

Understanding the Spring Tension Tester: A Versatile Workhorse for Industry

A Spring Tension Tester is an essential device designed to evaluate key mechanical properties of materials and components. It accurately measures tensile strength, compressive strength, and elongation, performing critical tests such as peeling, tearing, bending, and compression. This versatility makes it indispensable for quality control and research in industries including metals, plastics, rubber, textiles, synthetic chemicals, wires and cables, and leather goods. By implementing a precise tension tester, manufacturers can validate material specifications, improve product design, and ensure batch-to-batch consistency, ultimately reducing waste and enhancing customer trust.

Technical Excellence: Core Specifications of Mikrosize Spring Tension Testers

• Mikrosize supplies robust spring tension testers engineered for a wide spectrum of applications, available in multiple capacities to meet specific needs.

• Capacities & Force Range: Our testers are offered in standard capacities of 5kg, 50kg, 100kg, 200kg, and 500kg, catering to everything from fine wires to sturdy composites.

• Precision Control: The adjustable testing speed range of 0.1 to 300 mm/min allows for detailed analysis of material behavior under different stress rates.

• Advanced Drive System: Equipped with high-performance Panasonic AC servo motors and precision ball screw drives, our testers ensure smooth, reliable, and accurate force application and crosshead movement.

• Intuitive Operation: A fully computer-controlled digital display provides real-time data visualization, easy switching between units (g, kg, N, lb), and streamlined data export for reporting.

• Key Physical Specs:

• Max Travel: 1000mm (fixtures excluded) for large samples.

• Load Accuracy: Exceptional ±0.25% for trustworthy results.

• Dimensions: 600mm (W) × 460mm (D) × 1800mm (H).

• Weight: 85kg for operational stability.

• Power: 1φ, 220V, 15A standard.

Essential Maintenance Guide for Optimal Performance & Longevity

Proper care is crucial to maintain the accuracy and extend the service life of your Measuring and Testing Instrument. Follow this essential maintenance guide from Mikrosize:

1.Mandatory Preheating: Always preheat the system for at least 20 minutes before testing. This stabilizes electronics and minimizes temperature-related measurement drift.

2.Buffer Oil Check: Maintain a clean hydraulic buffer. Keep the oil level above two-thirds of the cylinder depth. Replace promptly if low or contaminated.

3.Lubrication Routine: Before startup, inspect guide rails and sliding bearings. Apply specified lubricant sparingly to moving friction points to prevent wear.

4.Safe Specimen Handling: Always engage the brake handle before installing or removing a test piece. Release only after the sample is securely clamped.

5.Critical Component Care:

• Do not oil the main dynamometer bearings.

• Keep the gearbox's friction wheel surfaces absolutely clean and free of oil or grease.

• Protect the calibrated pendulum arm and inclined block from impact or forceful adjustment.

6.Post-Test Procedure: After use and before shutdown, clean the machine surfaces. Use protective covers to guard against dust.

7.Scheduled Maintenance: Perform a comprehensive check bi-weekly (or as per usage intensity). This includes verifying calibration, inspecting connections, and ensuring overall mechanical soundness.

The Mikrosize Advantage: Precision, Support, and Partnership

Choosing Mikrosize as your Measuring Testing Instrument supplier means more than purchasing a device. It signifies a partnership with a team committed to your success. Our Spring Tension Testers are backed by in-depth technical support, clear documentation, and reliable service. We ensure your team can operate and maintain the equipment effectively, maximizing your return on investment.

For industries where material performance is critical, a high-quality spring tension tester from a trusted supplier like Mikrosize is a strategic asset. It empowers your quality control processes, supports R&D innovation, and helps uphold stringent industry standards.

Upgrade your testing capabilities with Mikrosize. Explore our full range of precision instruments, including hardness testers and material testing machines, designed to deliver the accuracy and durability your work demands. Contact the Mikrosize team today to discuss your specific application needs and find the perfect testing solution.
