How to Choose the Right Automatic Grinding and Polishing Machine for Your Lab

Mikrosize Automatic Metallographic Specimen Grinding and Polishing Machine: Precision for Material Analysis

In material science and quality control, accurate microstructure analysis depends entirely on flawless sample preparation. Poorly prepared specimens lead to false readings and inaccurate hardness testing. To achieve a scratch-free, mirror-like surface, you need precision equipment. This is where Mikrosize, a premier provider of Measuring Testing Instrument solutions, excels.

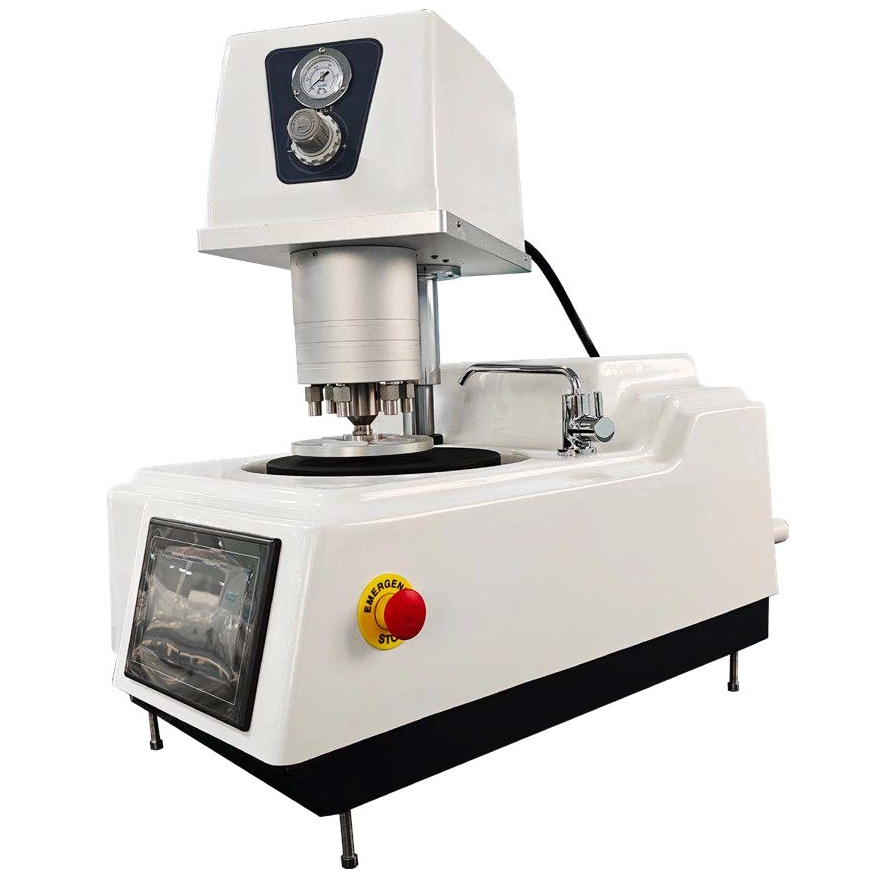

The Automatic Metallographic Specimen Grinding and Polishing Machine from Mikrosize is a state-of-the-art, dual-disc table-top unit designed to automate the entire preparation process. This guide covers its purpose, features, and operation to help you achieve the best results.

Purpose and Characteristics

This equipment is a new-generation, high-precision machine built to international standards. Its purpose is to automate the grinding and polishing process—from rough grinding to final fine polishing—preparing samples for microscopic inspection or hardness testing.

Key Features:

• Advanced Microprocessor Control: Provides precise management of all process variables.

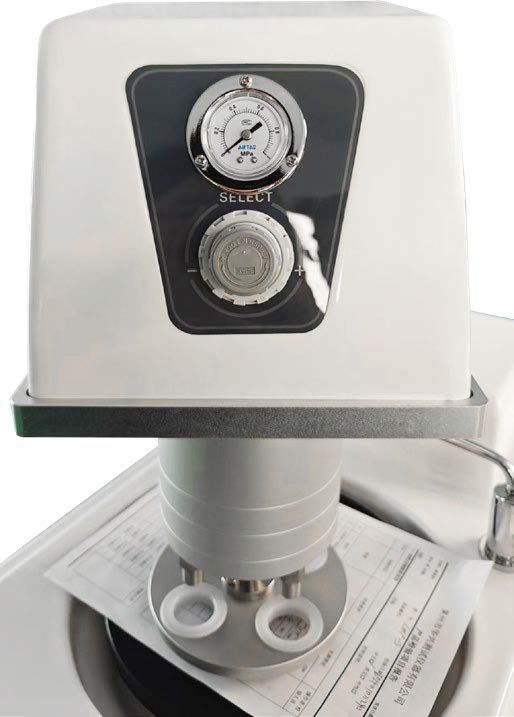

• Dual-Force Loading: Features a pneumatic system allowing arbitrary switching between central force loading (equal pressure on all samples) and single-point loading (individual pressure for mixed-material samples).

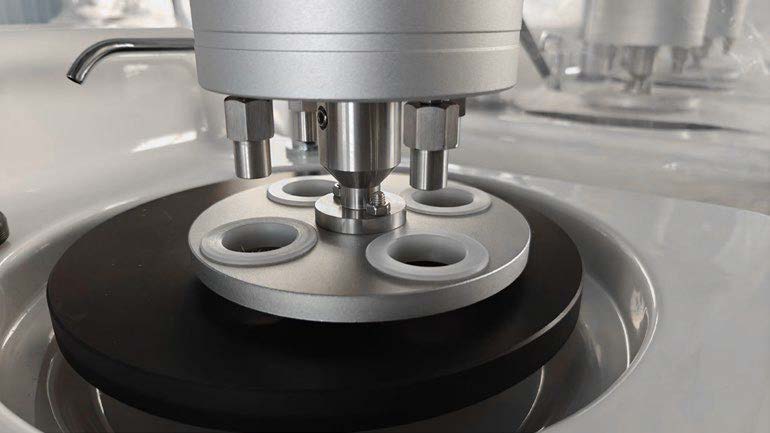

• High Throughput: Includes a dedicated multi-specimen holder for batch processing.

• Fully Adjustable Parameters: Offers stepless speed regulation for the disc and head, plus adjustable load, time, and rotation direction.

• Integrated Process Database: Stores up to 10 frequently used programs for instant recall, ensuring consistency.

• Cooling System: Prevents sample overheating, protecting the true metallographic structure.

As a trusted name in Measuring Testing Instrument technology, Mikrosize ensures this machine delivers durability and accuracy for demanding labs.

Before Use: Installation Checks

Proper setup is vital for safety and performance.

1. Air Source: Ensure input pressure is stable between 0.6 and 0.9 MPa.

2. Water Circuit: Confirm inlet/outlet hoses are secure, leak-free, and the drain pipe is positioned lower than the outlet.

3. Electrical: Verify the display works and the outlet is reliably grounded.

4. Disc: Check for smooth, noiseless operation; reseat if vibration occurs.

5. Consumables: Ensure sandpaper or polishing cloth is mounted flatly.

6. Stability: Adjust anchor bolts for a vibration-free setup.

Instructions for Use

The Mikrosize machine is designed for intuitive operation.

1. Position Head: Swing the grinding/polishing head into place over the disc and lock the handle.

2. Load Samples: Place specimens sequentially into the holder.

3. Set Cooling: Turn on the water switch and adjust flow for lubrication.

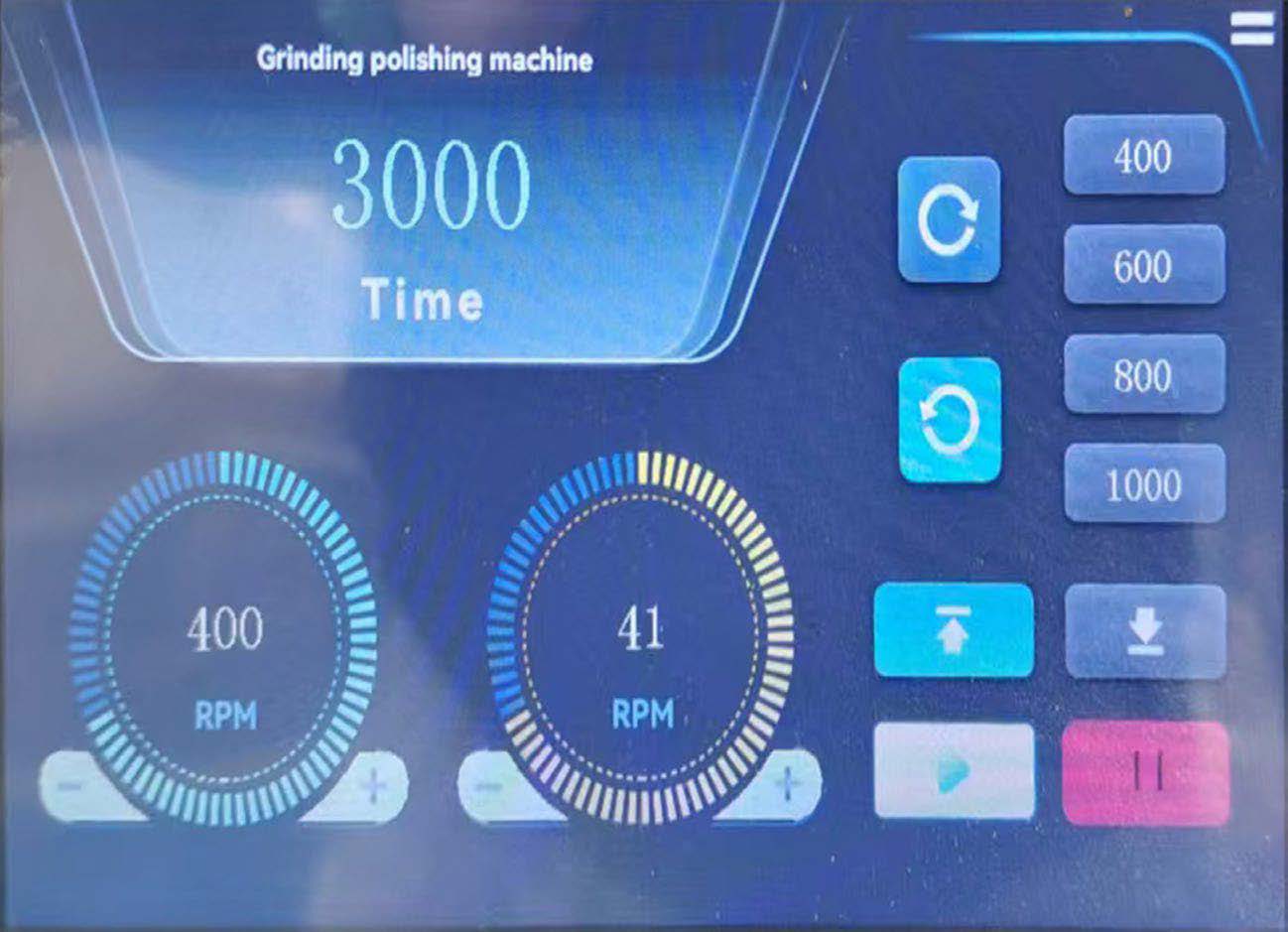

4. Input Parameters: Press "Parameter Settings" to program time, disc speed, head speed, and pressure.

5. Start Cycle: Press "Start". The machine automatically processes the samples.

6. Unload: When finished, turn off water, press "Up" to raise the head, and remove the samples.

Best Practices for Metallography

• Progress Gradually: Do not skip grit sizes. Ensure scratches from the previous step are fully removed before moving on.

• Clean Between Steps: Contamination ruins surfaces. Clean samples and holders thoroughly with alcohol or water before switching from grinding to polishing.

• Select Correct Consumables: Use hard, low-nap cloths for hard materials and appropriate diamond suspensions for optimal results.

• Manage Pressure: High pressure removes material faster but causes damage. Use low pressure for the final polishing stage to achieve a deformation-free finish.

Maintenance and Safety

• Professional Repair: If the unit malfunctions, have it serviced only by qualified personnel.

• Replace Consumables: Change worn or torn sandpaper/polishing cloths immediately to avoid damaging samples.

• Air Supply Warning: Never operate the machine without a reliable air source, as this will damage the sensitive proportional valve.

• Daily Cleaning: After work, run the water briefly to flush the drain line and prevent abrasive blockages.

Conclusion

The Mikrosize Automatic Metallographic Specimen Grinding and Polishing Machine transforms sample preparation from a manual chore into an efficient, precise process. With advanced features like dual-force loading and a programmable database, it is an essential Measuring Testing Instrument for any lab focused on quality control or materials research.

Choose Mikrosize as your supplier for reliable, high-performance equipment that ensures the accuracy of your metallographic analysis.
