The Ultimate Guide to Precision Ultrasonic Thickness Gauges: Mikrosize’s Advanced Measuring Testing Instrument for Industrial Applications
In the realm of non-destructive testing (NDT), precision, reliability, and adaptability are paramount. Industries such as aerospace, automotive, and power generation demand tools that deliver accurate measurements under challenging conditions. As a premier Mikrosize supplier, we present the Mikrosize Advanced Ultrasonic Thickness Gauge—a portable, innovative Measuring Testing Instrument engineered to redefine precision measurement standards. This guide explores its technical depth, diverse applications, and unique functionalities, illustrating why it is the preferred choice for quality control engineers, maintenance professionals, and researchers worldwide.
Chapter 1: Introduction to the Mikrosize Ultrasonic Thickness Gauge
When integrity and safety are non-negotiable, the Mikrosize Ultrasonic Thickness Gauge provides a trusted solution. This handheld device consolidates standard and specialized functions into a single unit. Unlike mechanical tools (calipers, micrometers) that measure external dimensions, ultrasonic technology measures wall thickness from one side—critical for assessing corrosion, erosion, and manufacturing consistency without destroying components.
Mikrosize’s commitment to versatility is evident: this single Measuring Testing Instrument pairs with an extensive range of probes to meet virtually any thickness measurement application. From delicate aerospace components to heavy machinery castings, the gauge adapts seamlessly, delivering unparalleled precision and becoming indispensable for quality assurance.
Chapter 2: Core Technical Parameters – The Science of Precision
The gauge’s capability rests on its core technical specifications, which ensure accurate and reliable measurements.
2.1 Thickness Measurement Range: From Microns to Meters
The instrument offers an extraordinary measurement range: from 0.05 mm (ultra-thin foils, wires) up to 38 m (thick castings, structural steel), depending on probe configuration and selected options. This dynamic range—rare in a portable device—highlights Mikrosize’s engineering excellence.
2.2 Uncompromising Resolution
With a resolution of 0.001 mm, the gauge detects minute thickness variations. For industries like experimental research and special inspection, this level of detail is critical for predictive maintenance and early failure detection, transforming the tool into a diagnostic instrument.
2.3 Probe Frequency and Compatibility

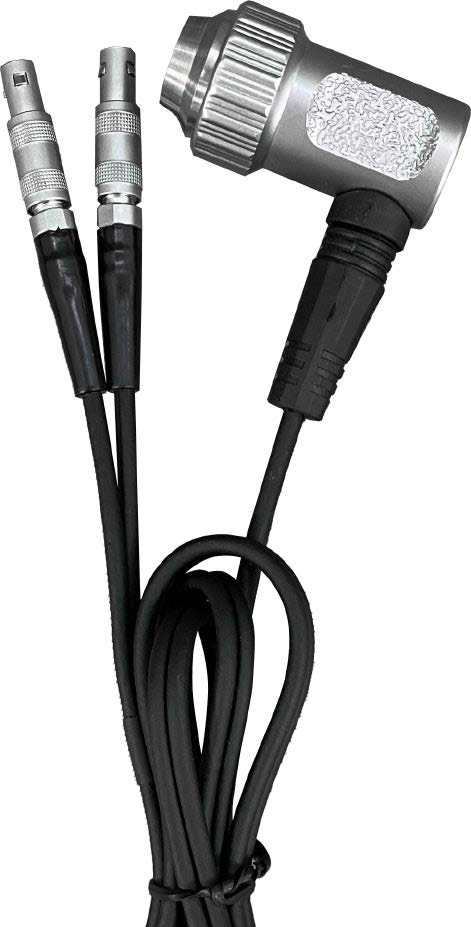

Supporting a broad probe frequency range of 0.5 MHz to 20 MHz, the gauge works with various probe types:
Delay Line Probes: High-resolution measurements on thin materials.
Contact Probes: General-purpose gauging on flat/curved surfaces.
Protective Film Probes: For rough surfaces.
High-Temperature Probes: For in-service equipment like pipelines and boilers.
Chapter 3: Applicable Materials and Fields – Where Precision Meets Reality
The gauge excels across diverse materials and industrial environments, demonstrating remarkable flexibility.
3.1 Measurable Materials
Ultrasound physics allows measurement of any material with known/calibrated sound velocity. Supported materials include:
Metals: Aluminum, titanium, copper, steel, stainless steel, cast iron, brass.
Plastics: PVC, acrylic, polycarbonate, rigid polymers.
Advanced Composites: CFRP, fiberglass.
Specialty Materials: Rubber, fiberglass, radar-absorbing coatings.
3.2 Key Application Fields
Aerospace: Fuselage skin thickness, composite layup inspection, engine component wear monitoring.
Military & Defense: Integrity checks on vehicle components, pressure vessels.
Power Generation: Corrosion monitoring in boiler tubes, pipes, tanks (nuclear, thermal plants).
Automotive Manufacturing: Quality control of brake lines, chassis parts, cast engine blocks.
Special Inspection Units & Research Labs: Custom testing and validation of non-standard materials.
Chapter 4: Special Functions – Beyond Basic Thickness Measurement
The gauge distinguishes itself with advanced features for complex scenarios.
4.1 Multi-Layer Measurement Function
Displays up to five independent layer thicknesses simultaneously on one screen—ideal for painted metal, coated plastics, or multi-laminar composites. Users can independently set measurement mode, sound velocity, and thickness range for each layer, optimizing accuracy.
4.2 Dual-Layer Measurement Function
For bi-material composites (e.g., steel lined with stainless steel), it provides real-time display of both material thicknesses simultaneously, enabling immediate verification of bond integrity and individual layer thickness in a single pass.
4.3 Customization and Real-Time Communication
In Industry 4.0 contexts, the gauge offers customizable real-time communication. It can be remotely controlled by a host computer, transmit thickness values and A-scan waveforms, and support secondary development for integration into automated inspection systems.
4.4 Multi-Measurement Versatility
Simultaneously measures substrate and coating thickness, or detects delamination thickness in composites, displaying both values on the same screen—eliminating multiple tests and complex calculations.
Chapter 5: Equipment Design and Performance – Built for the Field
The gauge is engineered for durability and user-friendliness in harsh environments.
5.1 User-Centric Display and Operation

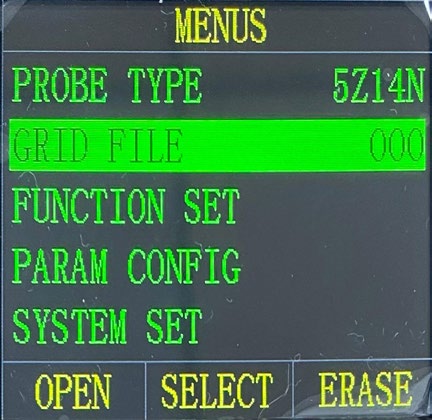

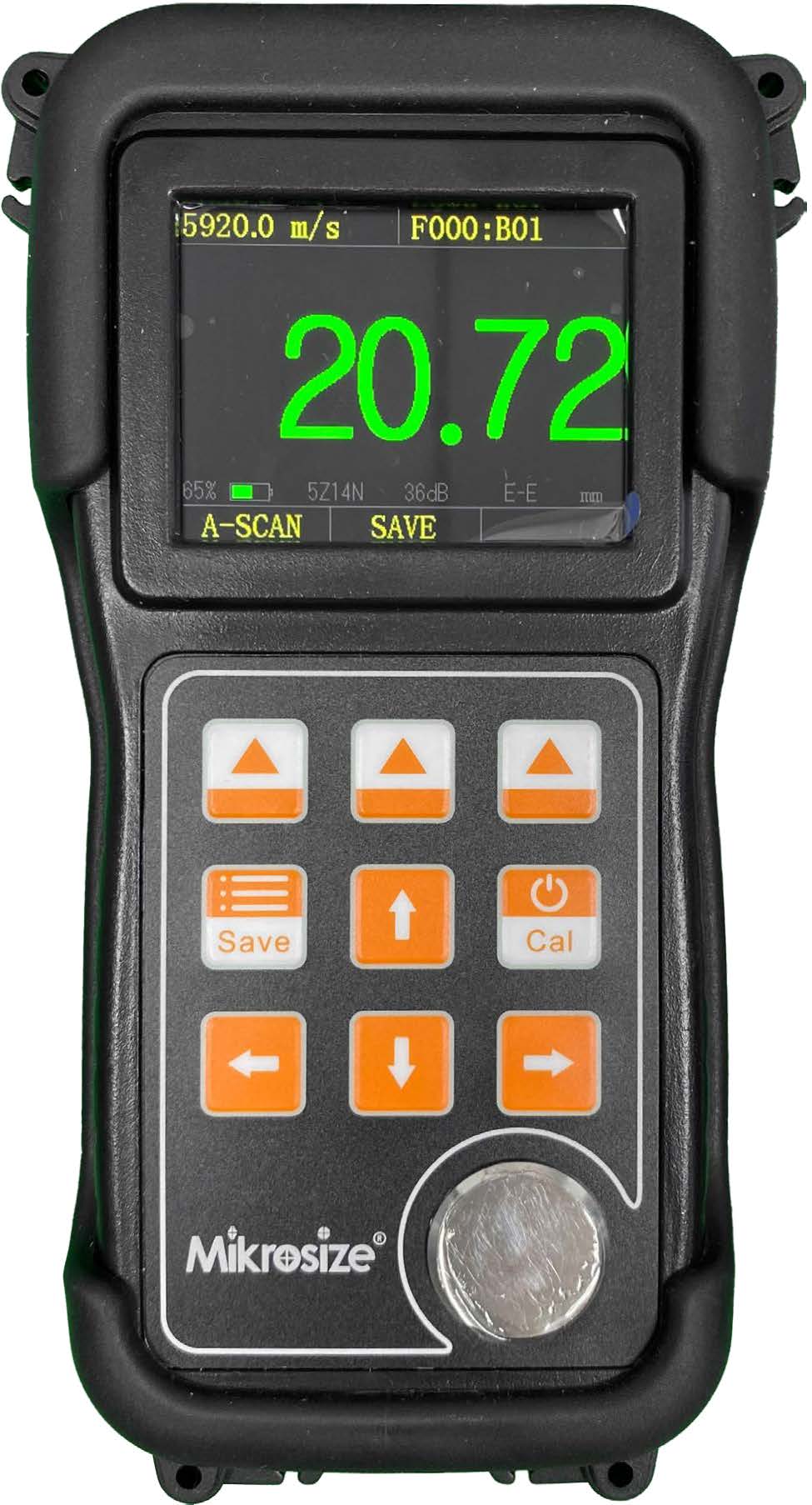

Equipped with a high-resolution color TFT LCD display featuring large, vibrant fonts for easy reading in any light. The intuitive interface and logical button layout enable quick access to all functions with minimal learning curve. Designed for one-hand operation, leaving the other hand free for probing or stability.
5.2 Rugged Protective Performance (IP67)
Built to withstand dust, moisture, oil, and drops:
IP67 Rating: Dust-tight and immersion-proof up to 1 meter of water for 30 minutes.

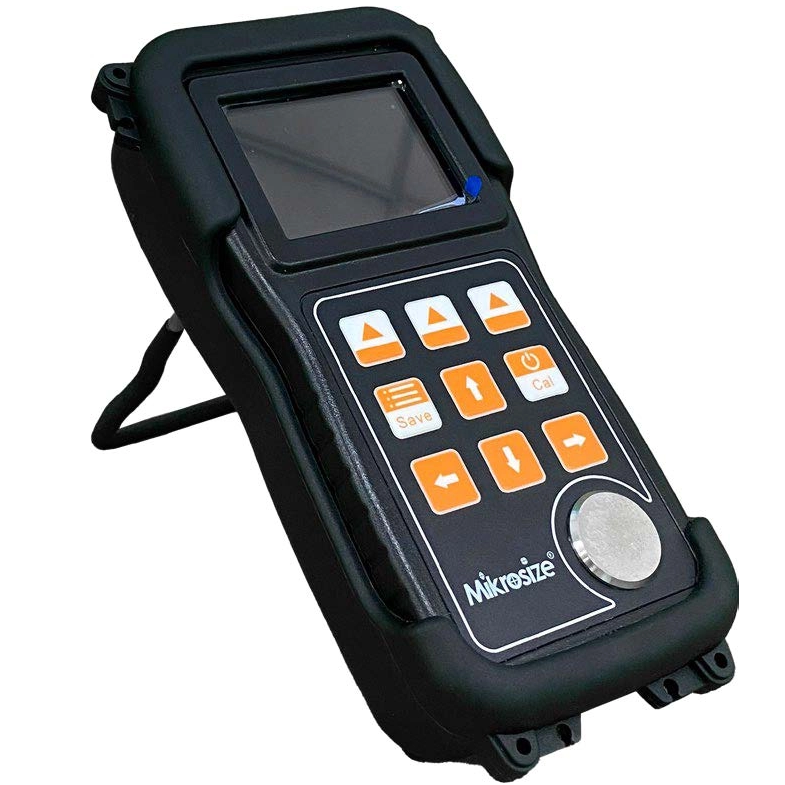

Impact Protection: Heavy-duty rubber protective cover with built-in stand absorbs shocks, protects against scratches, and provides stable viewing angles.
Chapter 6: Why Choose Mikrosize as Your Measuring Testing Instrument Supplier?
Selecting a supplier is as crucial as selecting the instrument.
6.1 Comprehensive Support and Calibration
Purchasing a Mikrosize gauge includes:
Pre-Sales Consultation: Help selecting the right probe and configuration.
Calibration Services: Ensuring NIST-traceable accuracy over the instrument’s lifetime.
Technical Training: Guidance on advanced functions for specific materials.
6.2 The Mikrosize Commitment to Quality
Mikrosize stands for innovation and reliability. Instruments are rigorously tested to meet international standards, offering solutions from basic thickness checks to advanced NDT research.
Conclusion
The Mikrosize Ultrasonic Thickness Gauge represents the pinnacle of portable NDT technology. It merges a broad measurement range (0.05 mm to 38 m), microscopic resolution (0.001 mm), and advanced multi-layer capabilities into a rugged, IP67-rated enclosure. As a premier Measuring Testing Instrument, it provides data integrity and operational flexibility for demanding industries—from aerospace to power generation.
If your operations require precise, reliable, and versatile thickness measurement, contact us today—your trusted Mikrosize supplier—to learn how this innovative gauge can enhance your quality control processes and ensure the integrity of your critical assets.
