Enhancing Metallography with Automated Cutting and Safety Features

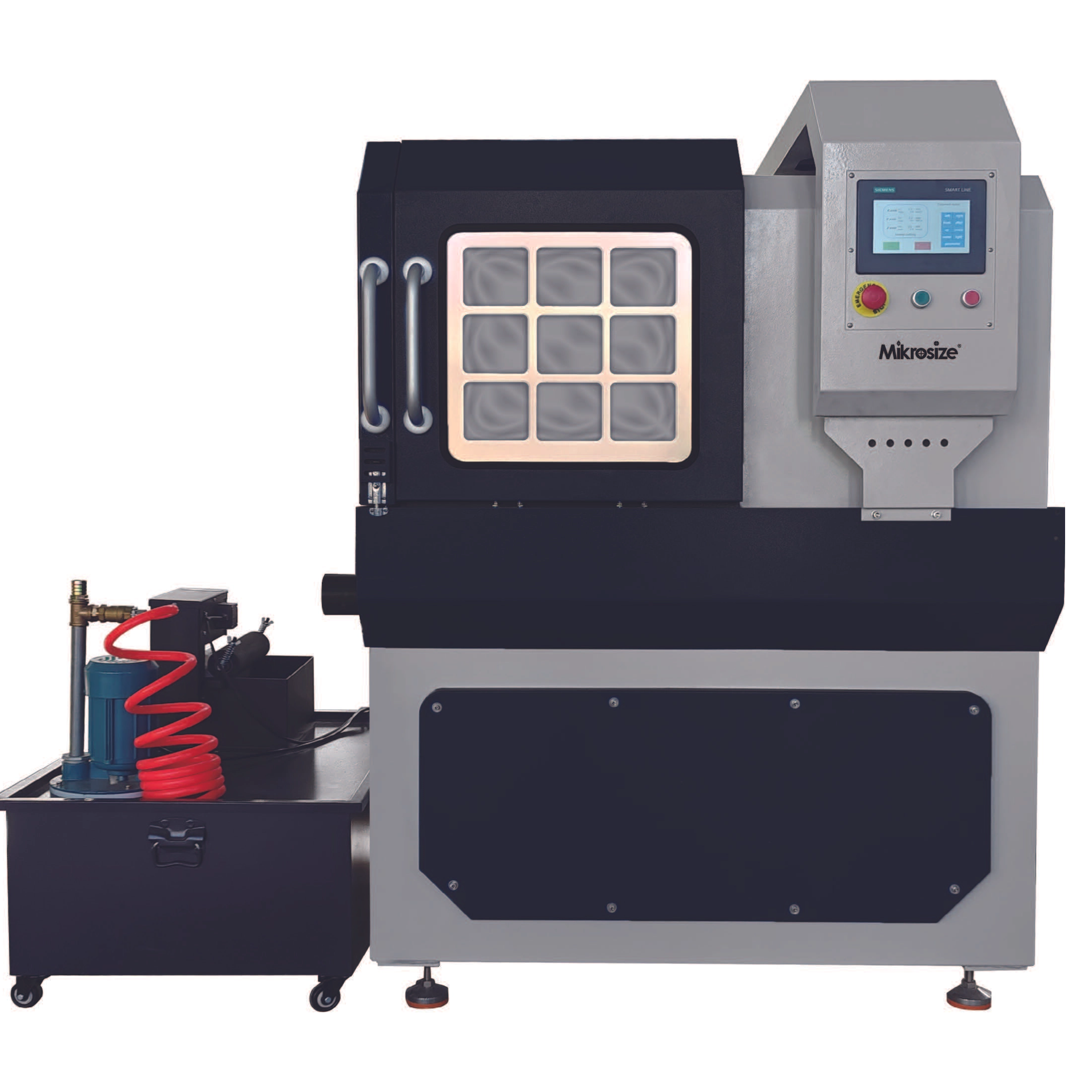

The Advanced Automatic Metallographic Abrasive Cutting Machine by Mikrosize

The foundation of any reliable material analysis lies in the integrity of the specimen, which begins unequivocally with a high-quality cut. A perfect cutting surface, free from deformation and thermal damage, is paramount as it can significantly reduce the number of subsequent preparation stages and minimize the total sample preparation time, thereby enhancing laboratory efficiency. The advanced automatic metallographic abrasive cutting machines supplied by Mikrosize are engineered precisely for this purpose. A key advantage of these systems lies in their remarkable versatility; they are designed to integrate different cutting techniques and methods into a single, robust machine, consistently achieving excellent cutting surfaces across various heavy-duty cutting applications. This capability is further enhanced by their sophisticated three-axis cutting functionality: Z-axis cutting, where the cutting wheel approaches the clamped sample; Y-axis worktable feed cutting, where the sample is fed into the rotating wheel via a T-slot table; and an optional X-axis parallel cutting, which allows for the creation of continuous, parallel slices on an optional mobile bed.

Robust Design and Superior Visibility for Demanding Applications

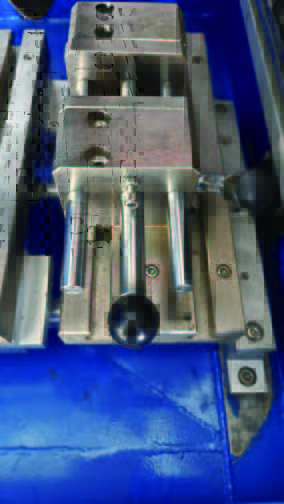

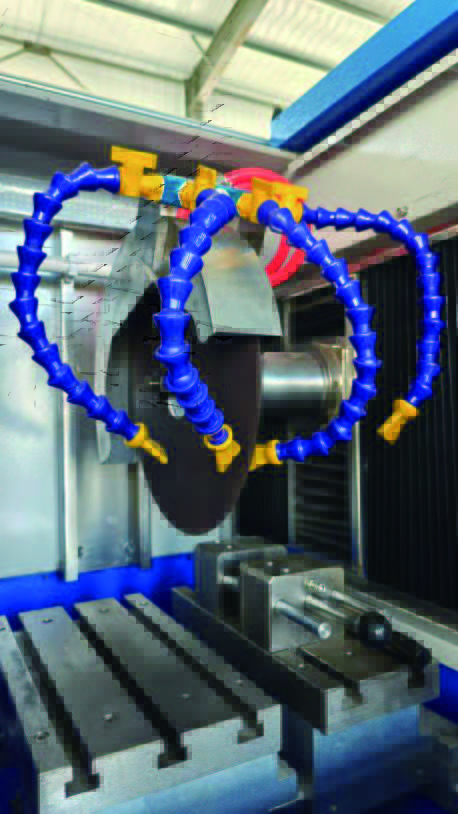

Housed within a rigid cast aluminum base, the machine's electric motor and workspace are strategically separated into two distinct compartments to minimize vibration and ensure operational stability. The large, spacious cutting chamber is a hallmark of its design, equipped with a comprehensive array of fixtures to securely hold samples of diverse shapes and sizes. Through the large, resilient windows made of Lexan material, complemented by sealed LED lights illuminating the interior, operators can accurately and safely observe the entire cutting process. For operational safety and cleanliness, an 80mm diameter exhaust outlet is standard. The heart of the workspace is a large T-shaped groove feed worktable, which accommodates various fixtures and offers a long stroke depth. This design enables the machine to perform flawless, single-pass cuts on long or deep samples, with side entry holes facilitating cross-sectional cuts on elongated specimens. A conveniently placed stainless steel small parts tray is also included to catch and organize standard small samples.

Uncompromising Safety and Automated Control

As a trusted supplier in the field of precision preparation, Mikrosize ensures that this cutting machine meets the highest international safety standards, a critical consideration for any modern laboratory. An interlocking safety device is a core feature, ensuring the motor only initiates after the protective cover is securely closed and that the cover remains locked until the cutting wheel has come to a complete stop. Furthermore, a standard electronic braking system provides an additional layer of safety by bringing the tool to a rapid and complete halt within seconds of a power interruption, protecting both the sample and the operator. For laboratories seeking the ultimate in efficiency and reproducibility, the automated models from Mikrosize are the ideal solution. These models feature advanced technology with intuitive touch screen controls and a programmable human-machine interface (HMI). This automation significantly improves productivity, enhances sample-to-sample consistency, and maximizes operator comfort by simplifying complex cutting routines.

Versatile Cutting Methods for Every Material Challenge

The standard cutting methodology combines Z-axis plunge cutting with Y-axis worktable feed cutting, which can be enhanced with pulse cutting in automatic models for sensitive materials. To address the vast range of materials encountered in material science and quality control, Mikrosize offers a suite of optional cutting methods. These include diagonal cutting, which improves cutting ability by optimizing the contact area; step cutting, a specialized technique developed for superhard materials that minimizes stress; and segmented cutting, designed for difficult-to-cut workpieces such as composites or materials with varying hardness. As a leading supplier of high-precision equipment, Mikrosize provides this automatic metallographic abrasive cutting machine as a cornerstone for any serious materials testing laboratory, perfectly aligning with the demanding requirements of modern measuring and testing instruments. This machine represents a synergy of robust construction, advanced automation, and versatile methodology, ensuring that sample preparation is no longer a bottleneck but a reliable and efficient first step in the analytical workflow.
