Digital Brinell Hardness Tester by Mikrosize: Precision Measuring Testing Instrument for Modern Metallurgy
In material science and quality control, the accuracy of mechanical testing determines the reliability of end products. The Brinell hardness test remains a cornerstone for evaluating metals and alloys. As a trusted Mikrosize supplier, we present our advanced Digital Brinell hardness tester. This machine is a comprehensive Measuring Testing Instrument designed to bridge traditional metallurgy with the demands of the digital age.
What is Brinell Hardness Testing?
The Brinell method is one of the oldest and most respected techniques for assessing macro-hardness. Unlike other tests, it uses a large carbide ball indenter to create a visible impression on the material. This results in the largest indentation among all hardness tests, which is its greatest advantage.
Because the indentation is large, it averages the hardness over a significant area. This makes it ideal for materials with heterogeneous microstructures, such as cast iron and forged steel. It mitigates the impact of local microsegregation, offering a true representation of bulk mechanical properties. For industries where structural integrity is critical, the Brinell method is the most reliable choice.

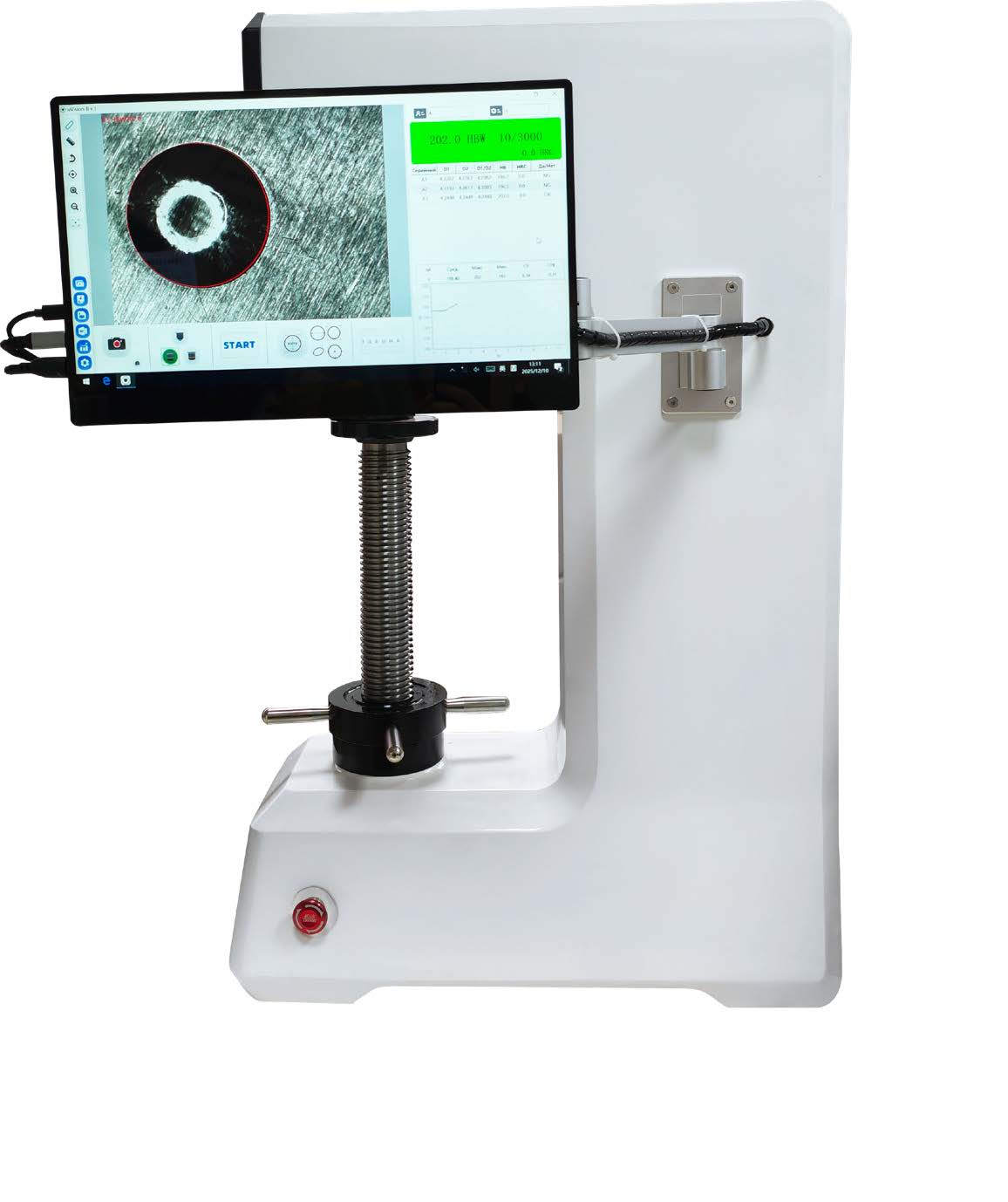

Introducing the Mikrosize Digital Brinell Hardness Tester
At Mikrosize, we understand the need for speed without sacrificing accuracy. Our digital solution revolutionizes the traditional Brinell test by integrating cutting-edge interfaces with robust engineering. As a premier Measuring Testing Instrument, it is designed for applications ranging from heavy industrial manufacturing to academic research.
Key Product Features
1. Fully Electronic Closed-Loop Sensor System
Traditional testers rely on dead weights and levers, which are bulky and require maintenance. The Mikrosize tester eliminates these components entirely. We employ a fully electronic closed-loop sensor loading control system. This technology monitors and adjusts the test force in real-time, ensuring that the exact force specified by standards (ISO 6506, ASTM E10) is delivered. Benefits include:
High Precision: Force application is accurate within a fraction of a percent.
High Repeatability: Every test is consistent, ensuring reliable data.
Exceptional Stability: Electronic control compensates for external disturbances.
Easy Operation: No physical weights to change; set up tests via the touch screen.
2. Intuitive 5-Inch Color Touch Screen

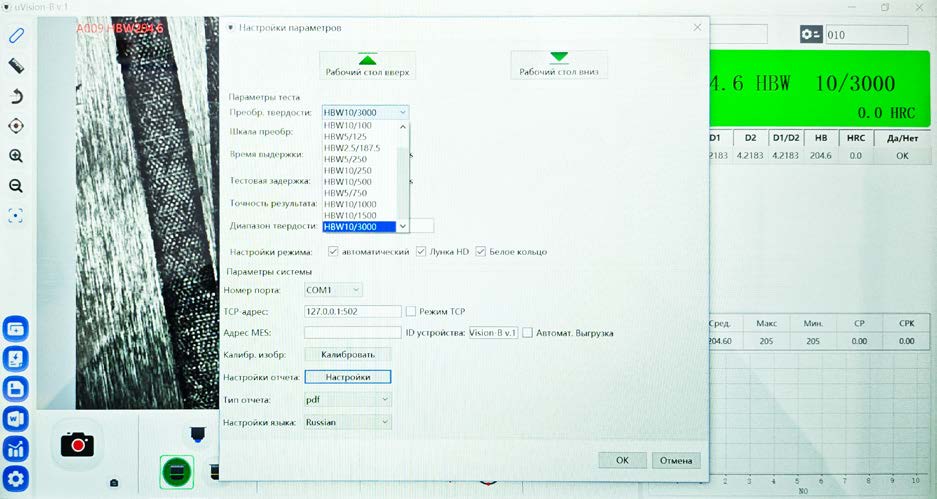

User experience is central to our design. The tester features a 5-inch color touch screen that serves as the command center. This intuitive interface reduces the learning curve for new operators. It displays real-time data, test status, and results in a clear format, allowing operators to focus on the specimen rather than struggling with the machine.
3. No More Look-Up Tables (Direct Reading)
Traditionally, operators had to measure indentation diameters and cross-reference them with printed tables. This process was time-consuming and error-prone. The Mikrosize tester features an integrated direct-reading function. Simply input the indentation diameter and length into the touch screen, and the onboard computer instantly calculates and displays the Brinell hardness value. This automation saves time, prevents misreading, and increases productivity.
Wide Range of Applications
As a versatile Measuring Testing Instrument, this Brinell tester is indispensable across various sectors:
Ferrous and Non-Ferrous Metals: Tests everything from soft aluminum to high-strength steels.
Cast Iron and Forgings: The large indentation method is ideal for coarse grain structures.
Unquenched and Annealed Steels: Verifies softness in heat treatment facilities.
Metallurgy and Foundries: Essential for incoming material inspection and process control.
Research and Education: Perfect for universities, labs, and colleges to teach material science.
Why Choose Mikrosize as Your Supplier?
In metrology, the brand matters. Choosing Mikrosize means partnering with a supplier committed to excellence. We are solution providers dedicated to Measuring Testing Instrument innovation. When you purchase from a Mikrosize supplier, you gain:
Unmatched Accuracy: Instruments calibrated to the highest international standards.
Robust Construction: Built to withstand factory floors and clean laboratories.
Comprehensive Support: From installation to after-sales service.
Future-Ready Technology: Digital interfaces and closed-loop systems prevent obsolescence.
Technical Specifications
Test Force Range: Covers standard Brinell loads (62.5 kgf to 3000 kgf).
Loading Method: Fully automatic, closed-loop electronic servo control.
Display: High-resolution 5-inch color touch screen.
Data Output: Direct display of hardness value upon input of measurements.
Indenter: Standard carbide ball indenter.
Safety: Built-in overload protection.
Standards: Conforms to ISO 6506, ASTM E10, and more.
The Importance of Brinell Testing in Quality Control
In industries like metallurgy, forging, and automotive manufacturing, material failure is not an option. The Brinell test provides a critical checkpoint. Because it creates a large indentation, it tests the material's macrostructure, reflecting overall strength and resistance to deformation. For rough surfaces, the large indentation minimizes the influence of surface finish, ensuring accurate results.
Integration with Other Mikrosize Solutions
The Digital Brinell tester is part of a larger ecosystem from Mikrosize. We are a comprehensive provider of Measuring Testing Instrument solutions, including:
Hardness Testers: Rockwell, Vickers, and micro-hardness testers.
Optical Systems: High-precision image measuring instruments.
Metallurgical Microscopes: For microstructural analysis.
Sample Preparation Equipment: Cutters, mounters, and polishers.
By sourcing from a single, reliable Mikrosize supplier, you ensure consistency in quality and support across your entire laboratory.
Operational Efficiency and User Benefits
Investing in this tester translates directly to operational benefits. The user-friendly interface makes the workflow intuitive. New technicians become proficient in minutes. The elimination of manual weight changes and look-up tables reduces operator fatigue, leading to higher quality data. Furthermore, the digital platform opens the door for future integration with data management systems.
Maintenance and Longevity
A Measuring Testing Instrument is an investment. The Mikrosize tester is built for longevity. The fully electronic loading system has fewer moving parts than traditional testers, meaning less wear and lower maintenance costs. Regular calibration and simple cleaning are all that is needed to keep it running accurately for decades.
Conclusion
The transition from analog to digital in hardness testing is a necessity for labs aiming for peak efficiency. The Digital Brinell hardness tester from Mikrosize represents the pinnacle of this evolution. It combines the robustness of the classic Brinell method with the speed of modern digital technology.
Whether you are in metallurgy, forging, or academia, this Measuring Testing Instrument provides the precision you need. By choosing a trusted Mikrosize supplier, you invest in a tool that enhances productivity and guarantees product quality.
Embrace the future of material testing with Mikrosize. For more information on this product or our full range of instruments, contact your local Mikrosize representative today.
