Efficient, Safe, and Low-Noise Metallographic Cutting

A metallographic cutting machine is a fundamental piece of equipment in any materials laboratory, specifically designed for the initial and crucial step of sample preparation in metallographic examination. Its primary purpose is to extract a representative section from a larger specimen, controlling the Z-axis manually to advance and retreat the abrasive cutting wheel. This precise control, combined with an integrated cooling system, is vital to achieve several key objectives: to produce a sample of an appropriate and manageable size, to ensure the cut surface is exceptionally flat, and most importantly, to inflict minimal structural damage or alteration to the material's microstructure. By preserving the sample's integrity, the cutting machine lays the foundation for all subsequent preparation stages—mounting, grinding, polishing, and etching—ultimately leading to accurate and reliable inspection and analysis under the microscope. As a specialized Measuring Testing Instrument, its performance directly influences the quality of the final metallographic results.

Supplied by Mikrosize, a trusted name in precision laboratory equipment, these cutting machines are engineered with a host of advanced features to ensure superior performance, user safety, and long-term durability. The design philosophy centers on robust construction and operational excellence. A thick, heavily built body and a compact, precision-engineered transmission mechanism work in harmony to provide exceptionally smooth and vibration-free operation, which is essential for achieving flawless cuts. At the heart of the machine are high-torque drive motors that offer strong cutting capacity for even tough materials, all while operating with low noise levels and featuring a high protection rating for reliability.

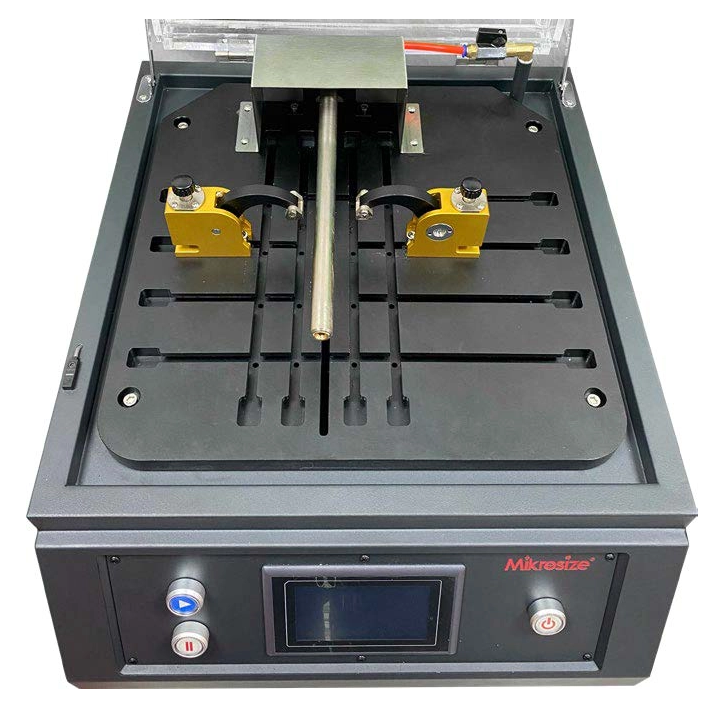

The work area is designed for both resilience and convenience. The stainless steel countertop, featuring an integrated multi-groove T-shaped slot, provides a durable, corrosion-resistant, and aesthetically pleasing surface that facilitates the easy and secure fixation of various fixtures and clamps. For handling a diverse range of sample geometries, the machine boasts a wide cutting chamber and a powerful worktable. Both sides of the protective cover are fitted with openings sealed by soft protective curtains, allowing operators to easily and freely maneuver long, large, or irregularly shaped specimens during the cutting process.

Cooling and operational efficiency are paramount. A concealed coolant spray nozzle, pre-set in an upright position, delivers a concentrated and consistent stream of coolant directly to the cutting interface without requiring manual adjustment. This system features intelligent automatic supply; the coolant flow is activated simultaneously with the cutting operation, ensuring efficient cooling and lubrication that prevents heat-affected zones and ensures a clean, damage-free cutting surface. For enhanced versatility, an optional cutting speed adjustment module is available, allowing users to precisely set the optimal cutting speed based on material characteristics, blade wear, or specific project requirements for a superior finish.

User experience and safety are integral to the design. A large, transparent protective cover, complemented by high-brightness internal lighting, offers a clear and unobstructed view of the entire cutting process. The protective cover features a damping mechanism for smooth, effortless opening and closing. Critical safety systems include interlocking protection, which immediately halts the cutting power unit if the cover is opened or improperly closed, and a prominent emergency stop button. The electrical system is fortified with overvoltage and overcurrent protection. Furthermore, the machine employs a dry-wet separation layout, effectively isolating sensitive electronic components and other parts requiring waterproofing from the humid cutting chamber environment.

Maintenance and longevity are also carefully considered. An external, elastic, and extendable cleaning water gun is provided for convenient rinsing and cleaning of the work chamber after use. The extensive use of stainless materials, sturdy impact-resistant protective covers, and corrosion-resistant surface coatings and protections ensure that the equipment remains durable, maintains its appearance, and performs like new for years to come, making it a sound investment for any laboratory focused on precision Measuring and Testing.
