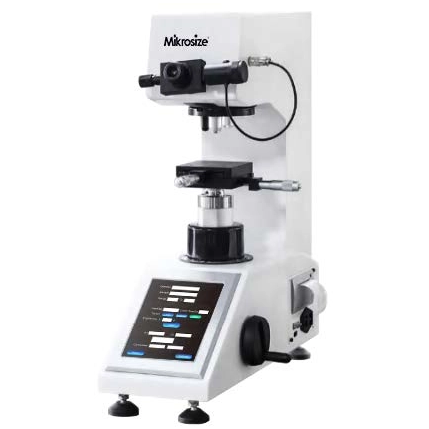

uVicky-1 Micro Vickers Hardness Tester

Product Feature:

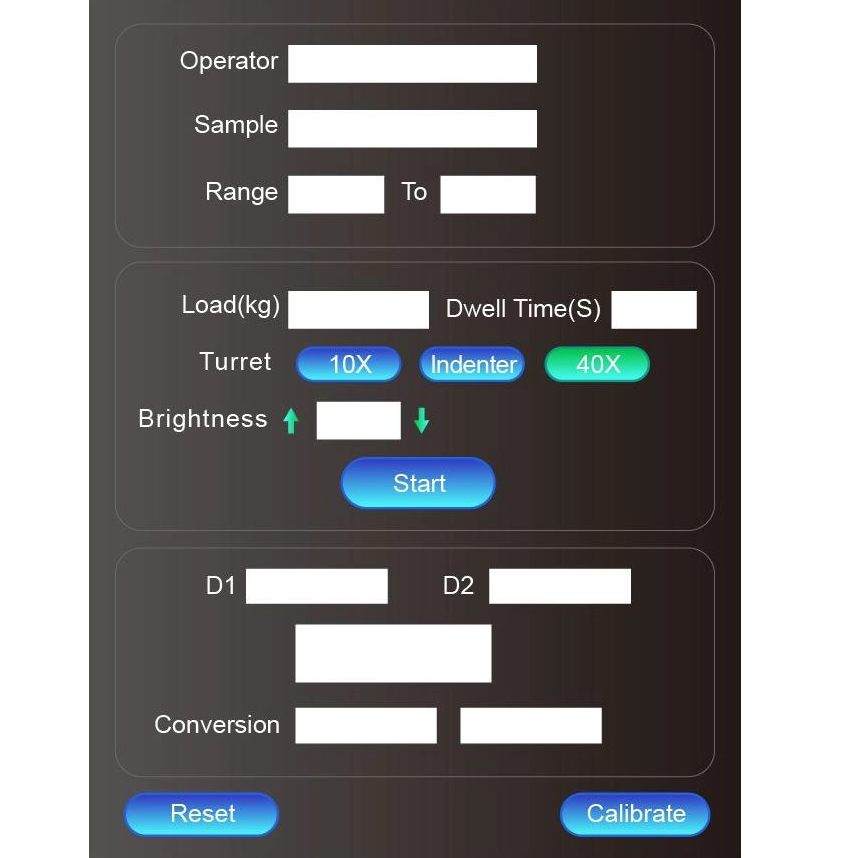

●8’’Touch screen ,menu structure, and digital eyepiece with built-in encoder, by clicking encoder button, the diagonal length of indentation D1, D2 and hardness value automatically calculated.
●Optical cross guide rail guidance ensures guidance accuracy.
●High precision worm gear rod with high transmission ratio ensure more precise force transmission and achieve stable continuous lifting
●Rack and pinion force transmission realizes fast and stable force transmission.
●Equipped with dual optical path, one optical path for eyepiece system, another path for CCD camera, both path can working in same time.
●LED illumination for long service life and no need to replace the bulb. brightness of the light source can be adjusted infinitely
●Test setting parameters is protected by password.

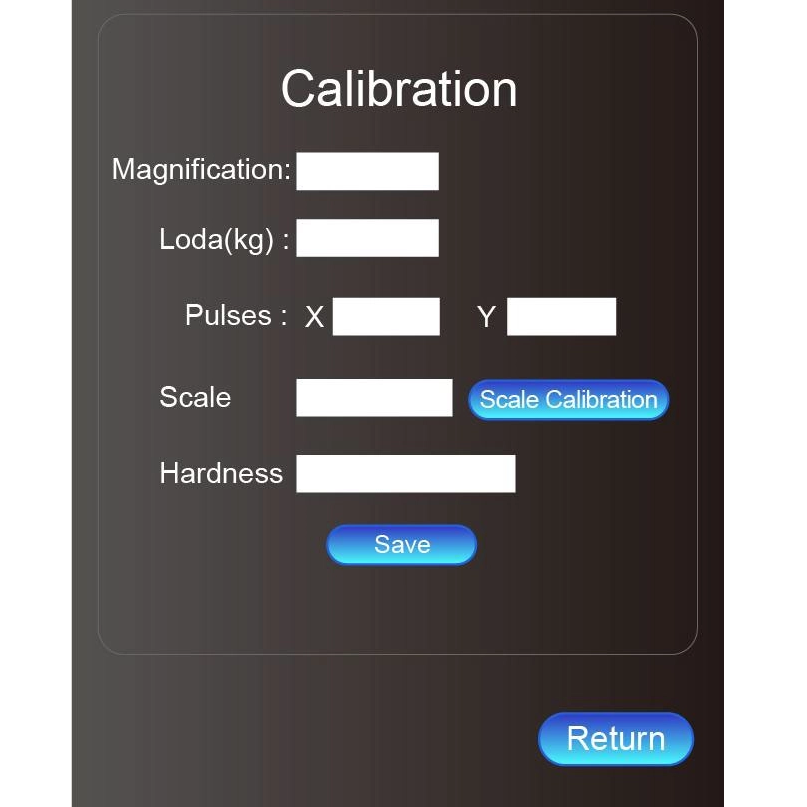

●It can be calibrated according to the standard hardness block or length scale to make hardness value more accurately
●Eyepiece structure with digital encoder, and the touch screen directly displays the hardness value and D1 and D2 values.

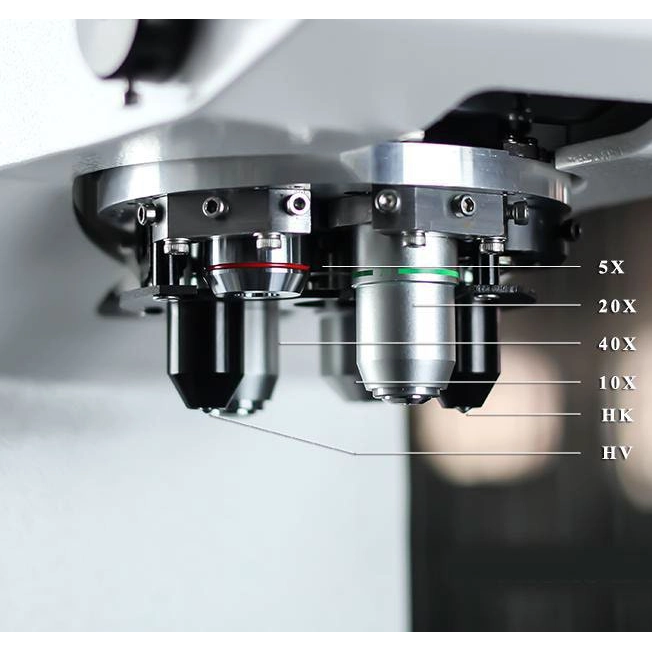

●Advanced machine with lens 5x/10x/20x/40x can used for measurement, suitable to test widely hardness range of materials from most soft to very hard.
●With hardness conversion function, from HV can convert to HRA, HRB, HRC, HBW, etc.
●With HV & HK Vickers and Knoop hardness testing capabilities.
●It can be equipped with a built-in camera (optional)to make the image clearer.
●RS-232 interface connected to computer for data output, testing result can be saved in USB (optional) in EXCEL format. bulut-in mini-printer to print testing data
●With micro vickers indentor smart cover to protect indenter collision by test sample or other parts.
●OK/NG judgement function.
●1 micro vickers indentor,4 objective lens totally 5 position hardness testing machine is realized.
●English language operation as standard, other languages can be customized
●Auto load selection by touch screen instead of manual loading selection
which makes force change more smoothly.(optional)

Product Application：
Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating, coating.Glass, chip and ceramic material.

Availability:

Quantity:



Inquire Add to Basket

Model:
uVicky-1
Brand:
Mikrosize
Code:
uVicky-1

Product Description

Product Description

Technical Specification

Product Name	uVicky-1 Micro Vickers Hardness Tester
Model	uVicky-1M-2E	uVicky-1A-2E	uVicky-1M-2	uVicky-1A-2	uVicky-1A-3	uVicky-1A-4
Turret	Manual	Auto	Manual	Auto	Auto	Auto
Built-in Mini Printer	No	No	Yes	Yes	Yes	Yes
Data Statistic Function	Yes	Yes	Yes	Yes	Yes	Yes
Objective	10X(Oberve) 40X(Measure)	10X(Oberve) 40X(Measure)	10X(Observe&Measure) 40X(Observe&Measure)	10X(Observe&Measure) 40X(Observe&Measure)	10X(Observe&Measure) 20X(Observe&Measure) 40X(Observe&Measure)	5X(Observe&Measure) 10X(Observe&Measure) 20X(Observe&Measure) 40X(Observe&Measure)
Eyepiece	10X digital eyepiece with built-in encoder
Total Magnification	100X(Oberve) 400X(Measure)	100X(Oberve) 400(Measure)	100X(Observe&Measure) 400X(Observe&Measure)	100X(Observe&Measure) 400X(Observe&Measure)	100X(Observe&Measure) 200X(Observe&Measure) 400X(Observe&Measure)	50X(Observe&Measure) 100X(Observe&Measure) 200X(Observe&Measure) 400X(Observe&Measure)
Test Force	10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1000gf (9.8N)
Hardness Scale	HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Conversion Scale	HRA, HRB, HRC, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T,HV, HK, HBW
Loading Speed	≤50μm/sec
Indentor	Standard Rectangular Pyramid Diamond Indenter (136º±0.5º)
Objective lens center and indenter center	Coincidence accuracy error< 1um (objective lens center position can be adjusted)
Measurement Resolution	0.01µm
Data Display /Output	8 "Touch Screen Display, Can Store 20 Test Results, USB drive, Built-in Printer and RS-232 Interface
Hardness Test Range	8~2900HV
Loading Method	Automatic （loading、dwell、unloading）
Dwell Time	1-99s(each step is 1 second)
Test Space	Test height: 100mm (Vertical); Test Throat: 130mm(Horizontal)
X-Y Test Anvil	Dimension：100100mm, Movement:2525mm,Moving Resolution Ratio:0.01mm
Illumination	LED Cold light source (can be continuous use for 24 hours, no heat generate ensure stable working, servicing life can reach 100,000 hours)
Machine Size&N/W	540260650mm,50kg
Package Size&G/W	710420627mm ,68kg
Power supply	AC220V+5%，50-60Hz(110V is available)
Executive Standards	GB/T4340, ASTM E384 & E92, EN-ISO 6507, JIS B-7734

Packing List

Item	Quantity
Weight Shaft	1pc
Eyepiece	1 pc
X-Y Test Anvil	1 pc
Gradienter	1 pc
Power Cord	1 pc
Product Certificate, Warranty Card	Each 1 Copy
Printing Paper	1 pc
Screwdriver	2 pc
Item	Quantity
Weight	6 pcs
Micro Hardness block	Each 1 pc
Spare Fuse (2A)	2 pcs
Dust Cover	1 pc
Instruction Manual	1 pc
Touch Pen	1 pc
Level adjustment screw	4 pcs
