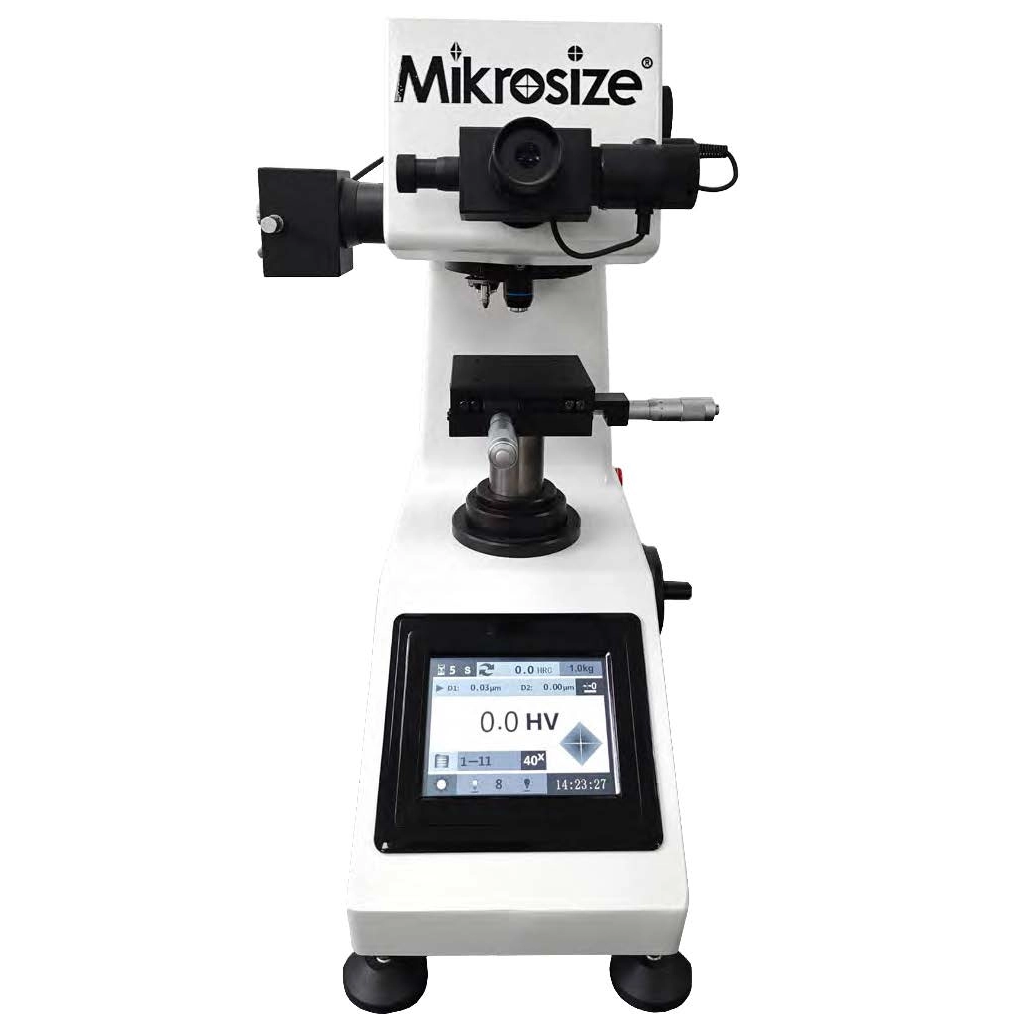

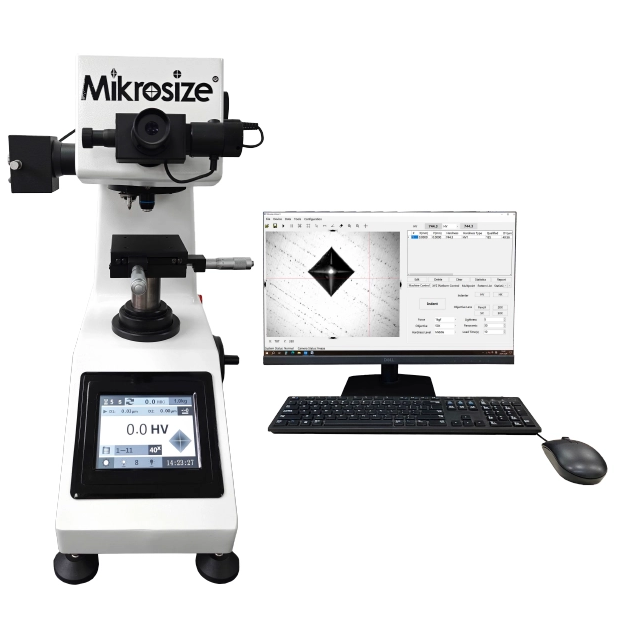

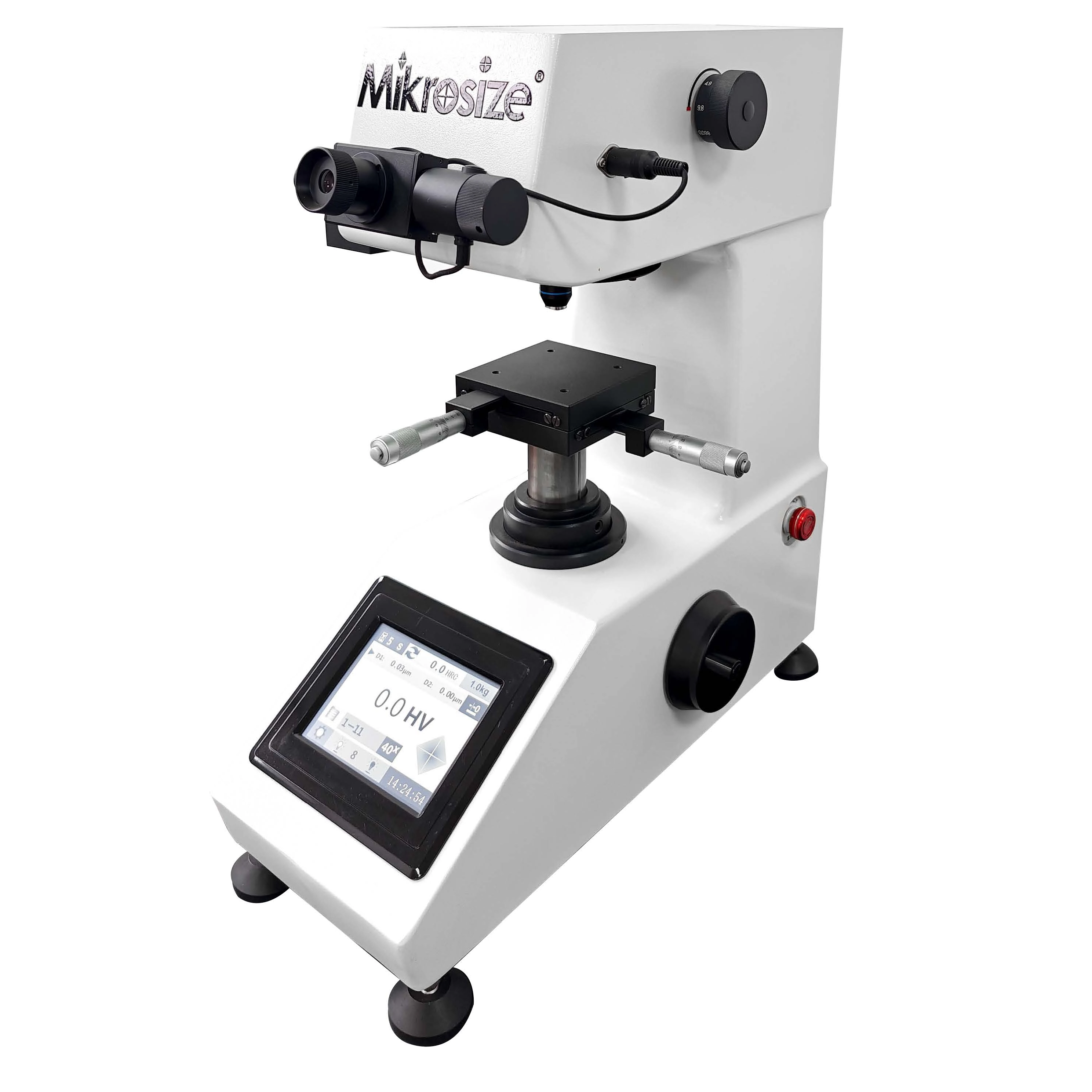

MVicky-1000PC Touch Screen Micro Vickers Hardness Tester

Product Feature：

●High-definition touch screen display and operation
●Automatic switching turret,automatic positioning.
●Precise mechanical design, controlled by the CPU electri- cally, and high-definition optical measurement system is used optically to improve the test accuracy
●Testing mode both mico vickers and knoop.
●Selected all micro vickers scales,and converted hardness scales
●Preset test force load dwelling time
●Adjustable illumination brightness
●The diagonal length of the indentation automatically entered after digital encode button pushed, the hardness value is automatically displayed on the screen, and the number of hardness tests is prompted
●Built-in printer , test result can be printed out.

Product Application：

●Hardness testing of various metal materials such as steel, aluminum alloy, copper alloy, etc
●It enables users to understand the hardness properties of the material, and then evaluate its processability and usabil- ity.
●It is also suitable for hardness testing of non-metallic materials such as ceramics, glass, and rubber etc.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Name	Touch Screen Micro Vickers Hardness Tester
Model	MVicky-1000T
Test Force	0.098N、0.245N、0.49N、0.9807N、1.961N、2.942N、4.903N、9.807N
Test Force	10gf、25gf、50gf、100gf、200gf、300gf、500gf、1kgf
Indenter	Diamond Indenter
Test Force Application Method	Automatic application and removal of test force
Indenter and Objective Lens	Automatic switching
Test Force Dwell Time	0~60s (in 5s increments)
Measuring Eyepiece	10X
Objective Lens	10X（Observation）、40X（Measurement）
Total Magnification	100X（Observation）、400X（Measurement）
Resolution	0.06μm
X-Y Test Stage	Size:100x100 mm
	Travel:25x25mm
	Resolution:0.01mm
Maximum Sample Height	90mm
Indenter Center to Outer Wall	100mm
Working Conditions	Within room temperature range (23±5)°C
	Placed horizontally on a stable base
	In a vibration-free environment, free from corrosive media
	Indoor relative humidity not exceeding 65%
Power Supply	AC220 V/50~60 Hz
Net Weight	Approx. 31kg

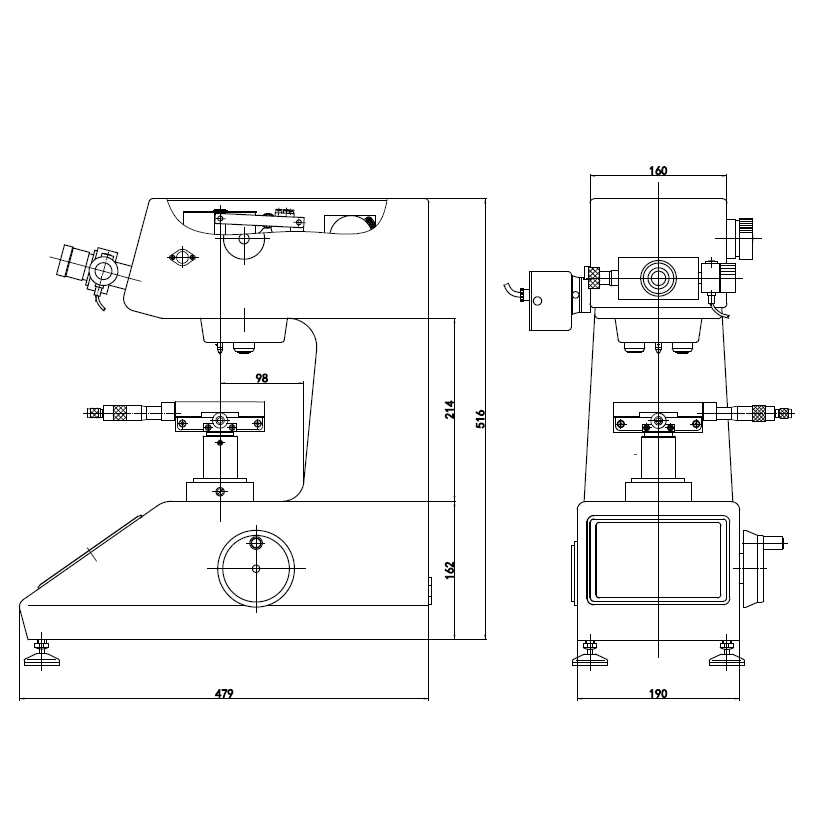

Dimensions (L x W x H)	480x325x545mm

Standard Delivery：

Name	Specification	Qty
Hardness Tester		1
Micro Indenter		1
Objective Lens	10X、40X	Each 1
Measuring Eyepiece	10X	1
Weights		6
Weight Shaft		1
X-Y Test Stage		1
Thin Specimen Clamping Stage		1
Flat Clamping Stage		1
Fine Wire Clamping Stage		1
Leveling Screws		4
Spirit Level		1
Halogen Lamp	12V、15~20W	1
Spare Fuse	1A/250V，5X20mm	3
Power Cord		1
Screwdriver		1
Hex Key		2
Dust Cover		1
Microhardness Blocks	HV0.2、HV1	each 1
Hardness Tester User Manual		1
Calibration Certificate of Hardness Tester		1
Product Qualification Certificate		1
Accessories Box		1
