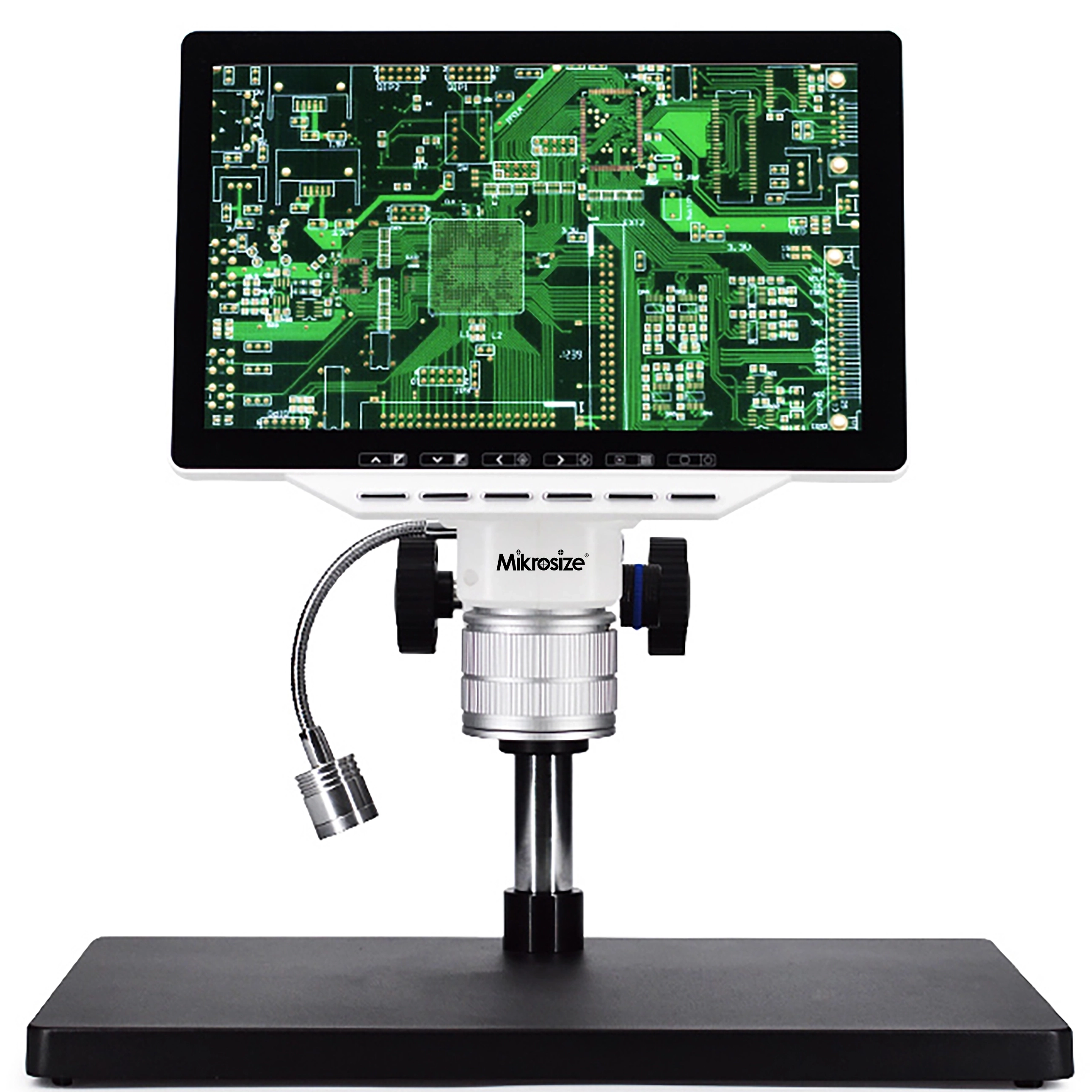

iVideo-106 Digital Video Microscope

Product Feature:
●High resolution screen:adopts 10.6 inch IPS LCD,resolution is up to 1366 * 768,can present extremely clear microscopic image details;
●The widescreen display ratio of the IPS screen provides a wider field of view to observe a larger area of microscopic samples;
●IPS technology ensures the screen has excellent color restoration ability, and can accurately present the real color of microscopic samples;
●Users can see the image on the screen from different views clearly,instead of color distortion or image blur;

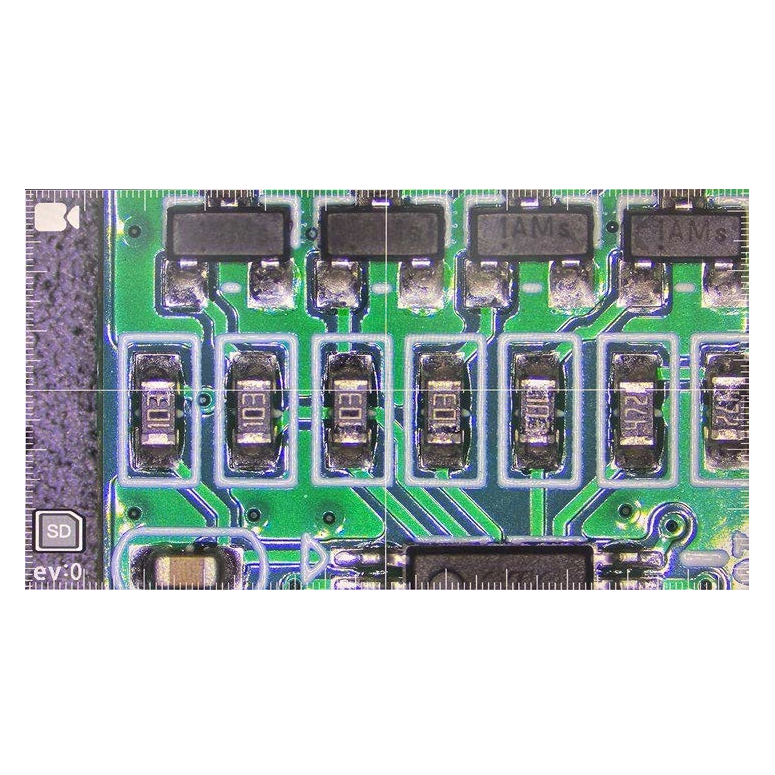

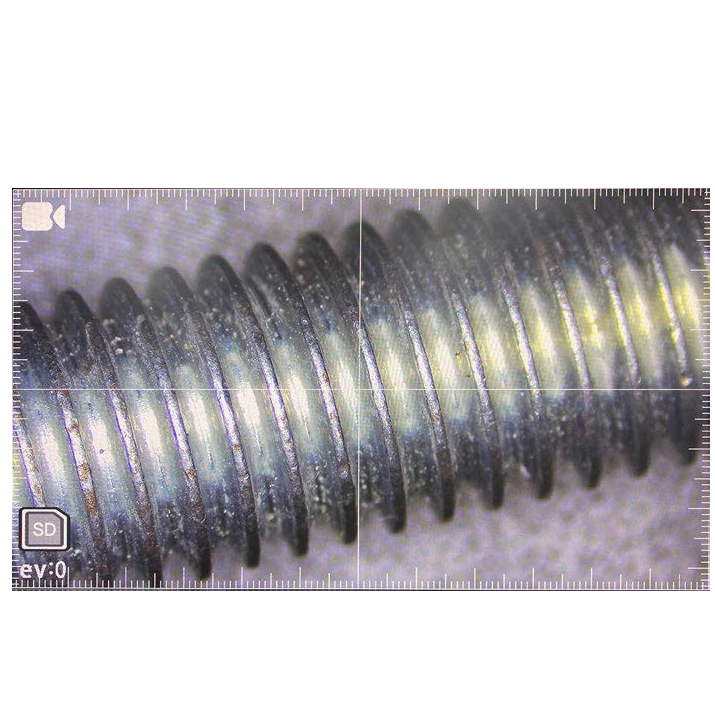

●With 1200w photo pixels, can take high quality micro images; video resolution of 1080p / 60 fps, can record the smooth micro dynamic process;
●The automatic exposure function can automatically adjust the exposure time according to the illumination condition of the sample to ensure the moderate brightness of the image; the automatic white balance function can correct the color deviation of the image and make the image color more real;
●Support video mode, photo mode and playback mode, and can be switched through simple key operation;

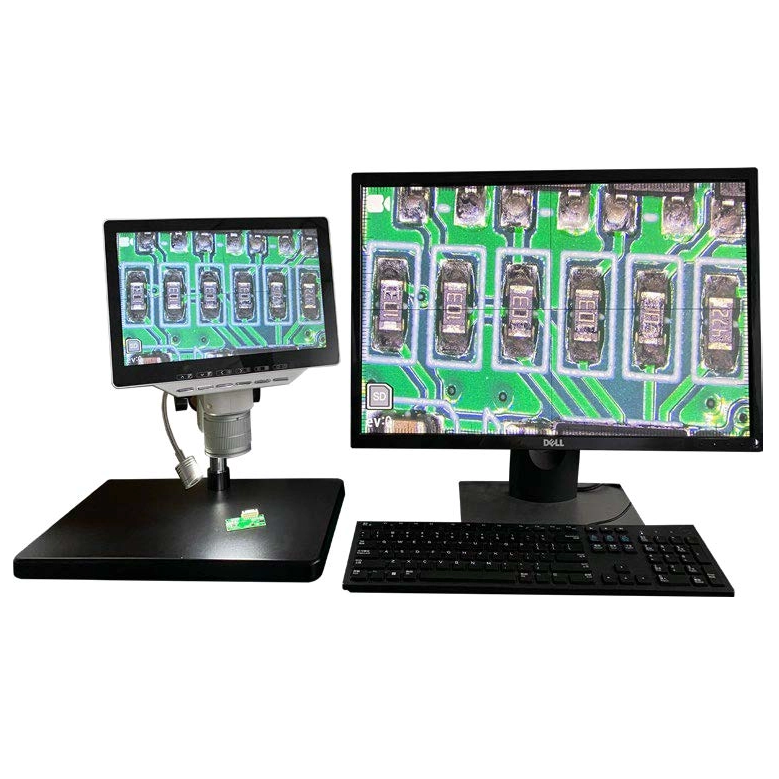

●Using HDMI video interface, can be connected to the projector, display and other equipment, convenient to display micro images on a larger screen;
●SD card storage (32G)
Product Application:
●Zoology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology;
●In the textile industry, used for the inspection of raw materials and cotton fabric;
●In the electronic industry, as a transistor spot welding, inspection and other operation tools;
●Inspection of the surface crack composition of various materials, stoma shape and corrosion situation and other surface phenomena;
●In the manufacture of small precision parts, devices used for machine tools, observation of the working process, inspection of precision parts and assembly tools;
●Surface quality of lenses, prisms or other transparent substances, and quality inspection of precision scale; Widely used in chemical chemistry, electronic manufacturing, pharmaceutical food, universities, archaeological research and many other fields.
Availability:
Quantity:
  • MS-I106L-A/ MS-I106LX-A

  • Mikrosize

Product Description

Technical Specification:


LCD screen

Size

10.6 inch IPS


Resolution

1366*768

Digital parameters

Wide Dynamic Range

Achieve


Pixel

1200w


Video resolution/frame

rate

1080p/60fps


Video output format

HDMI


Function

Automatic exposure, exposure offset, automatic white balance, photography,

recording,storage


Storage method

SD card (maximum memory 32GB)


Measurement function

Support


External devices

available

Projector, monitor

Optics parameters

Eyepiece lens

0.5X


Objective lens kind

Continuous zoom lens


Objective lens zoom mag-

nification

0.7X~4.5X


Magnification

44.5X


Total magnification

15.5X~100X

Platform parameters

Lighting method

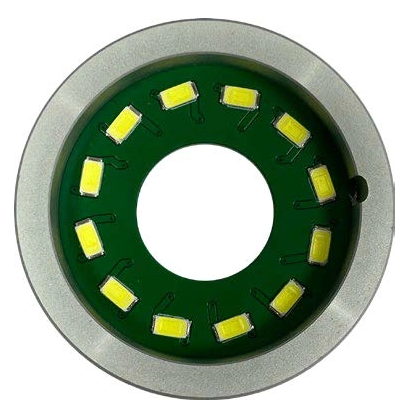

Upper illumination, side illumination, LED

continuous adjustable illumination


Focusing range

42mm


Working distance

88mm

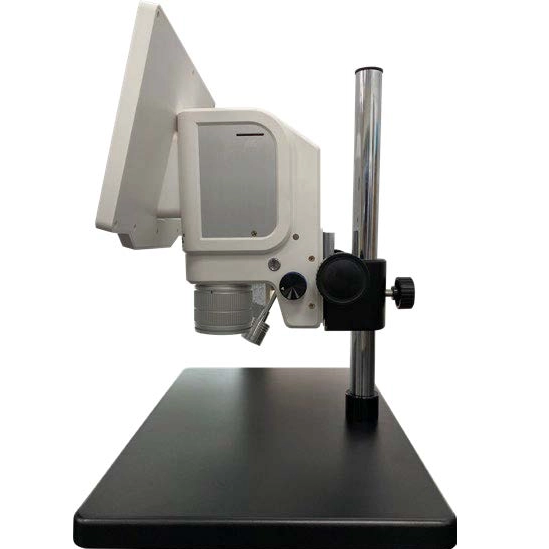

Column

Round pillar


Bracket size

380mm*260mm*20mm

Power supply method

DC12V

Standard Delivery

Item

Qty

Mainframe head

1

Column

1

Basement

1

Fixed knob

1

Spare illumination

1

Inner hexagon spanner

1

Power adapter

1

Power line

1

Optional Delivery

Item


Qty

HDMI line


1pc
