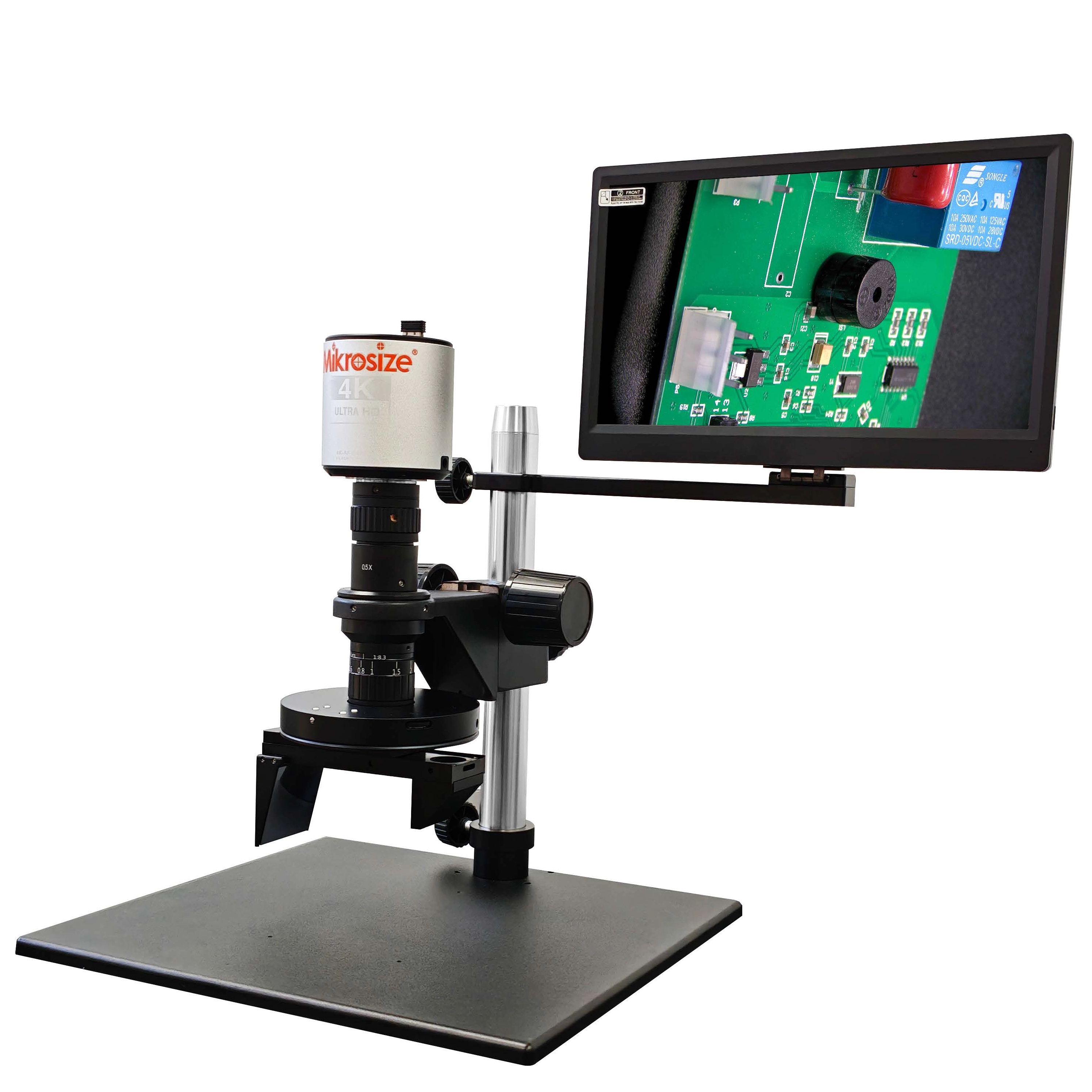

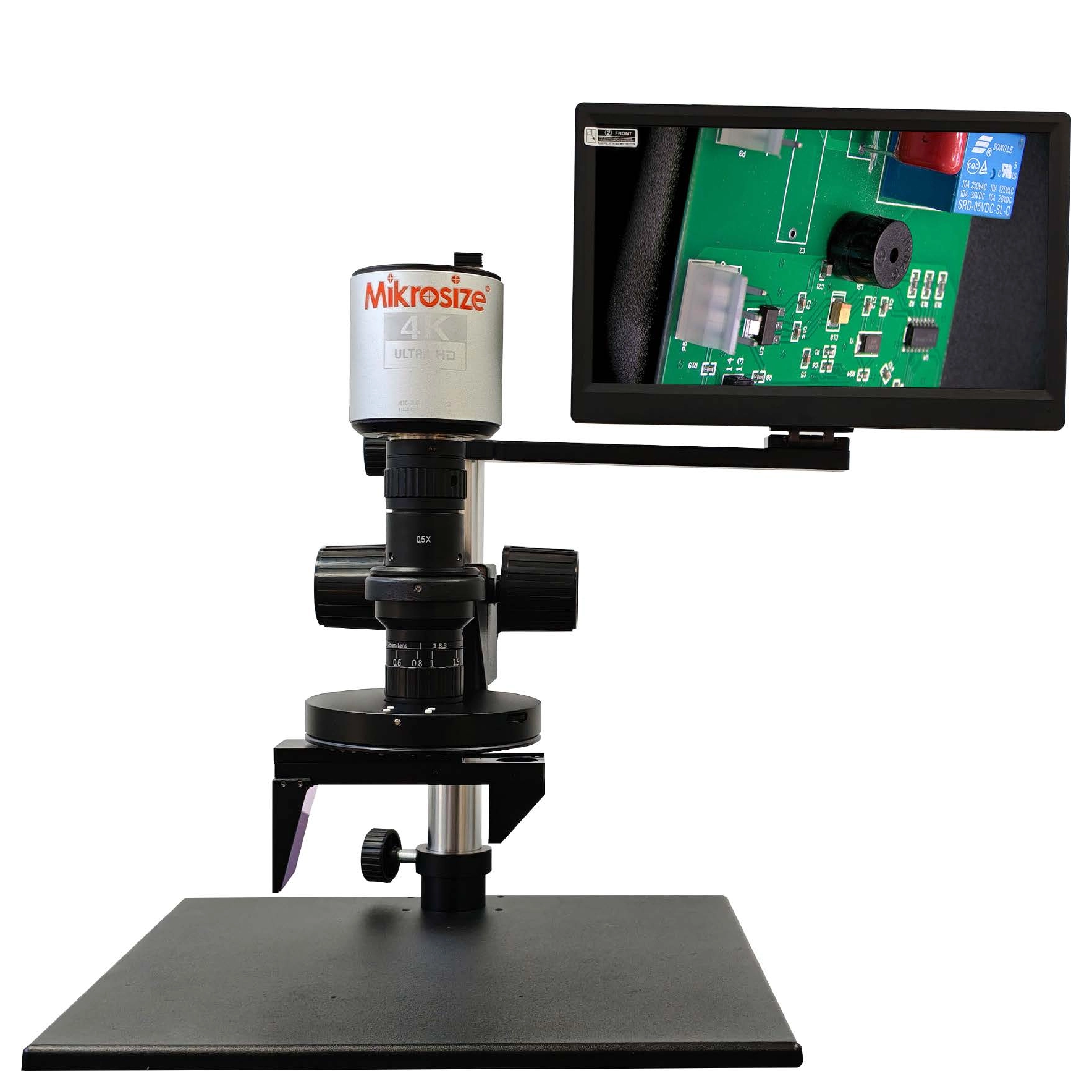

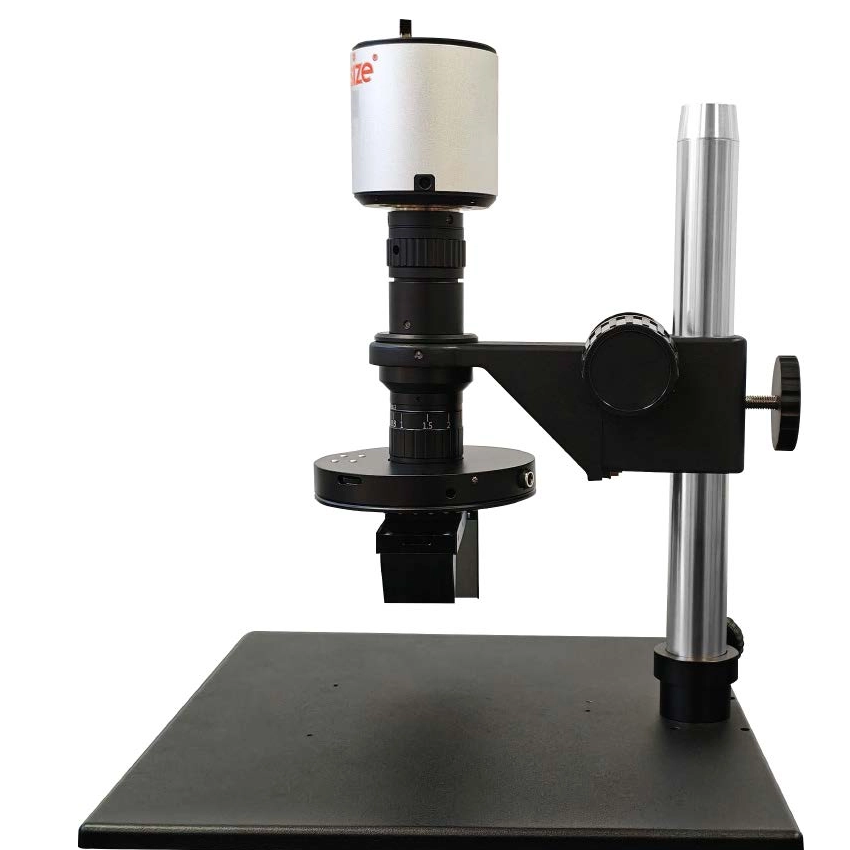

iVideo-0325 FA 3D Video Microscope

Product Feature：

lEquipped with a 0.6 - 5.0X continuous zoom lens, it supports one-click switching between 2D/3D observation modes. In 3D mode, it can rotate 360° for comprehensive inspection.
lEquipped with a 4K Ultra HD camera, featuring built-in fully automatic focusing function, with a maximum resolution of 3840×2160, the image is clear and detailed.
lSupports HDMI direct connection display and USB3.0 computer connection, compatible with mouse operation, integrating multiple functions such as photography, video recording, measurement, etc. into one unit.
lOffer a wide range of measurement tools, covering 18 types of measurements such as length, angle, and area. The measurement accuracy reaches 0.01μm, meeting the requirements of precise detection.
lSupports custom setting of grid lines, allowing for the saving of 8 preset schemes. It also features image comparison and four-screen comparison functions, facilitating multi-sample analysis.
lEquipped with four-zone light sources and a light source controller, the brightness can be adjusted. It is suitable for observing samples of different materials, reducing the interference from reflections.

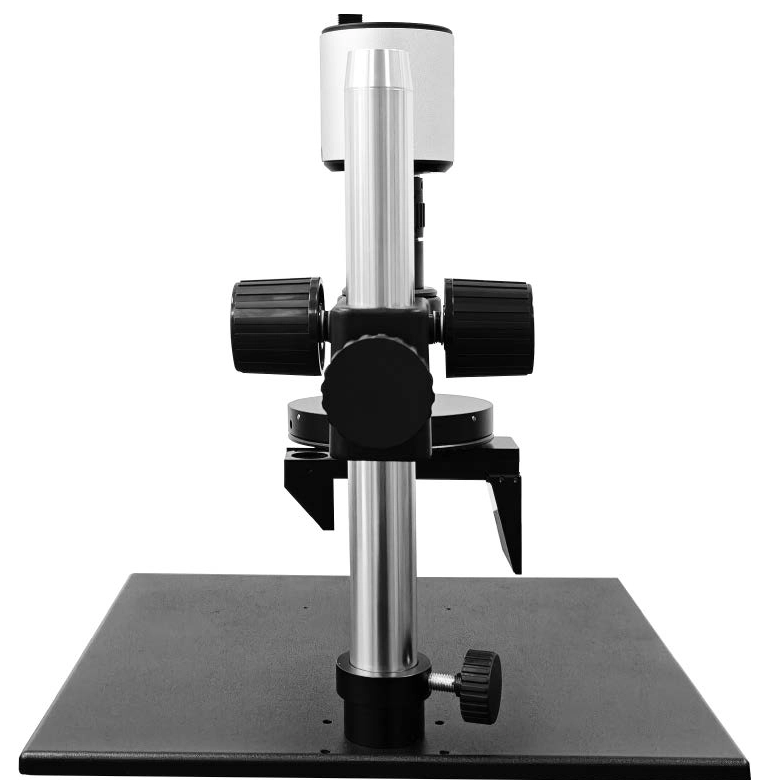

lThe body structure is stable. The large 330×300mm base plate ensures it stays put when placed. The operation process is visible, so it's easy for newbies to get the hang of it.

Product Application：

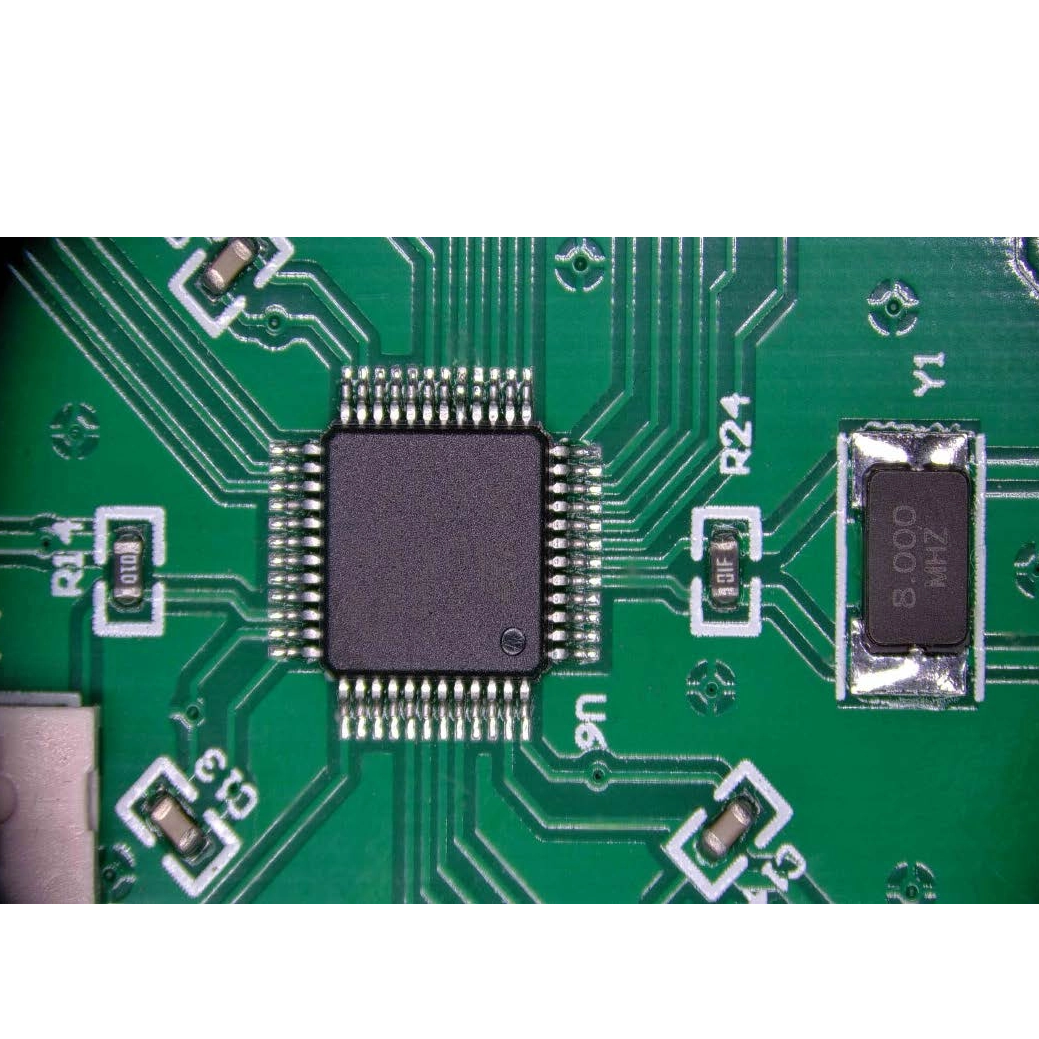

lIt is applicable to the observation of microstructures and defect detection in fields such as electronic components, precision mechanical parts, PCB boards, and new materials.
lIt can meet the real - time quality control requirements at the production site and the needs of precise laboratory analysis. It can be used in links such as incoming material inspection, process monitoring, and finished product acceptance.
lSupports precise measurement of product dimensions and data archiving, suitable for use in various scenarios such as research institutions, factory quality inspection, and university experiments.
lIt can conduct real-time comparison and analysis between the actual images and the stored images, assisting in the consistency verification and anomaly detection during batch production.
lSuitable for samples of different materials such as metals, plastics, and electronic components, and compatible with both planar and three-dimensional structural detection requirements.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Optical System	0.6 - 5.0X continuous zoom lens, 0.5X CTV adapter tube
Observation Mode	2D planar observation, 3D stereoscopic observation (360° rotation)
Camera Parameters	4K Ultra HD, 1/1.8 CMOS, resolution 3840×2160
Focus Mode	Auto focus, Manual focus, Single-shot focus
Measurement Accuracy	0.01μm
Measurement Function	18 types of measurements including length, angle, area, radius, etc.
Interface Type	HDMI, USB 3.0, USB 2.0 (for mouse), DC - 12V
Light Source System	4-zone adjustable light source, with the controller integrated onto the light source.
Show Support	Compatible with 24-inch and larger monitors, with the maximum display ratio of 456.2X.
Body Size	Base plate: 330×300mm (The height of the stand is suitable for the lens adjustment range)
Work Environment	Working temperature: 20% - 80%; Storage temperature: 0℃ - 35℃
Power Supply Specifications	DC-12V power supply
Support Language	Simplified Chinese, Traditional Chinese, English

Standard Delivery：

Name	Qty
Main unit (including lens and camera)	1pc

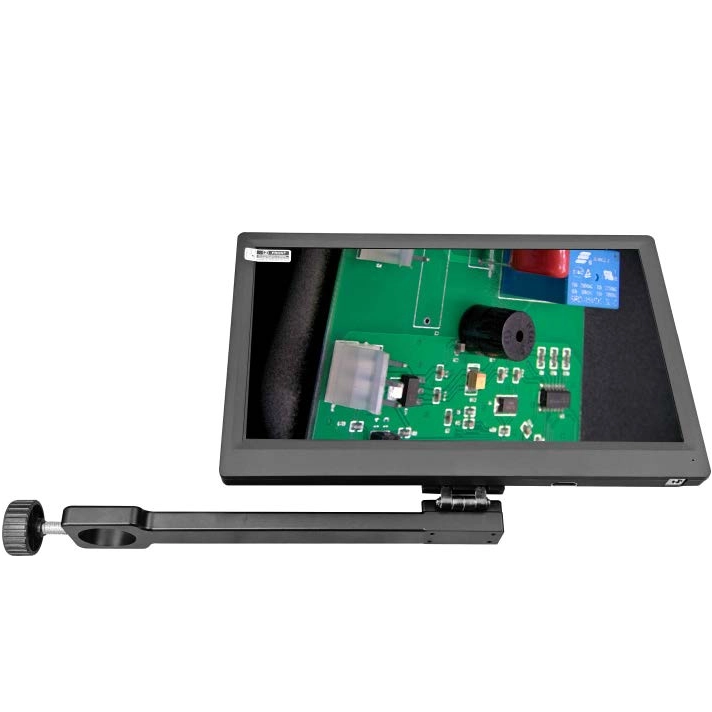

11.6-inch screen	1pc
HDMI cable	1pc
USB 3.0 data cable	1pc
DC-12V 1A power adapter	2pcs
DC-12V 2A Power Adapter	1pc
Mouse	1pc
Operation Manual	1pc
Certificate of Conformity	1pc
Warranty card	1pc

Get A Free Quote

Related Products

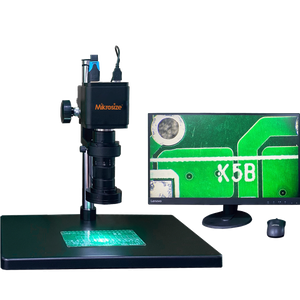

iVideo-80 Digital Video Microscope
