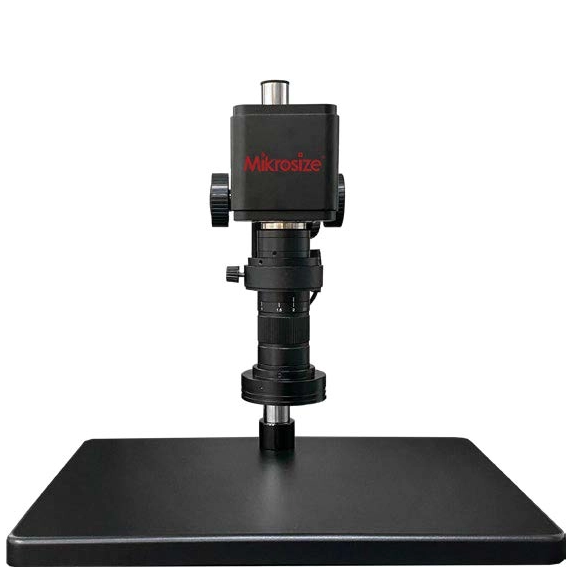

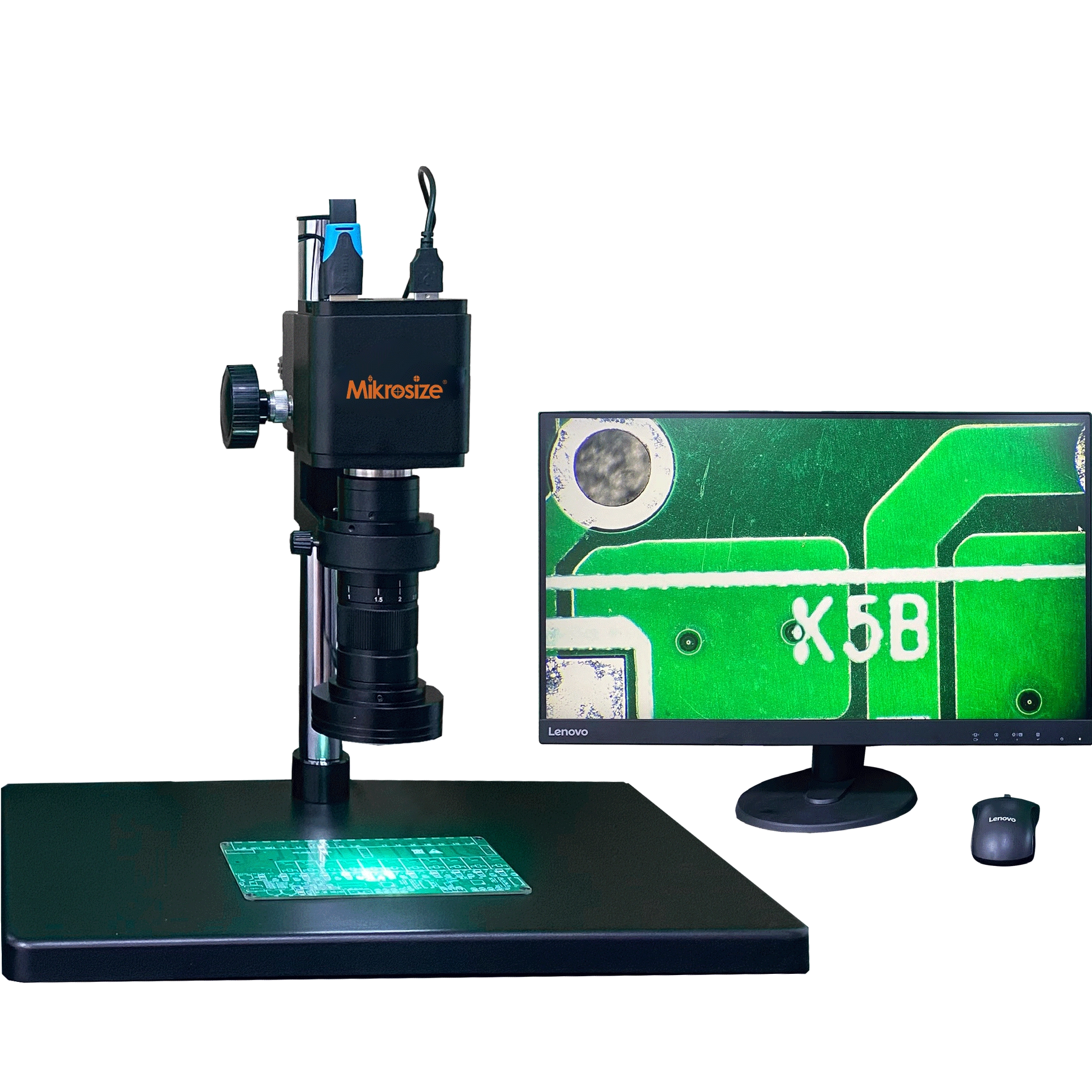

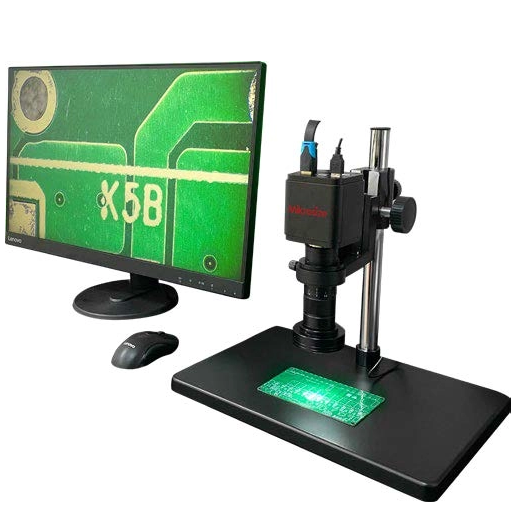

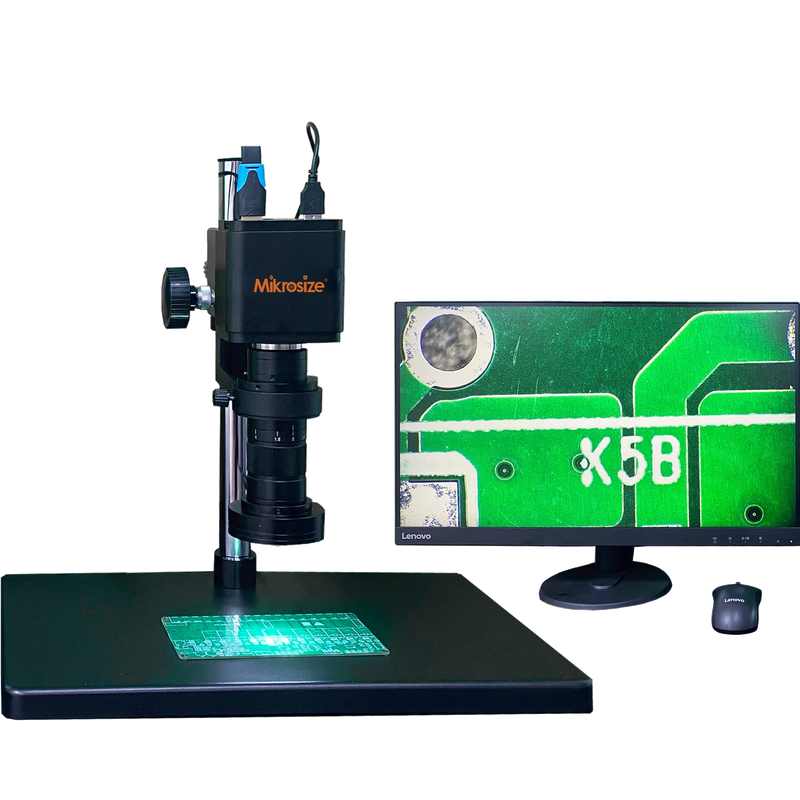

iVideo-80 Digital Video Microscope

Product Features：

●Back-illuminated CMOS sensor, adaptively switch between 4K and 1080P, providing clear imaging and high resolution
●It has multiple interface outputs such as HDMI and USB, offering various connection methods and being adaptable to a variety of devices for flexible use.
●Powerful ISP function, supporting multiple adjustments such as automatic/manual exposure and white balance to optimize the image
●Powerful software functions and convenient operation, it sup- ports multiple languages for different users.
●It supports storage via SD card and USB flash drive, with the SD card priority.Convenient storage and ensures data security.
●Camera has strong adaptability to working environment, working temperature ranging from -10℃ to 50℃ and a humidity of 30% to 80% RH.

Product Application：

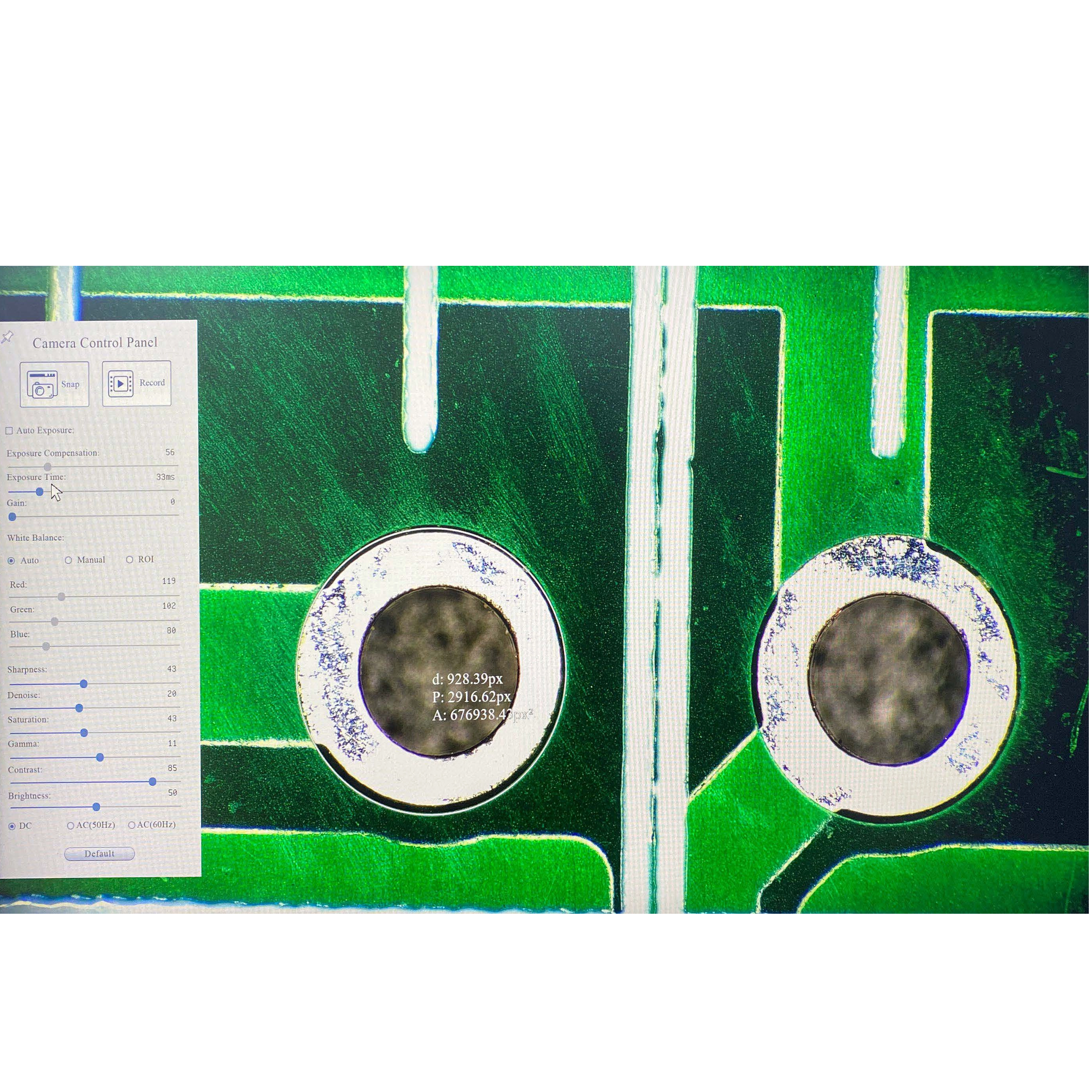

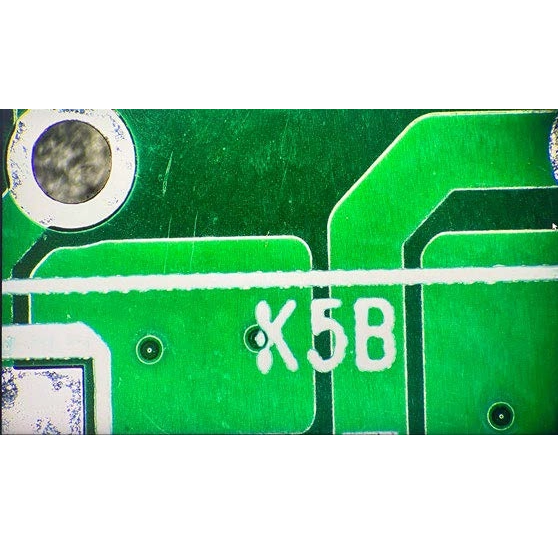

●High-definition imaging and measurement functions, it can accurately detect product defects.
Industrial inspection field. Various image adjustment functions, assisting in the inspection of industrial parts.
●Scientific research. High resolution and powerful functions provide clear images for scientific research observations.
●Education field. It is convenient for teachers to display micro- scopic structures and assist in the implementation of teaching activities.
●Video collection of stereo microscopes, recording the experi- mental process ,facilitating analysis and research.
●Image collection of biological microscopes, meeting image acquisition in biological research and teaching.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Magnification Ratio(27-inch Monitor)		54.3X-349.4X
Objective Lens		0.7X~4.5X The back focal length is adjustable, and the magnification ratio can be fixed.
LED ring light source		Maximum Diameter is 65mm. Central Diameter is 40mm.
Bracket	Column Aperture	25mm
	Lens Aperture	50mm
	Apertures Central Distance	140mm
	Lifting Range	62mm
Support	Base Size	38024823 mm
	Column Height	340mm
	Column Diameter	25mm

Standard Delivery：

Name	Qty
Camera	1 pc
Power Adapter	1 pc
Power Adapter for LED Light Source	1 pc
LED Light Source	1 pc
USB Mouse	1 pc
HDMI Cable	1 pc
2M USB 2.0 Cable	1 pc
CD (Drivers and Appli- cation Programs)	1 pc

Optional Delivery：

Optional Delivery	SD card (With a Capacity of More Than 16GB)
	Focus - adjustable Eyepiece Tube Adapter
	Fixed Eyepiece Tube Adapter
	Micrometer
	Adapter Ring for Eyepiece Tube With a Diameter of 30mm
	Adapter Ring for Eyepiece Tube With a Diameter of 30.5mm

Video Microscope

Get A Free Quote

Related Products

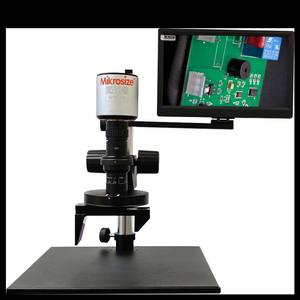

iVideo-0325 FA 3D Video Microscope
