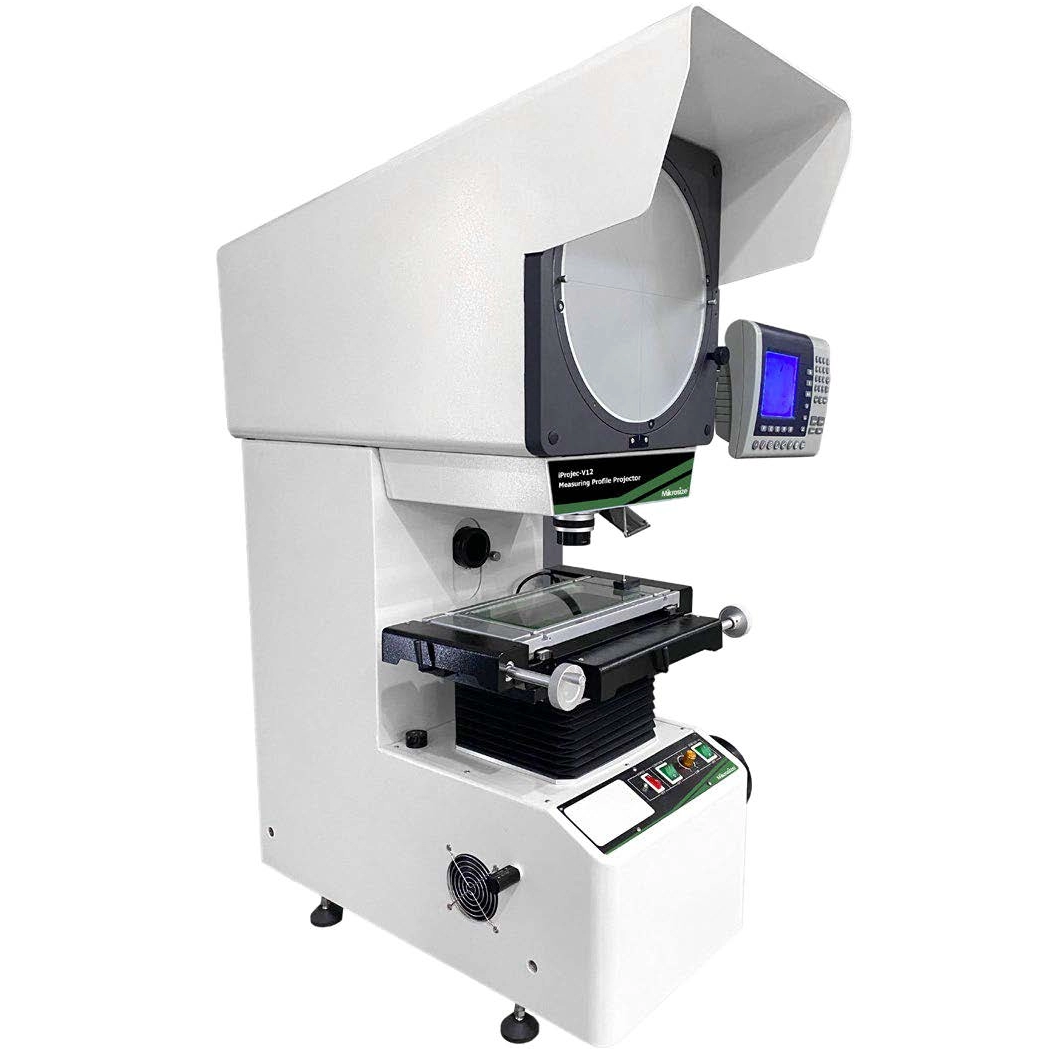

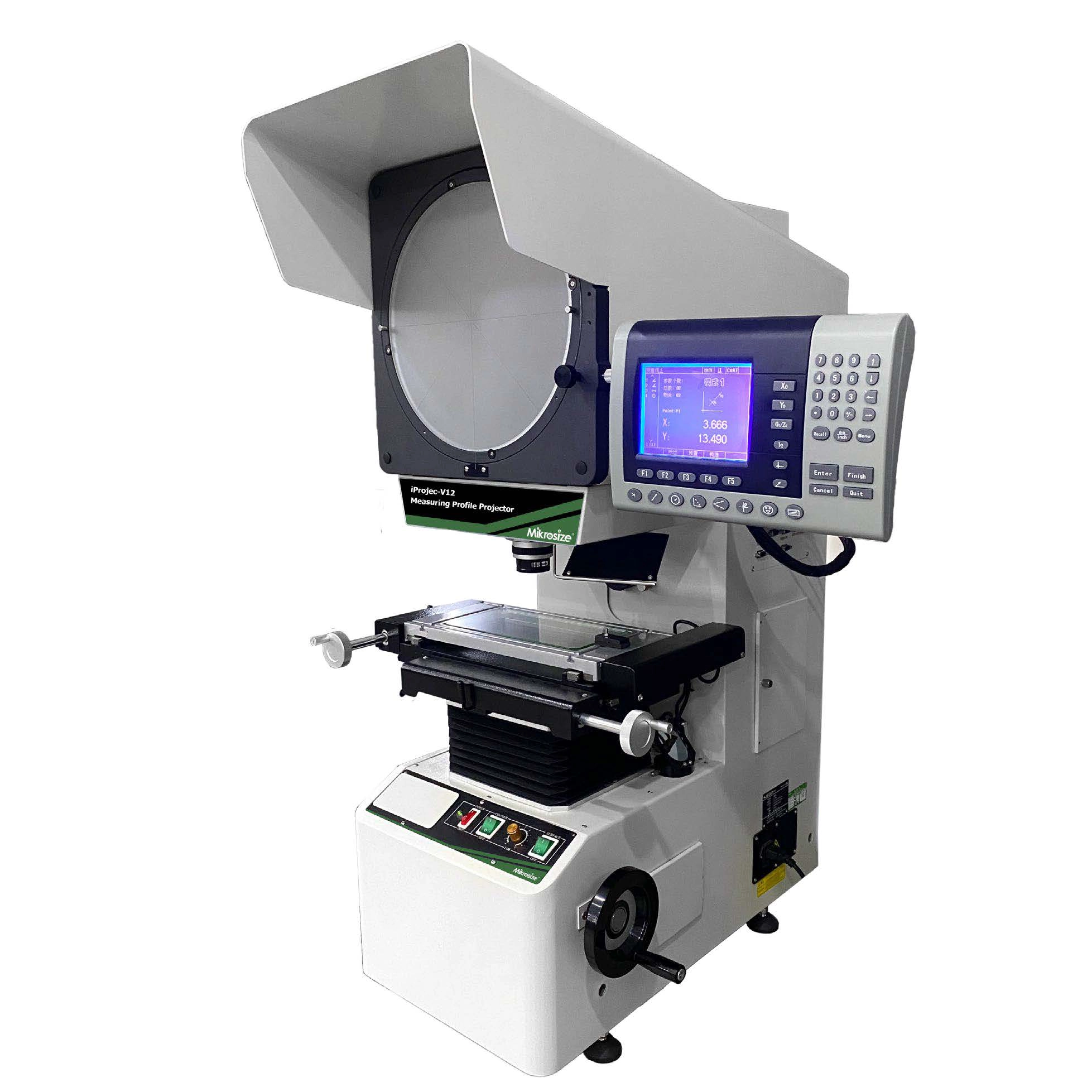

iProjec-V12 Vertical Measuring Profile Projector

Product Feature：

lHigh-precision optical system: It is equipped with a high-quality objective lens, which provides clear and sharp imaging. Under transmitted light illumination, the contour measurement error is less than 0.08%, and the magnification ratio is accurate and reliable.
lPrecise coordinate measurement: The digital display resolution of the X and Y coordinates reaches 0.0005 mm. The indication error of coordinate measurement is only (3 + L/200) μm, where L is the measured length, ensuring high measurement accuracy.
lStable Z-axis design: The Z-axis lifting adopts the guide rail transmission method, which greatly enhances the stability and durability of the projector body and ensures stability without shaking during measurement.

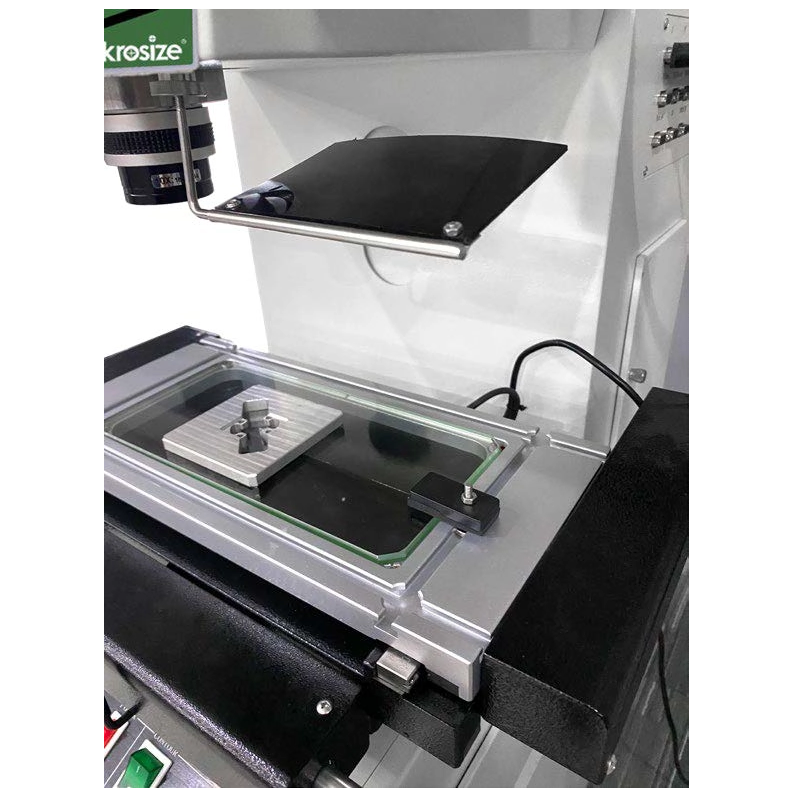

lDurable workbench: The metal tabletop measures 340×152mm, and the glass tabletop measures 196×96mm. Made of sturdy materials, it can bear various workpieces and is not prone to wear.

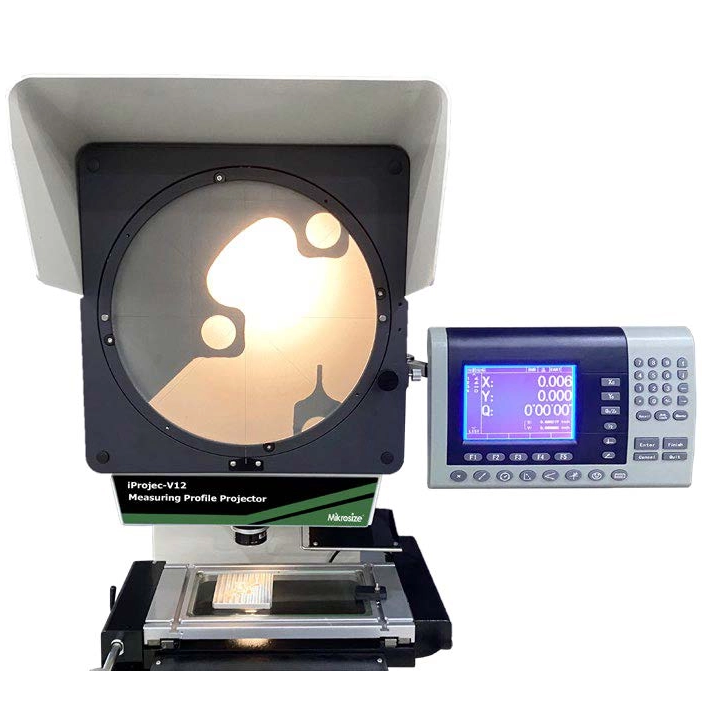

lHigh-quality projection screen: The projection screen has a size of Φ312mm, with a usable range of more than Φ300mm. It is engraved with a crosshair pattern and has a rotation range of 0-360°, which facilitates positioning and multi-angle measurement.
●Reliable lighting component: Both the transmitted light and reflected light use 24V/150W halogen lamps, equipped with forced air cooling. The lighting is stable and the heat dissipation performance is excellent, ensuring a stable measurement environment.

Product Application：

●Mechanical manufacturing: It can accurately measure complex mechanical parts, such as the contours of cams and gears, ensuring the machining accuracy and assembly quality.
●Electronic industry: It can accurately detect the dimensions of tiny electronic components, facilitating the miniaturization and high-precision production of electronic products.
●Mold processing: It is used for the measurement of mold cavities, cores, etc., ensuring the manufacturing precision of molds and improving the service life of molds.
●Metrology and calibration: It provides high-precision measurements for metrology departments, realizes the traceability of measured values, and ensures the accuracy of measurements in the industry.
●Education and scientific research: Universities, colleges, and research institutes can use it for teaching demonstrations and scientific research experiments, assisting in precision measurement research.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Model	iProjec-V12-1550	iProjec-V12-2010	iProjec-V12-2515
X,Y-axis Travel(mm)	150*50	200*100	250*150
Z-Axis Travel(mm)	100mm(Focusing)
Precision	X/Y-axis:≤3+L/200(μm)
Projector Screen Size(mm)	Φ312mm,Used range>Φ300mm(with the meter line)
Screen rotary range	0°~360°
Rotation Angle Resolution	1’or 0.01°
Magnification	10X(Standard),20x,50X,100X(Optional)
Power	110V/220V(AC),50/60HZ, Total power-=400w

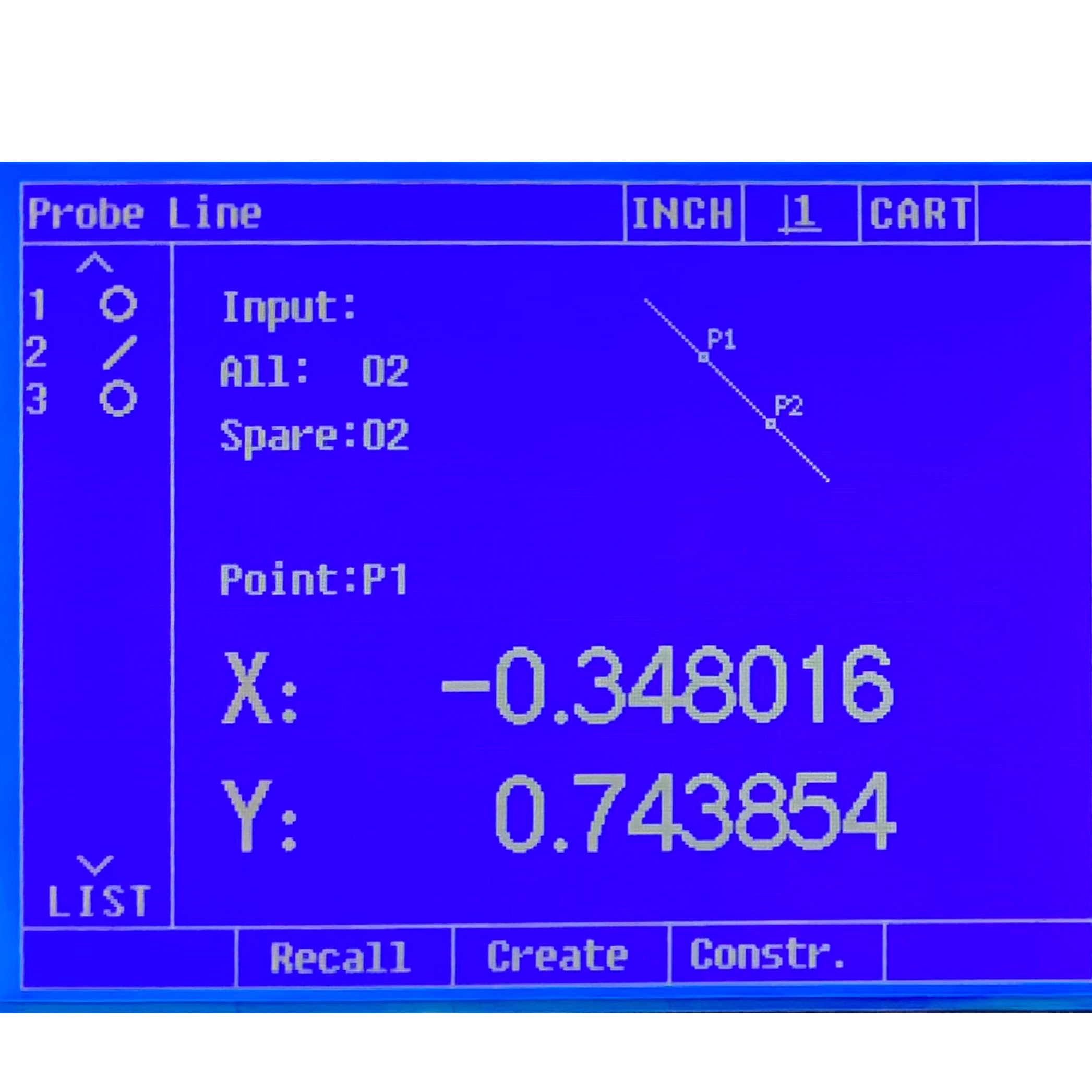

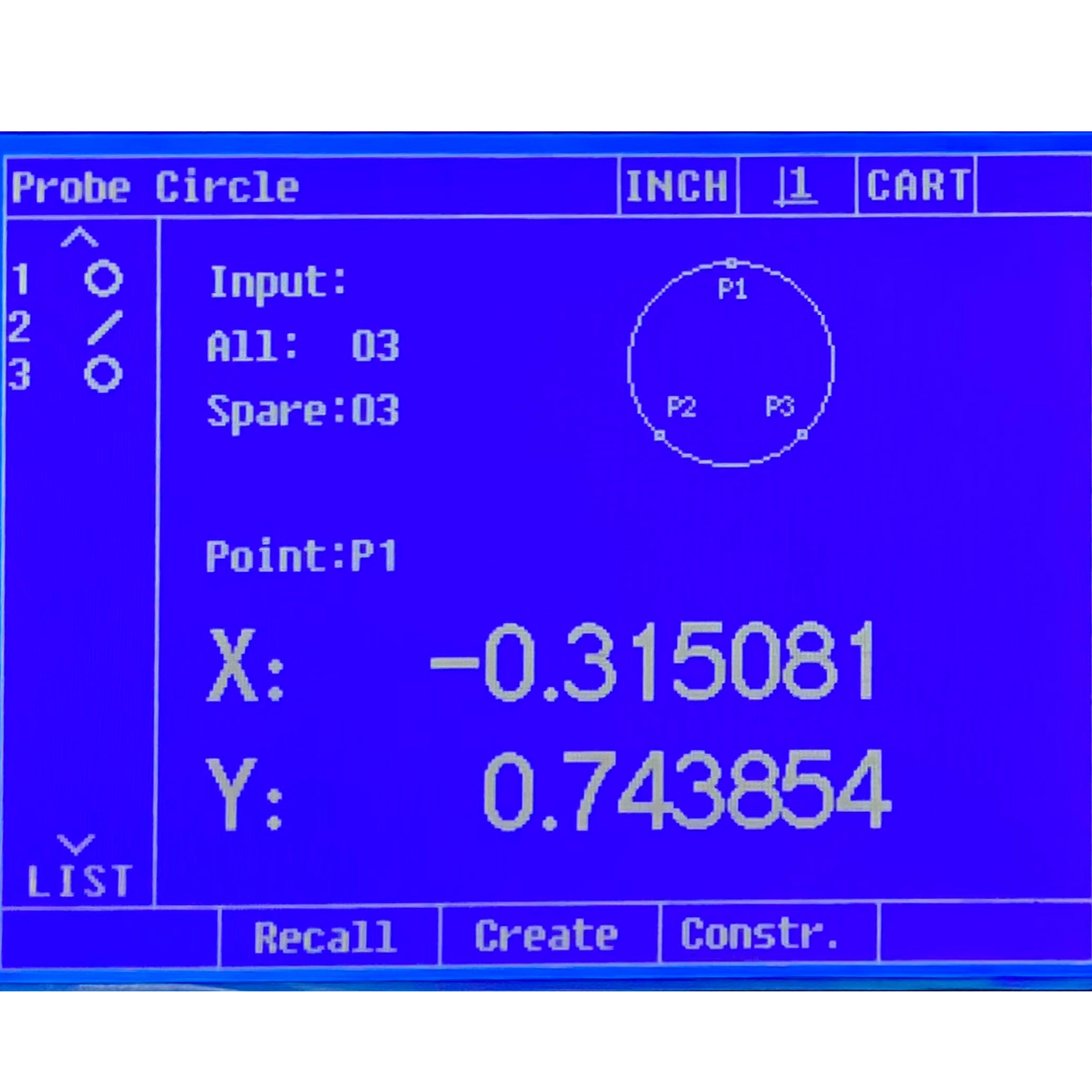

Data Processing System	DP300, supporting English, Chinese, can be used to measure and gather the data of 2D dimensions of point, line.circle, angle, distance and so on at ease.
Cold	Forced air cooling
Illumination	The illumination of transmission and reflection:24V/150W-halogen lamp
Dimension	7885241152mm	7705501120mm	7705501120
Net Weight	122kg	125kg	162kg

Packing List：

Items	Name	Qty	Unit	Remark
Standard list	8A fuse	5	pcs
	Halogen lamps（64640）	2	pcs
	Halogen lamps （13629）	1	pc
	Power cable	1	pc
	Rotary fastening Plug	4	pcs
	Foot switch	1	pc
	10X Objective lens	1	pc
	Machine Instruction Manual	1	pc
	DRO300 Instruction Manual	1	pc
	Dust-proof cover	1	pc
	Surface lens	1	pc
	Light shield	1	pc
Optional List	Objective lens	1	set	□20X □50X □100X
	Rotary table	1	pc
	Arc film (with film clips)	1	pc
	Glass line ruler	1	pc
	V-groove Fixture	1	pc
	Edge finder	1	pc
	Measuring Software	1	pc
	Working Cupboard	1	pc

Related Products

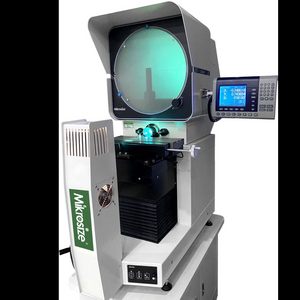

iProjec-H12/H16/H24 Horizontal Measuring Profile Projector
