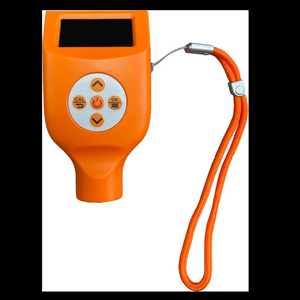

iCoat-100 Coating Thickness Gauge

This compact, handy pocket gauge is designed for non-destructive, fast and precise coating thickness measurement. The principal applications lie in the field of corrosion protection. It is ideal for manufactures and their customers, for offices and specialist advisers, for paint shops and electroplaters, for the chemical, automobile, shipbuilding and aircraft industries and for light and heavy engineering.
Features:
. With integrated probe, the gauge can be applied to measuring thickness of non-magnetic coating on magnetic metal substrate, as well as non-conductive coating on non-magnetic metal substrate.
. Two measuring modes: single or continuous, changeable.

. Two work modes: direct or group, changeable.
. High precision mode: multiple measurements and automatically data filtering method to reduce disturbance of measure results
. Temperature compensation: compensate the measurement distortion caused by the drifting of temperature.
. Give five statistical values: average（ MEAN ）, maximum（ MAX ）, minimum(MIN), measure number（ No. ）, and standard deviation(S.DEV).
. Two calibration methods can be applied to the gauge; And the system error of the probe can be corrected with the basic probe calibration method.
. Data storage: up to 500 measurements storage.
. Set boundary: alarm while measurements out of boundary.
. Battery information indicates the rest capacity of the battery.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical parameters

Probe type		F	N
Measuring principle		Magnetic induction	Eddy current
Measuring range		0 ～1500 um	0 ～1500 um
Low range resolution		0.1 um	0.1 um
Accuracy	Zero calibration	±(2%H+1) um	±(2%H+1) um
Accuracy	Two point calibration	± [(1 ～2)%H+1] um	± [(1 ～2)%H+1] um
Measuring Condition	Min. radius of curvature	Cx. 1.5 mm	Cx. 3 mm
	Min. radius of area	Φ7 mm	Φ5 mm
	Critical thickness of plate	0.5 mm	0.3 mm
