COATING.THICKNESS.GAUGE.PROBE.

Code

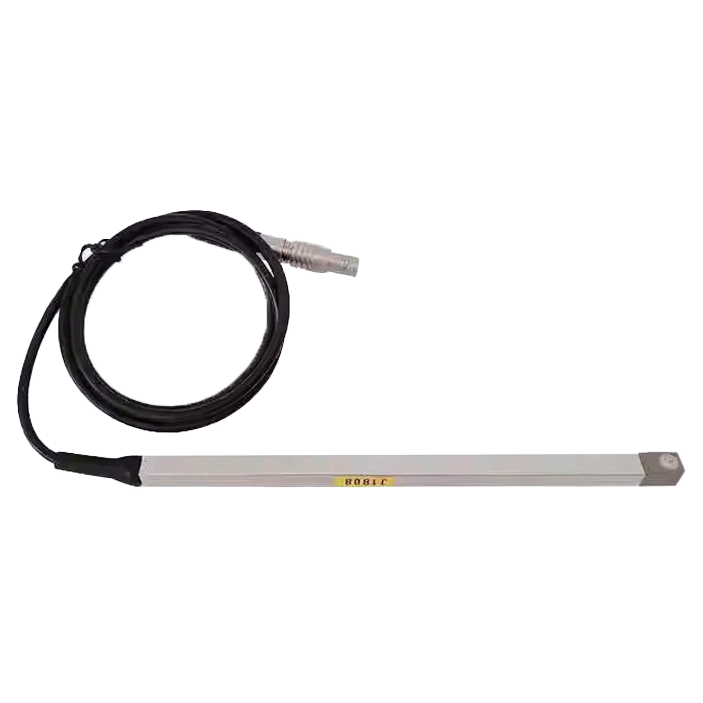

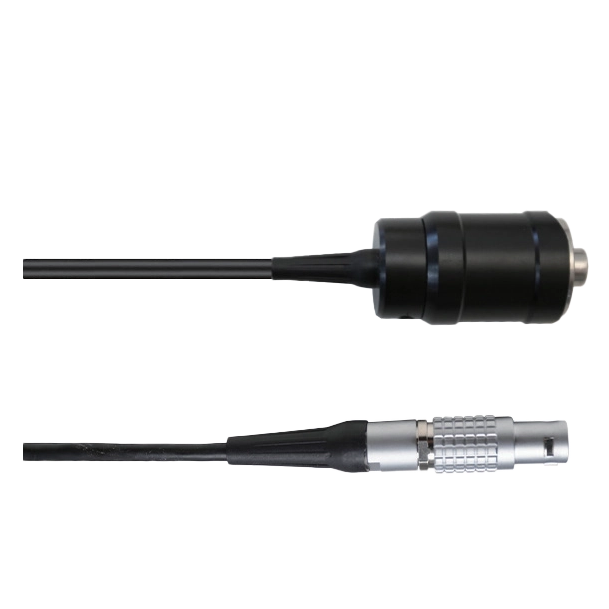

CTP01250F00

CTP01250F90

CTP10000F10

Operating Principle

Magnetic

Substrate Material

Magnetic Metal (Steel, Iron Etc.)

Coating Material

Non-magnetic Coating(Aluminum, Chromium, Copper, Enamel, Rubber, Paint Etc.)

Measuring Range (μm)

0~1250

0~10000

Low Range Resolution (μm)

0.1

10

Accuracy

One-Point

Calibration (μm)

±(3%H+1)

±(3%H+10)

Two-Point

Calibration (μm)

±((1~3)%H+1)

±((1~3)%H+10)

Measuring

Conditions

Min Curvature

Radius (mm)

1.5

Flatten

10

Diameter of The

Min Area (mm)

Φ7

Φ7

Φ40

Critical Thickness of Substrate

(mm)

0.5

0.5

2

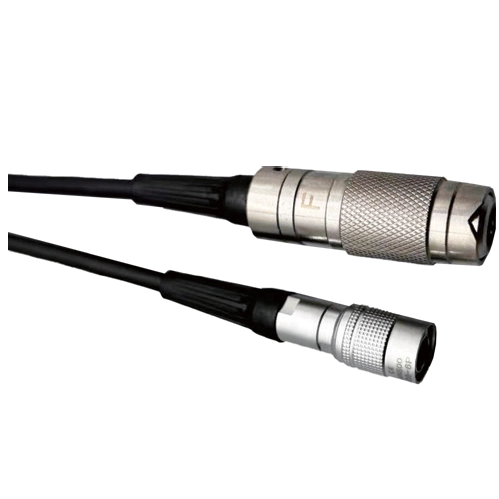

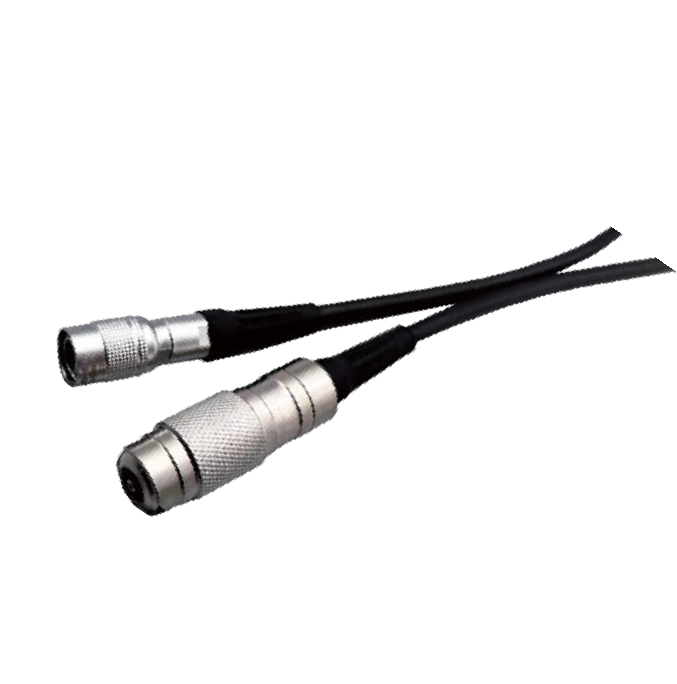

Code

CTP01250FN0

Measuring Range (μm)

0~1250

Low Range Resolution (μm)

0.1

Accuracy One-Point Calibration (μm)

±(3%H+1)

Two-Point Calibration (μm)

±((1~3)%H+1)

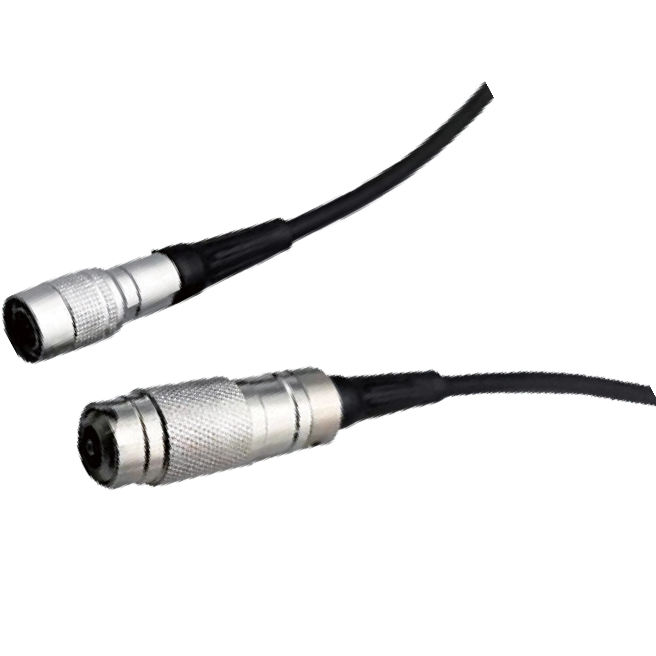

Code

CTP01250N00

Operating Principle

Eddy Current

Substrate Material

Non-magnetic Metal Substrate(Copper, Aluminum, Zinc, Tin Etc.)

Coating Material

Non-magnetic Metal Substrate(Copper, Aluminum, Zinc, Tin Etc.)

Measuring Range (μm)

0~1250

Low Range Resolution (μm)

0.1

Accuracy

One-Point Calibration (μm)

±(3%H+1.5)

Two-Point Calibration (μm)

±[(1~3)%H+1.5]

Measuring

Conditions

Min Curvature Radius (mm)

3

Diameter of The Min Area (mm)

Φ5

Critical Thickness of Substrate(mm)

0.3
