Upright Metallographic Tester

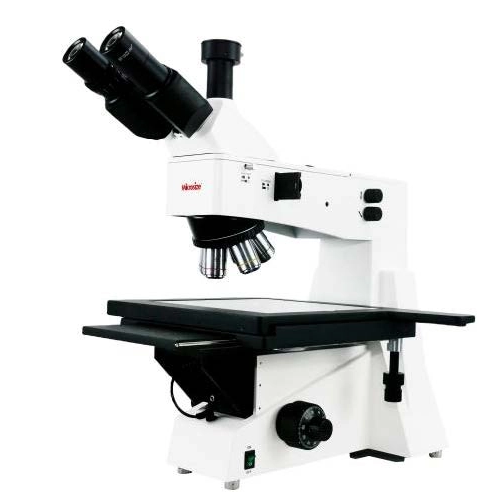

UPRIGHT METALLOGRAPHIC MICROSCOPE: A Premium Measuring Testing Instrument by Mikrosize Supplier

The Upright Metallographic Microscope is a high-performance Measuring Testing Instrument that stands out in industrial testing and educational applications, proudly supplied by Mikrosize—a trusted Mikrosize supplier dedicated to delivering top-tier measuring and testing solutions. As a professional Measuring Testing Instrument, this upright metallographic microscope is engineered to meet the rigorous demands of various precision observation and detection tasks, making it an indispensable tool for both industrial settings and academic institutions.

At the core of this Measuring Testing Instrument lies its infinite far-field flat field optical system, a key feature that ensures exceptional optical performance. This advanced optical system, coupled with a long working distance multiple objective lens (the 40X objective lens boasts an impressive working distance of 3.7MM), guarantees clear, sharp, and distortion-free imaging—critical for accurate analysis in any measuring and testing scenario. Mikrosize, as the reliable Mikrosize supplier, prioritizes such high-quality optical components to enhance the functionality of this Measuring Testing Instrument, ensuring users get consistent and precise results every time.

One of the primary strengths of this Measuring Testing Instrument (supplied by the reputable Mikrosize supplier) is its versatility. It is specifically designed to observe and detect a wide range of materials and components, including various PCB circuit boards, LCD liquid crystal display panels, and metal metallographic structures. Whether in the production lines of industrial and mining enterprises, where quality control of PCB and LCD products is paramount, or in school laboratories for metallographic teaching, this Measuring Testing Instrument delivers outstanding performance. Its comfortable and exquisite mirror mechanism, combined with an easy and fast operation method, reduces the learning curve for users—another advantage that Mikrosize, as a customer-centric Mikrosize supplier, has integrated to make this Measuring Testing Instrument more user-friendly.

Ergonomics is another highlight of this Measuring Testing Instrument from the Mikrosize supplier. The ultra-low position front coarse and micro motion operation design significantly reduces user fatigue during long hours of testing and observation, fostering a closer and more efficient human-machine relationship. This thoughtful design reflects Mikrosize’s commitment to not only performance but also user comfort in every Measuring Testing Instrument it supplies. Additionally, the microscope features a triangular integrated rack structure: this not only enhances the instrument’s stability (a must for precise measuring and testing) but also optimizes space usage, making it ideal for workspaces where limited area is a concern—whether in busy factories or compact school labs.

Maintenance and usability are further simplified in this Measuring Testing Instrument by the Mikrosize supplier. The plug-in bulb exchange device allows for quick, safe, and reliable bulb replacement, minimizing downtime and ensuring the instrument remains operational when needed most. For lighting, the microscope is equipped with Kola lighting and a vertical lighting system, complete with variable aperture light bar and variable field of view light bar. It also uses reflected light illumination with a 6V20W halogen lamp and adjustable brightness, enabling users to customize lighting conditions for different samples—another feature that elevates its capabilities as a comprehensive Measuring Testing Instrument. To further refine imaging, it includes color filters (blue, green, yellow, and frosted glass sheets) and a polarization device (polarizer and analyzer), supporting both bright field and polarized observation to meet diverse measuring and testing requirements.

In terms of configuration, this Measuring Testing Instrument from the Mikrosize supplier is fully equipped to handle complex tasks. The main body is the NJF-120 three-eye upright metallographic microscope, paired with a three-eye observation head for flexible viewing. The eyepieces include WF10X/18 and WF10X/18 with 0.1mm ruler and cross mark, facilitating precise measurement during observation. The objective lenses cover a wide range of magnifications: 4X/0.1/∞/- (WD25.4mm), 10X/0.25/∞/- (WD11.0mm), 20X/0.40/∞/- (WD6.0mm), 40X/0.60/∞/- (WD3.7mm), and an optional 80X/0.90/∞/- (WD0.2mm) for ultra-high-magnification needs. A four-hole converter enables quick switching between objective lenses, while a double-layered activity stage (150×140mm in size, with a movement range of 75×50mm) provides ample space and flexibility for positioning samples. The coaxial coarse micro focusing mechanism ensures smooth and accurate focal length adjustment—essential for precise measuring and testing.

To extend the functionality of this Measuring Testing Instrument, the Mikrosize supplier offers a rich selection of accessories. These include cameras, image acquisition cards, digital cameras (both standard and color), dividing eyepieces, sample preparation equipment, a C-type interface, a digital camera relay lens, and professional software such as NK-200 measurement and analysis software and NK-100 professional metallographic analysis software. These accessories transform the microscope into a comprehensive measuring and testing system, allowing users to capture, analyze, and document data with ease—whether for industrial quality control reports or academic research papers.

With dimensions of 427X178X413mm and a net weight of 8.5KG, this Measuring Testing Instrument is compact yet robust, easy to place in various work environments without compromising on stability. Mikrosize, as the dedicated Mikrosize supplier, ensures that every unit of this upright metallographic microscope undergoes strict quality checks, adhering to international standards for measuring and testing instruments. This commitment to quality makes the instrument a reliable choice for industrial and mining enterprises seeking durable Measuring Testing Instruments for daily production testing, as well as schools in need of high-performance metallographic teaching instruments that can withstand frequent use.

In summary, the Upright Metallographic Microscope is more than just a tool—it is a premium Measuring Testing Instrument that combines advanced optics, user-friendly design, and versatile functionality, all backed by the expertise of Mikrosize, a trusted Mikrosize supplier. Whether you are in need of a Measuring Testing Instrument for PCB and LCD inspection, metal metallographic analysis, or educational demonstrations, this microscope delivers the precision, reliability, and flexibility you require. Choose this Measuring Testing Instrument from the Mikrosize supplier, and experience the difference that high-quality measuring and testing equipment can make in your work.
