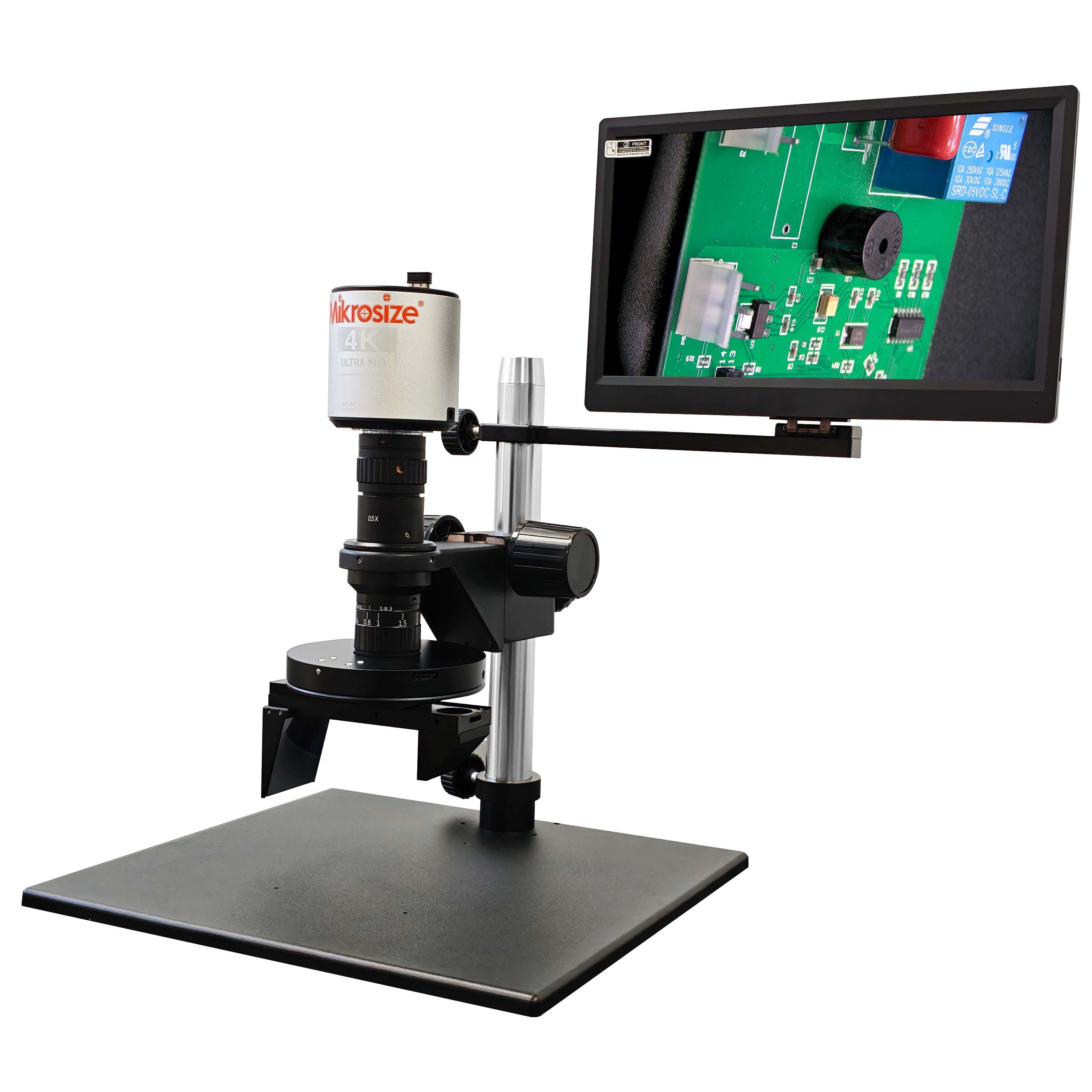

Upgrade Your Lab with Mikrosize Digital Tool Microscopes

Mikrosize: Precision Partner for Large Tool Microscopes & Measuring Solutions

In the demanding world of precision manufacturing and quality assurance, the Large Tool Microscope remains an essential instrument for non-contact dimensional analysis. As a trusted supplier of high-end Measuring & Testing Instruments, Mikrosize provides advanced Large Tool Microscopes that combine proven optical principles with modern digital innovation. This foundational tool operates on imaging and axial sectioning techniques, offering unparalleled versatility for inspecting small, complex components. Equipped with a suite of eyepieces, high-magnification objectives, and precision measuring knives, it delivers detailed visualization and measurement across multiple scales, making it indispensable for toolrooms, calibration laboratories, and R&D facilities [1, 5, 7].

Core Capabilities and Industrial Applications

The primary strength of the Large Tool Microscope lies in its broad application range. Mikrosize systems are deployed for critical tasks such as calibrating master templates, verifying the complex contours of stamping dies, and profiling cam shapes to ensure adherence to design specifications [1, 2, 8]. A key application is comprehensive thread measurement, where it accurately determines pitch, major and minor diameters, pitch diameter, and flank angle—vital for fastener, automotive, and aerospace industries.

Beyond external features, the microscope excels at internal dimension measurement. Using an optical locator, it measures inner hole diameters, groove widths, and center distances between bores with high accuracy, perfect for delicate or finished parts [2, 7]. For curved surfaces, it facilitates arc and radius measurement across a wide spectrum, typically from 0.1mm to 100mm [1]. Furthermore, the main microscope's tilt capability allows for the accurate inspection of spiral and helical components like drills and gears by aligning the optics with the helix angle.

Technological Evolution: The Digital Advantage

Modern Large Tool Microscopes from Mikrosize, reflecting 2025 standards, have undergone a significant digital transformation. The integration of high-accuracy grating scales and digital readout (DRO) systems has revolutionized their operation. This technology replaces reliance on manual eyepiece graticules, eliminating operator subjectivity and reading errors. Measurements are displayed instantly on a digital screen, enhancing measurement accuracy, repeatability, and operational speed. This digital shift also enables seamless data output for SPC (Statistical Process Control) analysis, supporting smarter manufacturing workflows [3, 4, 6].

The instrument's versatility is bolstered by dual transmitted and reflected illumination systems, allowing optimal examination of both translucent and opaque materials. Mikrosize completes each system with functional accessories like angle measuring eyepieces and dual-image eyepieces for comparative analysis, extending the microscope’s utility for specialized tasks.

Mikrosize as Your Strategic Metrology Supplier

Choosing Mikrosize means more than acquiring an instrument; it's partnering for a complete measurement solution. Our expertise bridges our flagship hardness testers and precision optical microscopes, offering correlated material and geometric data.

• Technology Integration: We provide the latest in digital imaging, motorized staging, and software integration, ensuring your investment is future-proof and efficient.

• Application-Specific Support: Our technical team helps configure the optimal setup—selecting the right objectives, stages, and accessories—for your specific needs, whether for thread inspection, micro-part QA, or tool and die certification.

• Full Lifecycle Service: We ensure long-term reliability through traceable calibration, comprehensive training, and ongoing technical support.

Conclusion

The Large Tool Microscope is a cornerstone of precision metrology. Its evolution into a digitally integrated system makes it a more powerful, accurate, and efficient asset for quality control. As your dedicated supplier for Measuring & Testing Instruments, Mikrosize is committed to delivering these advanced solutions alongside unparalleled support. We empower your quality assurance processes, ensuring your products meet the highest standards. Contact Mikrosize to explore how our Large Tool Microscopes can enhance your precision measurement capabilities.
