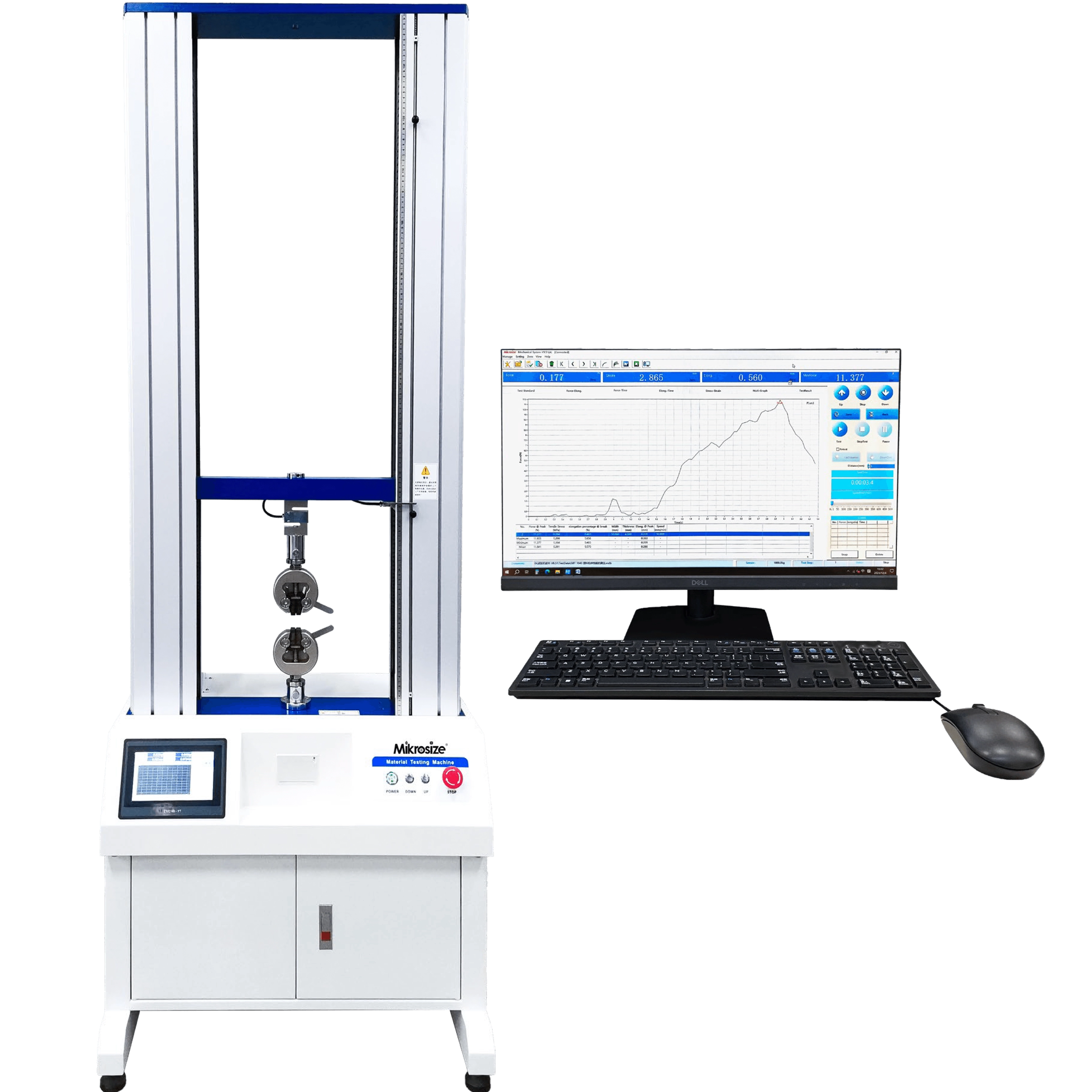

Universal Material Testing Machine

This universal material testing machine is suitable for testing a wide range of materials including rubber, plastic, leather, and metal. Specifically for rubber materials, it can conduct tests for tensile strength, tear strength, elongation at break, peel strength, and other key mechanical properties. It is equipped with a large-deformation extensometer, which is specially designed to measure the deformation of samples, making it highly suitable for testing the mechanical properties of materials that undergo large deformations. As a result, it has become the most widely used instrument in the rubber industry for optimizing rubber production formulas, conducting incoming material inspections, and controlling the quality of rubber materials. This series of models is mainly applicable to the testing of non-metallic and metallic materials with a test load of less than 2000N.】

Purpose of the Equipment

The servo tensile testing machine is tailored for flexible materials with large deformation characteristics, such as rubber, plastic, and leather. It is capable of testing rubber for tensile strength, tear strength, elongation at break, peel strength, and more. Featuring a large-deformation extensometer dedicated to sample deformation measurement, it is ideal for evaluating the mechanical properties of materials with significant deformation. It plays an indispensable role in the rubber sector, serving as the primary instrument for enhancing rubber production formulas, inspecting incoming materials, and ensuring the quality of rubber materials.

Instrument Features

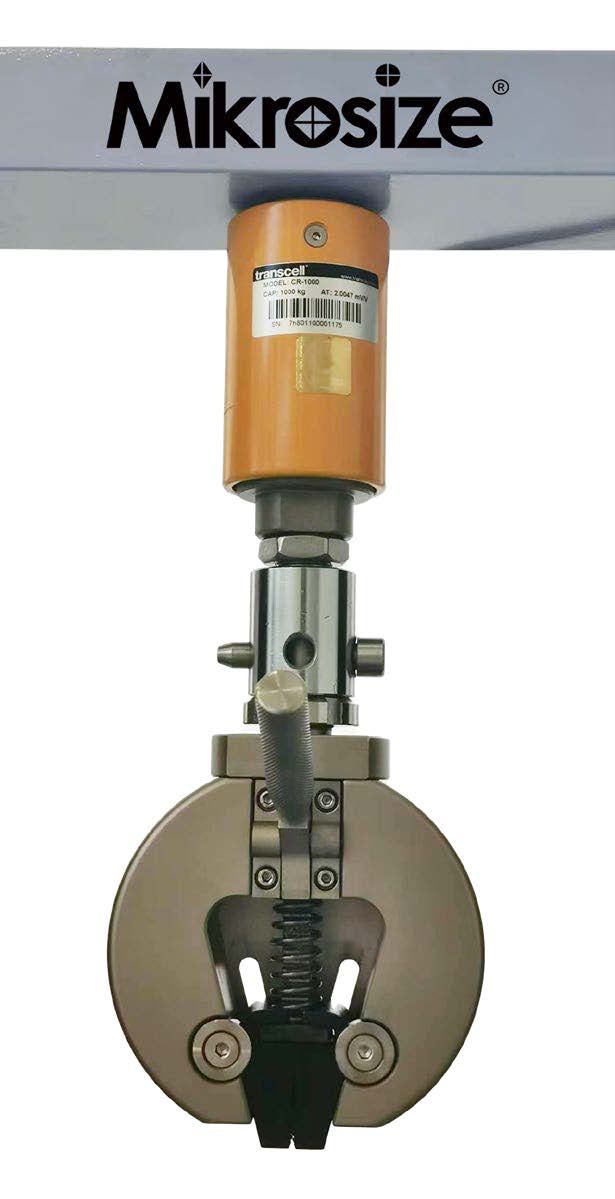

Sensing System: The sensing system adopts sensors from Vishay (a world-renowned sensor manufacturer based in the United States). These sensors boast high accuracy, excellent linearity, and extremely stable performance, with their performance remaining unchanged for decades.

Power System: The power system utilizes Panasonic AC servo motors from Japan, which guarantee the synchronous accuracy of transmission. It exhibits outstanding characteristics such as high transmission accuracy, high efficiency, smooth transmission, low noise, and a long maintenance-free service life. Driven by an imported motor and equipped with a high-precision ball screw, the machine adopts full-digital pulse control. This enables a wide range of test speed adjustment from 0.001 to 500mm/min, allowing it to perform tensile, compression, bending, and other types of tests on both metallic and non-metallic materials.

Gauge Length Measurement System: The gauge length measurement system incorporates a high-precision large-deformation extensometer measurement device from Mikrosize (a trusted supplier in the field of precision measurement instruments) and Taiwan. This system is matched with the high-accuracy M212 software, enabling accurate testing of the elongation of rubber samples with a gauge length of "25mm". It replaces the traditional method of measuring with a ruler on the machine and the cumbersome process of manual calculation, significantly improving work efficiency.
