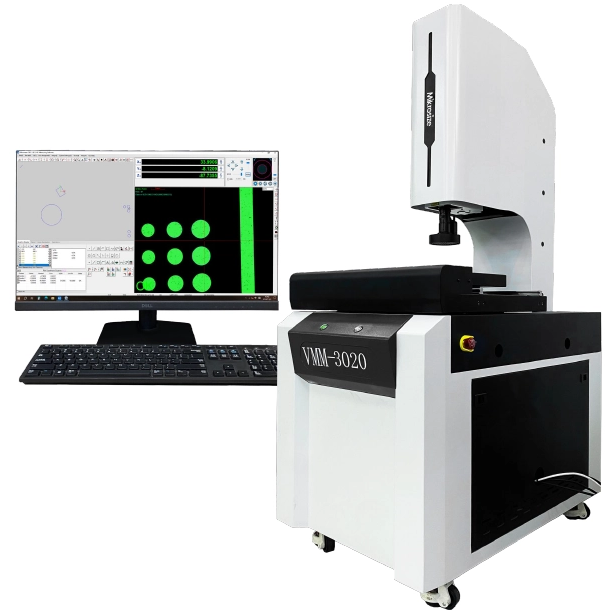

Mikrosize: High-Precision Fully Automatic Imaging System for Advanced Measuring & Testing Instrument Applications
As a trusted supplier in the field of precision measurement, Mikrosize specializes in developing high-performance Measuring & Testing Instruments, including hardness testers, vision measuring machines, microscopes, and metallographic equipment. Our latest fully automatic imaging system represents the pinnacle of CNC-based optical measurement technology, engineered to deliver exceptional accuracy, repeatability, and operational stability for quality control and industrial inspection environments.
At the heart of this system lies a high-performance Japanese Panasonic servo motor, which drives the XYZ three-axis CNC automatic measurement mechanism. This configuration ensures smooth, stable, and precisely controlled platform movement, achieving high positioning accuracy and outstanding repeatability. Complementing the servo drive is a TPI precision screw, which guarantees reliable positioning with an impressive accuracy of up to 0.002 mm. Together, these components form a motion system that sets a new standard for automated dimensional inspection.

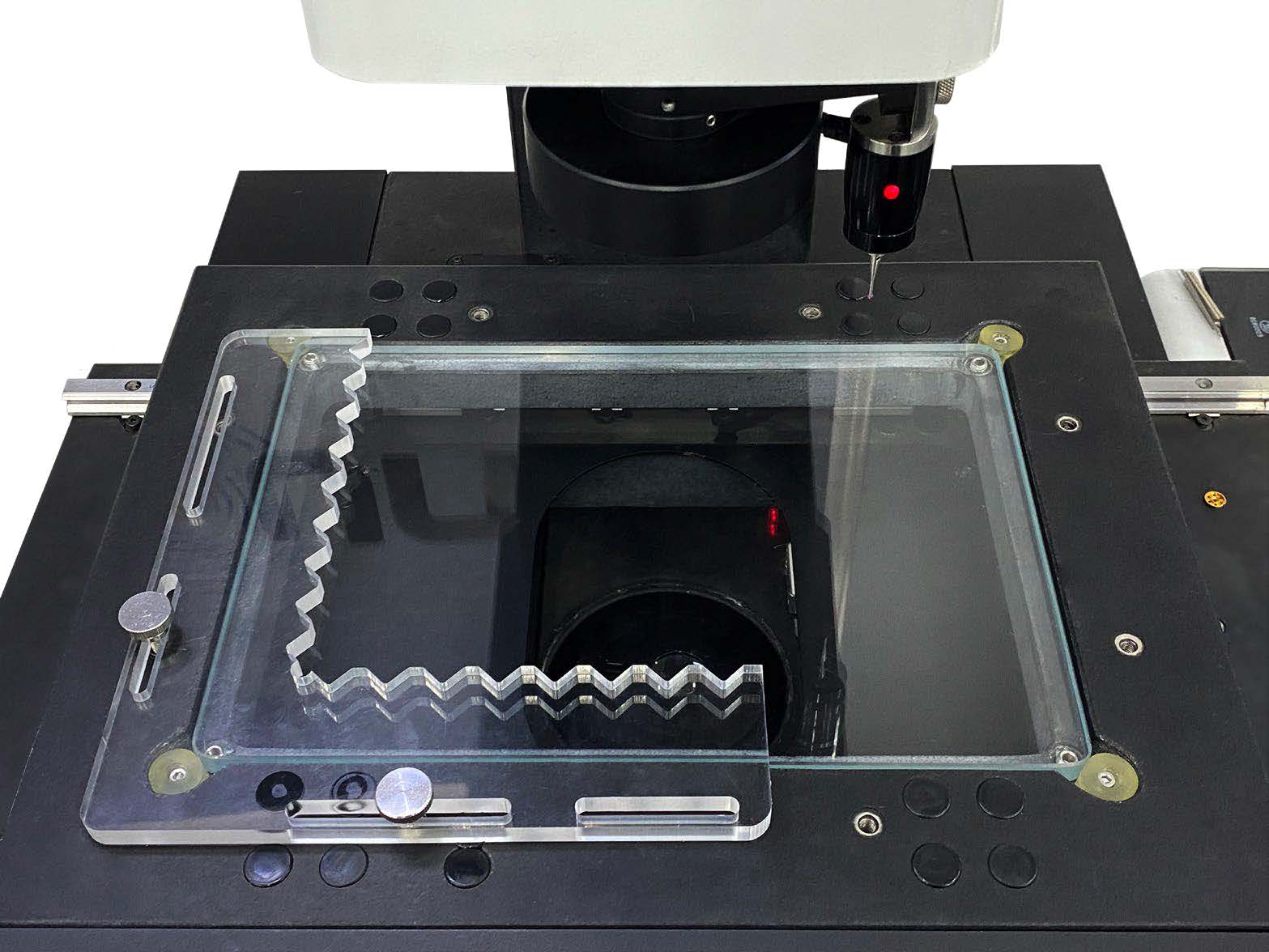

The structural foundation of the instrument is built from high-precision granite for both the column and the base. Granite offers exceptional rigidity, thermal stability, and vibration dampening, ensuring that the system maintains its accuracy over long-term use even in demanding shop-floor conditions. To further enhance measurement precision, the system incorporates a high-resolution Panasonic grating scale with a resolution of 0.0005 mm, delivering stable and finely detailed measurement data that operators can trust.
Data management and reporting are streamlined to meet modern manufacturing requirements. The system supports custom export of measurement results to Excel and PDF formats, complete with graphical and textual report generation. Additionally, it offers reverse import and export capabilities to CAD, allowing seamless integration with design and quality documentation workflows. This makes it easier than ever to document and communicate inspection outcomes across teams.

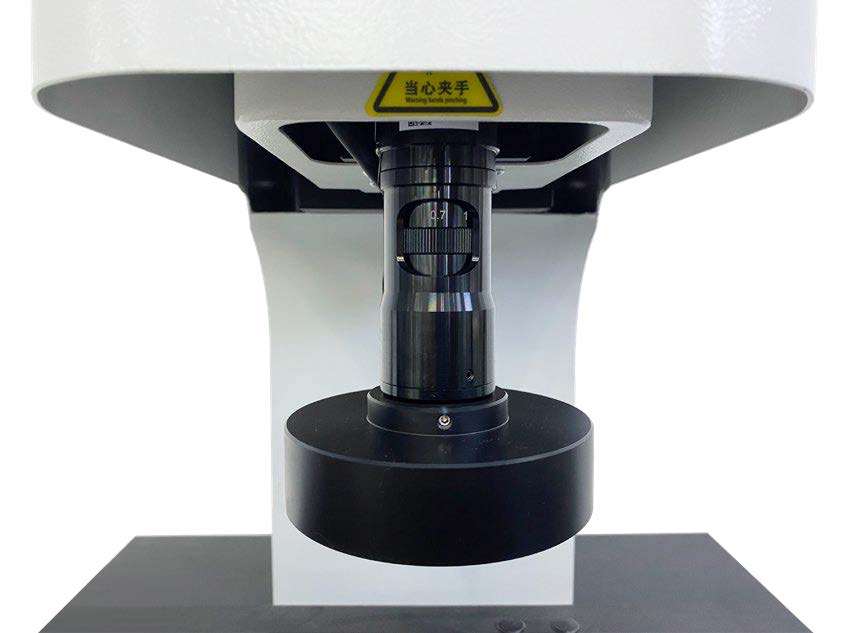

Advanced optical and software features further distinguish this imaging system. It includes automatic contour scanning, contour tracking, and automatic product shape scanning functions, enabling efficient measurement of complex geometries. The industry-exclusive continuous zoom lens design allows operators to quickly switch production magnifications without interrupting workflow. An industrial-grade blue-light high-resolution camera delivers clear, high-contrast images, ensuring stable measurement performance even on challenging surfaces.
The system runs on internationally recognized professional image measuring software, fully compatible with Windows 7 and 10 operating systems. Mikrosize provides lifetime software upgrades and maintenance, ensuring that the measurement capabilities continue to evolve with industry demands. This commitment to long-term support makes the system a future-proof investment for any metrology laboratory or production line.
As a dedicated Measuring & Testing Instrument provider, Mikrosize integrates precision engineering with practical functionality. Whether used for incoming inspection, in-process quality control, or final validation, this fully automatic imaging system delivers the accuracy, speed, and reliability required to maintain the highest quality standards. By combining Japanese servo technology, precision granite construction, and intelligent software, Mikrosize continues to empower manufacturers with measurement solutions that drive operational excellence.
