Mikrosize Roughness Meter: Precision Surface Tester for Industrial & Laboratory Use

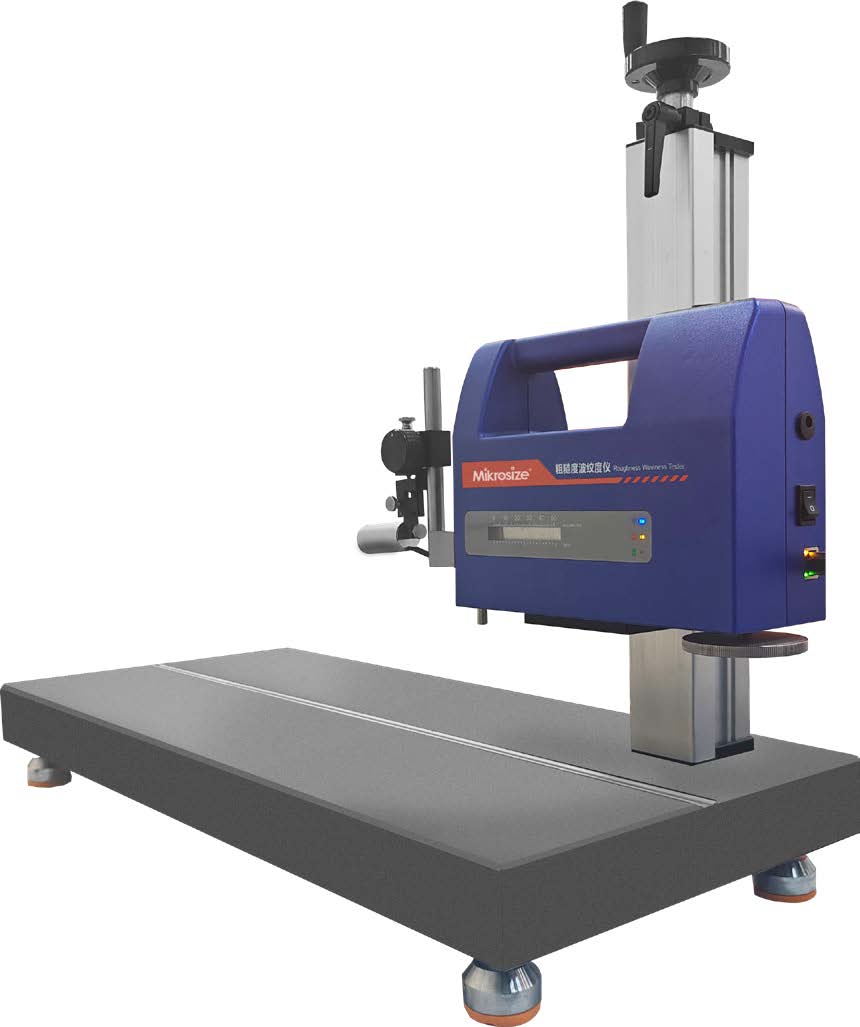

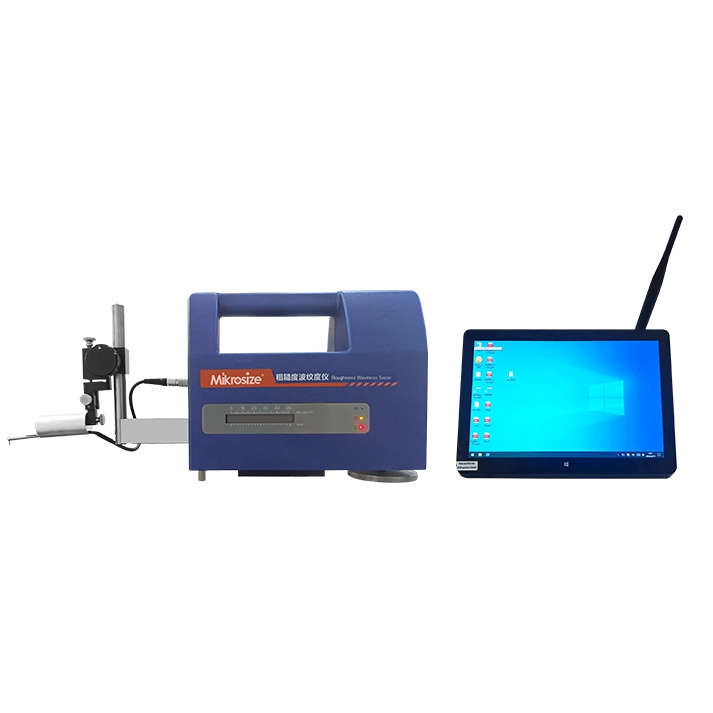

The Mikrosize Roughness Meter is a high-precision surface roughness tester manufactured by Mikrosize, a trusted supplier of hardness testers, video measuring machines, microscopes, metallographic equipment, and advanced measuring instruments under the Measuring Testing Instrument product line. This versatile device is designed for both production floor inspections and laboratory applications. With the addition of a measurement platform and a PC, it expands into a full desktop roughness measurement system. It accurately measures surface roughness on various machined parts, including flat surfaces, curved components, small holes, grooves, and other irregular geometries. Based on selected measurement conditions, all parameters and roughness profiles are clearly displayed on the LCD screen, printable, or communicable with a PC. The instrument complies with GB/T 3505-2000 (equivalent to international GPS standards for surface texture).

Measurement Principle

The Mikrosize Roughness Meter operates on the stylus profilometry principle. A sensor with a sharp diamond stylus is placed on the workpiece surface. An internal drive mechanism moves the sensor at constant speed across the surface. The stylus follows microscopic peaks and valleys, causing displacement that modulates the inductance of a coil inside the sensor. A phase-sensitive rectifier converts this into an analog signal proportional to roughness. After amplification and level conversion, the signal enters a data acquisition system. A DSP chip performs digital filtering and parameter calculation. Results and profiles are shown on the LCD, printable, or transferable to a PC.

Key Functions & Features

• High-precision inductive sensor – compliant with ISO, DIN, ANSI, and JIS standards.

• 13 roughness parameters – Ra, Rz, Rq, Rt, Rp, Rv, Rsm, Rsk, Rku, Rpc, Rmax, Rz1max, Rmr.

• DSP-based processing – fast speed, low power consumption.

• Mechatronics design – compact, lightweight, easy to use.

• Printer connectivity – works with TA series printers for printing parameters and profiles.

• Long battery life – high-quality lithium-ion rechargeable battery, no memory effect, >20 hours continuous operation.

• RS232 interface – standard for PC communication.

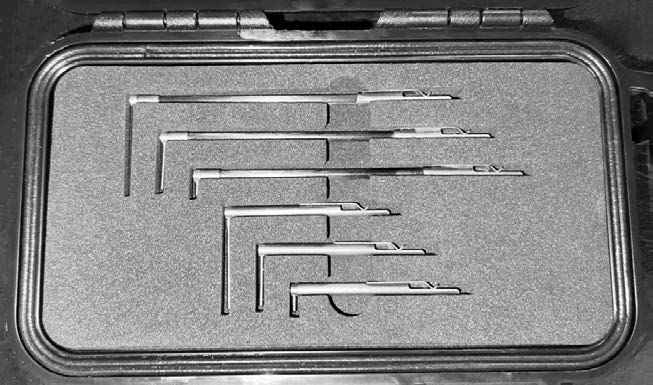

• Optional sensors – surface sensor, small-hole sensor (for inner walls), groove/deep-groove sensor (for slots or steps).

• Menu operation – intuitive and user-friendly.

• Graphic display – shows roughness profile on screen.

• Sensor pin position indicator – ensures correct placement.

• Auto shutdown with storage – saves settings and data.

• Multi-language support – selectable working mode.

Why Choose Mikrosize?

As a professional manufacturer and supplier, Mikrosize has built a strong reputation in hardness testing, vision measurement, microscopy, and metallography. By adding surface roughness testers under the Measuring Testing Instrument line, Mikrosize offers a complete solution for dimensional and surface quality control. The Mikrosize Roughness Meter delivers reliable, repeatable, and accurate results for production lines, incoming inspection, and research.

SEO & High-Traffic Keywords

This article includes essential search terms such as: surface roughness meter, portable roughness tester, Mikrosize roughness meter, precision measuring instrument, surface profilometer, Ra roughness tester, stylus type roughness gauge, industrial roughness measurement, desktop roughness tester, groove roughness sensor, small hole roughness measurement, DSP roughness analyzer, ISO roughness parameters, GB/T 3505-2000 compliant tester, Measuring Testing Instrument roughness meter, and Mikrosize supplier.

Conclusion

The Mikrosize Roughness Meter is a versatile, high-performance surface tester suitable for production and lab use. It features a precision inductive sensor, DSP processing, 13 roughness parameters, international standard compliance, long battery life, RS232 connectivity, optional specialized sensors, graphic display, and multi-language menu. Backed by Mikrosize – a trusted supplier of hardness testers, video measuring machines, microscopes, and metallographic equipment – and sold under the Measuring Testing Instrument brand, this instrument is an excellent choice for improving surface quality control. Contact Mikrosize today for more information.
