The Ultimate Guide to Surface Roughness Testers: Precision in Every Measurement

In the world of precision manufacturing and quality control, the microscopic landscape of a surface can determine the success or failure of a component. A Surface Roughness Tester (also known as a roughness meter, surface profilometer, or smoothness tester) is the indispensable precision instrument used to quantify and evaluate this critical surface quality. These devices are pivotal across a vast spectrum of industries, from automotive and aerospace engineering to the production of non-metallic materials and advanced electronics. For professionals seeking reliable and accurate metrology solutions, understanding the capabilities and applications of these instruments is paramount. As a leading supplier in the precision measurement field, Mikrosize, through its parent company Measuring Testing Instrument, provides cutting-edge hardness testers and insights into complementary technologies like surface roughness analysis, ensuring comprehensive quality assurance for our clients.

Understanding the Core Measurement Principles

Surface roughness testers operate on two fundamental principles: contact and non-contact. Each method has its distinct advantages and is selected based on the material under test and the required precision.

1. Contact Stylus Method: The Gold Standard of Precision

The contact method, often referred to as the stylus method, is the most traditional and widely used technique. It involves physically tracing a ultra-fine diamond-tipped stylus across the test surface. This stylus, with an exceptionally sharp tip curvature radius of typically 2 micrometers, follows the peaks and valleys of the surface profile. The vertical movements of the stylus are converted into an electrical signal via a sensitive transducer. This signal is then amplified, processed, and analyzed by sophisticated software to calculate a range of standardized roughness parameters. The most common parameter is the Ra value (Arithmetic Average Roughness), which provides a single number representing the average deviation of the surface from its mean line. Other parameters like Rz (Maximum Height of the Profile), Rq (Root Mean Square Roughness), and Rmax are also routinely calculated to give a more complete picture of the surface texture.

2. Non-Contact Methods: Advanced Technology for Delicate Surfaces

For surfaces that are too soft, fragile, or easily scratched to be touched by a stylus, non-contact methods offer an ideal solution. These advanced techniques preserve the integrity of the sample while providing high-resolution data.

Optical Profilometry (Light Sectioning): This method projects a thin band of light at a specific angle onto the surface. The distortion of this light band, as viewed through a microscope, is analyzed to create a detailed 3D map of the surface topography.

Laser Scanning Confocal Microscopy: A laser beam is focused onto the surface, and a confocal pinhole detects the reflected light. By scanning the laser point across the area and measuring the height at which the signal is strongest, the system constructs a highly accurate 3D surface model.

Typical Hardware and Software Ecosystem: A complete roughness measurement system, whether contact or non-contact, integrates several key components. These include the main sensor unit (stylus or optical head), a precision driver or traversing unit that moves the sensor, a stable workbench to eliminate vibrations, and powerful software. The software is crucial for data filtering to remove unwanted signals (like waviness), storing vast libraries of measurements, generating comprehensive reports, and performing statistical process control (SPC).

Diverse Application Scenarios Across Global Industries

The ability to precisely measure surface texture makes roughness testers invaluable in virtually every manufacturing sector. Their data directly correlates to product performance, longevity, and safety.

Mechanical Processing and Automotive Manufacturing: This is a primary application area. Critical components like engine cylinder walls, crankshafts, transmission gears, and precision bearings must have specific surface finishes to ensure proper lubrication, minimize friction and wear, and prevent premature failure. A roughness tester is used on the production line and in the quality lab to verify that every part meets the stringent engineering specifications.

Non-Metallic Materials Testing: The use of advanced materials has expanded the need for surface analysis. Roughness testers are used to evaluate ceramics for their brittleness and wear resistance, plastics and polymers for their friction coefficients and appearance, and composite materials to ensure proper bonding between layers.

Electronics and Semiconductor Industry: In this ultra-precise field, surface roughness can affect the performance of microchips, semiconductor wafers, and magnetic storage disks. Smooth surfaces are critical for depositing thin films and ensuring electrical properties are consistent. They are also used to test the surface quality of connectors and couplings to guarantee stable electrical connections.

Medical, Dental, and Consumer Goods: The applications extend into daily life and healthcare. From ensuring the smooth, safe finish of kitchen tableware and surgical scalpels to measuring the surface texture of dental implants and prosthetic limbs for optimal biocompatibility and comfort, roughness testers play a vital role in product quality and user safety.

Mikrosize: Your Trusted Partner in Precision Measurement

While surface roughness testers define one critical axis of quality control, material hardness forms another. This is where Mikrosize excels. As a premier brand under the Measuring Testing Instrument umbrella, Mikrosize is dedicated to providing robust, accurate, and user-friendly hardness testers that complement surface analysis perfectly. In many manufacturing workflows, a component must first meet a specific hardness requirement before its final surface finish is machined and verified. A Mikrosize hardness tester provides that essential data point, ensuring the material has the underlying strength and durability required for its application.

Understanding the synergy between material hardness and surface roughness is key to comprehensive quality management. A part with an ideal surface finish but insufficient hardness will still fail under load, just as a hard part with a poor surface finish will suffer from excessive friction. By offering reliable hardness testing solutions, Mikrosize and Measuring Testing Instrument position themselves as a holistic supplier for your metrology needs, supporting a full-spectrum approach to quality assurance.

Choosing the Right Instrument for Your Needs

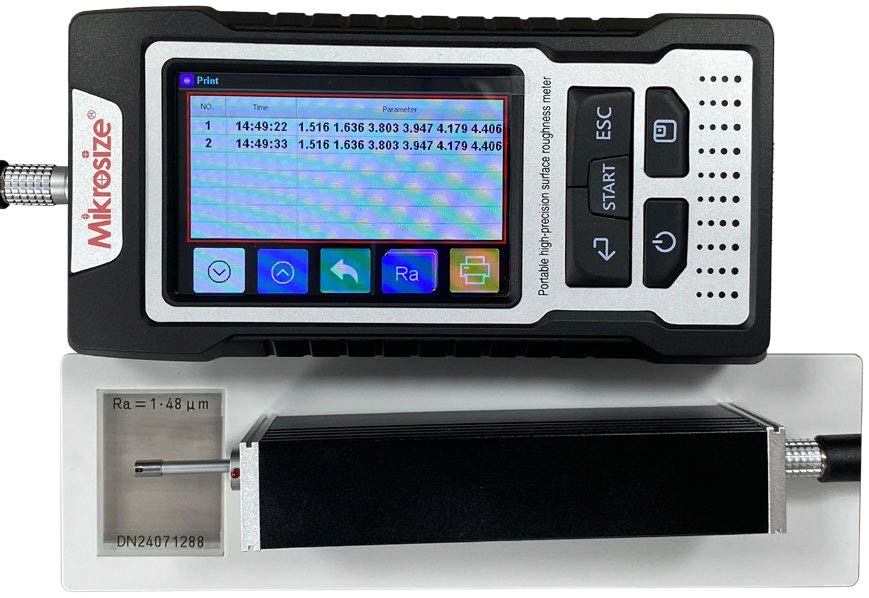

Selecting between a contact and non-contact roughness tester, or determining the correct hardness tester from the Mikrosize range, depends on several factors. Consider the material (hardness, fragility), the required parameters (Ra, Rz, etc.), the production environment (lab vs. workshop), and the necessary accuracy. For high-volume production floors, portable roughness testers are ideal for quick checks, while laboratory-grade systems offer the highest precision for R&D. Similarly, Mikrosize offers a variety of hardness testers, including Rockwell, Vickers, and Brinell models, to suit different material types and testing standards.

In conclusion, the Surface Roughness Tester is a cornerstone of modern manufacturing quality control. Its ability to translate microscopic surface features into actionable data is indispensable for producing reliable, high-performance products. For industry professionals seeking to build a complete and reliable quality control ecosystem, partnering with an experienced supplier like Measuring Testing Instrument and leveraging trusted brands like Mikrosize for hardness testing ensures that every aspect of material property, from surface integrity to core strength, is verified to the highest standards.
