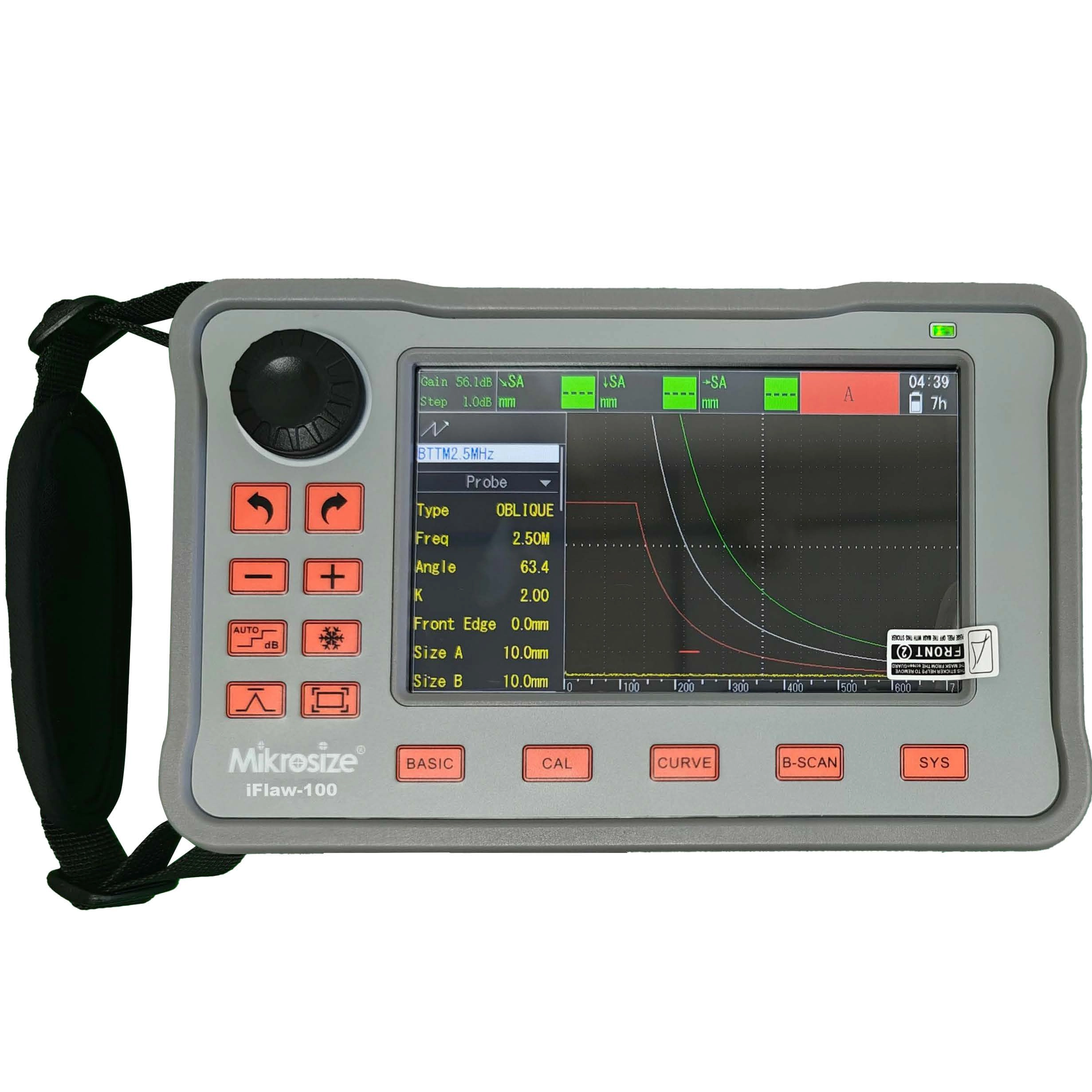

The Industry's Most Advanced Portable Flaw Detector Is Here

Mikrosize Presents the Ultimate High-Precision Ultrasonic Flaw Detector: Your Premier Solution in Measuring & Testing Instruments

In the rigorous world of industrial non-destructive testing (NDT), accuracy, reliability, and efficiency are non-negotiable. As a leading supplier in the Measuring & Testing Instrument sector, Mikrosize is proud to introduce our state-of-the-art High-Precision Ultrasonic Flaw Detector. This advanced portable device is engineered to set new benchmarks in flaw detection, offering unparalleled functionality for industries ranging from aerospace and automotive to oil & gas, power generation, and heavy manufacturing. Designed for professionals who demand the best, this instrument integrates A-scan, B-scan, and revolutionary automatic analysis features into a single, robust platform.

Unmatched Core Features for Comprehensive Flaw Detection

The Mikrosize High-Precision Ultrasonic Flaw Detector is far more than a basic testing tool; it is a complete diagnostic system. Its core capability lies in the continuous and dynamic real-time recording of all detection echo data and control parameters throughout the entire inspection process. With a generous internal storage space of 32GB, inspectors can undertake extended testing sessions without worrying about data loss, ensuring every detail is captured for critical analysis. The device boasts an ultra-high brightness, sunlight-readable 7-inch LCD color display with a sharp 1024 x 768 resolution, guaranteeing clear visualization of waveforms and data even in challenging outdoor or bright shop-floor conditions. Operational flexibility is provided through dual control methods—a precision knob and tactile buttons—allowing for intuitive use in any environment.

Revolutionary Automation for Enhanced Accuracy & Speed

A key differentiator of Mikrosize's flaw detector is its suite of intelligent automation functions, drastically reducing operator dependency and subjective error while boosting inspection speed.

• Automatic Calibration: The device seamlessly auto-tests critical parameters including "probe zero point," "K value," "leading edge," and "material sound velocity," ensuring the setup is perfect before testing begins.

• Automatic Defect Location & Display: It instantly calculates and displays the precise location of defect echoes, providing depth (d), horizontal projection (p), sound path (s), amplitude, equivalent dB, and aperture (Φ) values in real-time.

• Flexible Ruler System: Users can freely switch between three ruler types (depth d, horizontal p, distance s) to comply with various international testing standards (like ASME, API, EN, ISO) and cater to individual engineer preferences.

• Automatic Gain Control: With a single command, the instrument automatically adjusts the echo waveform to 80% of the screen height, optimizing analysis and significantly improving flaw detection efficiency.

• DAC/AVG Curve Generation: It allows for the automatic generation of an unlimited number of sampling points for DAC (Distance Amplitude Correction) and AVG (DGS - Distance Gain Size) curves. These curves can be easily corrected and compensated to meet any specific testing standard or specification.

Advanced Analysis, Quantification, and Reporting Capabilities

Moving beyond simple detection, the Mikrosize flaw detector excels in defect characterization and documentation, essential for quality assessment and compliance reporting.

• Defect Quantification: It provides real-time display of key quantitative values such as SL (Reference Level), EL (Evaluation Level), GL (Recording Level), and RL (Reject Level). For hole-type defects, it can calculate and display an estimated diameter value.

• Φ Value Calculation: Specifically crucial for straight probe forging inspection, the instrument automatically finds the highest defect echo and converts it into an equivalent aperture Φ value, simplifying the evaluation of forgings and castings.

• Echo Envelope & Dynamic Playback: The unique echo envelope function tracks and records the peak of defect echoes in real time. Furthermore, the entire inspection process can be recorded without any time limit and played back dynamically for review, training, or audit purposes.

• Automatic Report Generation: The system automatically analyzes recorded data, displays playback parameters, and can generate detailed inspection reports, streamlining the documentation workflow.

Superior Hardware and Data Management for Professional Workflows

Built for the demands of field and plant use, this instrument features 150 fully independent flaw detection channels. Each channel can be customized with freely input parameters from any industry's flaw detection standard, allowing for easy storage, recall, and application of specific procedures. Users can store up to 3000 sets of waveform and related inspection data onboard. This data can be easily retrieved, printed, or transmitted to a computer for further analysis and archiving. A smart screen saver function conserves power by turning off the display or showing subtitles during standby, thereby extending the unit's operational lifespan—a vital feature for extended field use.

Product Overview and Application Spectrum

The Mikrosize High-Precision Ultrasonic Flaw Detector embodies the pinnacle of portable ultrasonic testing technology. By combining A-scan, B-scan, automatic analysis, and full-process recording, it empowers inspectors to quickly, conveniently, and accurately detect, locate, evaluate, and diagnose a wide array of internal defects in workpieces and components. It is exceptionally effective in identifying critical discontinuities such as cracks, weld imperfections, pores, sand holes, inclusions, and folds in metals, composites, and other homogeneous materials. Whether for preventative maintenance, manufacturing quality control, or asset integrity management, this tool provides the definitive data needed for critical decision-making.

Why Choose Mikrosize as Your Measuring & Testing Instrument Supplier?

Choosing Mikrosize means partnering with a committed supplier dedicated to quality, innovation, and customer support in the Measuring & Testing Instrument domain. Our High-Precision Ultrasonic Flaw Detector is a testament to this commitment, designed to help your business ensure safety, maintain quality standards, and optimize operational efficiency. For industries searching for "ultrasonic flaw detector," "portable NDT equipment," "weld inspection device," "automated ultrasonic testing," or "flaw detector price," Mikrosize offers the perfect blend of advanced technology and practical value. This instrument is not just a purchase; it's an investment in precision, reliability, and peace of mind.

Discover the difference with Mikrosize. Elevate your non-destructive testing capabilities with the instrument that delivers high-precision results every time. Contact us today to learn more about this product and our full range of NDT solutions.
