The Desktop Projector: A Versatile Tool for Precision Measurement
A desktop projector stands as a mid-range, highly adaptable, and user-friendly optical measuring instrument. Its core function is to utilize an optical projection method to magnify and cast the contour or surface condition of a measured object onto a projection screen. This allows for efficient contour measurement, comparative analysis, and direct observation of surface features. A significant advantage of this system is its incorporation of a telecentric light path. This advanced optical design ensures uniform illumination across the entire field of view, effectively eliminating measurement inaccuracies that can be caused by focusing errors. Renowned for their operational simplicity and low maintenance, these instruments offer high efficiency and robust applicability, making them a cornerstone in the field of precision metrology.
The versatility of the desktop projector has led to its widespread adoption across a diverse range of industries. It is a fundamental Measuring Testing Instrument in sectors such as standard metrology, watchmaking, cathode ray tube assembly, chemical fiber textiles, gemstone bearings, and precision instrument components. Furthermore, its utility extends to industries like paper manufacturing, sugar production, and educational institutions for research and training. Its applications are varied and critical, including length and diameter analysis, process control, and the microscopic inspection of integrated circuit solder joints, photolithography masks, screen printing patterns, and hydraulic sealing rings. For these tasks, the ability to perform microscopic projection amplification is indispensable.

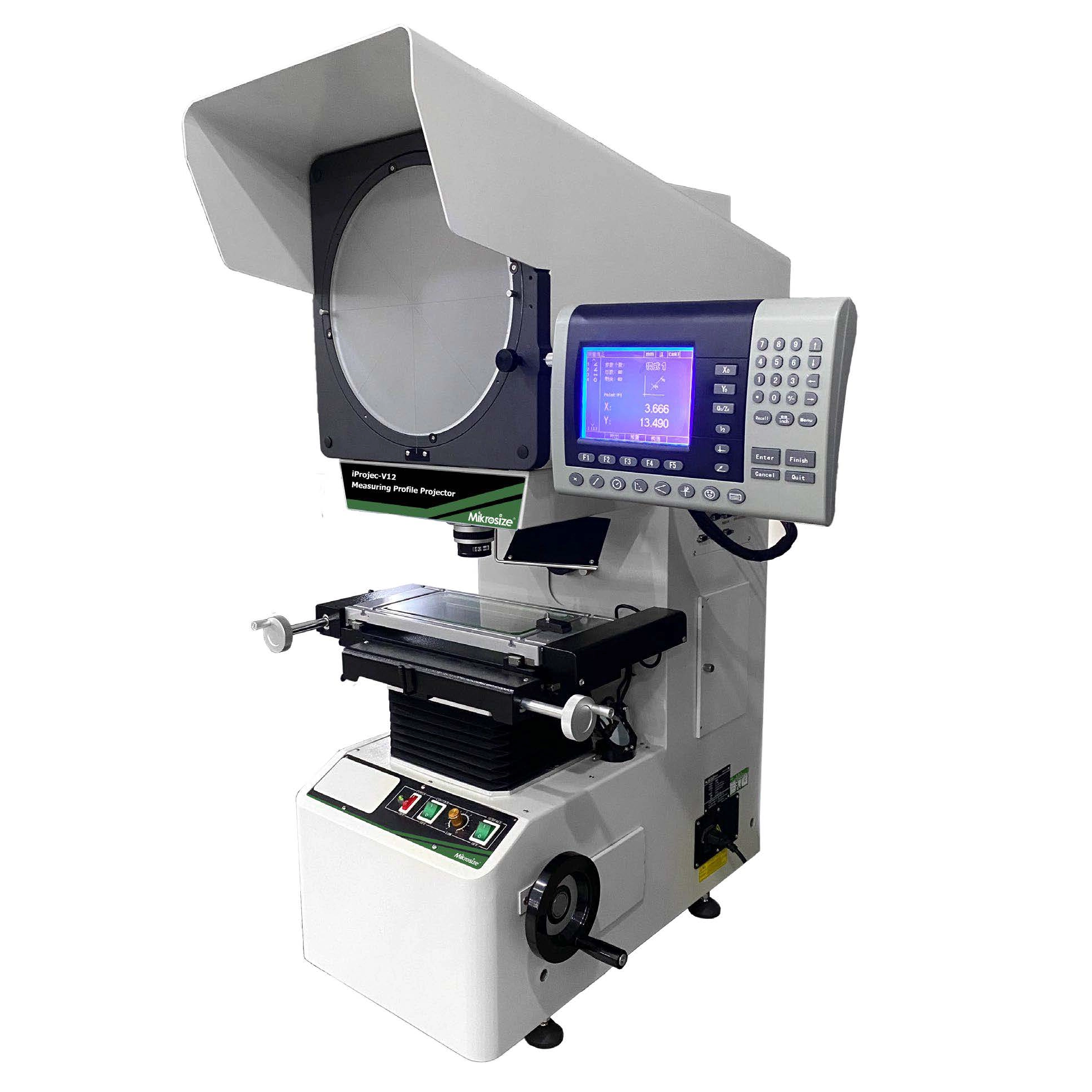

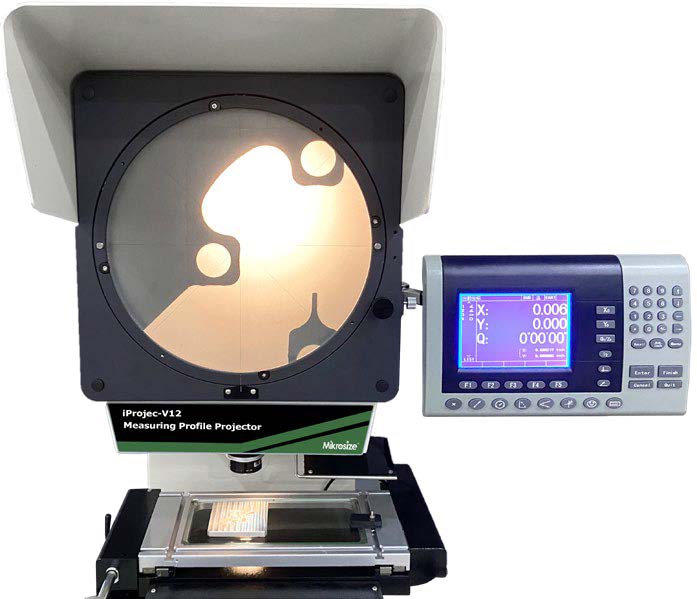

When selecting a desktop projector for these demanding applications, the specifications are paramount. A typical high-performance model, such as those supplied by Mikrosize, a trusted provider of precision measurement solutions, often features a large ¢ 300 mm projection screen. It is equipped with a range of objective magnifications, commonly 10x, 20x, 50x, and 100x, which correspond to specific fields of view (30mm, 15mm, 6mm, 3mm) and working distances. The manual worktable provides precise movement with horizontal and vertical strokes of ≤25mm and ≤50mm, respectively, and a fine resolution of 0.01mm. Enhancing its functionality, the projection screen itself rotates 360 degrees, with graticules graduated to 1° and a vernier scale allowing for readings as precise as 2 minutes of arc. As a reliable Measuring Testing Instrument, the system is powered by standard 220V and uses a bright 150W/24V halogen illumination source. To ensure consistent performance and longevity, the unit employs a forced air cooling system, typically using three axial fans to manage heat effectively.
In conclusion, the desktop projector remains an essential and versatile Measuring Testing Instrument in modern industrial and academic settings. Its design, which prioritizes accuracy through features like the telecentric light path, combined with its ease of use and strong adaptability, ensures its continued relevance. Suppliers like Mikrosize provide industry with access to this critical technology, supporting quality control and innovation across countless fields where precise dimensional analysis is non-negotiable. From the assembly of miniature components to the analysis of complex textures, the desktop projector offers a clear, magnified view that drives precision and ensures quality.
