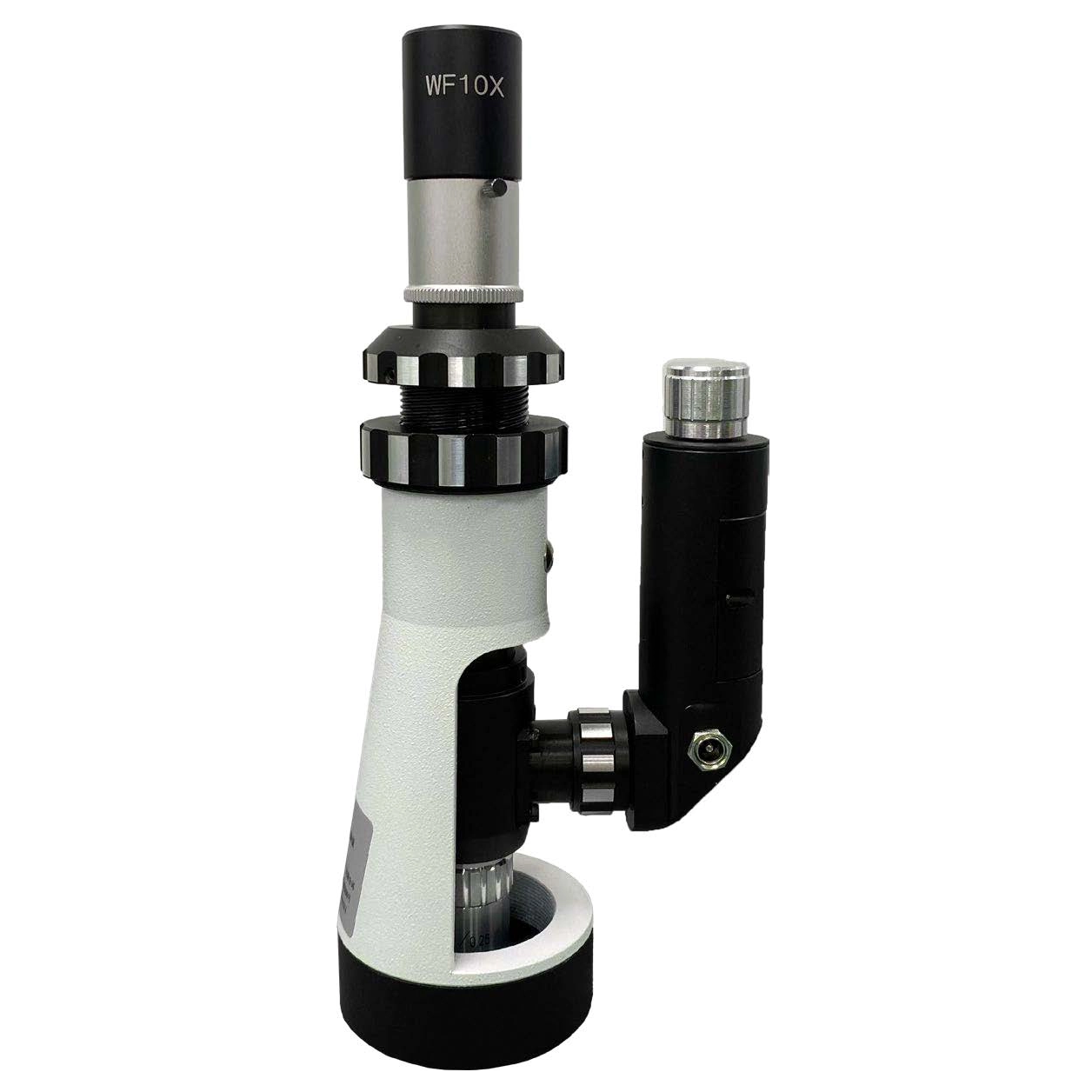

Portable Metallographic Measuring Microscope

As a leading supplier of high-quality Measuring Testing Instrument, Mikrosize takes pride in presenting its advanced Portable Metallographic Microscope—a cutting-edge solution designed to meet the rigorous demands of on-site material analysis. This state-of-the-art Measuring Testing Instrument stands out for its innovative design and practical functionality, making it an indispensable tool for professionals across diverse industrial sectors.

The portable metallographic microscope from Mikrosize, a trusted name in Measuring Testing Instrument manufacturing, is equipped with a built-in vertical illumination light source. This key feature allows for effortless on-site use, enabling users to accurately identify the microstructure of various metals and alloys even when conventional sample preparation is not feasible. Unlike many other measuring testing instruments that require complex setup, this microscope is engineered for convenience, making it ideal for metallographic examination and failure analysis of large workpieces directly on-site—eliminating the need for time-consuming and destructive cutting or sampling. Instead, users can simply grind and polish the workpiece surface, ensuring the integrity of the component is preserved throughout the testing process.

Mikrosize’s Portable Metallographic Microscope, a flagship Measuring Testing Instrument, is tailored to serve a wide range of industries where precise material analysis is critical. It is extensively used in aviation manufacturing, where it ensures the structural integrity of aircraft components by analyzing metal microstructures; in mechanical manufacturing, it aids in quality control by inspecting the metallographic properties of machine parts; and in vehicle manufacturing, it supports the production of durable automotive components through accurate microstructure evaluation. Additionally, this versatile Measuring Testing Instrument is a staple in boiler and pressure vessel manufacturing and inspection, petrochemicals, railways, shipbuilding, power plants, and equipment installation—where it plays a vital role in preventing equipment failure and ensuring operational safety. It is also widely adopted in large mold production, safety testing agencies, quality supervision departments, and physical and chemical laboratories, as well as in factories for casting quality identification, raw material inspection, and research and analysis of metallographic structures post-material processing.

One of the standout features of this Measuring Testing Instrument by Mikrosize is its magnetic base. The microscope’s base is fitted with a powerful magnetic suction seat, allowing it to be directly attached to metallic workpieces—facilitating stable and reliable on-site metallographic tissue examination. Complementing this, the gear-type XY axis mobile platform ensures the microscope remains securely in place, preventing any unwanted horizontal sliding during operation—a crucial advantage for maintaining accuracy in dynamic on-site environments.

The lighting system of Mikrosize’s Portable Metallographic Microscope, a core component of this Measuring Testing Instrument, is designed for optimal performance. It is equipped with 6V3W LED lights that deliver bright, uniform illumination, ensuring clear visibility of even the finest microstructural details. Paired with a high-capacity rechargeable lithium battery, the lighting system provides long-lasting power, enabling extended on-site testing sessions without the need for frequent recharging—enhancing the instrument’s portability and practicality.

As a compact and precise optical Measuring Testing Instrument, this microscope boasts a lightweight and space-saving design. It comes complete with a durable portable aluminum alloy packaging box, which not only protects the instrument during transportation but also makes it easy to carry to various on-site locations—whether it’s a remote construction site, a busy factory floor, or a laboratory. This portability sets it apart from bulkier measuring testing instruments, making it a preferred choice for professionals who require mobility without compromising on accuracy.

To further enhance its functionality, Mikrosize offers optional accessories that complement this Measuring Testing Instrument. The on-site metallographic sample preparation kit includes an angle grinder, along with sandpaper, wool felt, and diamond spray polishing agent—providing everything needed for quick and simple on-site sample preparation. This kit ensures that users can achieve smooth, polished workpiece surfaces suitable for microstructural analysis in minutes, eliminating the need for off-site sample processing. Additionally, the optional on-site metallographic image analysis and imaging system, when paired with the microscope, transforms it into a comprehensive Measuring Testing Instrument. This system includes the FMIA2023 genuine metallographic analysis software and a WiFi wireless camera, enabling on-site image acquisition, detailed metallographic structure analysis, and the generation of professional metallographic detection reports—streamlining the testing workflow and ensuring accurate documentation.

Mikrosize’s commitment to delivering top-tier Measuring Testing Instrument is evident in every aspect of this portable metallographic microscope. From its robust construction to its user-friendly features, this instrument is designed to meet the evolving needs of industries that rely on precise material analysis. Whether used for routine quality control, failure investigation, or research and development, this Measuring Testing Instrument by Mikrosize provides consistent, reliable results—solidifying its reputation as a trusted solution in the field of metallographic testing.

In summary, Mikrosize’s Portable Metallographic Microscope is more than just a measuring testing instrument—it is a comprehensive on-site analysis tool that combines innovation, portability, and accuracy. For professionals seeking a dependable solution for metallographic examination and material analysis, this instrument from Mikrosize—your trusted Measuring Testing Instrument supplier—delivers unmatched performance and value across every application.
