Product Description
Reference for the Selection of Common Sample Materials and Abrasive Grain Size
| Material | Rough Polishing | Fine Polishing |
| Ceramics, Zirconia, Alumina | Velvet with 3.5μm | Velvet with 1.5μm |
| Hard metals, Synthetic Materials | Woolen or Velvet with 5μm | Velvet with 3.5μm |
| Soft Steel, Austenitic stainless Steel, Ferritic Steel | Woolen or Velvet 3.5μm | Velvet with 1.5μm |
| Nonferrous Metals, Cast Aluminum | Velvet with 3.5μm | Velvet or Silk with 1μm |
| Titanium Alloy | Woolen or Canvas with 3.5μm | Velvet with 1μm or 0.5μm (0.3μm or 0.05μm silicon) |
| Magnesium Alloy | Velvet with 3.5μm | Silk with 1μm Synthetic Polymer with 0.05μ |
Cast iron, Ductile Iron, Gray Cast Iron | Canvas with 5μm | Silk with 2.5μm |
| Hard and Medium Hard Steel | Woolen or Canvas with 5μm | Velvet with 2.5μm |
| Porous Ceramics | Velvet with 2.5μm | Silk with 1μm or 0.5μm |
| Stainless Steel | Woolen or Velvet with 5μm | Velvet with 1μm |
| Aluminium Alloy | Velvet with 2.5μm | Silk with 1μm or 0.5μm(0.3μm or 0.05μm alumina) |
*‘Velvet with 3.5μm’Means Velvet polishing cloth with 3.5μm polishing agent.

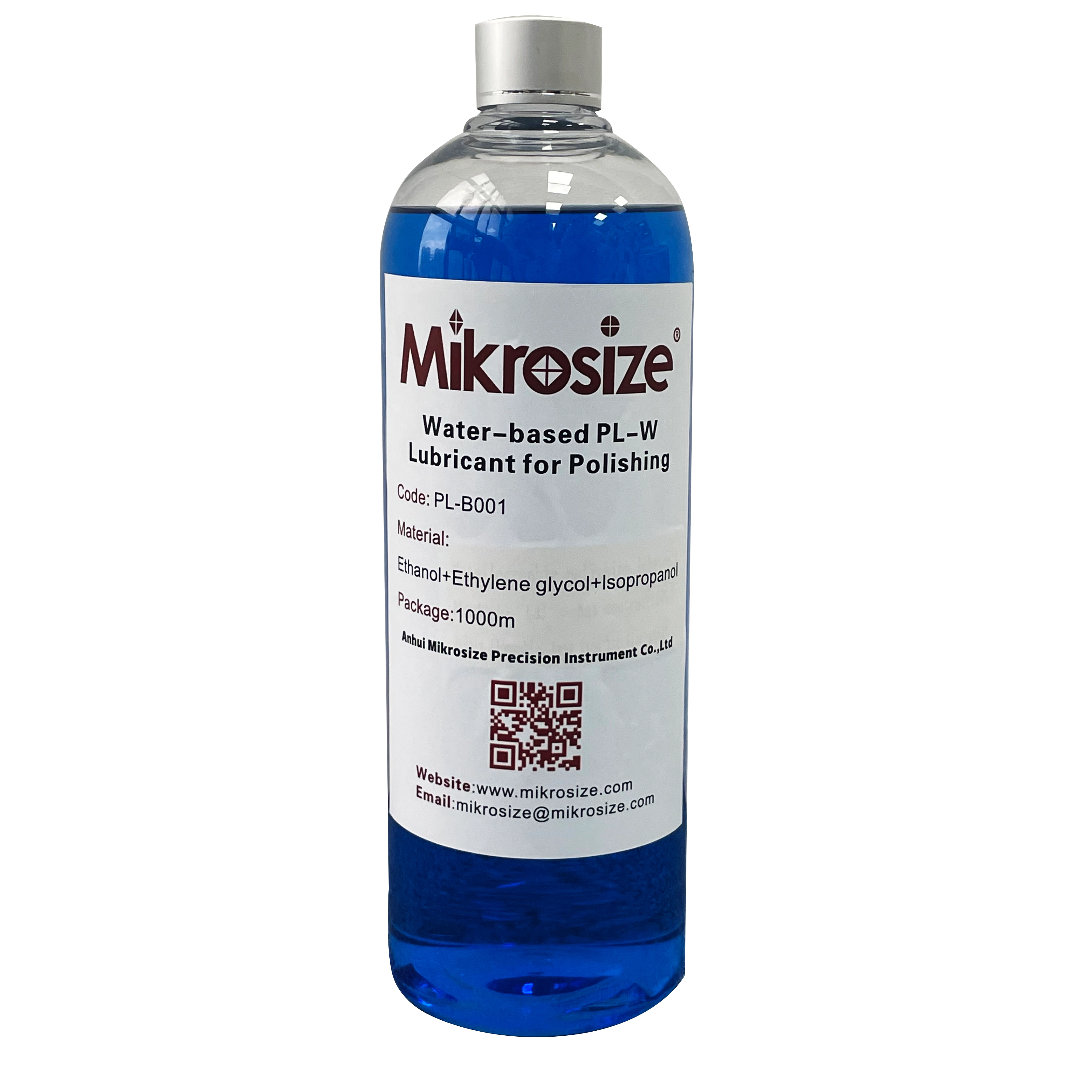

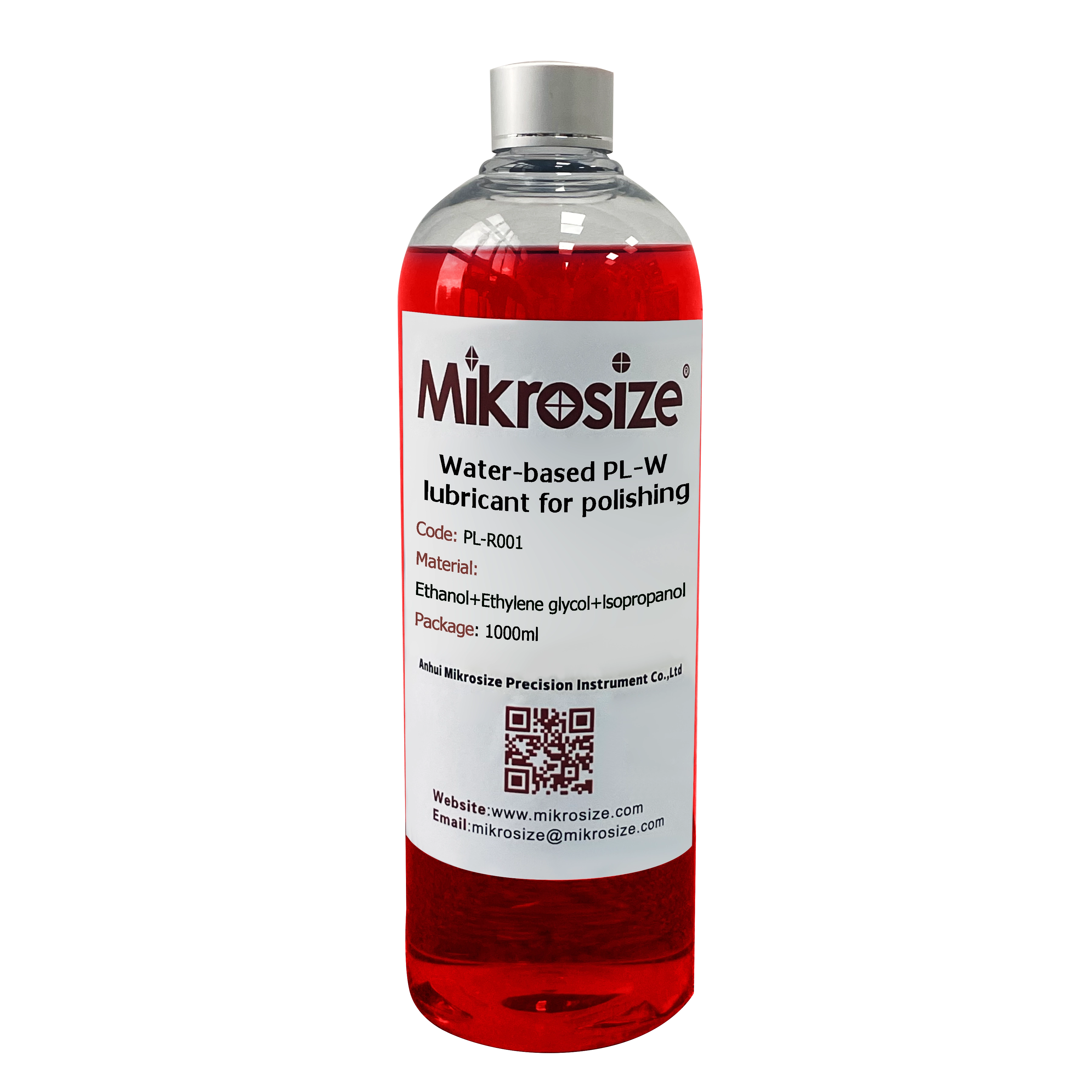

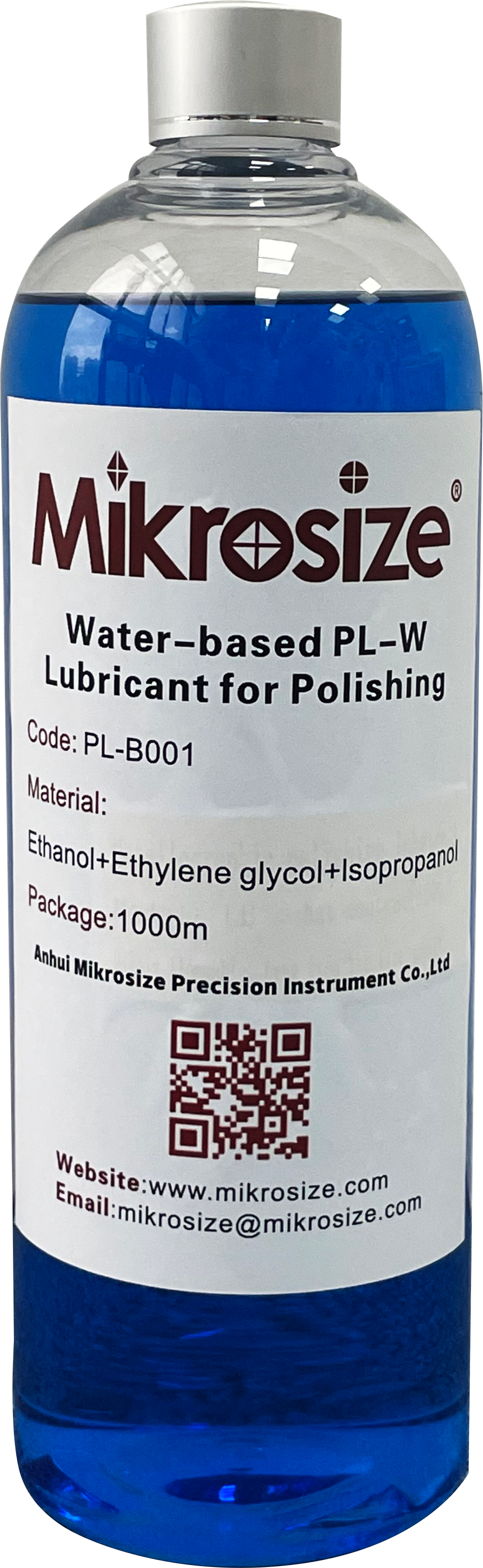

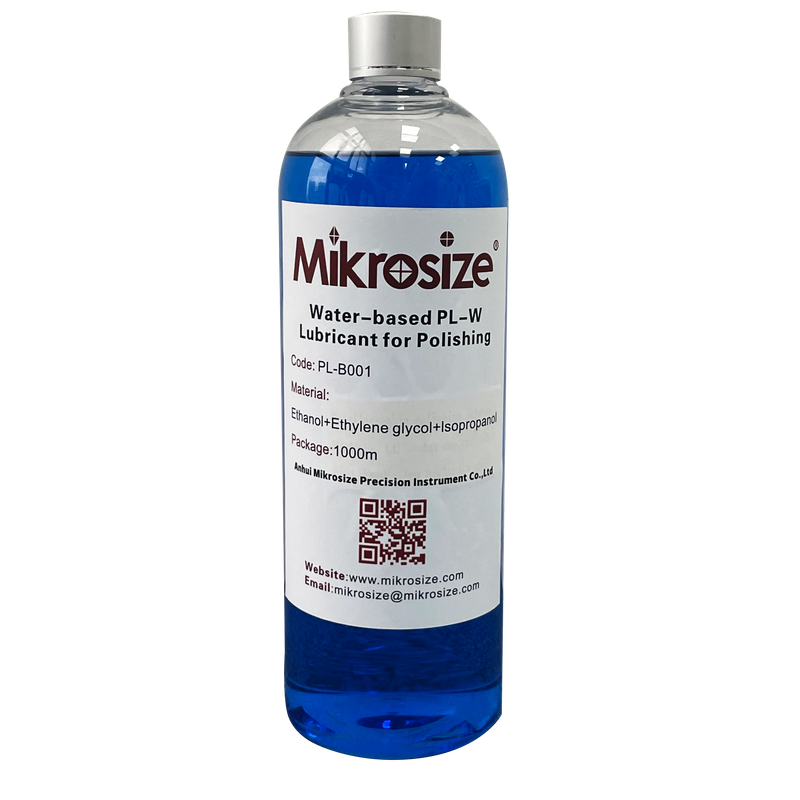

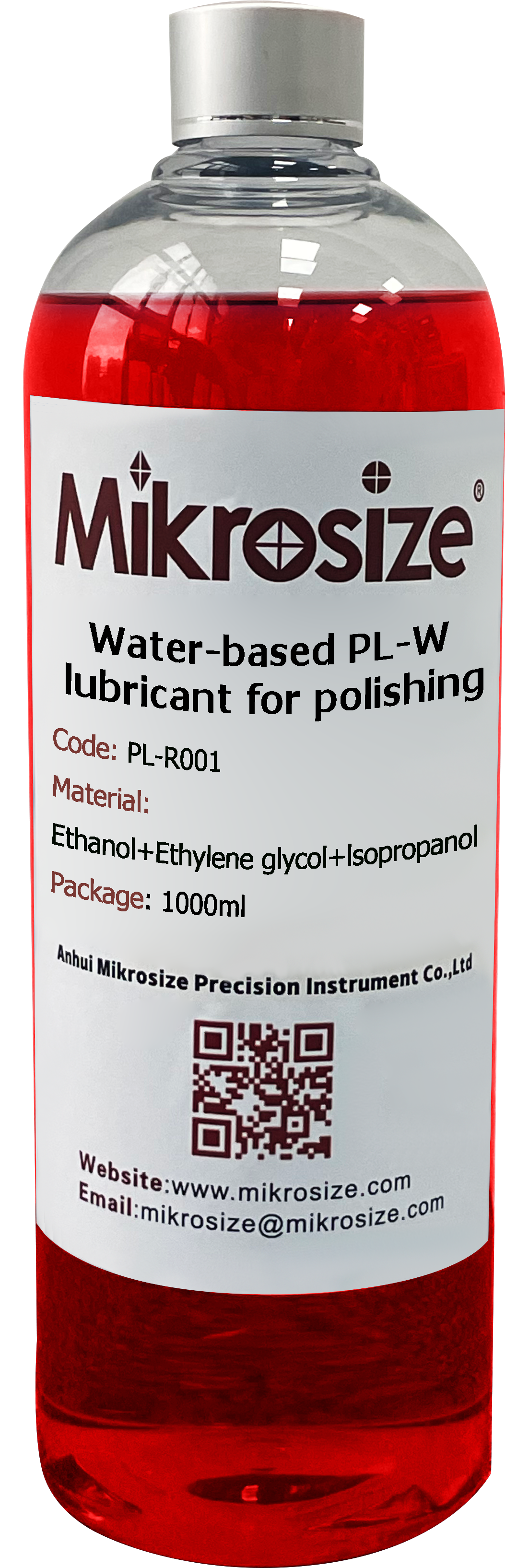

PL-B/R Polishing Lubricants
Usage Instructions: 1.For Semi-Automatic or Fully Automatic Metallographic Polishing Machine: Pour the liquid into the designated bottle in the polisher. Then, follow the operating instructions of the polishing machine for proper use. 2.For Manual Polishing Machine: It is recommended to pour the liquid into a soft plastic bottle with a nozzle, such as a wash bottle.During polishing, start the polishing machine and gently squeeze the soft plastic bottle to spray the lubricant onto the polishing cloth. Ensure the entire effective polishing cloth surface is wetted before beginning the polishing process. 3.When Increased Polishing Resistance is Felt: Add an appropriate amount of lubricant as needed. |
|
|
Application: Polishing Lubricant is used to enhance polishing performance of diamond suspensions,compounds,sprays and films. It reduces friction and increase the life of polishing clothes. It can be applied manually or used with automatic dispenser. Suitable for precision grinding and polishing processes of all materials. | Application: Suitable for precision grinding and polishing processes of all materials. | Application: Suitable for grinding and polishing processes of soft materials. |
Technical Specification
| Color: Blue,Red |
| Package: 1L/bottle, 4L/bottle |

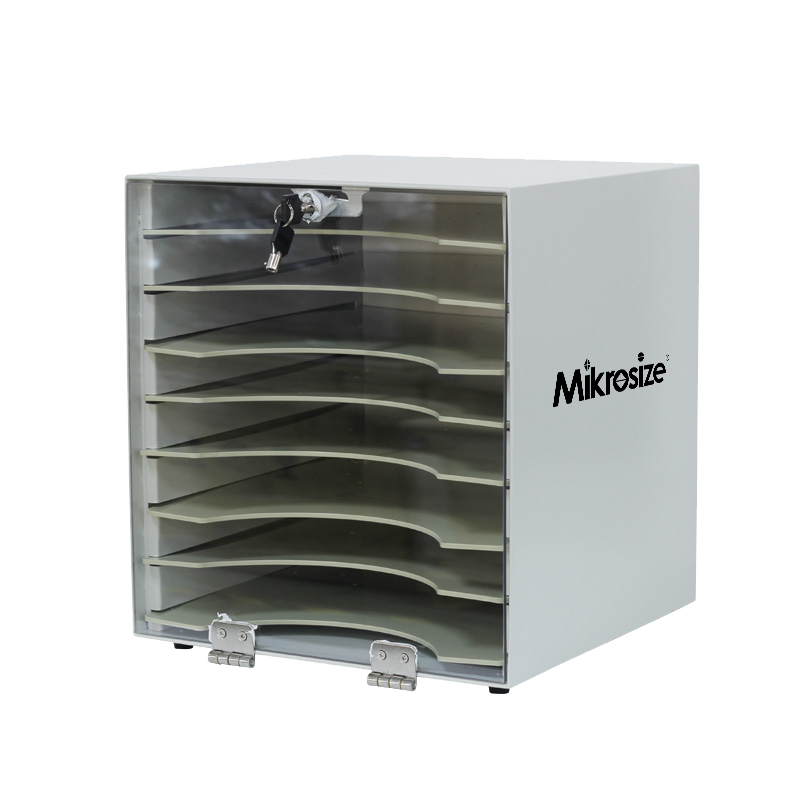

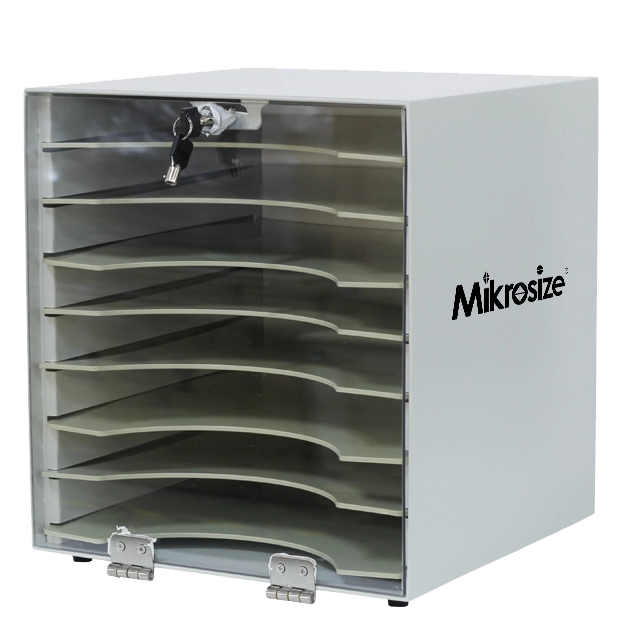

MS Storage Cabinet
| Features: ●Metal construction with compartment PP material, durable and easy to clean; ●Transparent door with lock to prevent dust from falling in; ●Eight compartments can be used to store 8 kinds of abrasive paper or polishing cloths separately; ●Each compartment can be withdrawn separately, easy to place and access the polishing disks. |
|
| Application: Used to store abrasive paper of different grades and polishing cloths containing abrasive polishing materials of different grades for reuse next time. |
