Manual Spring Tension and Compression Testing Machine: Comprehensive Guide by Mikrosize

Introduction to Manual Spring Testing Solutions

In material testing and quality assurance, the manual spring tension and compression testing machine is fundamental for evaluating spring mechanical properties. As a professional instrument, it ensures springs meet strict standards before use in automotive, aerospace, medical, and consumer electronics industries. Mikrosize, a trusted hardness tester supplier, offers high-precision manual spring testers with accuracy, reliability, and simple operation for labs and production.

Springs are ubiquitous, storing energy and controlling motion in mechanisms from precision instruments to heavy machinery. Their performance impacts product safety and longevity, making the manual tester indispensable for verifying spring characteristics under controlled conditions.

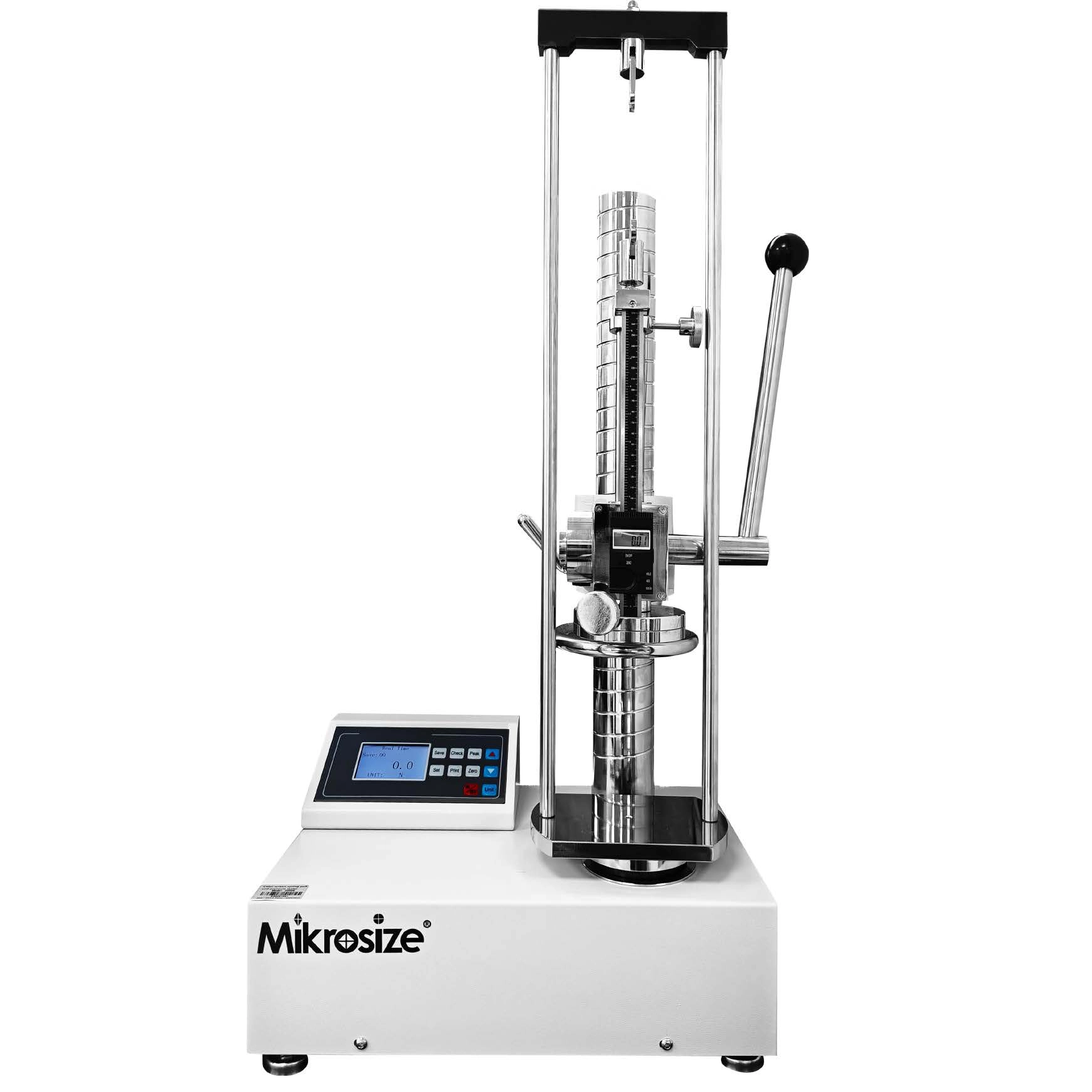

Understanding the Manual Spring Tester

This specialized instrument conducts precise tests on cylindrical, disc, conical, circlip, leaf, and shaped springs, evaluating tension, compression, displacement, and stiffness—key for quality assurance.

Unlike automated systems, it offers intuitive operation and direct operator control, enabling real-time adjustments and detailed observations—critical for R&D and design optimization. Mikrosize leverages its hardness testing expertise to create testers that balance simplicity and sophistication, with high-end features in a user-friendly manual design.

Functional Features

Mikrosize’s tester integrates multiple methodologies to meet diverse needs:

• Load-Based Pass/Fail: Assess qualification by measuring force (F) via deformation (ΔH) or compression to a specific height (H), vital for valve and suspension springs.

• Deformation-Based Assessment: Measure deformation (ΔH) or height (H) via applied force (F), ensuring proper fit in space-constrained assemblies.

• Multi-Point Testing: Evaluate performance across the operating range, verifying linearity and consistency—essential for high-volume production.

• Segmented Stiffness Analysis: Calculate stiffness (K) per segment and average values, uncovering hidden behavior variations for performance prediction and root cause analysis.

Technical Specifications

Key parameters for configuration selection:

• Testing Force Range: 10N (micro-springs) to 5000N (heavy-duty), with 50N–3000N options and customization for all sizes/materials.

• Accuracy: 1%–100% full scale, 0.01N–0.05N precision (model-dependent), ±1% error, meeting international standards.

• Displacement: 0.01mm precision, Level 1 classification for demanding quality control.

• Geometric Capacity: 150mm max free length, 90mm extendable stroke, 48mm enlargeable pressure plate.

• Control: Manual displacement speed for observing spring behavior and detecting anomalies.

Industry Applications

The tester’s versatility is invaluable across sectors:

• Automotive: Validates springs for valve trains, suspension, and fuel systems, ensuring durability under varying conditions.

• Aerospace & Defense: Supports qualification of flight-critical springs, providing precise force-deflection data for certification.

• Medical Devices: Tests miniature springs for insulin pumps and surgical tools, ensuring accuracy for patient safety.

• Consumer Electronics: Evaluates micro-springs in connectors/switches, guaranteeing consistent user experience.

• Industrial Equipment: Validates larger springs for heavy machinery, leveraging robust construction and wide force range.

Mikrosize: Your Trusted Partner

• As a leading hardness tester supplier, Mikrosize delivers reliable precision solutions:

• Comprehensive Portfolio: Offers hardness testers, imaging systems, microscopes, and metallographic equipment—one-stop sourcing.

• Engineering Excellence: Decades of expertise inform high-precision controls and user-friendly software.

• Quality Assurance: Rigorous pre-shipment calibration makes Mikrosize preferred for global research and production.

• Technical Support: Comprehensive after-sales service, calibration, and training maximize instrument value.

Manual vs. Automated Testing

• Manual Advantages: Tactile feedback, lower cost, simple maintenance, and flexibility for low-volume/R&D testing with rapid adjustments.

• Automated Benefits: Higher throughput, consistent results, and digital reporting for high-volume production and traceability.

• Mikrosize Advantage: Both solutions available—manual for quality control setup, automated for high-volume needs.

Quality Assurance & Compliance

Proper implementation requires adherence to standards, supported by Mikrosize:

• Standard Compliance: Aligns with ASTM A370, E4, E8, ISO 6892 for certification-ready accuracy.

• Calibration: Periodic verification with calibrated references maintains accuracy.

• Operator Training: Resources ensure consistent testing and data interpretation.

• Data Management: Integrates with collection systems for digital traceability.

Conclusion

The manual spring tester is essential for quality assurance, research, and production across industries. Mikrosize’s precision engineering ensures reliable, accurate instruments trusted globally. Contact Mikrosize to discuss your testing needs and support your quality goals.
