How Digital Measurement Projectors Elevate Quality Control

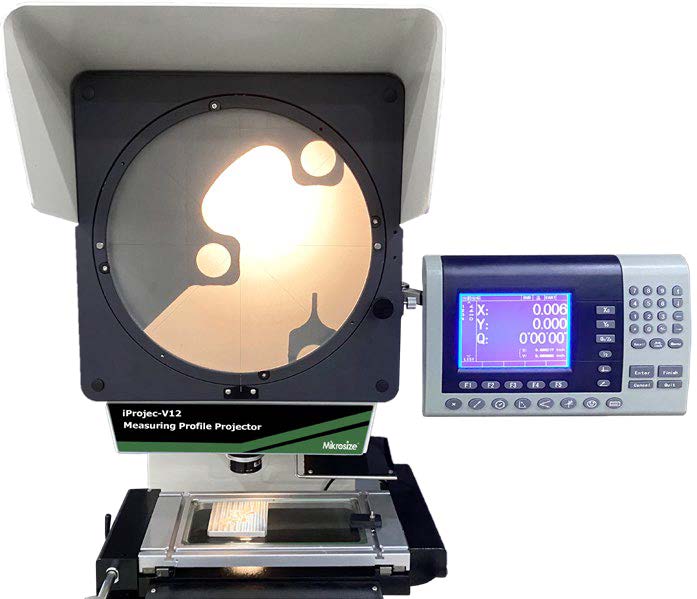

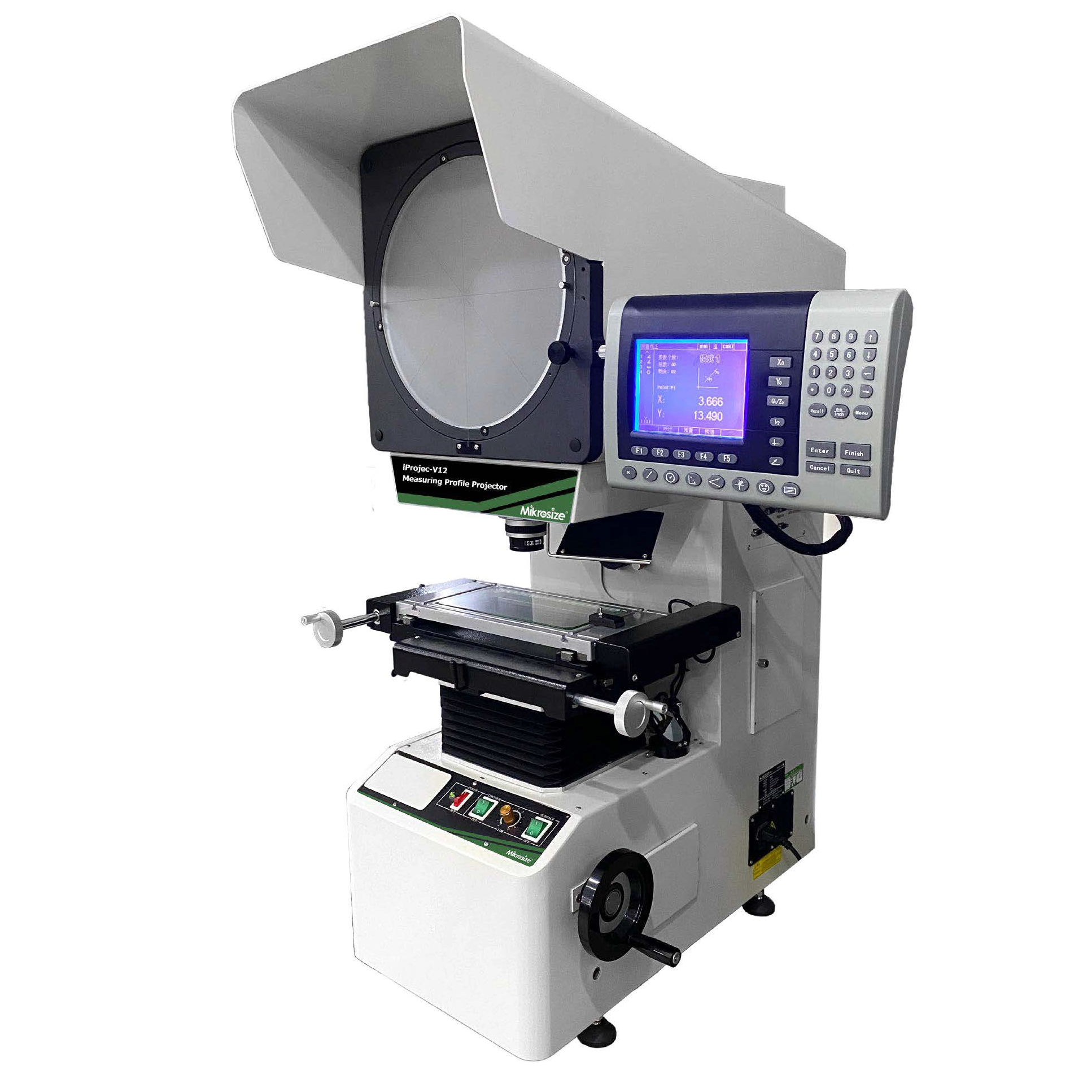

The Digital Measurement Projector is a high-precision Measuring Testing Instrument that seamlessly integrates advanced optics, precision mechanics, and cutting-edge electronics. As a crucial tool in modern quality control, it has evolved from traditional contour projectors by incorporating high-precision grating rulers and sophisticated two-dimensional digital display technology. This innovative integration has made it an indispensable asset in industries such as mechanical manufacturing, electronics, molds, instruments, and metrology—where accuracy and reliability are paramount. Renowned suppliers like Mikrosize have been at the forefront of developing and supplying top-tier Digital Measurement Projectors, ensuring that industries have access to instruments that meet the most stringent measurement requirements. According to its structural design, the Digital Measurement Projector can be categorized into two main types: vertical and horizontal, while its imaging direction is further divided into positive and negative images. The core configuration of these instruments, especially those provided by Mikrosize, includes high-quality grating rulers, premium objective lens groups, and advanced data processing systems, all working in harmony to support precise geometric measurement of contour dimensions and detailed surface morphology of various workpieces.

As a leading Measuring Testing Instrument, the Digital Measurement Projector boasts impressive technical specifications that cater to diverse industrial needs. The projection screen size of this instrument is usually between 300mm and 400mm, providing a clear and spacious viewing area for operators to analyze workpiece details. It is equipped with a 10X-100X switchable objective lens, allowing for flexible magnification adjustments to suit different measurement scenarios—from large-scale contour checks to minute surface feature inspections. The measurement accuracy of high-end models, such as those offered by Mikrosize, can reach (3+L/75) μ m (where L is the measured length), and the digital display resolution can achieve an outstanding 0.5 μ m, ensuring that even the smallest dimensional deviations are detected. The metal worktable, a robust component of this Measuring Testing Instrument, covers a range of 260 × 152mm to 450 × 280mm, with a maximum stroke range of 250 × 150 × 100mm. This generous worktable size and stroke range enable it to accommodate a wide variety of workpieces, including those with complex shapes and larger volumes, while being capable of carrying up to 50KG workpieces without compromising measurement stability.

To enhance its performance and functionality, the Digital Measurement Projector—particularly those supplied by Mikrosize—adopts a forced air cooling system that effectively dissipates heat, ensuring stable operation even during prolonged use. It is also integrated with the DC-3000 data processing system, which offers a suite of powerful features such as multi-point sampling, coordinate rotation, angle detection, and RS-232 data output functions. These features not only streamline the measurement process but also allow for seamless data transfer to other quality control systems or software for further analysis and documentation. Typical detection objects for this versatile Measuring Testing Instrument include complex workpieces such as gears, threads, stamped parts, precision shafts, and mold cavities. In summary, the Digital Measurement Projector, backed by reputable suppliers like Mikrosize, stands as a cornerstone Measuring Testing Instrument in modern manufacturing, providing the precision, reliability, and functionality needed to uphold the highest quality standards across various industries.
