Automatic Metallographic Sample Grinding and Polishing Machine

Automatic Metallographic Sample Grinding and Polishing Machine

The automatic metallographic sample grinding and polishing machine represents a significant advancement in sample preparation technology. This state-of-the-art equipment is a microcontroller-controlled grinding and polishing system designed for unparalleled performance and reliability. As a precision Measuring & Testing Instrument, its robust body is constructed from integrally molded ABS material, offering a novel and aesthetically pleasing design alongside exceptional corrosion resistance and long-term durability. The grinding disc, precision-cast from alloy aluminum, is oxidation-resistant, immune to deformation, and supports infinite variable speed control with both forward and reverse rotation capabilities. Sourced from the renowned Mikrosize supplier, key components ensure the highest standards of quality and performance.

This machine offers versatile operation with two distinct grinding head modes: center pressure and single-point pneumatic pressure, allowing users to select the most suitable mode for specific working conditions. Pressure regulation is managed by an imported SMC proportional valve from Japan, ensuring precise and stable operation, with all pressurization calibrated by a force gauge for absolute accuracy. The unique adaptive running and fitting design between the grinding head sample disc and the grinding disc itself effectively improves grinding and polishing quality by solving the common issue of multi-faceted phenomena, thereby guaranteeing a consistent and flawless grinding surface on every sample. The machine is equipped with a high-definition LCD touch screen for intuitive control and display, making operation simple and parameter monitoring clear and intuitive.

Powering the unit is a high-torque servo motor, renowned for its long service life and ultra-quiet operation, which delivers a powerful and efficient grinding and polishing experience. The precision cast aluminum support chassis ensures perfect rotational balance, while a leak-proof spindle design effectively protects the internal bearings from contamination. A standout feature is the magnetic grinding disc design, which supports quick disc changes. The backing plate and chassis surface are treated with a PTFE (Teflon) coating, preventing any residue from sandpaper, cloth, or adhesive and simplifying cleanup. The sample clamp, which can be quickly disassembled and converted to accommodate different diameters, features a half-rotating design combined with an inner lighting system for convenient and safe sample handling.

As a comprehensive Measuring & Testing Instrument, the automatic grinding system of this machine is capable of programmable timing and speed control, and features an automatic opening and closing function for the water system, effectively replacing manual grinding and polishing processes. The system can store more than a dozen unique grinding and polishing programs, allowing operators to set different parameters for various sample types with ease. With a capacity for up to 6 sample clamps, it dramatically saves labor, improves preparation quality, and enhances sample throughput efficiency. Additional safety and convenience features include an electromagnetic lock on the grinding head for automatic locking and a removable bowl-shaped lining that prevents the accumulation of dirt and debris within the tray, making maintenance straightforward. This machine, incorporating premium components from Mikrosize, is the ideal choice for modern laboratories seeking new, efficient, and reliable automatic metallographic sample preparation equipment.

Product Highlights

Dual Pressure Modes: Offers both center pressure and single-point pneumatic modes to suit a wide range of working conditions and sample requirements.

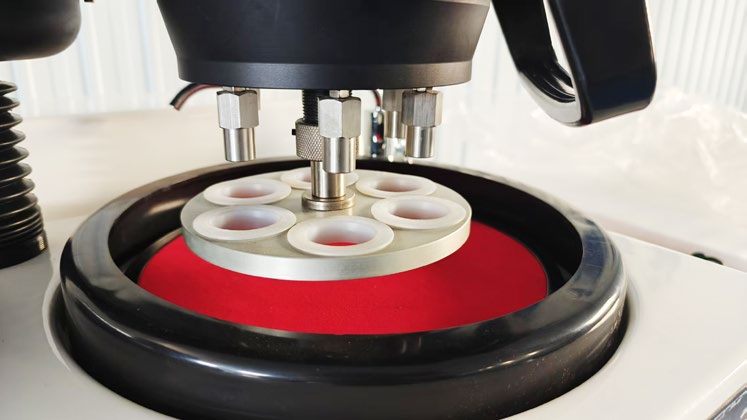

Quick-Conversion Clamp: The sample clamp allows for rapid disassembly and conversion, providing the flexibility to use clamps of different diameters for various sample sizes.

Magnetic Disc System: Features a magnetic disc design for quick and easy disc replacement. The PTFE-coated backing plate ensures a clean surface with no residue left after changing sandpaper or polishing cloths.

Adaptive Grinding Design: The unique self-adjusting design ensures a perfect fit and continuous correction between the sample and the grinding disc, effectively eliminating multi-faceted phenomena and ensuring a consistent, high-quality grinding surface on all samples.

User-Friendly Touch Interface: The entire machine is controlled via a high-definition LCD touch screen, making operation simple, with clear and intuitive parameter display and input.

Fully Automated System: The programmable automatic grinding system includes precise timing, speed control, and an automatic water system, effectively replicating and replacing manual grinding and polishing steps for superior consistency.

Enhanced Safety: The grinding head is equipped with an electromagnetic lock that engages automatically, providing a safe and convenient user experience.

Servo Motor Performance: Utilizes a high-performance servo motor that delivers long service life, high torque for demanding applications, and an ultra-quiet operational experience.

Multi-Program Memory: Capable of storing more than ten distinct grinding and polishing programs, enabling users to save and recall optimal parameters for different sample materials.

Ergonomic Sample Handling: The half-rotating design of the sample chuck, integrated with an inner lighting system, makes loading and unloading samples exceptionally convenient and precise.

Easy Maintenance: Equipped with a dedicated bowl-shaped lining that contains dirt and debris within the inner area of the tray, making the machine exceptionally easy to clean and maintain after use.

Scope of Application

Preparation of various metallographic specimens for material analysis.

Laboratories with high throughput demands and a need for consistent, reproducible results.

Environments with light labor demand, aiming to automate and streamline sample preparation workflows.
