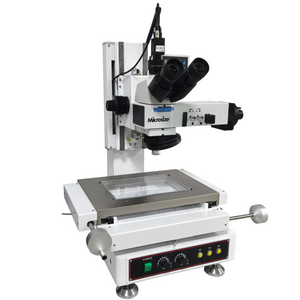

iMea-3030 Toolmakers Measuring Microscope

Product Description
● Easy to operate
Centralized microscope operation, focusing handwheel, speed control, and remote control switch can all achieve single handed blind operation, achieving high-precision and fast measurement of large samples.
● Electric Z-axis focusing
The use of electric focusing devices can significantly improve operability and reduce operational fatigue during focusing and height measurement.
● Highly flexible
Modular hardware and powerful software solution, freely compatible with imaging optical path, stage, FA focusing navigation, rotating workbench, wafer turntable, etc.
● High density splicing
Using high-density stitching function, multiple images can be spliced and expanded into a panoramic image with a large view field.


Availability:
Quantity:

Product Description

Technical Specification


Erect/Reverse Image

Observation Methods

Observation of bright field, dark field, polarization, DIC

Eyepiece

Adjustable diopter 10X (viewfield: 22/25mm)

Objective Lens

All Plan FLUOR EPI/Plan FLUOR EPI SL series lenses

Focus System

Maximum height of the measured object

200mm

Electric focusing parameters

Fine tuning: 50 μ m, 100 μ m, 400 μ m/turn (optional)

Jogging: 100 μ m/step

Coarse adjustment: 10mm/second


Focusing Accuracy

Minimum step distance

0.1μm

Measurement repeatability

±1μm

Lighting Device

Transmission illumination

Far center lighting, continuous brightness adjustable, 10W LED illumination

Reflective illumination

Kohler lighting, adjustable aperture diaphragm,  continuous brightness adjustment, 10W LED illumination

Auxiliary illumination

FA assisted focusing, LED ring illumination, fiber optic cold  illumination

Mechanical Stage

Measuring range

300*300mm

Metal table size

500*450mm

Glass size

350*350mm

Quick release device

Standard configuration

Remote control switch

The RESET and SEND buttons are located near the X handwheel

Digital Counter

Minimum reading

Can be selected between 0.5/0.1 μ m

Function

Zero adjustment, centering, direction conversion, metric to English conversion,

Measurement Accuracy


(3+0.02L) μm (L is the measured length)

Power Dissipation


230W、85~240VAC 50/60HZ

Main Engine

External dimensions

659*660*744mm

Weight

160KG
