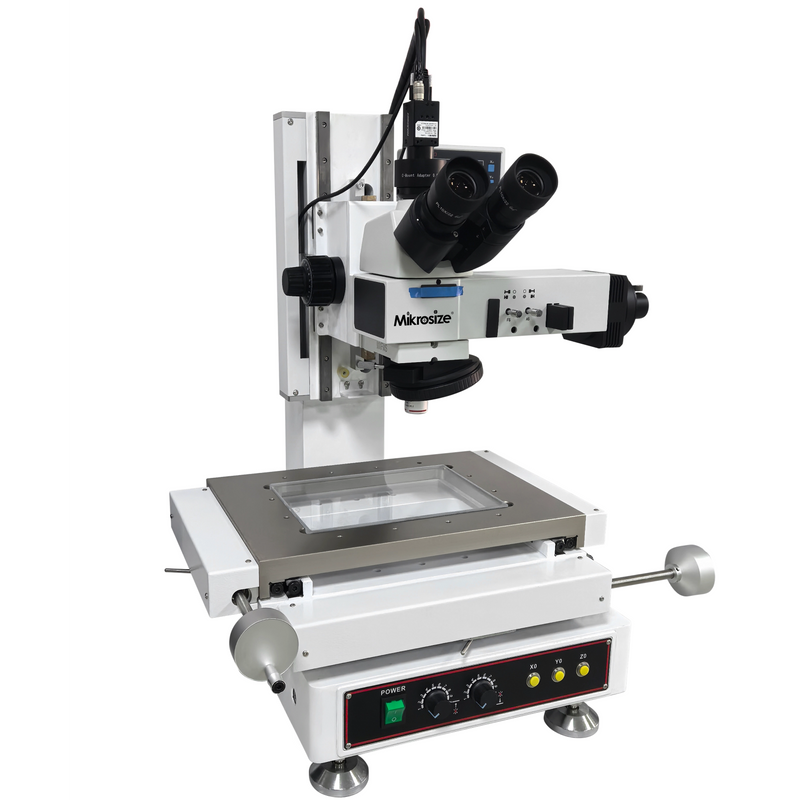

iVision Toolmakers Microscope

Product Feature：
●iVision Toolmakers Microscope has significant advantages and wide applications.
●Its Z-axis coarse and fine adjustment focusing is stable, the software automatically finds the edge and the operation is simple.
●The sub-pixel subdivision technology improves the image resolution, and the light source adjustment is convenient and accurate.
●The workbench made of aviation aluminum and cast iron has stable performance and is not easy to deform.

Product Application：
●This measuring instrument is widely used in many industries such as hardware, electronics, and molds.

●It can conduct precise detection of the size, shape, and position tolerance of workpieces, meeting the needs of part inspection, profile measurement, and process control.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Model	iVision-2010	iViision-3020	iVision-4030
X*Y Motion Range(mm)	200*100	300*200	400*300
Z-axis Motion Range (mm)	150	150	150
External Dimensions(mm)	700820850	750×520×1180	9506501050
Net Weight(kg)	120	180	240
Workbench Load-bearing Capacity(kg)	30
Image Sensor	Optional
Metallographic Lens	Optional
Accuracy(um)	X/Y:2.0+L/200µm
Minimum Display unit(mm)	0.0001
Light Source	Surface light:LED coaxial light source Bottom light source:LED parallel light source
Software	Mikromea-M 2.5D Manual Measuring Software
Working Environment	Temperature:22℃±2℃ Humidity:30~80% Vibration:<0.002mm/s,<15Hz
Power	220V/50Hz

Packing List:

Number	Name	Specification	QTY
1	Mainframe	Cast Iron Workbench	1pc
2	Data Box	Customized	1pc
3	Grating Scale	0.1um Metal-Patch Grating Scale	3pcs
4	Guide Rail	HIWIN Linear Guide Rails from Taiwan	1pc
5	Transmission System	X and Y lead screws with fine adjustment	2pcs
6	Z-axis Transmission System	Z-axis adopts both coarse and fine adjustment	1pc
11	Instrument Operation Manual	Mikrosize	1 copy
12	Certificate of Conformity, Warranty Card	Mikrosize	Each 1copy

Related Products

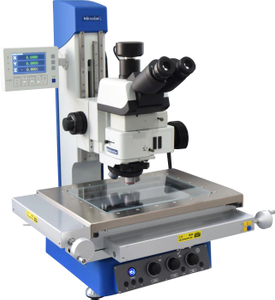

STM iVision Toolmakers Microscope
