Standard Test Block for Ultrasonic Tester

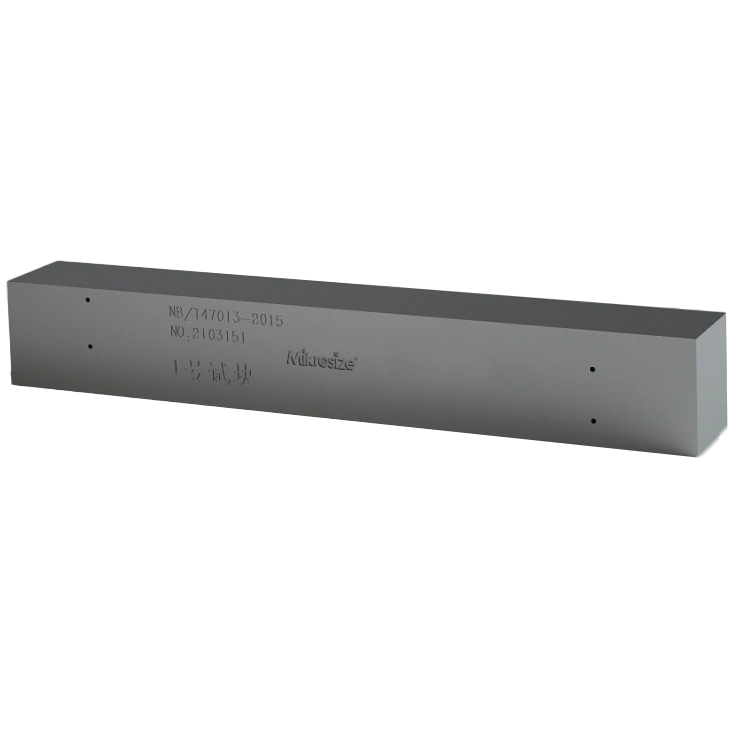

CSII Ultrasonic Test Block

NB/T47013-2015

This Test Block Is Suitable For The Detection Of Carbon

Steel And Low-alloy Steel Forgings With A Thickness Less

Than 45mm Using Dual Crystal Straight Probes, As Well As

For The Radial Detection Of Carbon Steel And Low-alloy

Steel Bolt Blanks With A Diameter Of M36 Or Larger Using

Dual Crystal Straight Probes.

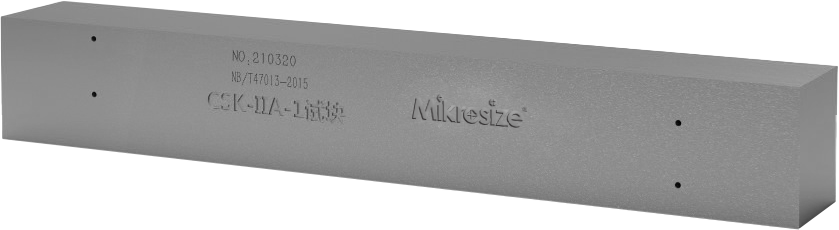

CSK-IIA Ultrasonic Test Block

NB/T47013-2015

This Test Block Is Suitable For The Ultrasonic Detection Of

Type I Welded Joints With A Workpiece Thickness Range Of

6mm To 200mm Using Angle Probes And Straight Probes.

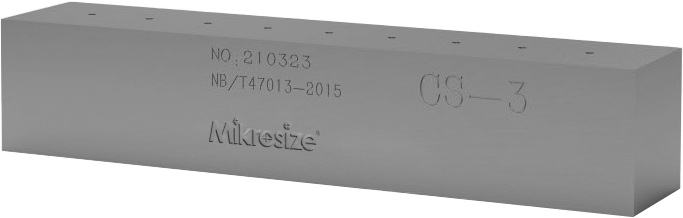

GS Series Standard Test Block

Comparison Block for Ultrasonic Testing

NB/T47013-2015

This Test Block Is Suitable For The Ultrasonic Detection Of Butt Joints In Pressure-bearing Equipment Made Of Aluminum And Aluminum Alloy, As Well As Titanium, With Thickness Greater

Than Or Equal To 8mm~80mm

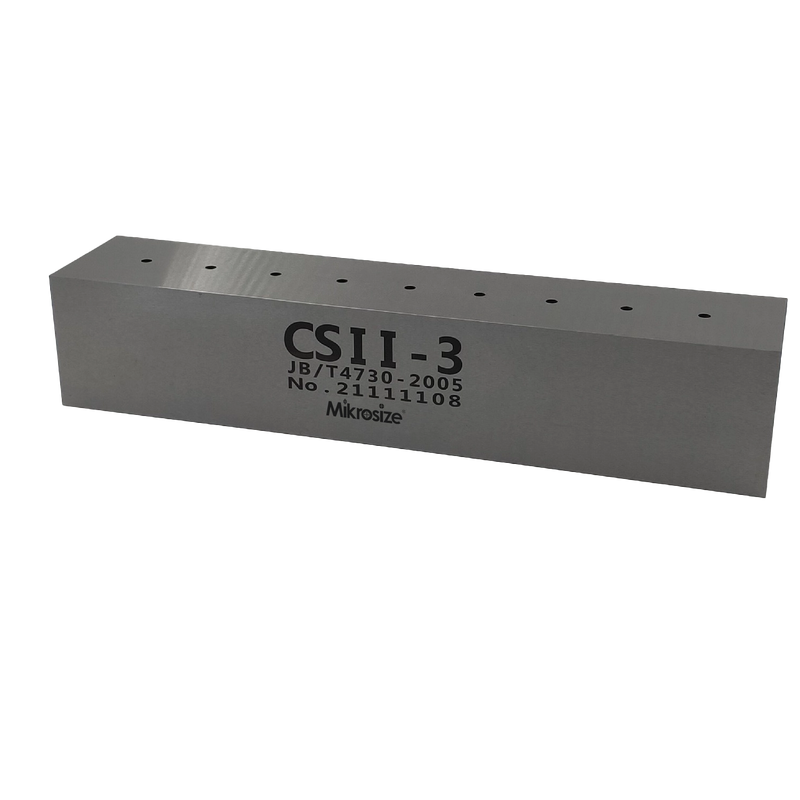

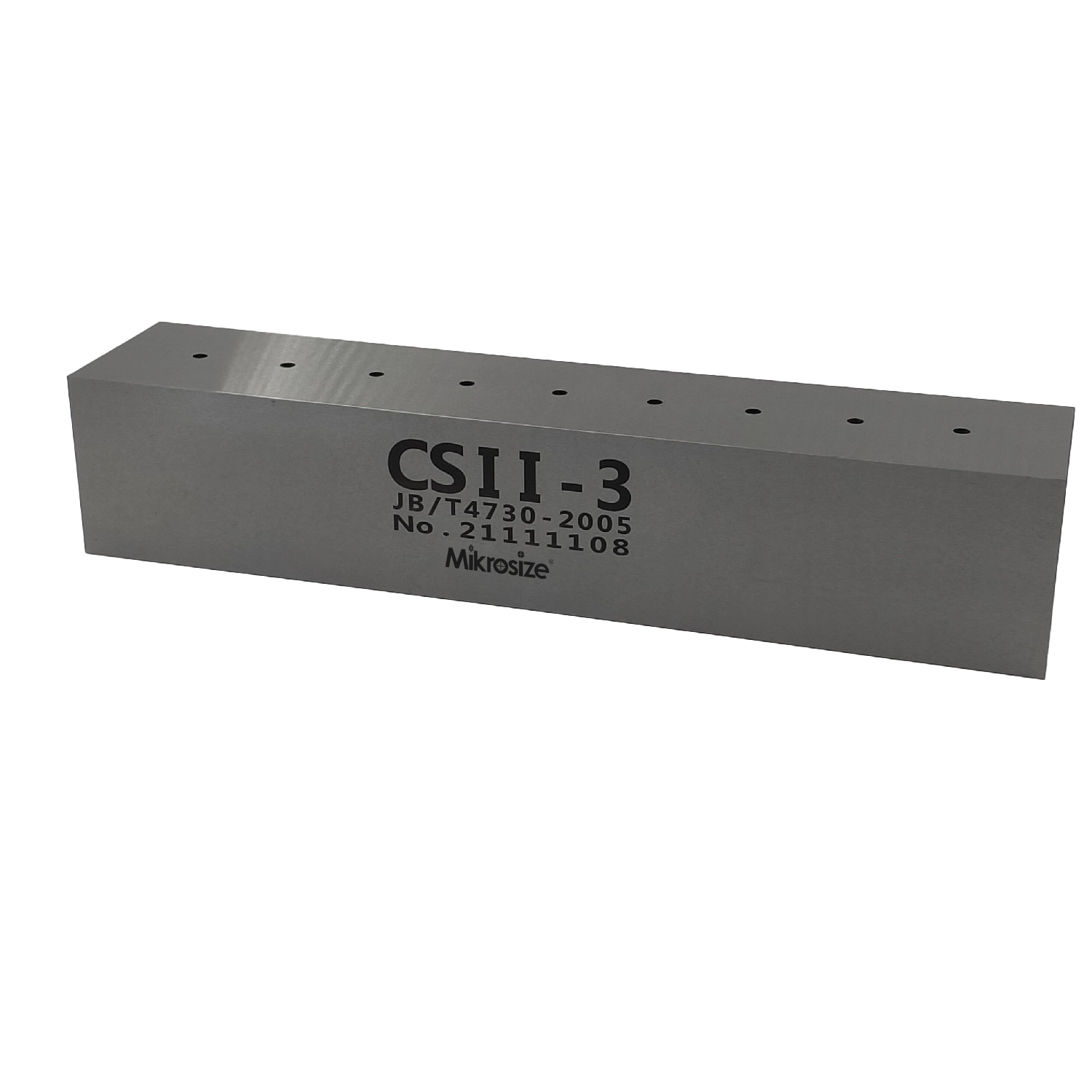

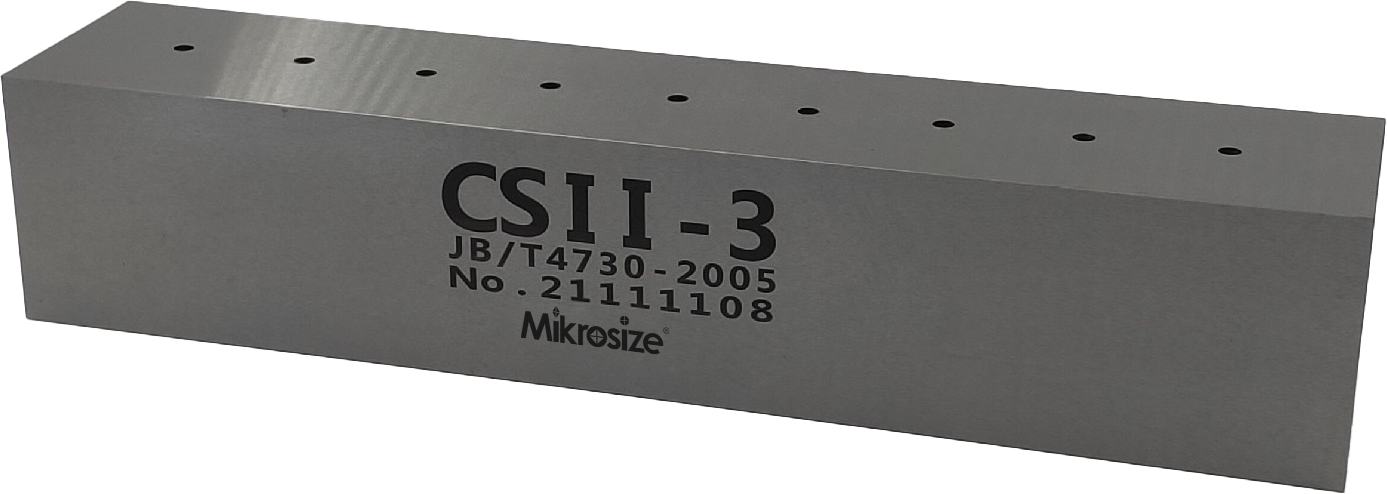

CSII Ultrasonic Test Block

JB/T4730-2005

This Test Block Is Suitable For The Ultrasonic Detection Of Raw Materials, Components, And Welded Joints Used In

Pressure-bearing Equipment Made Of Metallic Materials. It Is Also Applicable For The Ultrasonic Detection Of Metallic Pressure-bearing Equipment In Service, And Can Be Refer- enced For The Ultrasonic Detection Of Supporting Parts And

Structural Parts Related To Pressure-bearing Equipment.

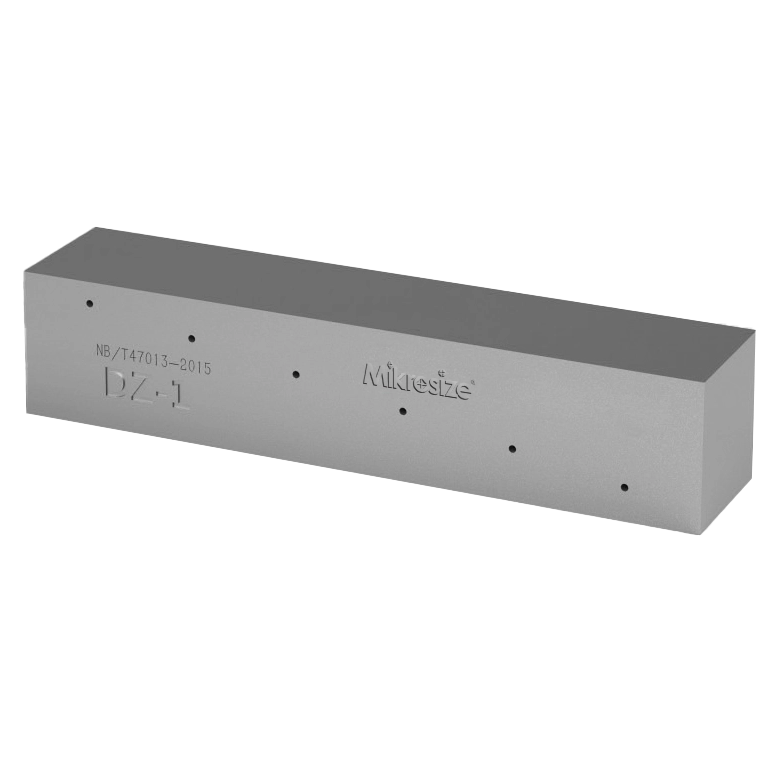

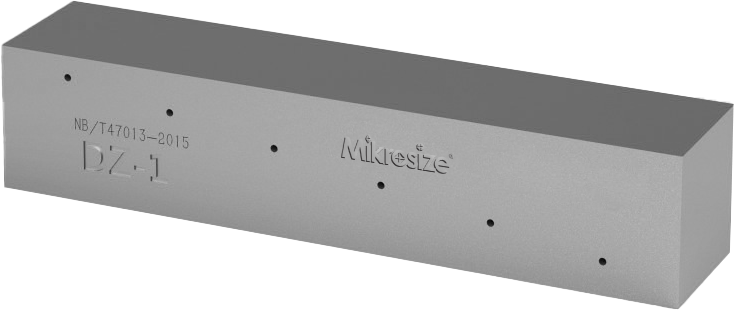

DZ-1 Ultrasonic Testing Block

for Straight Probe Blind Zone

NB/T47013-2015

This Test Block Is Suitable For Workpieces With A Thickness Of

≤40mm.

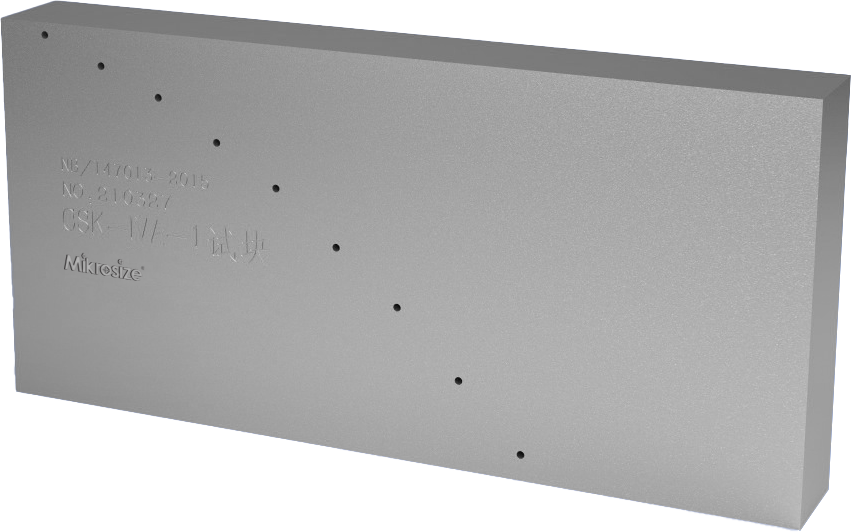

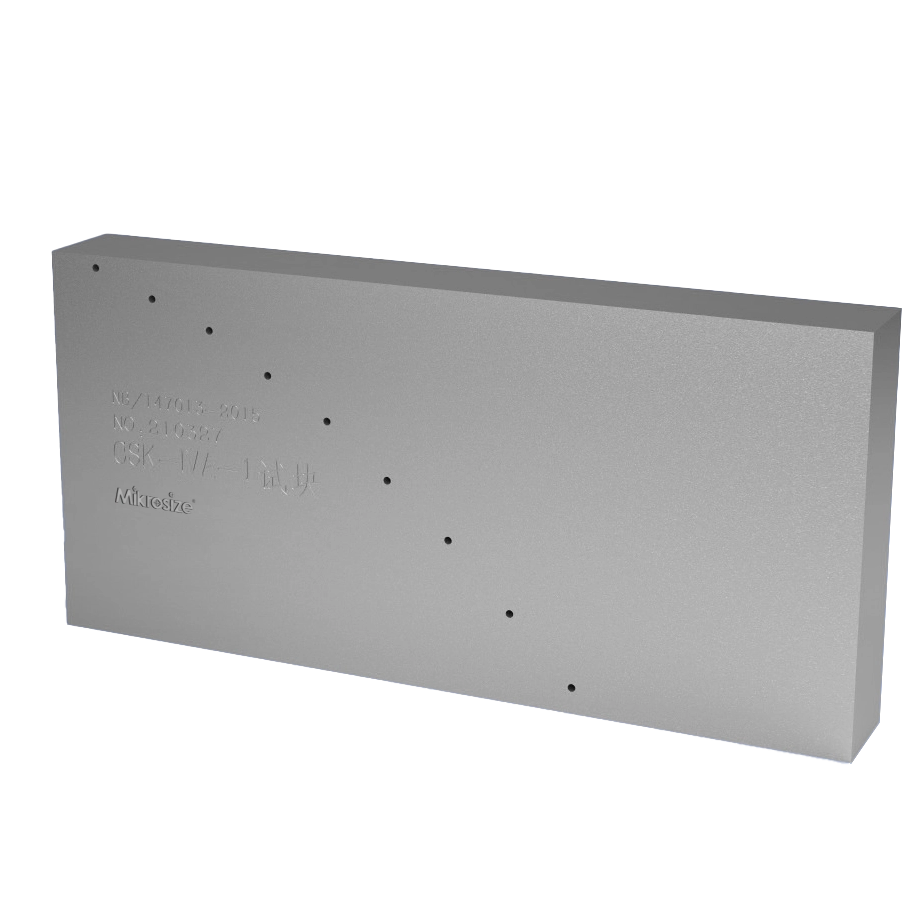

CSK-IVA Ultrasonic Compari- son Test Block

NB/T47013-2015 JB/T4730-2005

This Test Block Is Suitable For The Ultrasonic Detection Of Type I Welded Joints With A Workpiece Thickness Range Of 200 To 500mm Using Angle Probes And Straight Probes.

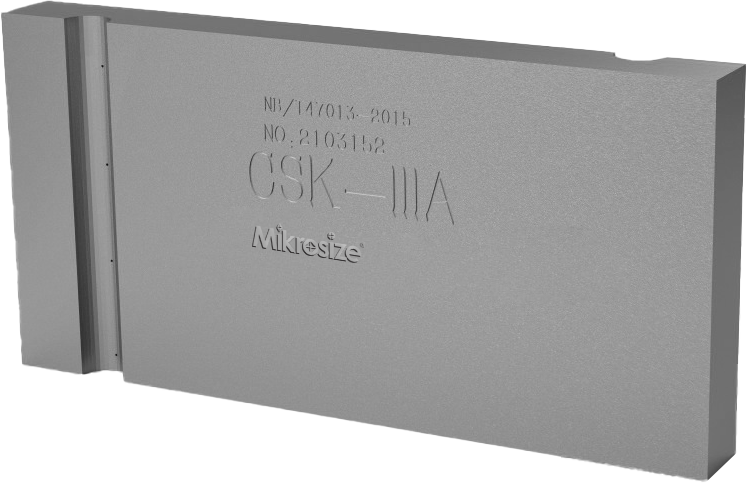

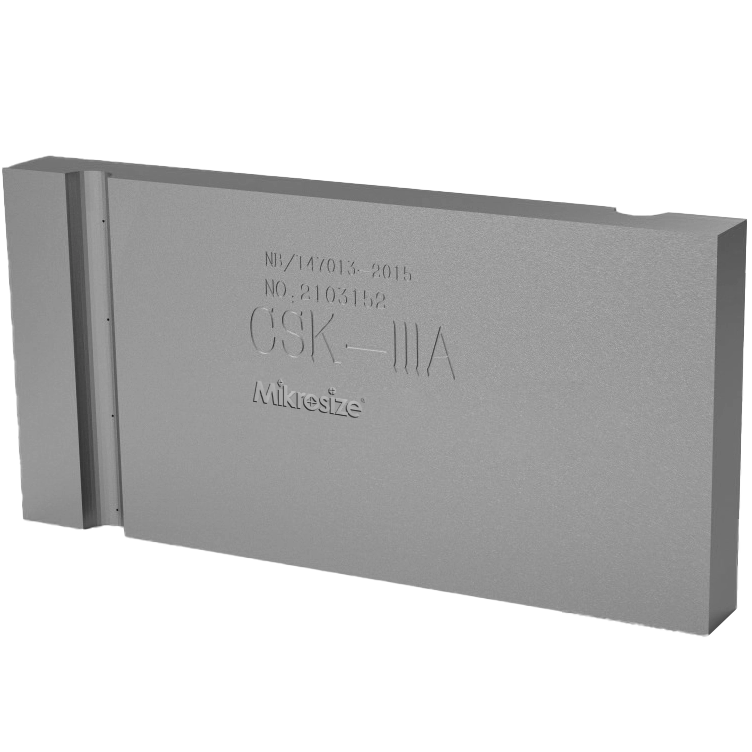

CSK-IIIA Ultrasonic Standard Flaw Detection Test Block

NB/T47013-2015

This Test Block Is Suitable For The Preparation Of

Distance-amplitude Curves When Detecting Welded Joints With A Thickness Range Of 8mm To 120mm Using Angle Probes.

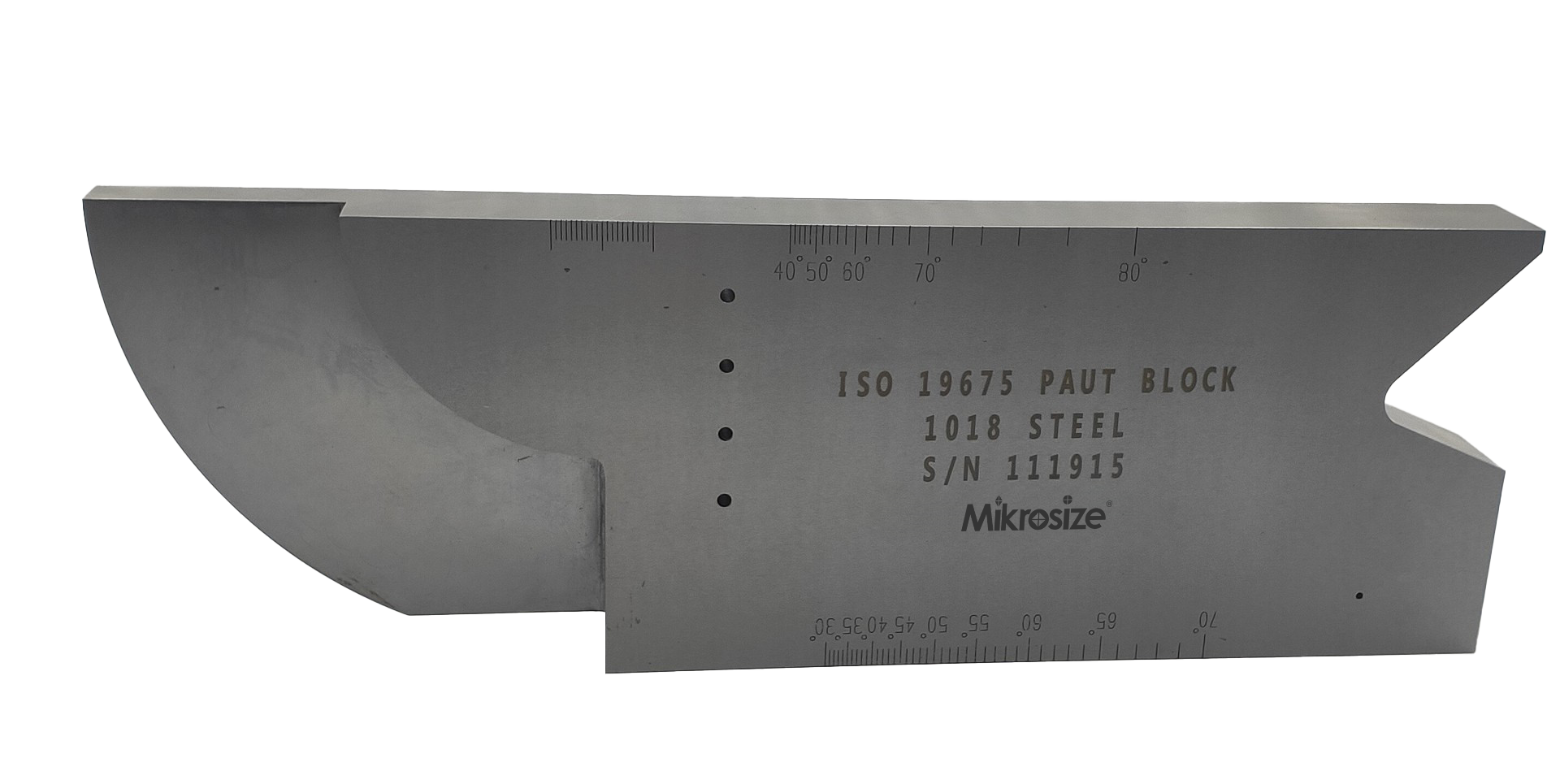

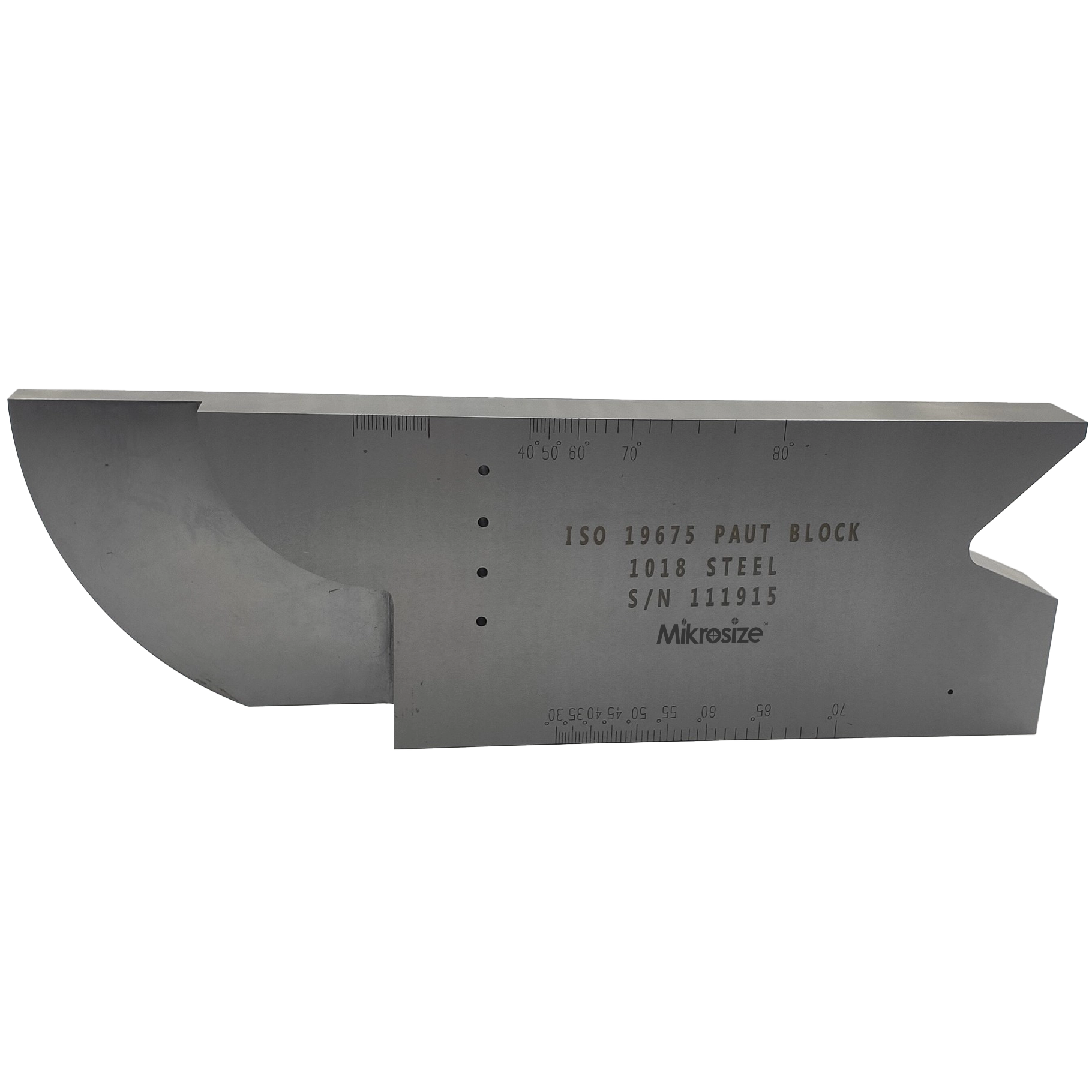

Phased Array Ultrasonic Testing (PAUT) Block

ISO 19675

This Test Block Is Suitable For The Ultrasonic Detection Of Type Ii Welded Joints With A Workpiece Thickness Range Of

4mm To 50mm Using Angle Probes.

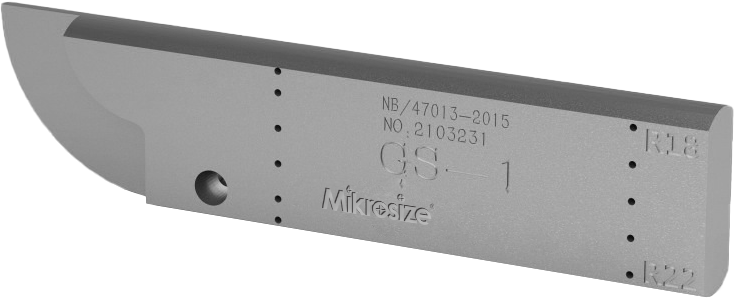

GS Ultrasonic Test Block

NB/T47013-2015

This Test Block Is Suitable For Testing The Blind Zone Of

Straight Probes.
