COATING THICKNESS GAUGE PROBE

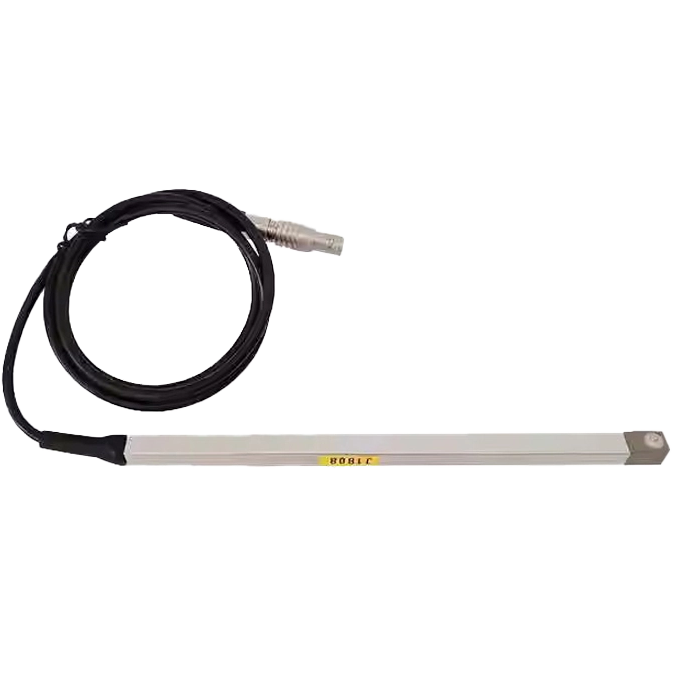

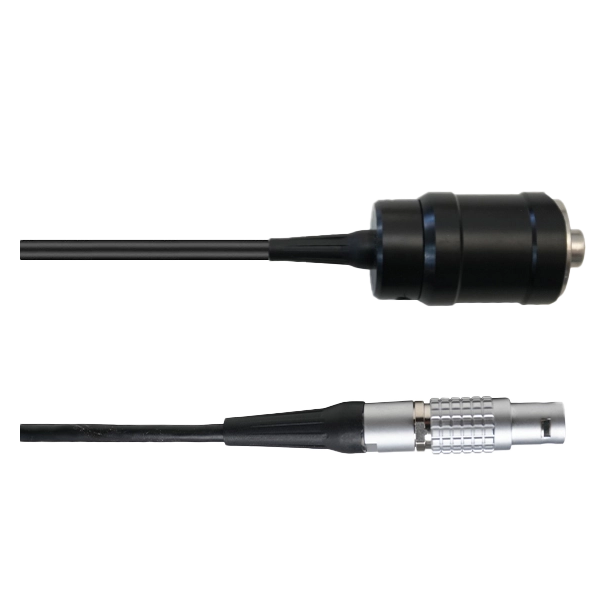

| F1 | F1/90° | F10 |
 |  |  |
Probe Model | F1 | F1/90° | F10 | ||
Code | CTP01250F00 | CTP01250F90 | CTP10000F10 | ||
Operating Principle | Magnetic | ||||
Substrate Material | Magnetic Metal (Steel, Iron Etc.) | ||||
Coating Material | Non-magnetic Coating(Aluminum, Chromium, Copper, Enamel, Rubber, Paint Etc.) | ||||
Measuring Range (μm) | 0~1250 | 0~10000 | |||
Low Range Resolution (μm) | 0.1 | 10 | |||
Accuracy | One-Point Calibration (μm) | ±(3%H+1) | ±(3%H+10) | ||
Two-Point Calibration (μm) | ±((1~3)%H+1) | ±((1~3)%H+10) | |||
Measuring Conditions | Min Curvature Radius (mm) | 1.5 | Flatten | 10 | |
Diameter of The Min Area (mm) | Φ7 | Φ7 | Φ40 | ||
Critical Thickness of Substrate (mm) |
0.5 |
0.5 |
2 | ||

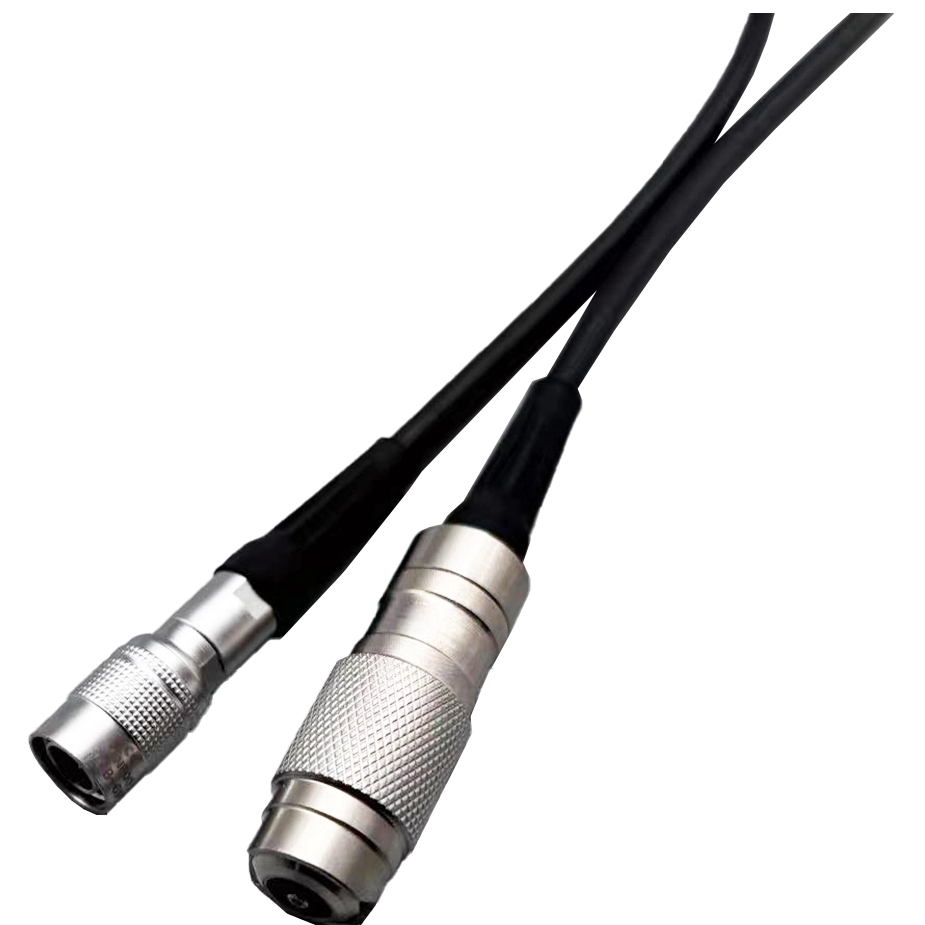

| FN |
 |
Probe Model | FN | |
Code | CTP01250FN0 | |
Measuring Range (μm) | 0~1250 | |
Low Range Resolution (μm) | 0.1 | |
Accuracy | One-Point Calibration (μm) | ±(3%H+1) |
Two-Point Calibration (μm) | ±((1~3)%H+1) | |

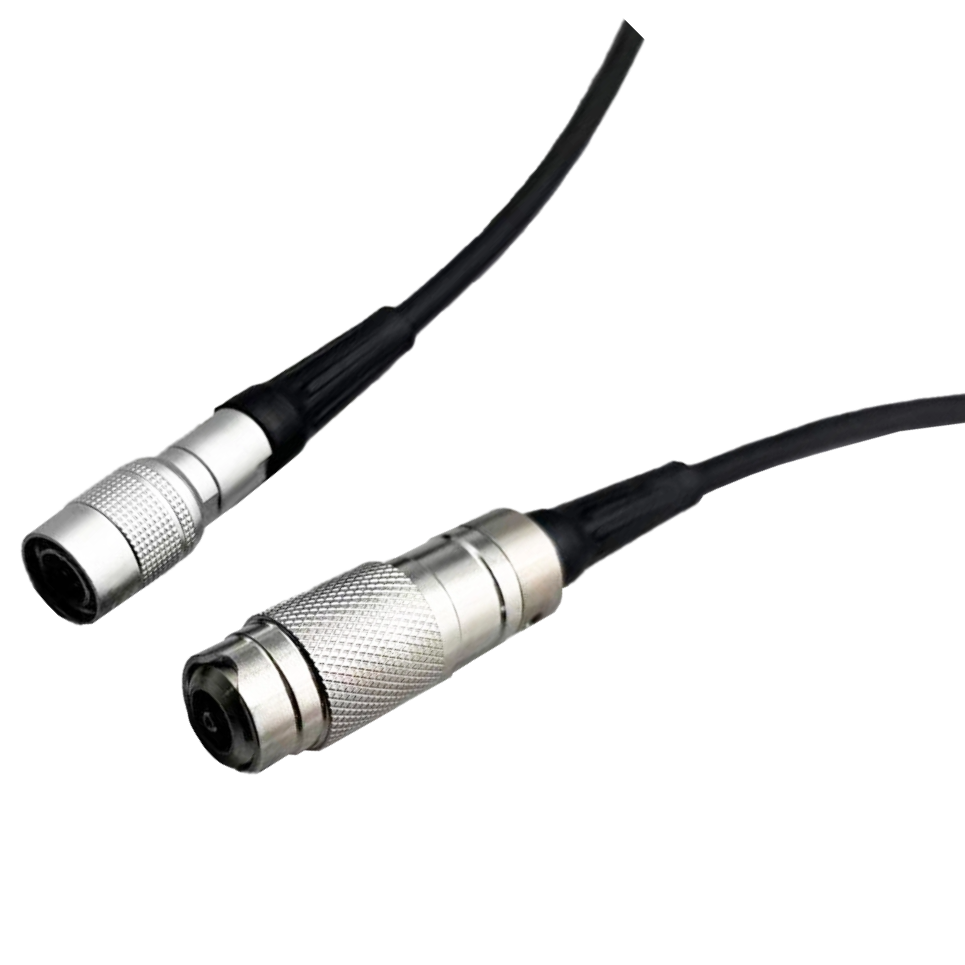

| N1 |
 |
Probe Model | N1 | |
Code | CTP01250N00 | |
Operating Principle | Eddy Current | |
Substrate Material | Non-magnetic Metal Substrate(Copper, Aluminum, Zinc, Tin Etc.) | |
Coating Material | Non-conductive Coating (Enamel, Rubber, Paint, Plastic And Etc.) | |
Measuring Range (μm) | 0~1250 | |
Low Range Resolution (μm) | 0.1 | |
Accuracy | One-Point Calibration (μm) | ±(3%H+5) |
Two-Point Calibration (μm) | ±((1~3)%H+1.5) | |
Measuring Min Curvature | Min Curvature Radius (mm) | 3 |
Diameter of The Min Area (mm) | Φ5 | |
Critical Thickness of Substrate(mm) | 0.3 | |
