Mikrosize's Metallographic Microscope Systems: Features, Functions and Applications for Professional Metallographic Analysis

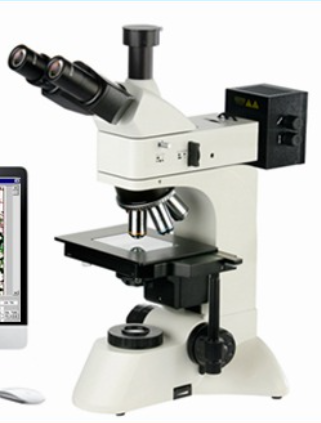

As a professional supplier, Mikrosize provides metallographic microscopes with excellent performance. These microscopes, when combined with the metallographic image analysis software developed by Shanghai Dianying Optics, serve as professional instruments for metallographic analysis of materials like cast iron (gray mouth, ductile iron) and cast steel. The system integrates computer and information technology, digital imaging devices, and computer-aided metallographic analysis software, enabling direct acquisition of metallographic images from the microscope, which are stored in digital format in the computer. It further processes and analyzes the images to calculate required detection parameters, with results printable in report form.

The metallographic analysis technology of these microscopes can systematically measure and evaluate results quickly and accurately, complying with national standards (GB) and relevant industry standards (JB/YB/HB/QC/DL/DJ/STM, etc.). The system features a fully Chinese interface (with an English version optional), which is concise, clear, and easy to operate. Users can master it after simple training or by referring to the user manual, facilitating the learning of metallographic knowledge and popularizing operations.

The system includes main functions such as image editing (with over ten functions including image acquisition and storage), image processing (like image enhancement and overlay), image measurement (dozens of functions such as perimeter, area, and percentage content measurement), and various output methods (data table, histogram, image printing).

It also comes with specific metallographic software packages from Mikrosize, covering grain size measurement rating, non-metallic inclusion measurement and rating, pearlite and ferrite content measurement and rating, ductile iron graphite spheroidization rate measurement, thickness measurement of decarburization layer, carburization layer, and surface coating, phase area measurement in ferritic and austenitic stainless steels, analysis of primary and eutectic silicon in high silicon aluminum alloys, and titanium alloy material analysis, etc. Additionally, Mikrosize's offering contains nearly 200 metallographic diagrams of commonly used metal materials for comparison, meeting the metallographic analysis and inspection needs of most units. For new materials and imported grade materials with unentered evaluation standards, Mikrosize provides customization and entry services.
