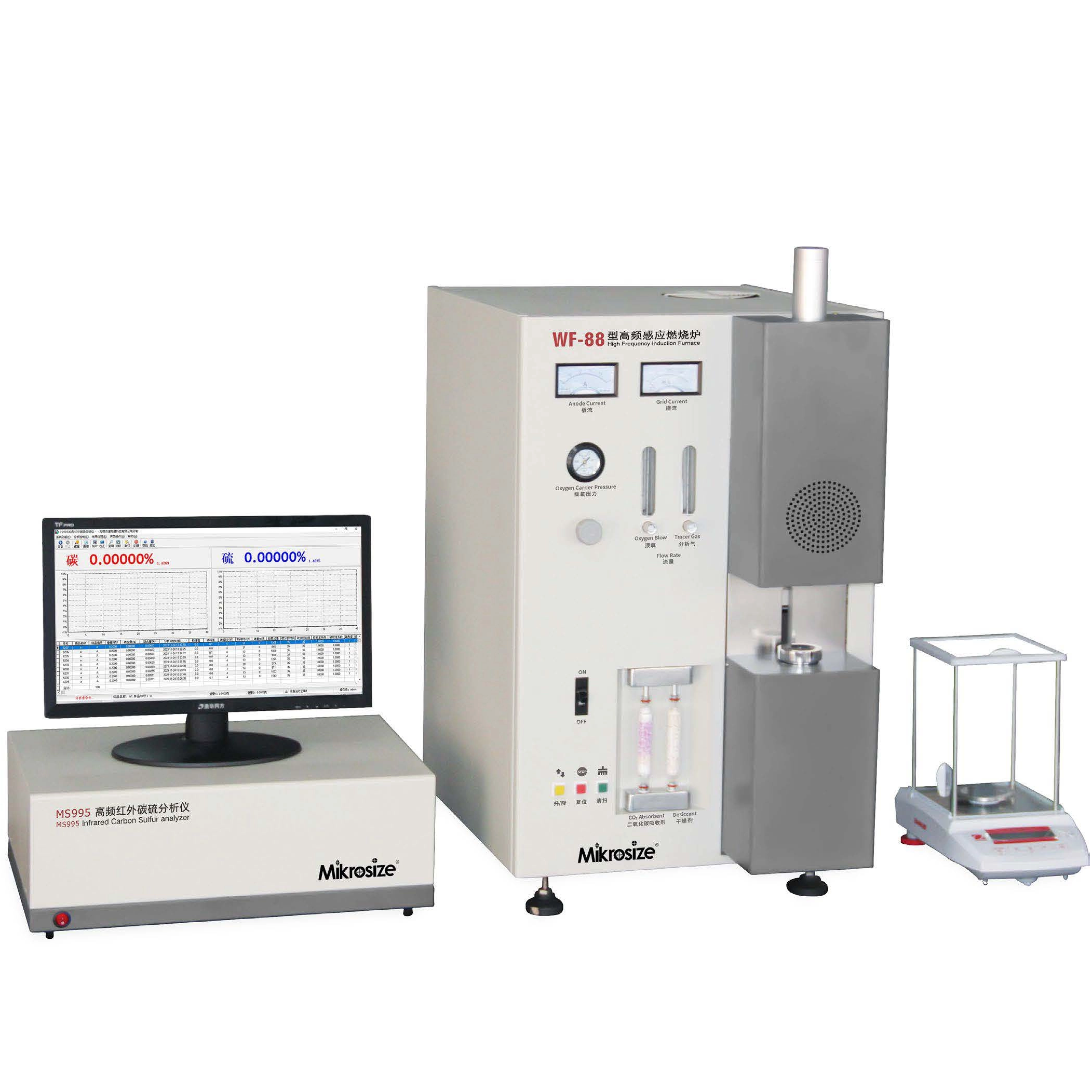

MS995 High - frequency Infrared Carbon and Sulfur Analyzer

Detection Principle

High - frequency furnace combustion - infrared absorption method

Detection Range

Carbon: 0.0001% - 15% (Extendable to 99.999%)

Sulfur: 0.0001% - 5% (Extendable to 99.999%)

Weighing Amount (Solid Steel Sample)

Standard 0.5g, supports variable - weight weighing with automatic/manual weight input.

Analysis Precision

Carbon and sulfur detection meet the GB/T20123-2006/ISO15350:2000 standard

Sensitivity(Minimum Reading)

C/S: 0.1ppm

Analysis Time

Adjustable from 20 to 100 seconds (usually 35 seconds)

Working Cycle

Continuous 24-hour operation

High - frequency Induction Furnace

1.The high-frequency furnace has an output power of ≥2500W and a frequency of 18MHz.

2.It is equipped with automatic leakage detection and has over-time and over-current alarm functions.

3.The furnace temperature can be adjusted via current/voltage/power/selection method, making it suitable for different materials.

4.The gas circuit features a multi - stage pressure stabilization design, ensuring the stability of the analysis gas flow, and a multi - channel oxygen supply design to meet the oxygen needs for various materials.

5.The induction coil is coated with special material to eliminate sparking caused by oxidation.

6.It uses military - grade electronic tubes and vacuum capacitors, and all pneumatic components are from international top brands.

Dust Collector

0.4 - micron ultra - micro - pore metal filter to ensure complete separation of dust and gas.

Furnace Head Heating

Improve sulfur conversion rate for stable analysis results

Dust Removal System

Automatic Cleaning: Reduces dust impact on analysis results.

Dust Removal System:Multi - stage filtration.

Ash Removal System:High - pressure ash removal to thoroughly clean dust from pipes

Detection System

Modular electronic circuit design with high - integration surface - mount technology for stability.

24 - bit high - speed AD data acquisition board for precise sampling and strong anti - interference.

USB2.0 communication between upper and lower computers, plus an innovative optical fiber control interface for fast, interference - resistant data transfer.

Integrated linear switch power supply with stable output and low failure rate.

Custom platinum infrared light source with long - lasting heating and efficient spectral characteristics.

Gold - plated carbon and sulfur analysis pool with a high - precision pyroelectric infrared detector.

Custom stepper motor with good thermal stability and a continuous service life of 100,000 hours.

Analysis Channels

Channel management function allows unlimited addition, deletion, and editing of carbon and sulfur channels

Analysis Functions

Dynamic data integration during analysis with 24 samples per second to enhance sensitivity and accuracy.

Sample management enables editing of sample names and identifiers, with options to add/delete samples.

Multi - user management system where administrators can set different user permissions

Display Functions

Independent curve frames for carbon and sulfur display real - time data and release curves dynamically

Data Processing

Analysis results stored in ACCESS database, saving all carbon/sulfur data and curves.

Flexible query options based on time, operator, sample name, etc.

Functions include curve/data storage, background correction, parameter setup, channel selection, statistical analysis, result correction, curve comparison, etc.

Software supports generating and fitting carbon/sulfur working curves.

Pre - installed full - range linearity library for direct analysis results, minimizing calibration and improving efficiency.

Printing Functions

Diverse printing modes (laboratory and inspection station) with customizable formats

Self - diagnosis Functions

System diagnosis detects the sealing of the furnace head and gas chamber

MS995 Infrared Carbon and Sulfur Analyzer

1 unit

WF-88 High - frequency Induction Furnace

1 unit

Brand: 1/10,000 Balance(Optional)

1 set

Lenovo Computer (23.8 - inch LCD)

1 set

Lenovo Laser Printer

1 unit

Oxygen Pressure Reducer

1 pc

Tungsten Flux (Ultra - low Carbon and Sulfur)

1 kg

Pure Iron Flux (Ultra - low Carbon and Sulfur)

2 bottle

Quartz Combustion Tube

2 pcs

Dust - removal Tube

2 pcs

Copper Crucible Support

1 pc

Porcelain Crucible Support

2 pcs

Porcelain Crucible 1000pc/carton

1 carton

Stainless Steel Round Brush

3 pcs

Steel Wire Brush

1 pc

Tweezers

1 pc

Sample Spoon

1 set

Flux Scoop

1 pc

Combined Tools

1 set

PVC Pipe Φ4mm×6mm

10 meters

Silicone Ring 41mm×6.5mm

2 pcs

O - ring 11mm×2.5mm

4 pcs

O - ring 37mm×3.1mm

4 pcs

Vacuum Silicone Grease

1 bottle

Fuses 15A, 32A

4 of each type

Multi - socket 10A

1 pc

Magnesium Perchlorate 100g

1 bottle

Alkaline Asbestos 100g

1 bottle

Optical Fiber 2m

1 pc

USB Cable 1.5m

1 pc

Power Cord (National Standard) 10A

1 pc

Silicone Ash - removal Tube

1 pc

Y - type Three - way Tube

2 pcs

Quartz Cotton

5 g

Mouse Pad

1 pc

Documents

1 copy

Oxygen

Purity＞99.5%, used for combustion and power.

Large Adjustable Wrench

For oxygen pressure reducer installation/removal.

Electricity

AC220V/50Hz, 2.5KVA power, well - grounded.

Air - conditioning

Lab temperature controlled between 5 - 25℃.
